2016 Kato HD308US

1/9
Used Kato HD308US Excavator 2016 Model / 1

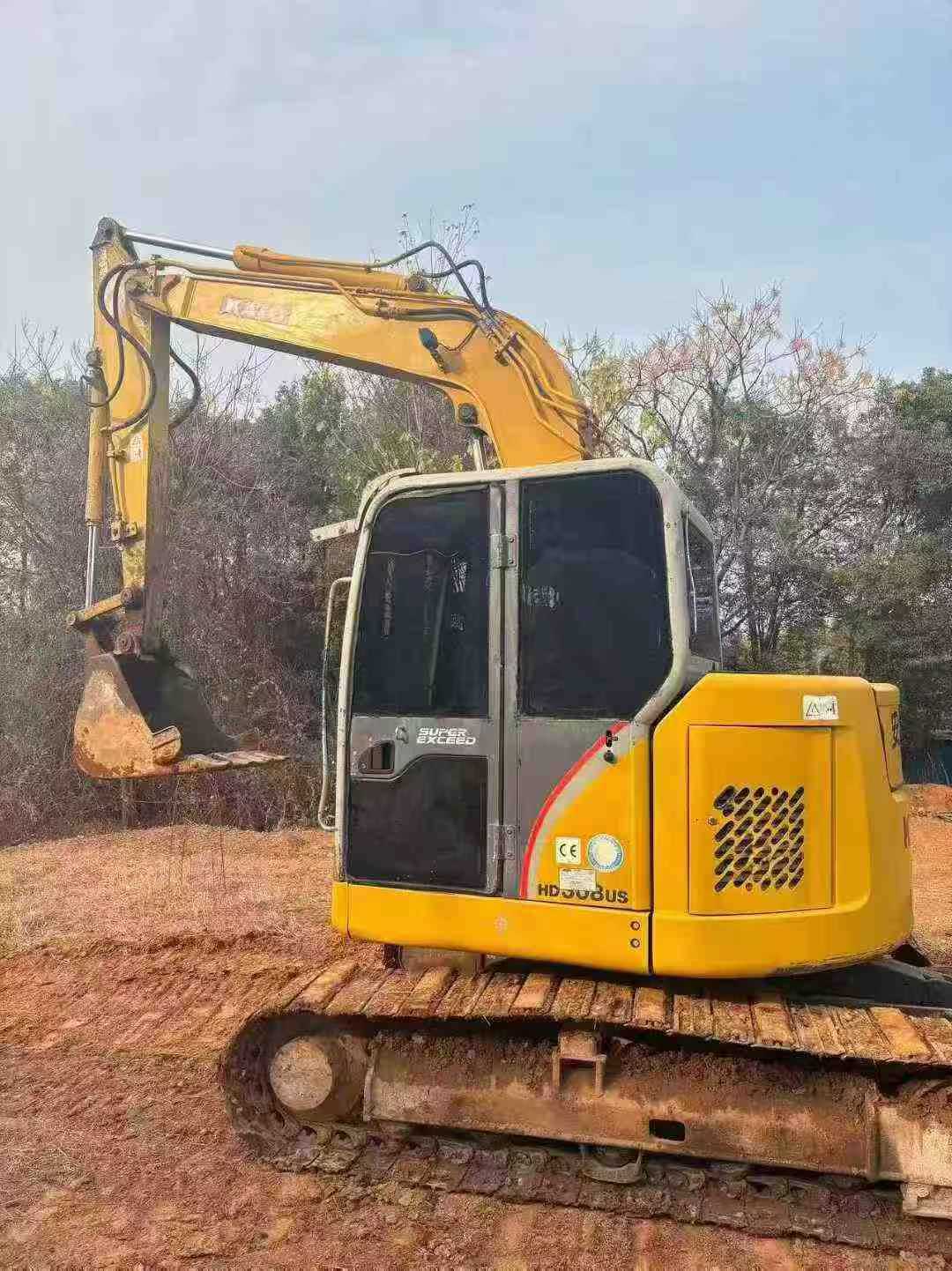

Used Kato HD308US Excavator 2016 Model / 2
Used Kato HD308US Excavator 2016 Model / 3

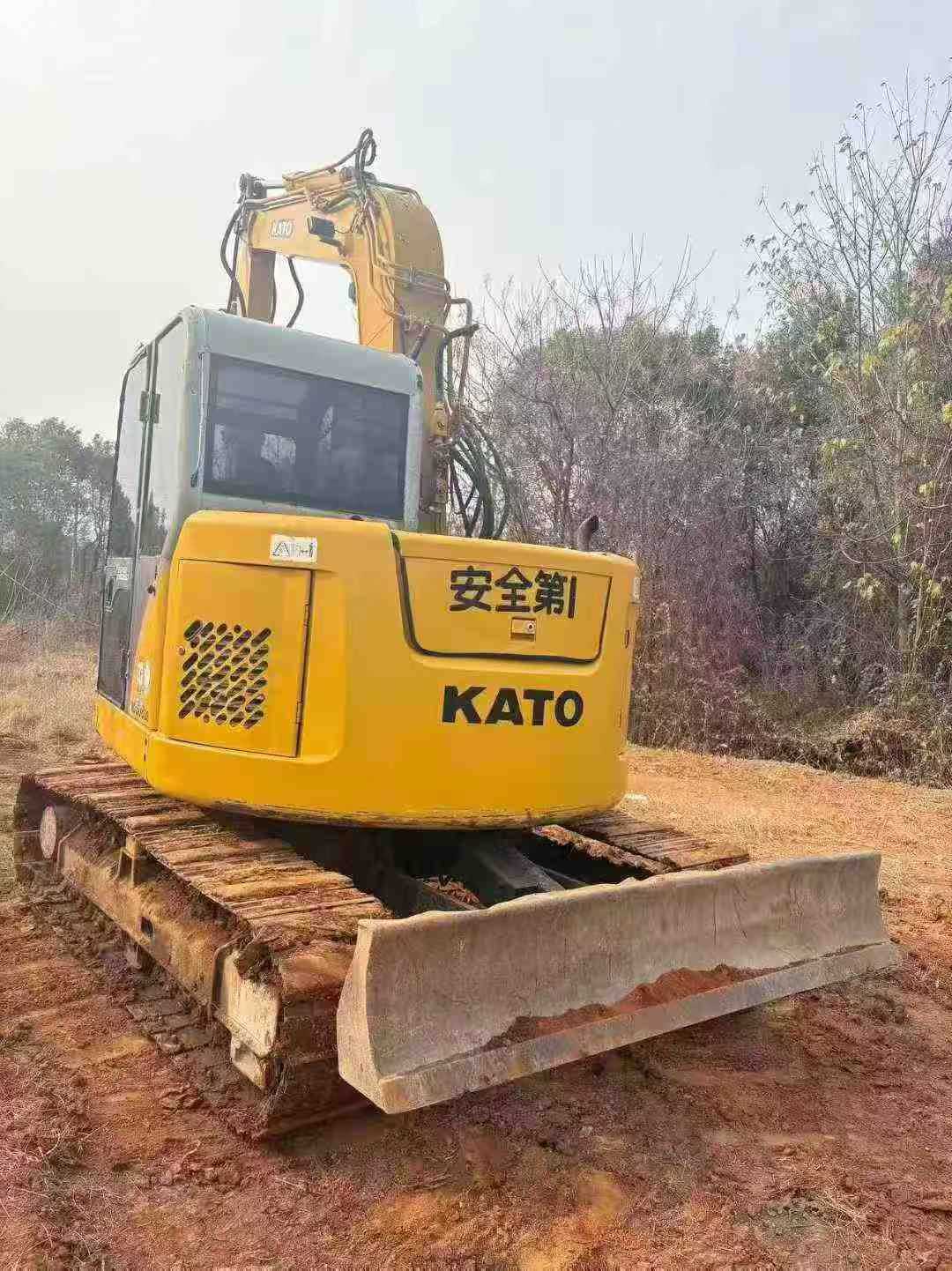

Used Kato HD308US Excavator 2016 Model / 4

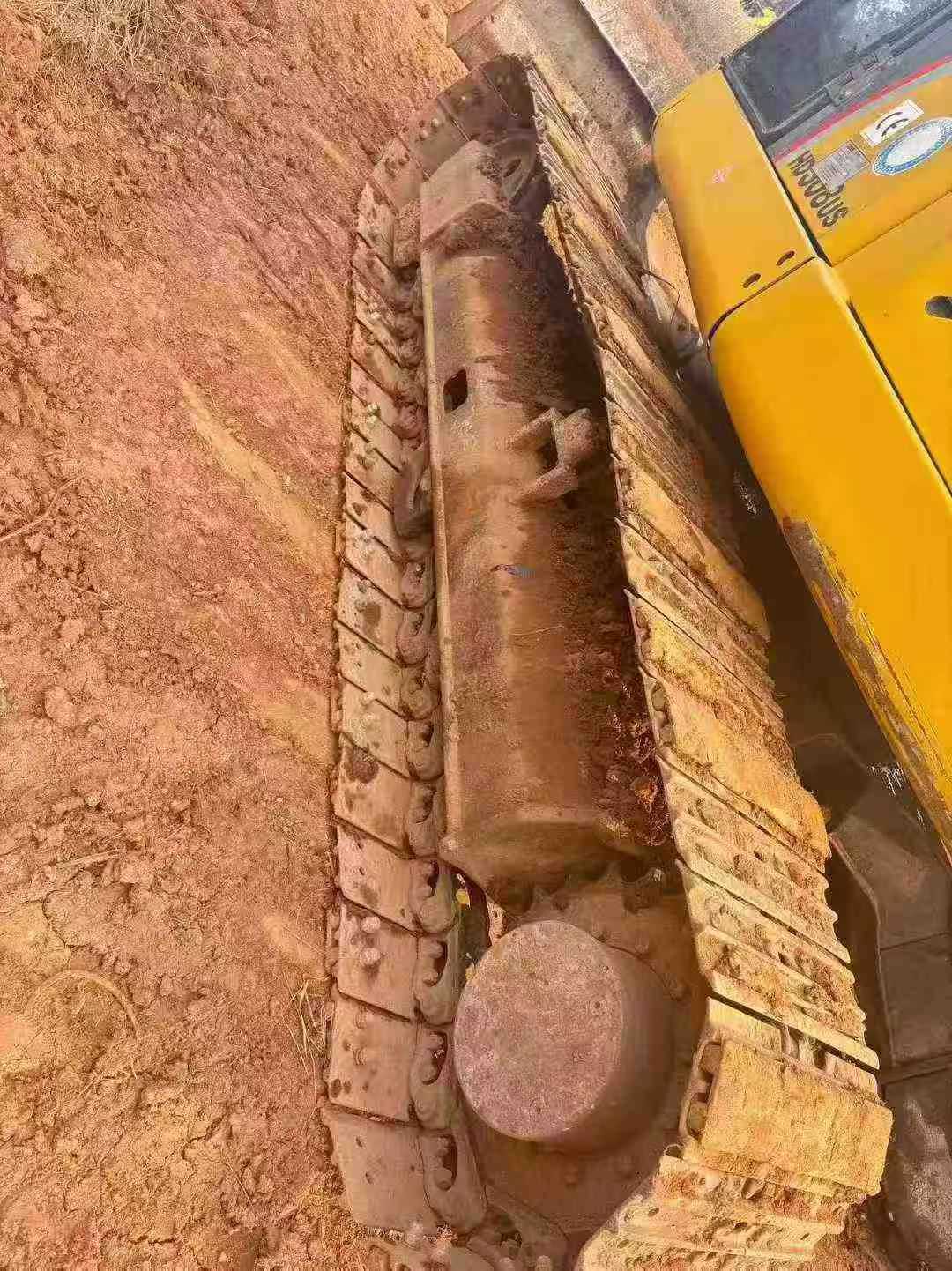

Used Kato HD308US Excavator 2016 Model / 5

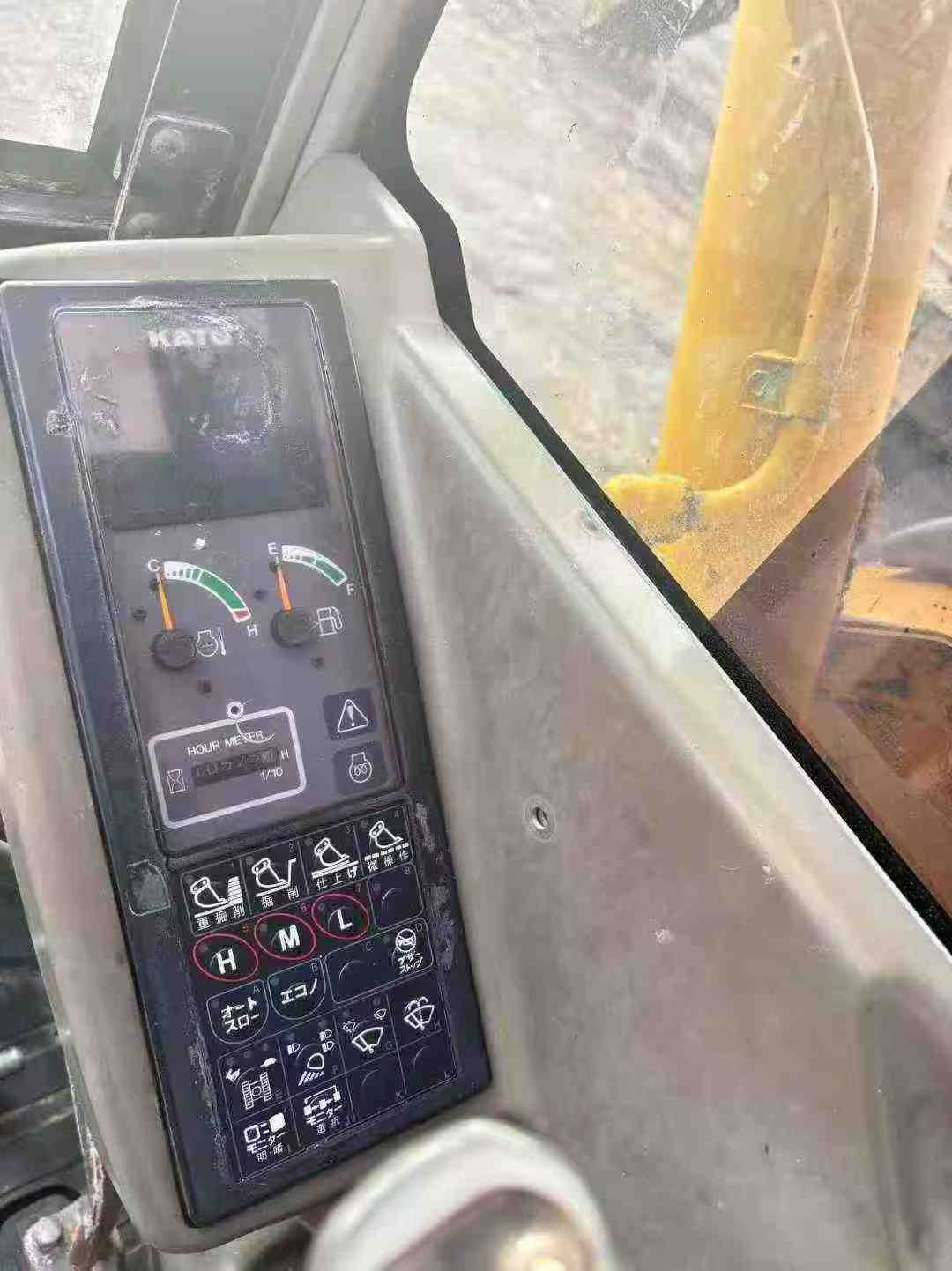

Used Kato HD308US Excavator 2016 Model / 6
Used Kato HD308US Excavator 2016 Model / 7
Used Kato HD308US Excavator 2016 Model / 8

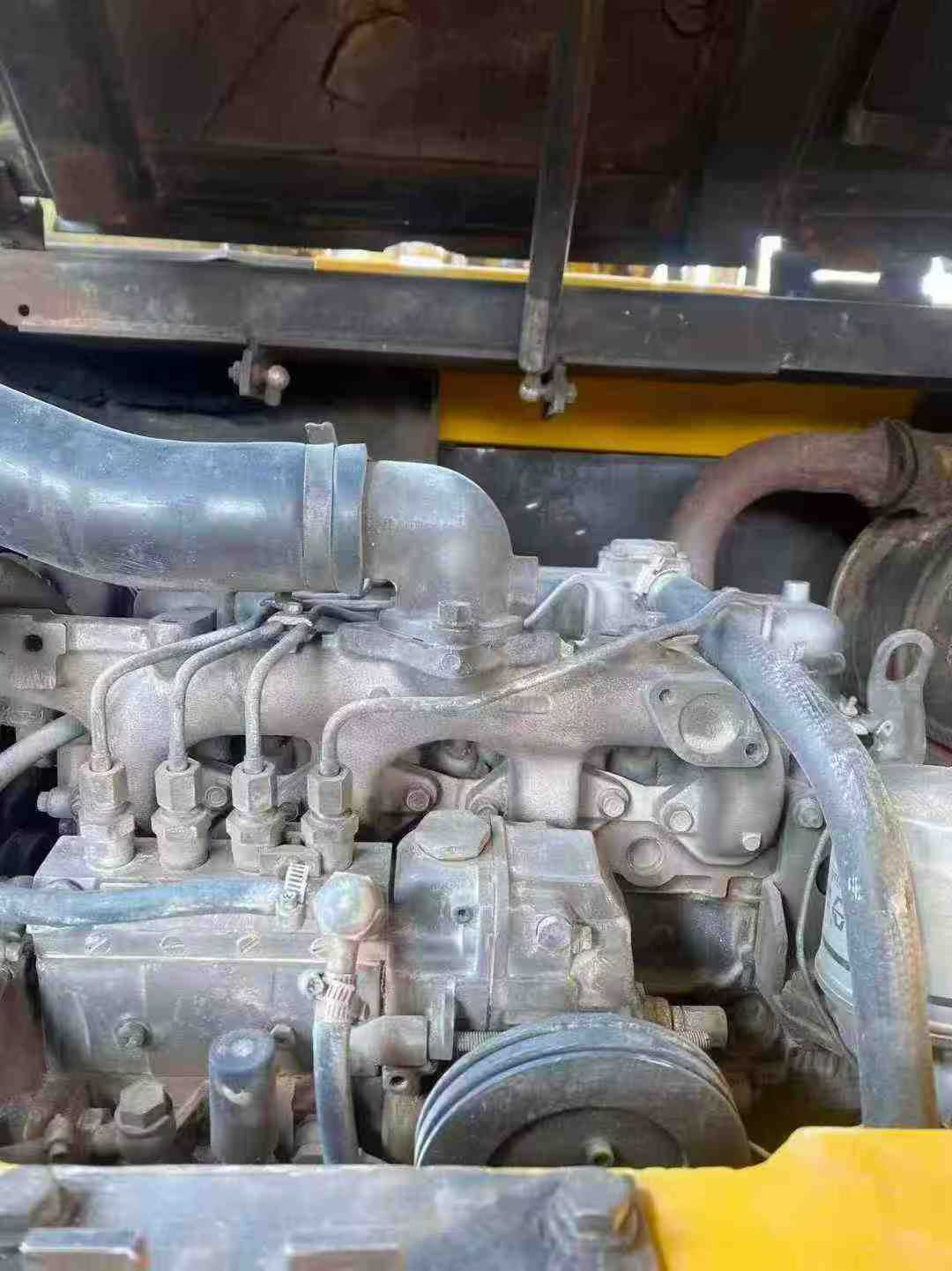

Used Kato HD308US Excavator 2016 Model / 9

Product Description

We present to you a high-quality second-hand Kato HD308US excavator. This equipment is imported in its original form and is from a Shenzhen stall. Its estimated working time is only 4,000 hours, ensuring its excellent mechanical condition and long service life. This excavator is equipped with an ISUZU engine, which is renowned for its fuel efficiency, durability and powerful performance. It not only meets the operational requirements under various complex working conditions, but also effectively reduces operating costs. More importantly, this machine emits clean emissions without generating a single bit of waste gas, which is in line with the modern concept of green and environmentally friendly construction. In terms of the hydraulic system, the Kato HD308US adopts an advanced combination design of hydraulic pumps and hydraulic motors, ensuring smooth and rapid operation with high response sensitivity. Both the digging force and the rotation speed have reached the leading level in the industry. In addition, all chassis components are in good condition, with no obvious signs of wear or damage, which further enhances the stability of the entire machine. In conclusion, this genuine Kato HD308US excavator, which is exempt from inspection

SpecificationsValue
No.978894
Tonnage (tons)8
Working weight (kg)7600
Bucket capacity (m³)0.28
Boom length (mm)3830
Rod length (mm)1620
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU CC-4JG1
Rated power (kw/rpm)40.5/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)95.4 x 107
Number of cylinders (PCS)4
Displacement (L)3.059
Ground specific pressure (Kpa)31.4
Rotation speed (rpm)12.5
Climbing ability (%)70
Bucket digging force (kN)61.4
Rod digging force (kN)42.2
Travel speed (km/h)2.0/3.4/5.0
Rotary hydraulic motor typeConstant piston motor
Type of walking hydraulic motorVariable capacity piston motor
Maximum flow of main pump (l/min)77.7 x 2
Traveling Hydraulic Circuit (Mpa)31.4
Main pump typeVariable capacity piston pump ×2+ gear pump
Working Hydraulic Circuit (Mpa)29.4
Bucket cylinders - Number × diameter × stroke (mm)1-85 x 745
Bucket rod cylinders - Number × diameter × stroke (mm)1-95 x 920
Boom cylinders - Number × diameter × stroke (mm)1-105 x 960
Fuel Tank (L)100
Hydraulic Tank (L)48
Engine Oil changes (L)9.6
Coolant (L)11
Hydraulic System (L)95
Total transport length (mm)6300
Total transport width (mm)2300
Total transport height (mm)2600
Full cab height (mm)2600
Counterweight ground clearance (mm)740
Minimum turning radius of front working device (mm)1630
Back end turning radius (mm)1190
Total track length (mm)2850
Track gauge (mm)1850
Track plate width (mm)450
Total track width (mm)2300
Track ground length (mm)2260
Maximum digging radius (mm)6470
Maximum digging depth (mm)4120
Maximum excavation height (mm)7430
Maximum unloading height (mm)5320
Maximum vertical digging depth (mm)3620
Bulldozer lift or depth (mm)430/330
Dodging plate width × height (mm)2300 x 360
see more

Overview

No.978894

Brand Name:

Kato

Model Number:

HD308US

Year:

2016

Location:

Jiangxi China
