| Specifications | Value |
|---|---|
| No. | 966073 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19800 |
| Bucket capacity (m³) | Standard 0.8/ Enhanced 0.9 |
| Boom length (mm) | 5630 |
| Rod length (mm) | 2930 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TLC1B |
| Rated power (kw/rpm) | 110/2050 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 104 x 115 |
| Maximum torque (N.m) | 580N*m/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.86 |
| Working form | Intercooler; Turbocharged engine; Direct injection |
| Ground specific pressure (Kpa) | 44 |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | Standard 136/ High power 144 |
| Rod digging force (kN) | Standard 99/ High Power 104 |
| Maximum tractive force (kN) | 179.5 |
| Travel speed (km/h) | 5.5/3.6 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor with reducers on both sides |
| Maximum flow of main pump (l/min) | 235 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Main pump type | Variable capacity piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1090 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1630 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 1315 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 156 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2820 |
| Total transport height (mm) | 2970 (to hose top) |
| Full cab height (mm) | 2860 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 4650 |
| Minimum turning radius of front working device (mm) | 3460 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2220 |
| Track plate width (mm) | 600/700/800 |
| Total track width (mm) | 2820/2920/3020 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9910 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 6120 |
Description

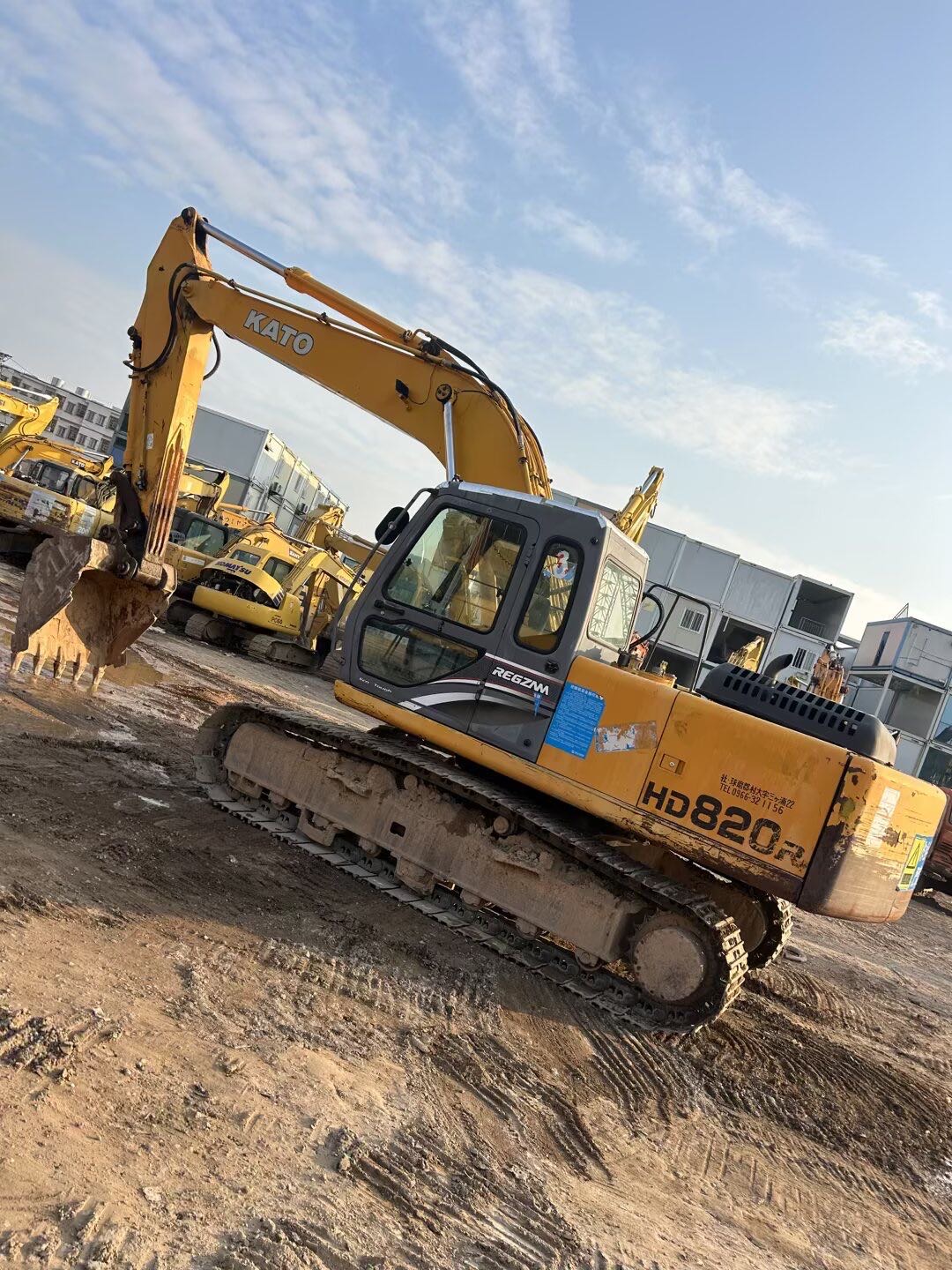

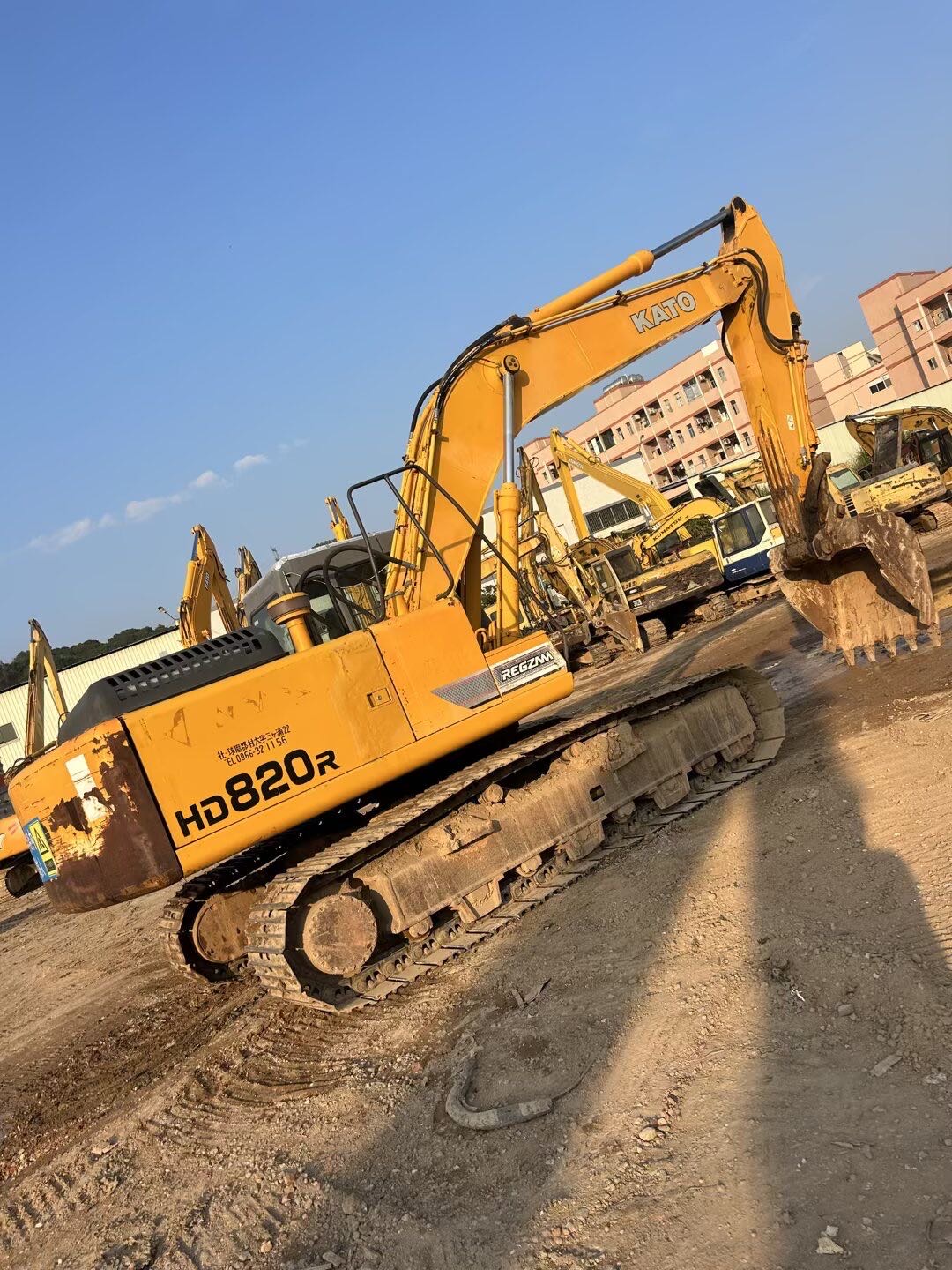

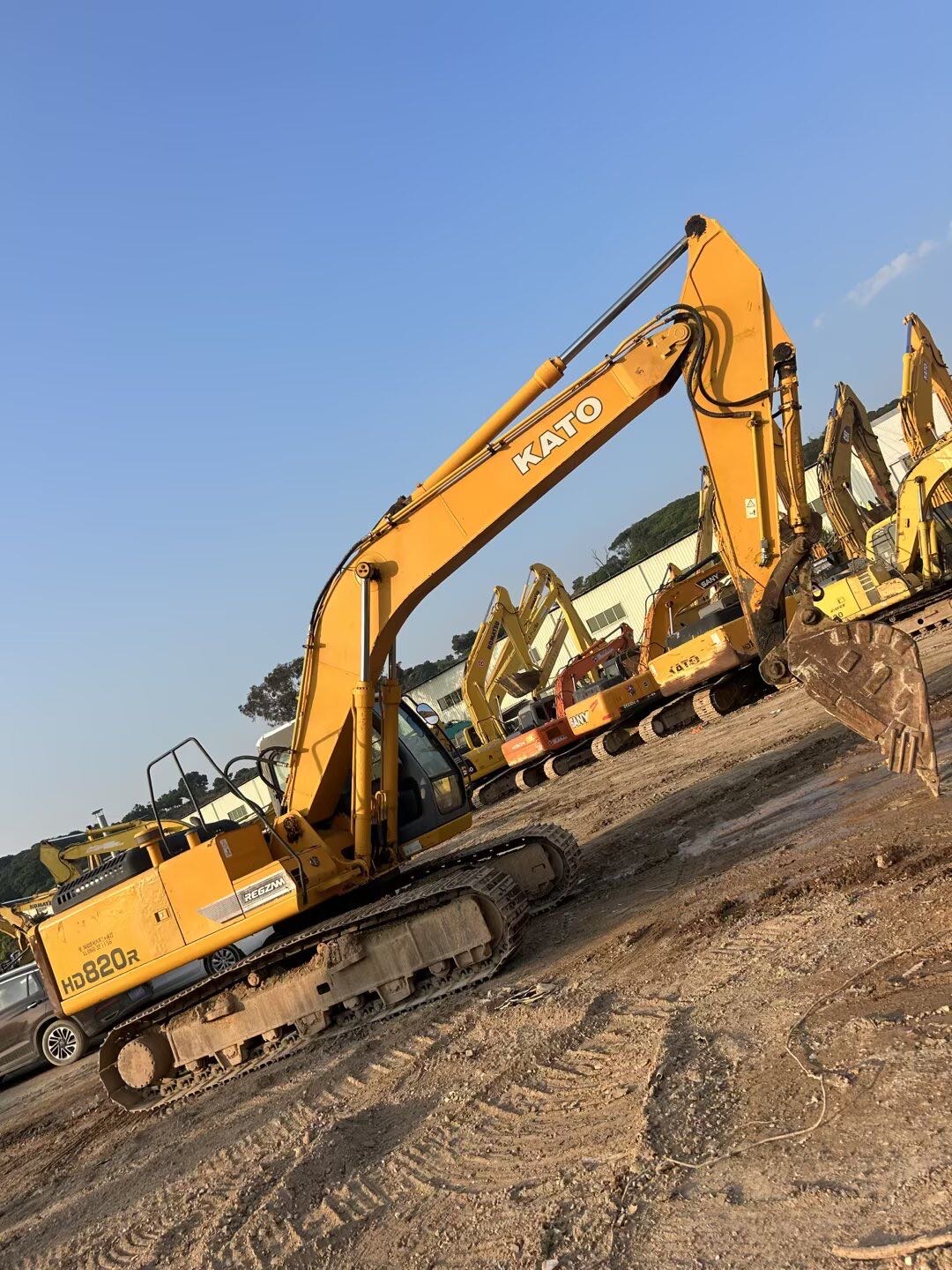

"Recommendation of Premium Second-hand Excavators This second-hand excavator is in excellent condition. Its exterior is clean and undamaged, and its internal structure is as good as new. Overall, its condition is comparable to that of a brand-new car. It is not only aesthetically pleasing in appearance, but more importantly, it has outstanding performance and can be directly put into use on construction sites without any additional maintenance or debugging, greatly saving your time and cost. The cumulative working time of this excavator is only about 2,000 hours, which is far lower than the average service life of similar equipment on the market. This means that its main components are still in the best working condition. The power system is equipped with an original imported engine, which runs smoothly and forcefully, and has good fuel economy. It can handle complex terrains and high-intensity operations with ease. The hydraulic system has undergone professional testing and maintenance, ensuring the flexibility and accuracy of operation. Whether it is excavation, loading or crushing operations, it performs outstandingly and meets various construction requirements. Currently, this machine is undergoing regular professional maintenan
