2017 Kato HD820V

1/8

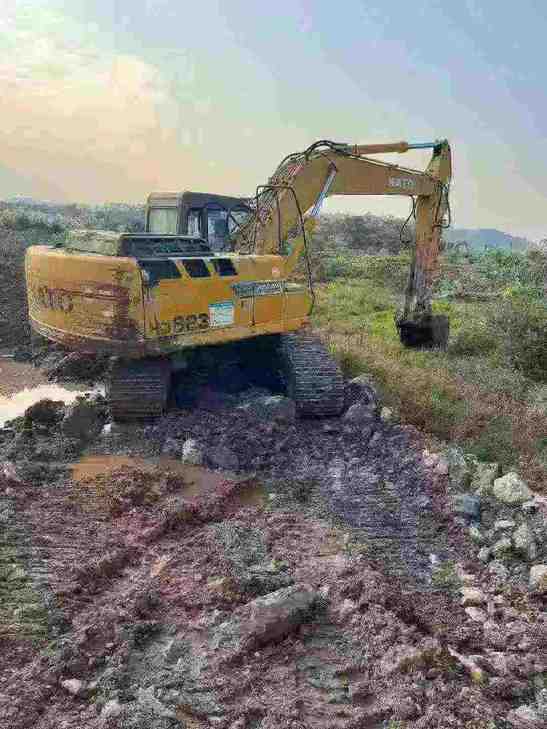

Used Kato HD820V Excavator 2017 Model / 1
Used Kato HD820V Excavator 2017 Model / 2
Used Kato HD820V Excavator 2017 Model / 3
Used Kato HD820V Excavator 2017 Model / 4
Used Kato HD820V Excavator 2017 Model / 5
Used Kato HD820V Excavator 2017 Model / 6
Used Kato HD820V Excavator 2017 Model / 7
Used Kato HD820V Excavator 2017 Model / 8

Product Description

There is currently a second-hand Kato 820V excavator produced in 2017, with a cumulative working time of approximately 5,000 hours. It is in good overall condition and is priced at only 190,000 yuan. This device is equipped with a highly efficient and reliable engine, model Cummins 6BTAA-5.9-C315, with a power output of 140 kilowatts (approximately 190 horsepower). It features strong power output and smooth operation performance, ensuring outstanding performance under various complex working conditions. In terms of the hydraulic system, this excavator is equipped with advanced variable piston pumps and high-quality hydraulic motors, which can provide stable and efficient hydraulic power, meeting different operation requirements while ensuring the flexibility and accuracy of operation. In addition, its outstanding excavation power and rapid response capability have significantly enhanced work efficiency, enabling it to handle both earthwork excavation and crushing operations with ease. As a second-hand construction machinery with extremely high cost performance, this Kato 820V excavator not only features a sturdy and durable structural design, but also pays special attention to details, such as a spacious and comfortable cab and a hum

SpecificationsValue
No.976846
Tonnage (tons)20
Working weight (kg)19900
Bucket capacity (m³)0.45-1.1
Boom length (mm)5630
Rod length (mm)2930
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMitsubishi 4M50-TLE3A
Rated power (kw/rpm)112.5/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)114 x 120
Number of cylinders (PCS)4
Displacement (L)4.9
Ground specific pressure (Kpa)45
Rotation speed (rpm)13.5
Climbing ability (%)70
Bucket digging force (kN)150 (Standard mode) /159 (Extra mode)
Rod digging force (kN)109 (Standard mode) /115 (Extra mode)
Travel speed (km/h)3.6/5.5
Rotary hydraulic motor typeConstant piston motor
Type of walking hydraulic motorVariable capacity piston motor
Maximum flow of main pump (l/min)235 x 2
Traveling Hydraulic Circuit (Mpa)36.3
Main pump typeVariable axial piston pump ×2+ gear pump
Working Hydraulic Circuit (Mpa)34.3
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1090
Bucket rod cylinders - Number × diameter × stroke (mm)1-135 x 1630
Boom cylinders - Number × diameter × stroke (mm)2-125 x 1315
Fuel Tank (L)420
Hydraulic Tank (L)165
Engine Oil changes (L)20.5
Coolant (L)25
Hydraulic System (L)260
Total transport length (mm)9450
Total transport width (mm)2820
Total transport height (mm)2960
Full cab height (mm)2910
Counterweight ground clearance (mm)1010
Minimum ground clearance (mm)465
Minimum turning radius of front working device (mm)3460
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2220
Track plate width (mm)600
Total track width (mm)2820
Track ground length (mm)3370
Maximum digging radius (mm)9910
Maximum digging depth (mm)6700
Maximum excavation height (mm)9760
Maximum unloading height (mm)6830
Maximum vertical digging depth (mm)5870
see more

Overview

No.976846

Brand Name:

Kato

Model Number:

HD820V

Year:

2017

Location:

Sichuan China
