Product Description

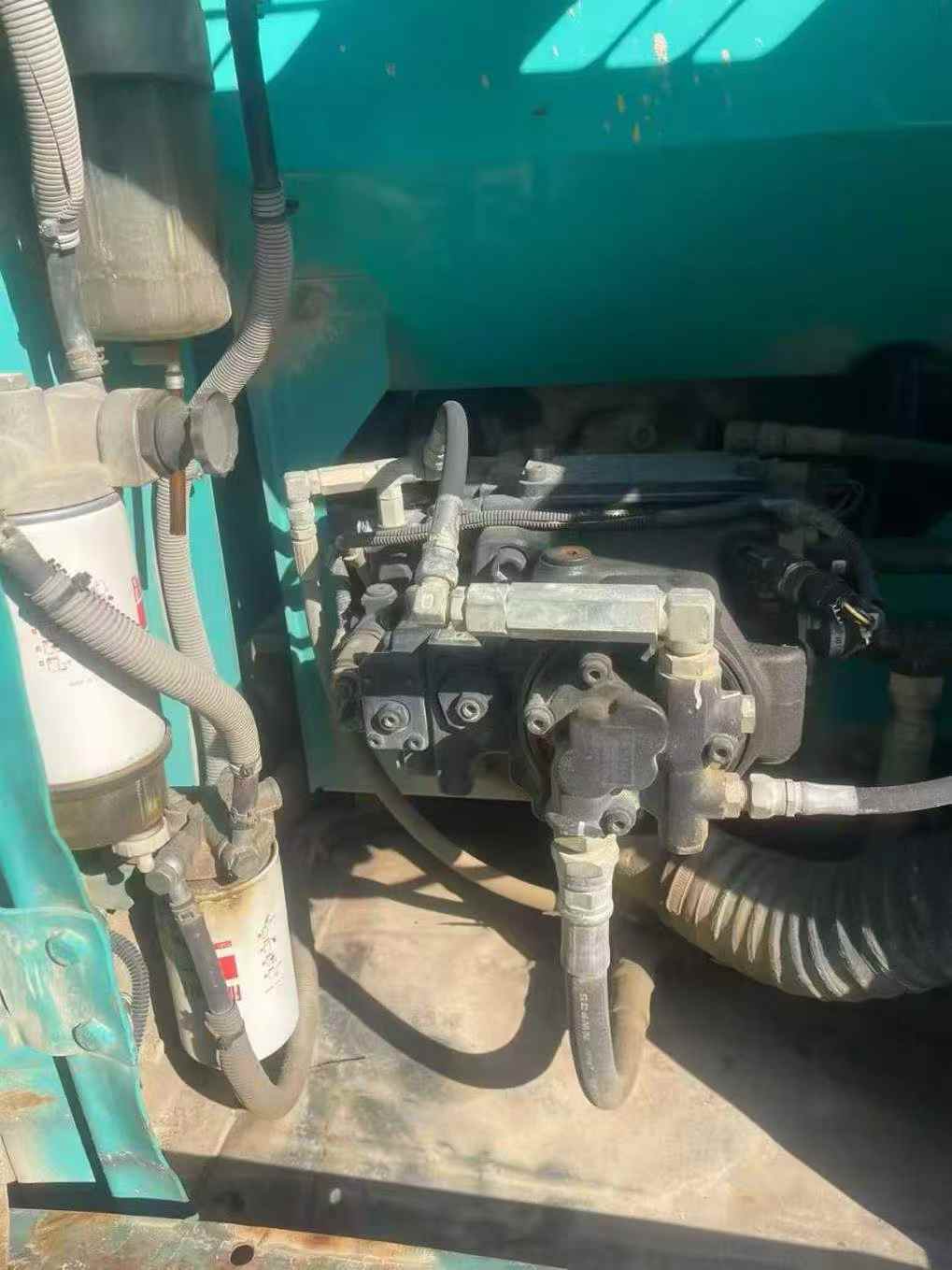

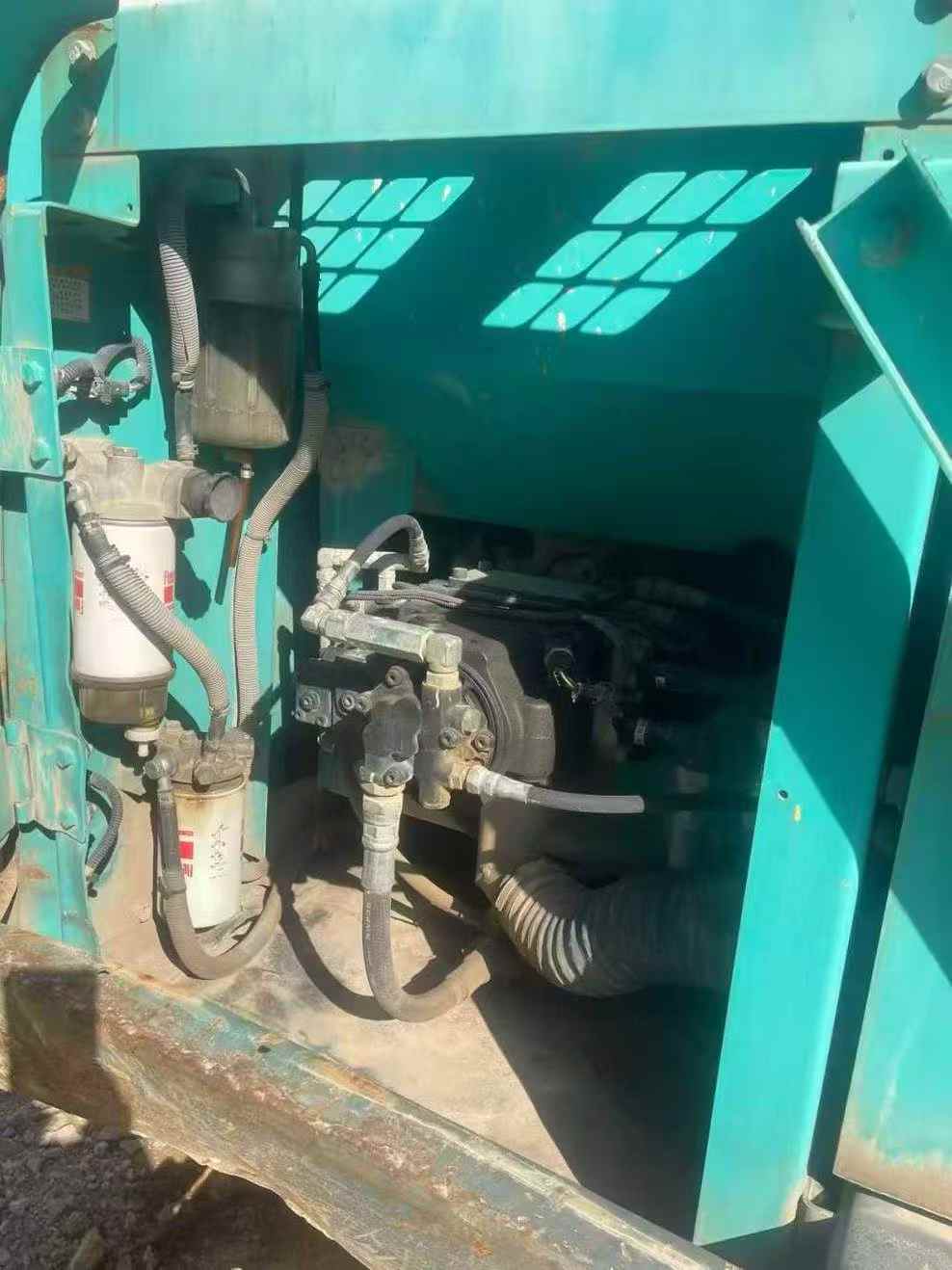

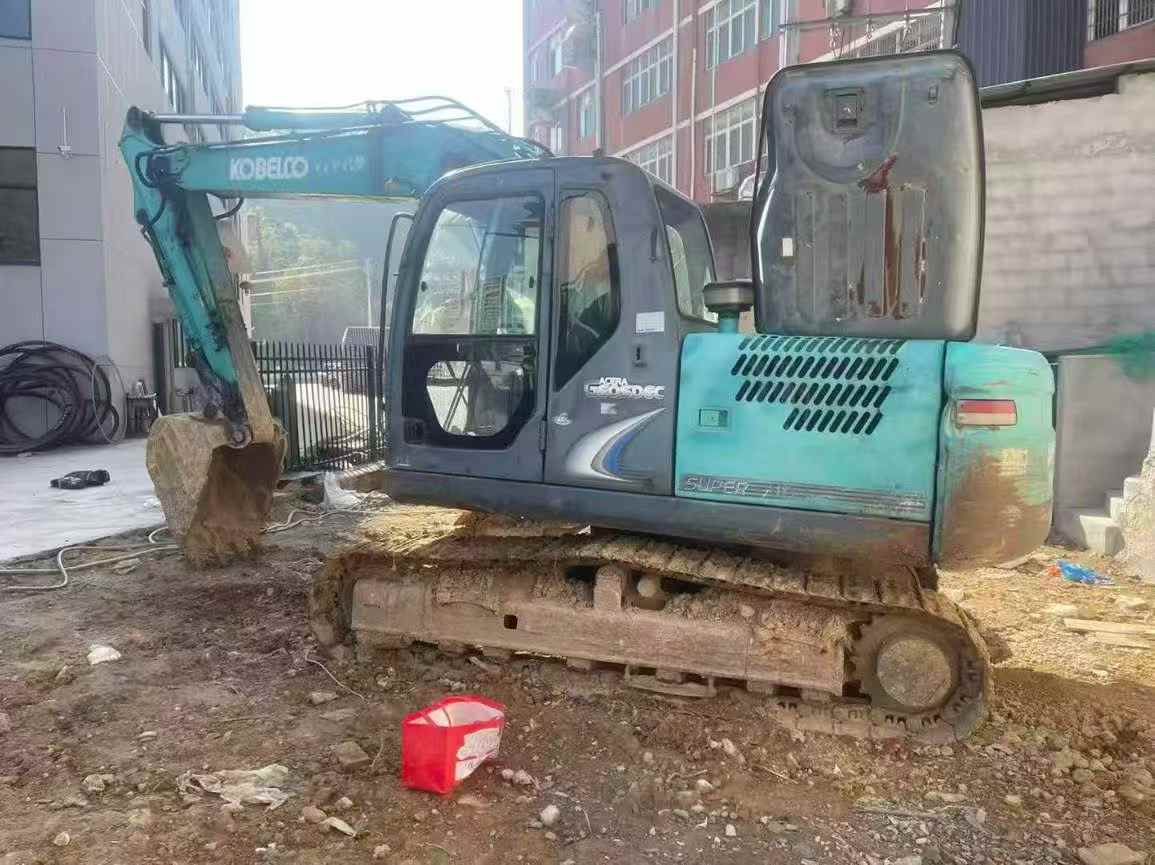

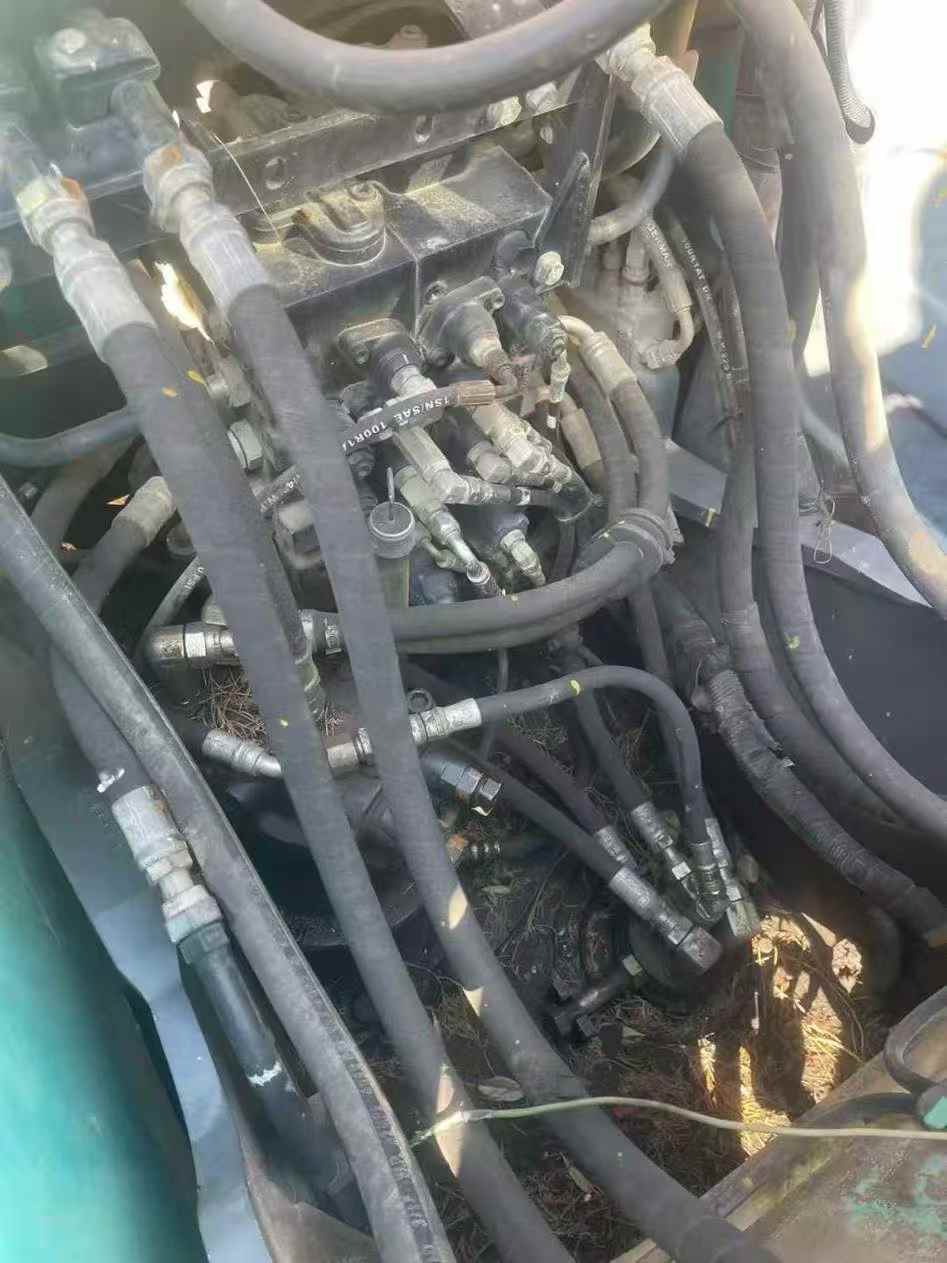

There is currently a second-hand Kobelco SK130-8 excavator with outstanding performance for sale. This equipment enjoys an extremely high reputation in the market for its efficient and stable working performance and excellent durability. This excavator has a cumulative working time of approximately 5,000 hours (possibly), making it highly suitable for users who need high-intensity operations but also wish to control costs. In terms of power, it is equipped with an efficient inline four-cylinder water-cooled turbocharged engine (expected model J04E-TA), with a maximum output power of up to 75kW. It can provide strong power while maintaining a low fuel consumption level. This means that in all kinds of complex working conditions, you can enjoy an operation experience that is both economical and environmentally friendly. The hydraulic system adopts an advanced combination design of variable piston pumps and high-pressure gear pumps, in conjunction with high-performance hydraulic motors, which can achieve rapid response and smooth operation. In addition, its optimized oil circuit layout effectively reduces internal friction losses and further enhances the overall efficiency of the machine. This excavator is also equipped with a spacious
| Specifications | Value |
|---|---|
| No. | 976511 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 2870 |
| Track plate width (mm) | 500/600/700 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Dodging plate width × height (mm) | 500 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
