Product Description

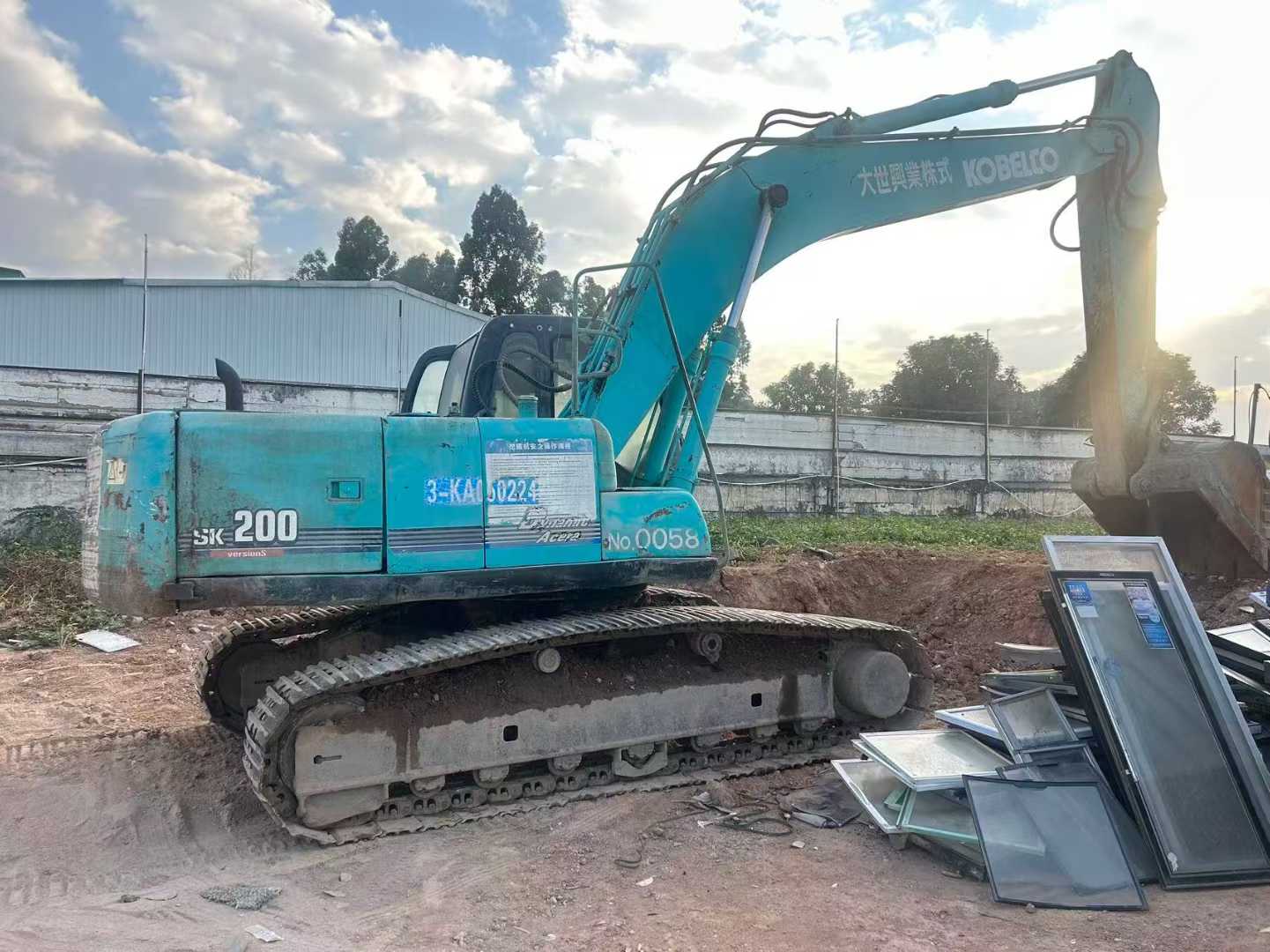

【 Kobe Steel 200YN10 Second-hand Excavator 】 This second-hand Kobelco 200YN10 excavator is one of the highly praised medium-sized excavators in the market. It has a working time of only 2,600 hours, which is half the service life of similar models. This means that this machine is in the best working condition, not only with stable performance but also with proper maintenance, capable of providing long-term reliable services for your engineering projects. In terms of power, this aircraft is equipped with a highly efficient and energy-saving Cummins diesel engine, with a rated power of 110kW. It features strong power output and excellent fuel economy, capable of easily handling various challenges even under complex working conditions. Meanwhile, the advanced electronic control system ensures that the engine operates smoothly with low noise, meeting the latest environmental protection emission standards, making your construction process more worry-free and reassuring. In terms of the hydraulic system, the unique HIOS-III intelligent hydraulic control system of Kobelco is adopted. By precisely controlling the matching relationship between the main pump and the actuator, it achieves rapid response and smooth operation, significantly enha
| Specifications | Value |
|---|---|
| No. | 971646 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20000 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

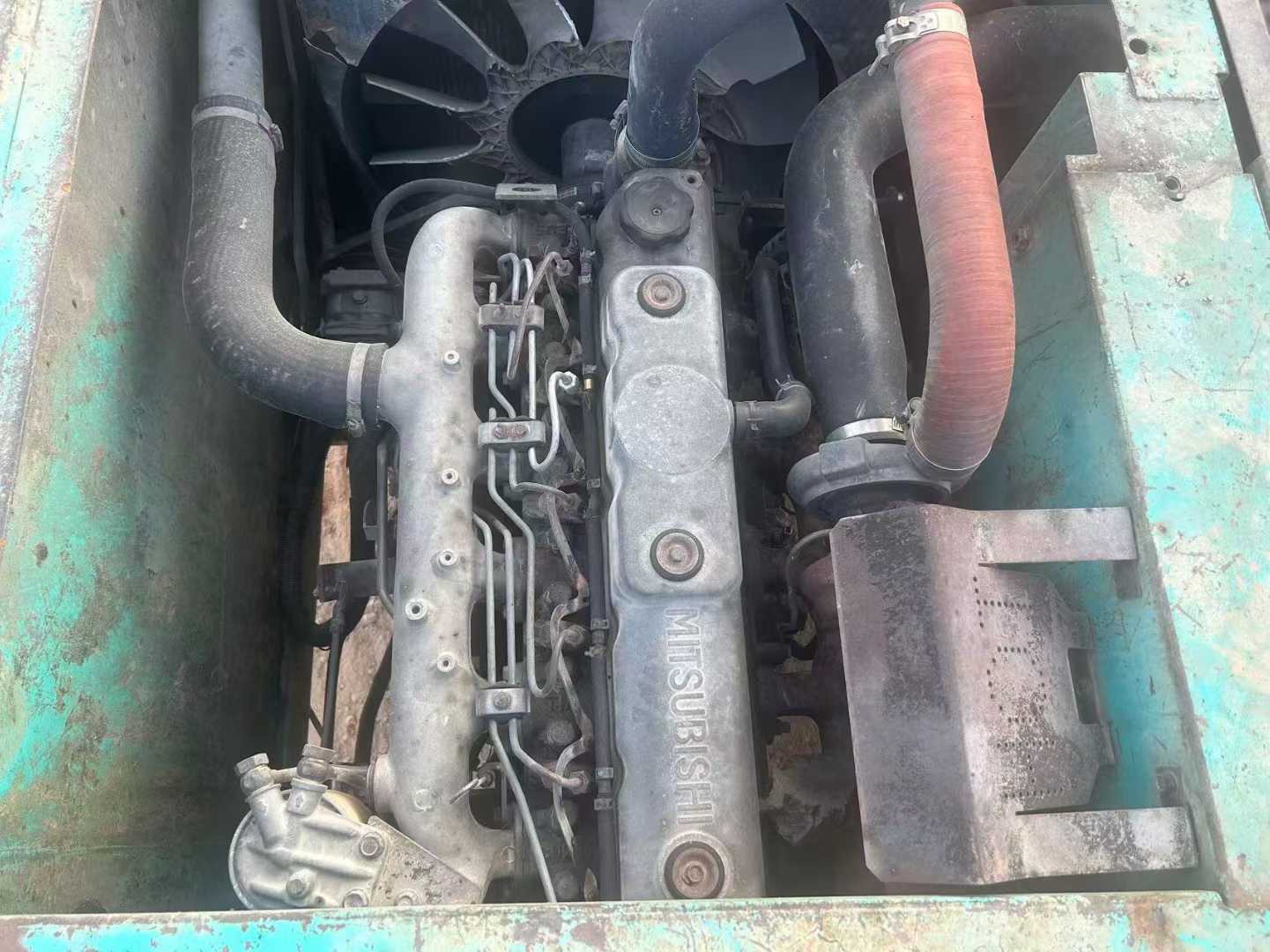

| Engine type | Mitsubishi 6D34-TLU2D |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Working form | Water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45; 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143; Supercharged state: 157 |
| Rod digging force (kN) | 97.1; Supercharged state: 107 |
| Travel speed (km/h) | 1 speed: 4.0 2 speed :6.0 |
| Main overflow set pressure (Mpa) | 34.3; Supercharged state: 37.8 |

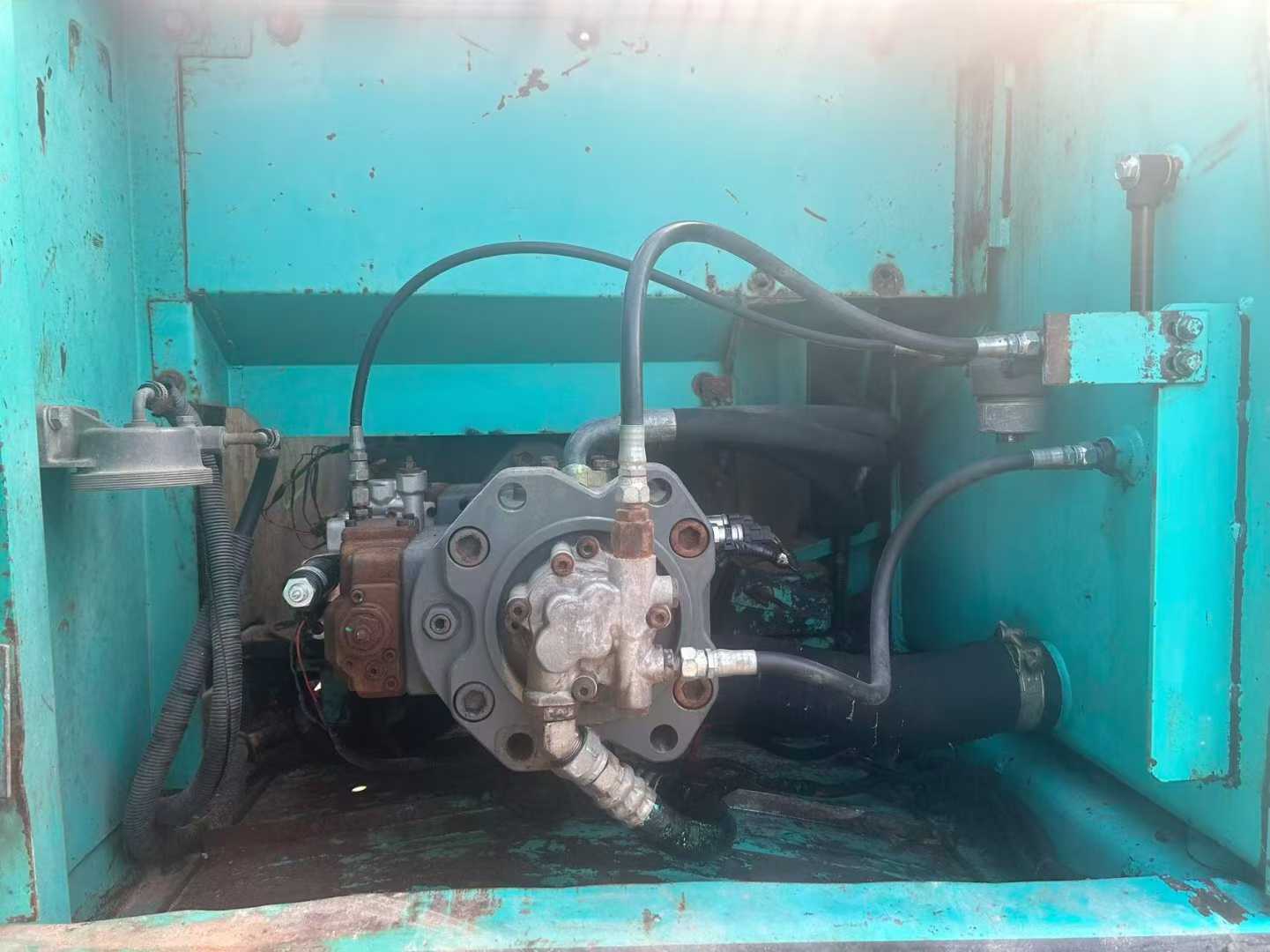

| Main pump type | Double variable displacement axial piston pump pilot gear pump |
| Fuel Tank (L) | 340 |
| Track plate width (mm) | 600; 800 |
