| Specifications | Value |
|---|---|
| No. | 970588 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25600 |
| Bucket capacity (m³) | 1.1 |
| Bucket width (mm) | 1250 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J05ETB |
| Rated power (kw/rpm) | 137/2100 |
| Cylinder diameter × stroke (mm) | 112 x 130 |
| Maximum torque (N.m) | 654/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.123 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 170 |
| Maximum tractive force (kN) | 245 |
| Travel speed (km/h) | 6.1/3.8 |
| Rotary hydraulic motor type | Axial piston pump motor |
| Type of walking hydraulic motor | Variable capacity axial piston motor |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3/37.8 |
| Fuel Tank (L) | 403 |
| Hydraulic Tank (L) | 165 |
| Hydraulic System (L) | 273 |
| Total transport length (mm) | 10210 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3180 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 3120 |
| Onboard width (mm) | 2980 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600/800 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3470 |
| Maximum digging radius (mm) | 10310 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9740 |
| Maximum unloading height (mm) | 6870 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 10140 |
| Maximum effective digging depth (mm) | 6520 |
Description

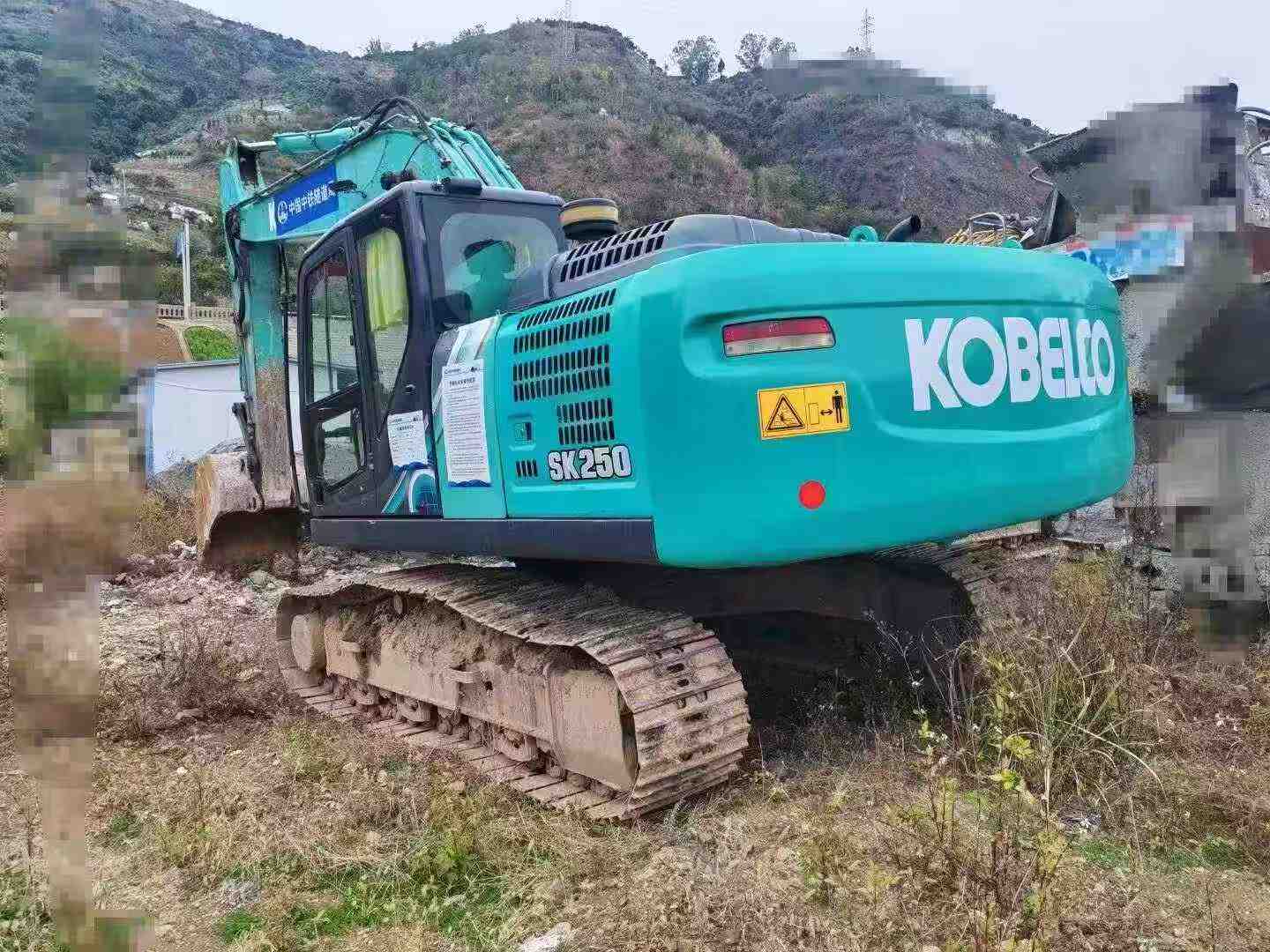

【 Premium Recommendation 】 Second-hand Kobelco SK250-10 excavator, now priced at just over 240,000! This machine is not only affordable but also has excellent performance, making it an ideal choice for your construction projects. The total working time of this machine is approximately 3,500 hours. It is in the best working condition and can handle both earthwork projects and mining operations with ease. In terms of the power system, this excavator is equipped with an efficient and energy-saving Isuzu engine, with a maximum power output of up to 160KW. Even in harsh working environments, it can maintain strong power output and smooth operation. Its fuel economy is excellent, effectively reducing the cost burden of long-term use. In addition, the engine has been meticulously maintained and serviced by a professional team to ensure there are no potential faults, allowing buyers to purchase with confidence and use with peace of mind. The hydraulic system adopts advanced negative flow control technology, which can achieve precise operation and rapid response, significantly enhancing operational efficiency. Meanwhile, the optimized hydraulic circuit design makes the entire machine more durable and reliable, and extends its service life. It
