| Specifications | Value |
|---|---|
| No. | 965673 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25000 |
| Bucket capacity (m³) | 1.1 |
| Rod length (mm) | 2980 |
| Country of origin | Chengdu/Hangzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J05E |
| Rated power (kw/rpm) | 131/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.123 |
| Working form | Direct injection, four stroke, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 54 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 170 |
| Rod digging force (kN) | 119 |
| Travel speed (km/h) | 3.6/5.8 |
| Maximum flow of main pump (l/min) | 2 x 246 + 20 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.5 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Dual variable displacement axial piston pump ×2+ pilot gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 125 x 1200 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 145 x 1635 |
| Boom cylinders - Number × diameter × stroke (mm) | 135 x 1235 |
| Fuel Tank (L) | 460 |
| Hydraulic Tank (L) | 170 |
| Engine Oil changes (L) | 21 |
| Coolant (L) | 20 |
| Total transport length (mm) | 10120 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3200 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3910 |
| Back end turning radius (mm) | 3020 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3470 |
| Maximum digging radius (mm) | 10310 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6880 |
| Maximum vertical digging depth (mm) | 6150 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10140 |
| Maximum effective digging depth (mm) | 6820 |
Description

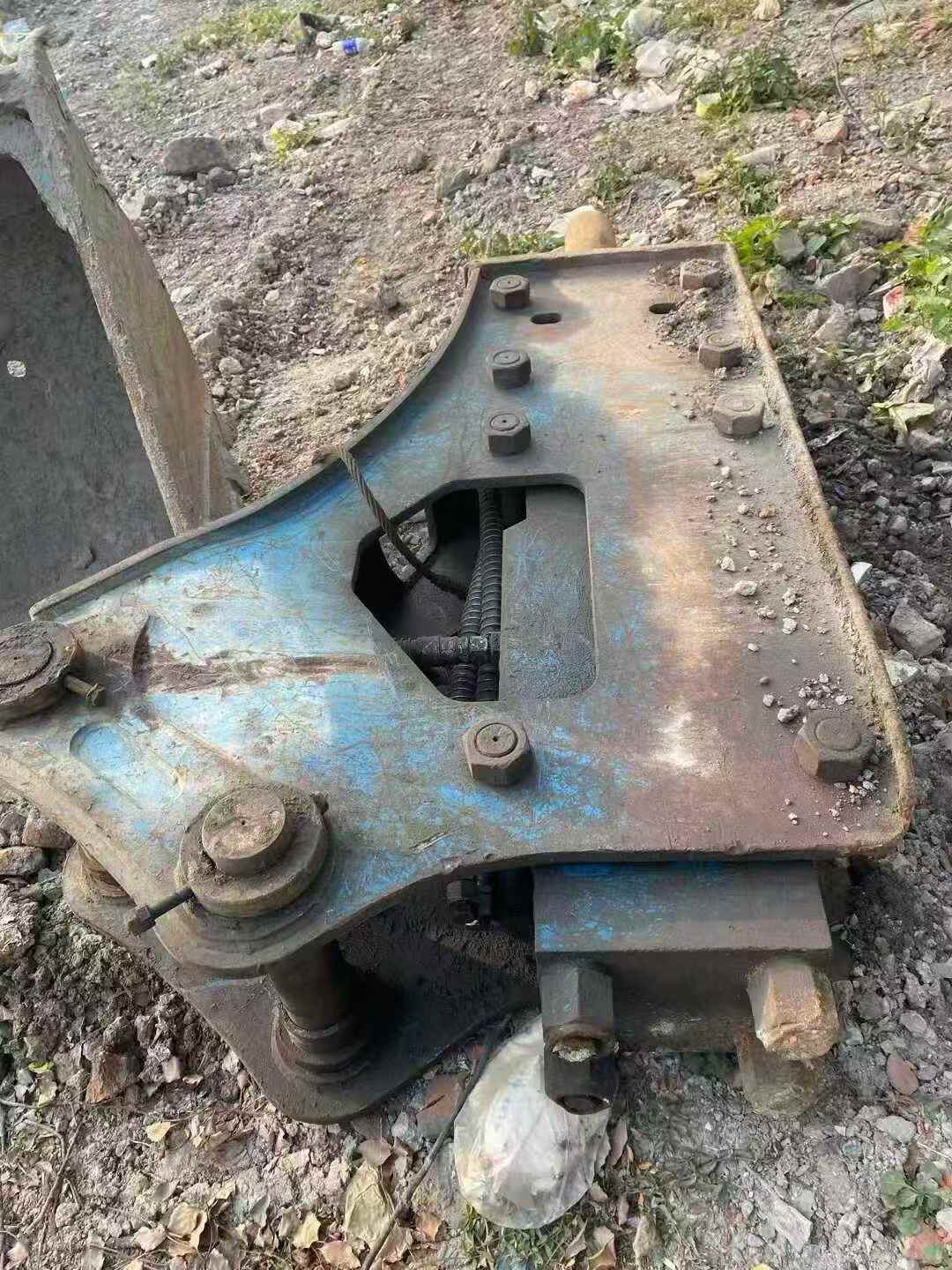

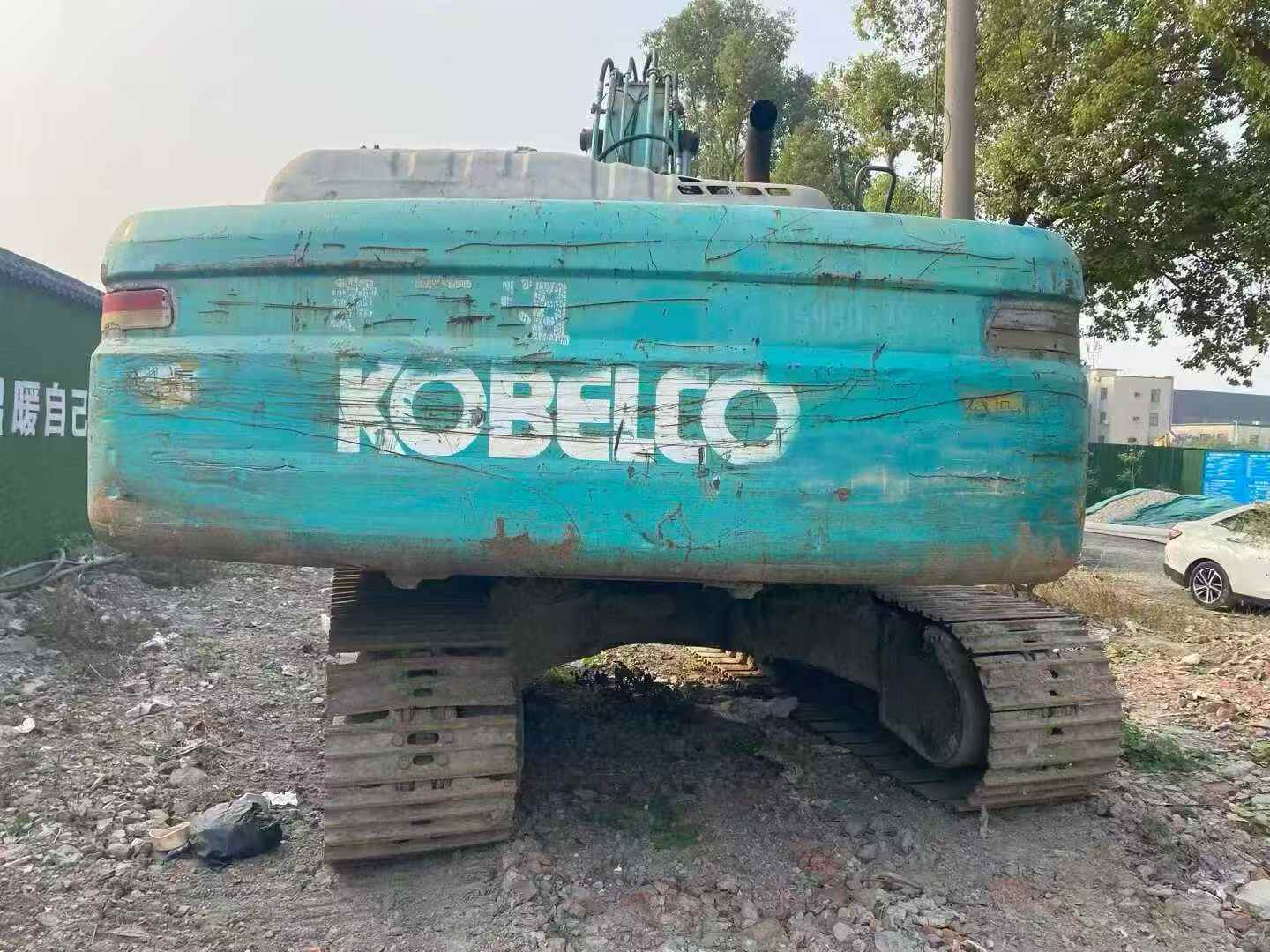

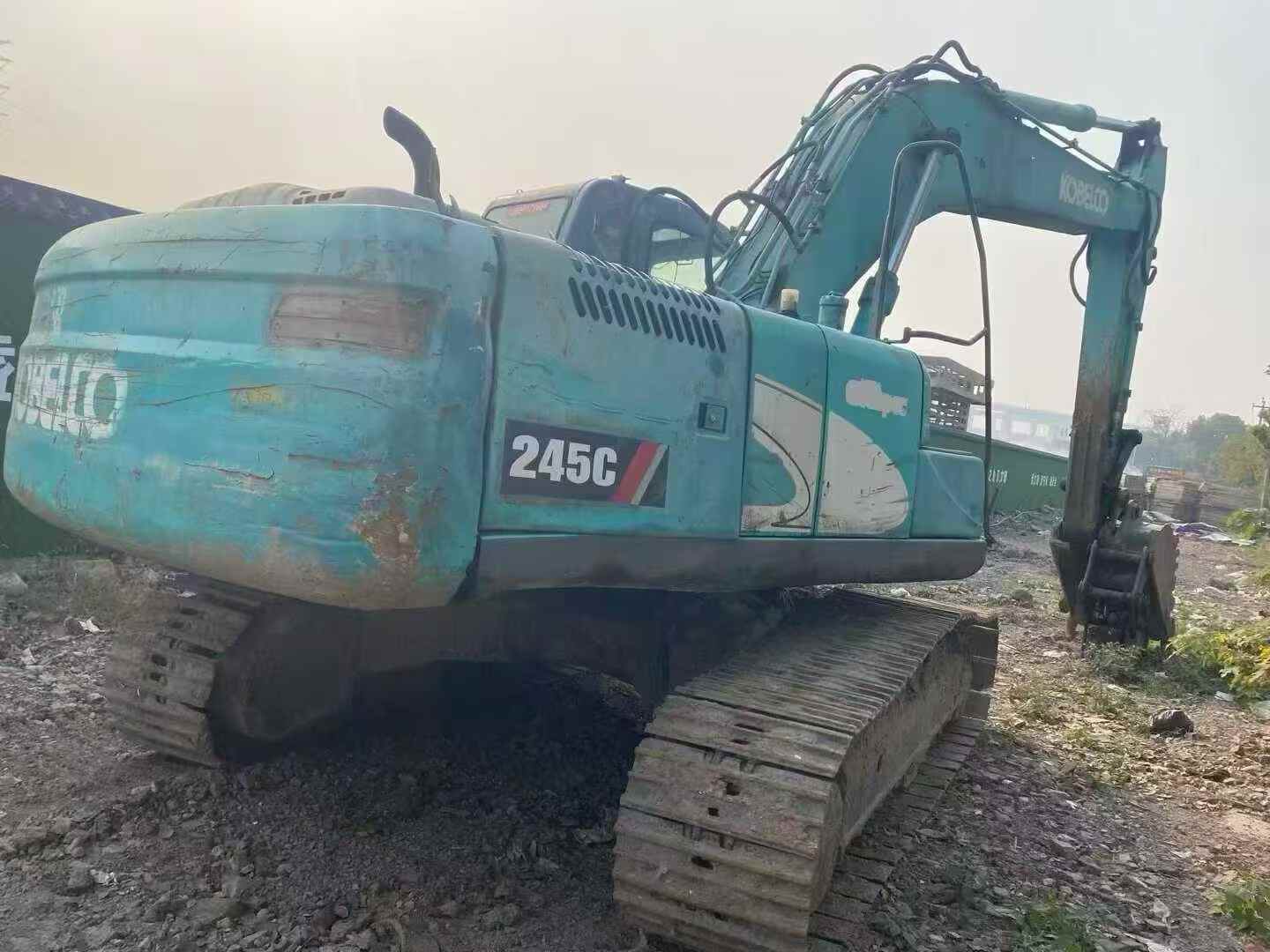

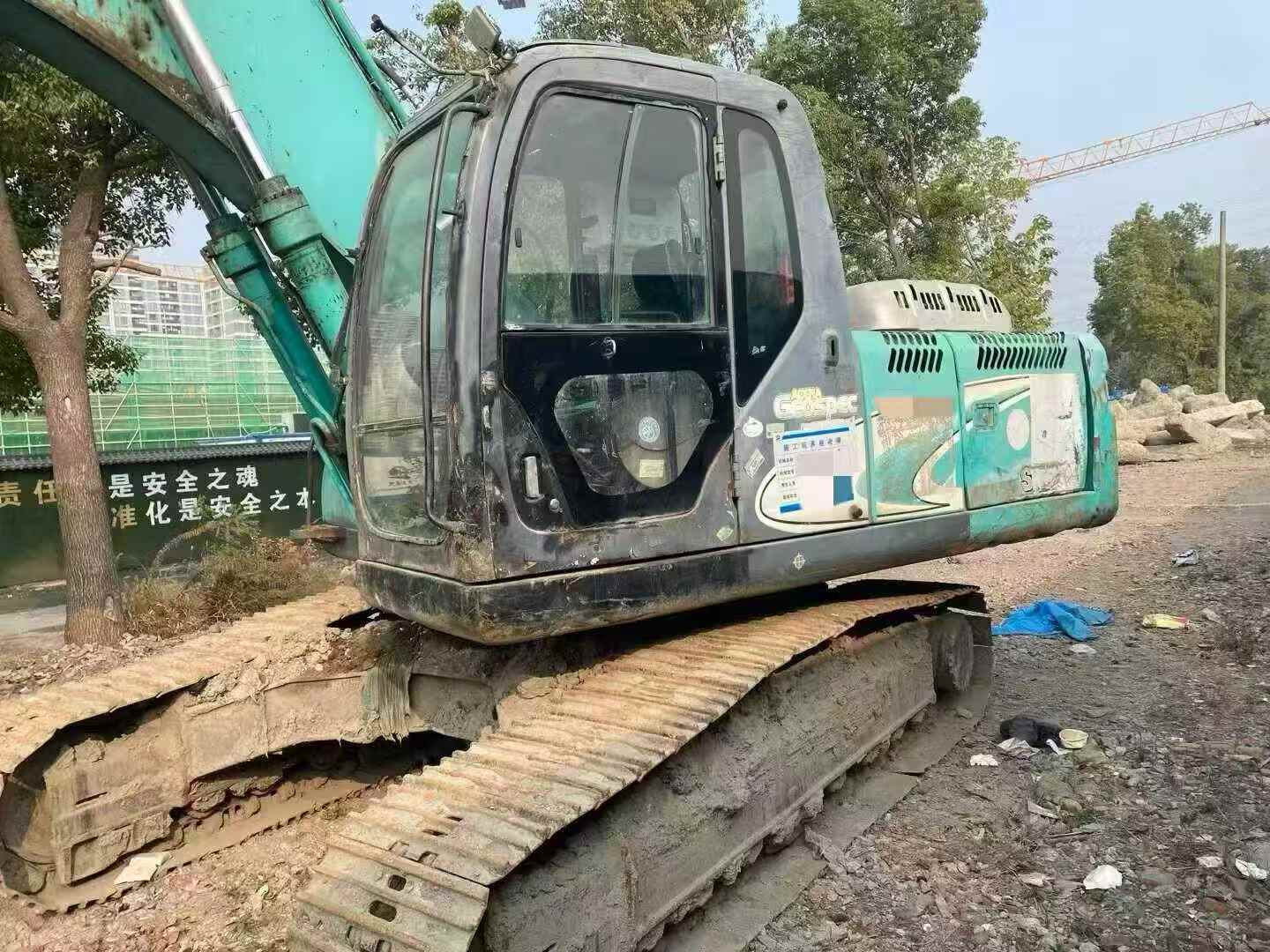

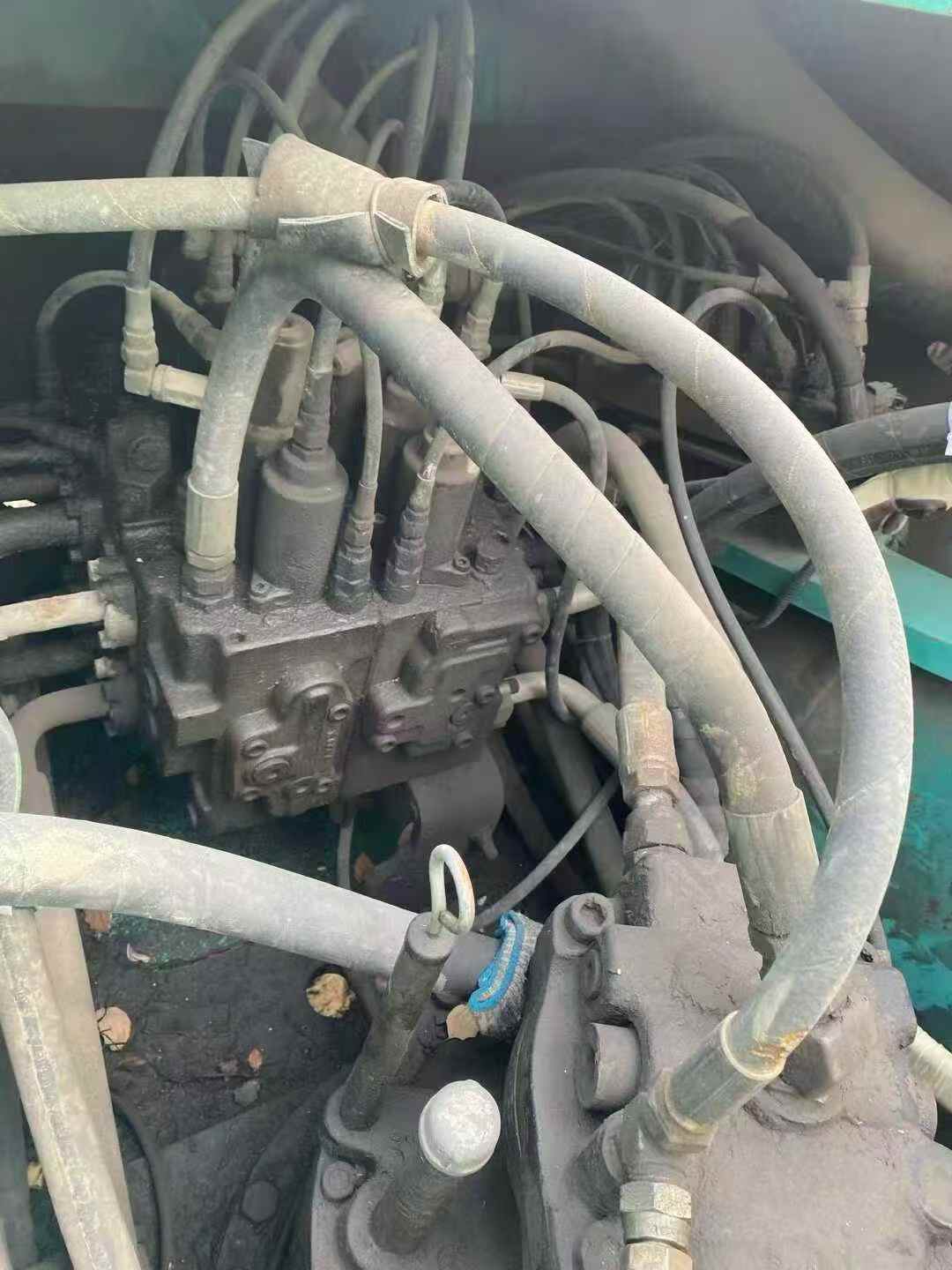

【 Second-hand Kobelco 250-8 excavator with Hammer This is a second-hand Kobelco 250-8 excavator with outstanding performance and extremely high cost performance, equipped with a breaker, which is very suitable for various complex terrains and high-intensity working environments. This equipment has a cumulative working time of 6,000 hours, is in good condition, has a moderate service life, low mechanical wear, proper maintenance, and overall stable and reliable performance. In terms of the power system, this excavator is equipped with a Cummins QSB6.7 engine, with a maximum power output of up to 140kW. It is powerful and has good fuel economy, maintaining efficient operation even under heavy load conditions. Meanwhile, its advanced electronic control injection technology makes the emissions more environmentally friendly and meets the National III emission standards. The hydraulic system is Kobelco's unique CLSS closed center load sensing system, featuring fast response speed and flexible operation. It can achieve precise control and rapid response, and is particularly suitable for fine operation scenarios that require frequent adjustment of actions. In addition, it is also equipped with an automatic idle function, which can automatic
