| Specifications | Value |
|---|---|
| No. | 969032 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25000 |
| Bucket capacity (m³) | 1.1 |
| Rod length (mm) | 2980 |
| Country of origin | Chengdu/Hangzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J05E |
| Rated power (kw/rpm) | 131/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.123 |
| Working form | Direct injection, four stroke, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 54 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 170 |
| Rod digging force (kN) | 119 |
| Travel speed (km/h) | 3.6/5.8 |
| Maximum flow of main pump (l/min) | 2 x 246 + 20 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.5 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Dual variable displacement axial piston pump ×2+ pilot gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 125 x 1200 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 145 x 1635 |
| Boom cylinders - Number × diameter × stroke (mm) | 135 x 1235 |
| Fuel Tank (L) | 460 |
| Hydraulic Tank (L) | 170 |
| Engine Oil changes (L) | 21 |
| Coolant (L) | 20 |
| Total transport length (mm) | 10120 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3200 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3910 |
| Back end turning radius (mm) | 3020 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3470 |
| Maximum digging radius (mm) | 10310 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6880 |
| Maximum vertical digging depth (mm) | 6150 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10140 |
| Maximum effective digging depth (mm) | 6820 |
Description

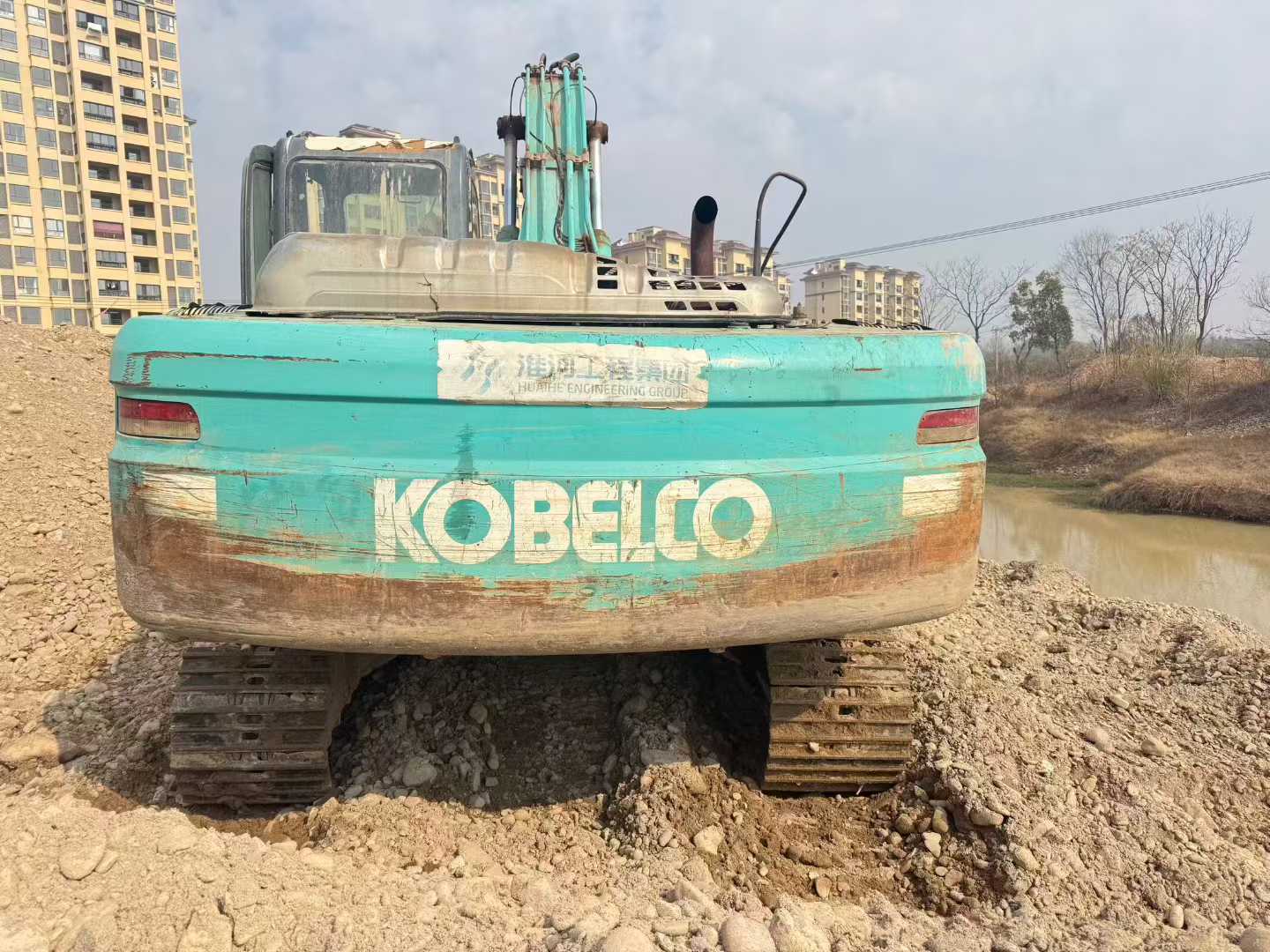

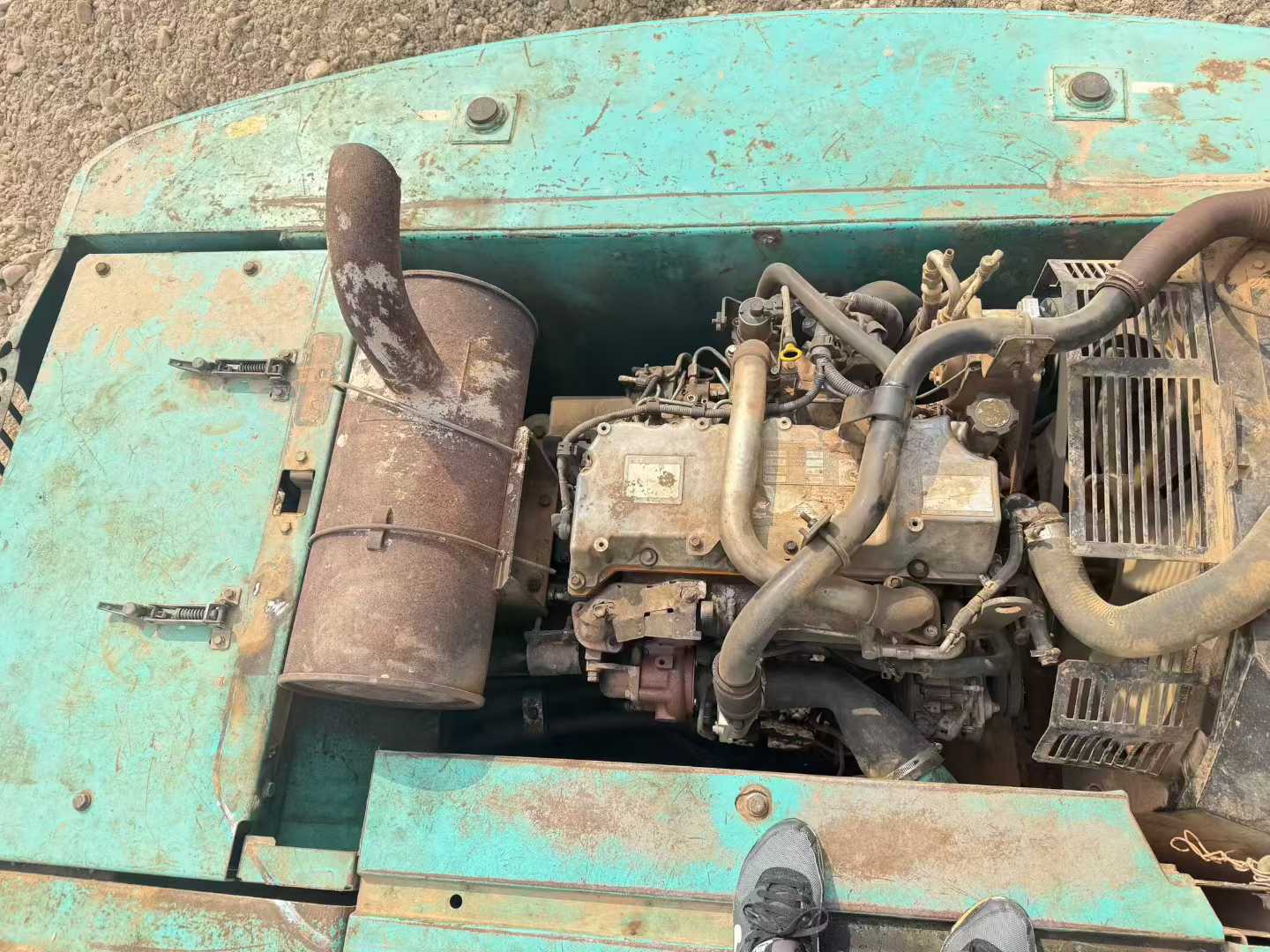

【 Premium Recommendation 】 First-hand Supply! In 2011, the Kobelco SK250-8 excavator, with its outstanding quality and stable performance, is your reliable assistant for engineering operations! Since its production in 2011, this Kobelco SK250-8 excavator has accumulated a working time of only 7,500 hours, which is far lower than the average service life of similar equipment. The overall condition of the vehicle is excellent. It is equipped with the highly efficient and reliable Isuzu 6BG1 engine, which is powerful and fuel-efficient, and can easily handle various complex working conditions. In addition, this machine is equipped with an advanced hydraulic system, featuring high operational sensitivity and fast response speed. It can handle excavation, loading and crushing operations with ease. This excavator has a clean appearance without obvious bumps or damages. Its internal structure is intact as before, and the regular maintenance records are complete and verifiable. We offer detailed real photos and video materials for your reference, allowing you to have a comprehensive understanding of the vehicle's condition without leaving your home. Choosing this second-hand Kobelco SK250-8 not only means having a highly cost-effective const
