2016 Kobelco SK380D

1/3
Used Kobelco SK380D Excavator 2016 Model / 1
Used Kobelco SK380D Excavator 2016 Model / 2
Used Kobelco SK380D Excavator 2016 Model / 3

Product Description

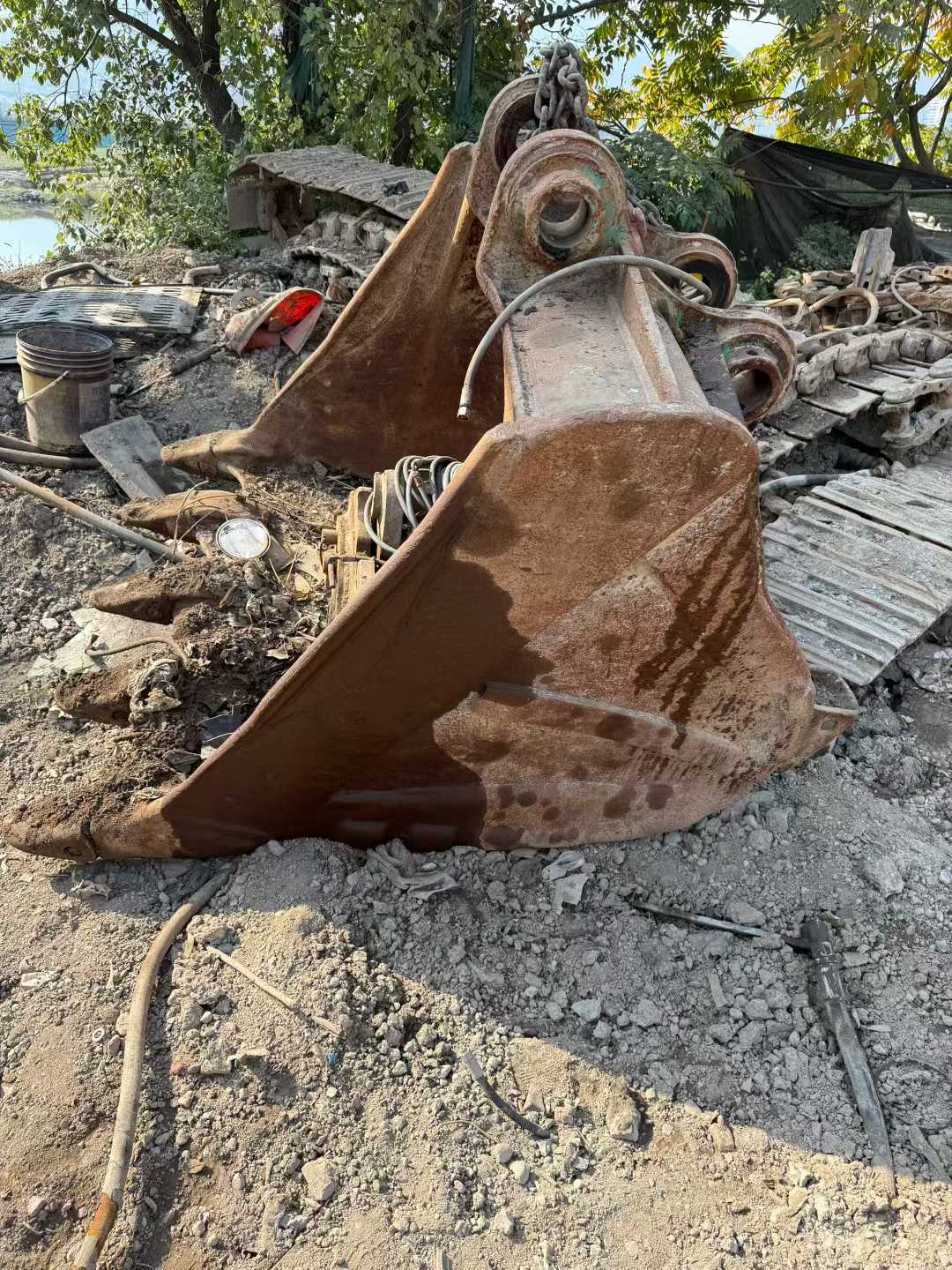

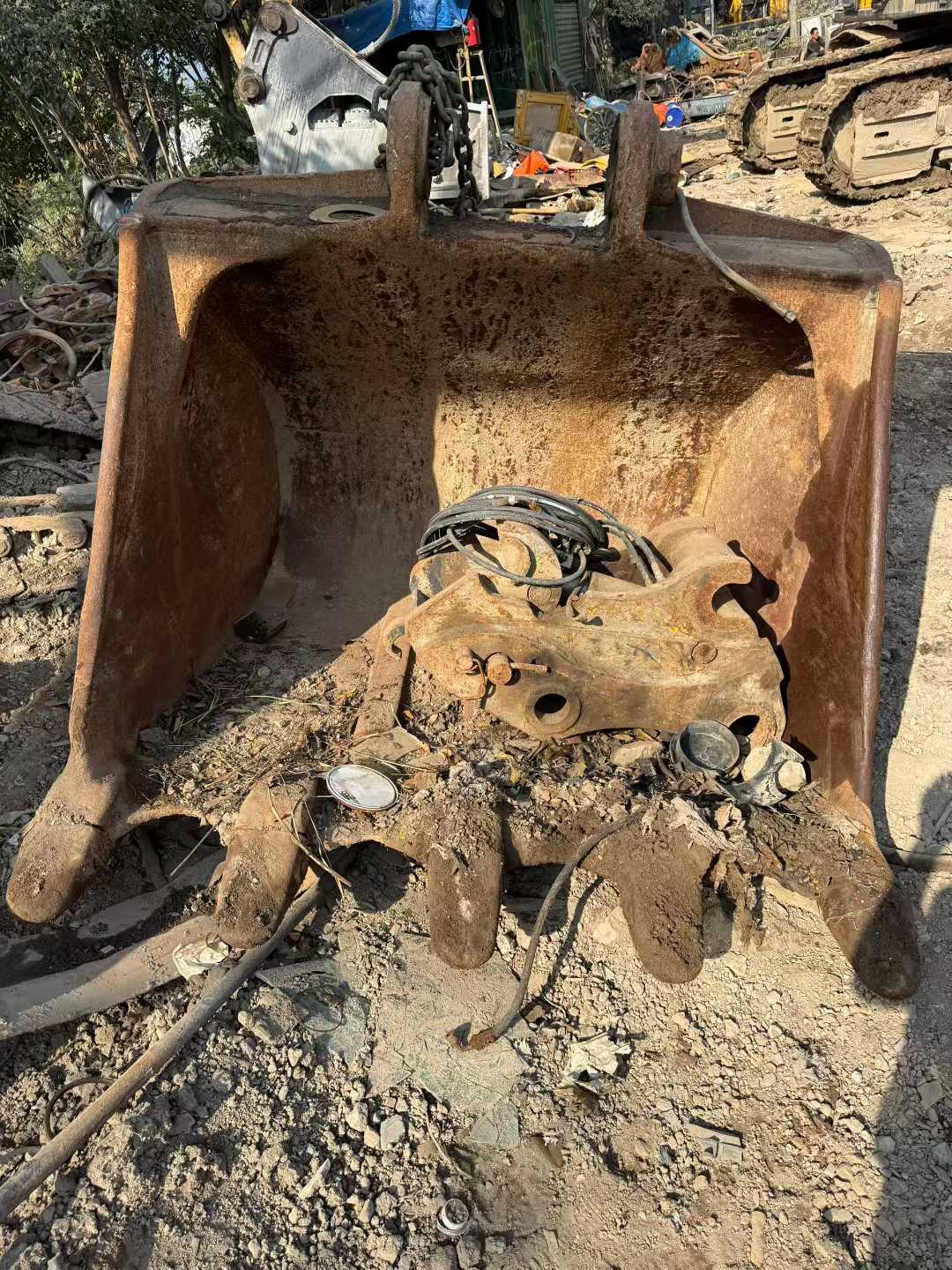

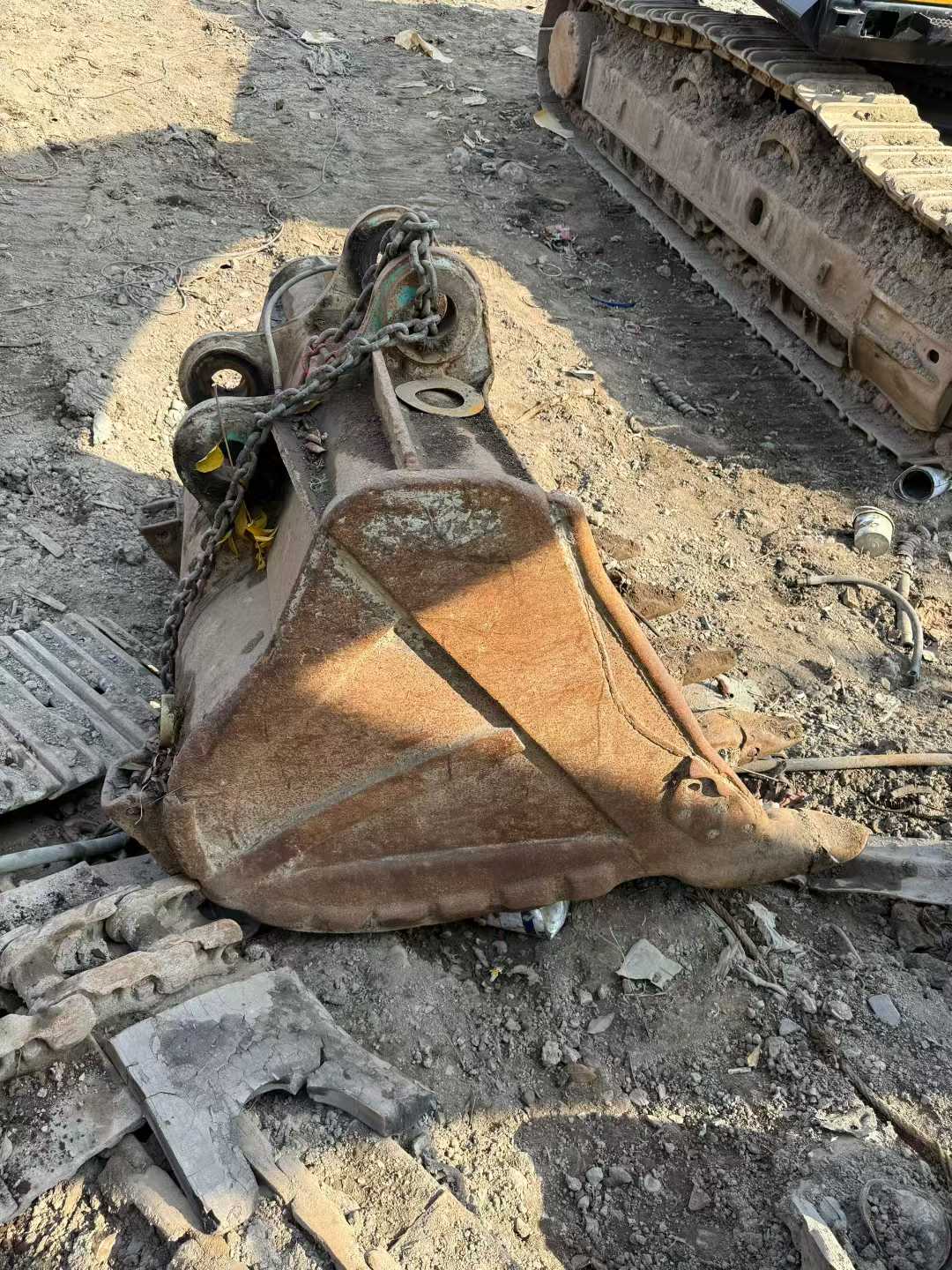

【 Premium Recommendation 】 Kobelco 380 original bucket, with outstanding quality and stable performance, is your reliable assistant in construction projects! This second-hand Kobelco SK380 excavator has a total working time of only 5,000 hours, which is far below the industry average. It is well maintained and in excellent condition. The power system adopts a high-performance Cummins 6-cylinder turbocharged engine, which is powerful and has low fuel consumption. It can maintain efficient operation even in harsh working environments, providing continuous power support for your project. In terms of the hydraulic system, it is equipped with an advanced negative flow control system, which responds quickly and operates flexibly. Whether it is excavation, loading or crushing operations, it can handle them with ease, greatly improving work efficiency. In addition, this excavator also pays special attention to the driver's comfort experience. The spacious cab design combined with shock-absorbing seats ensures that the driver will not feel tired even after long periods of operation. Most importantly, the equipment we provide is equipped with an original factory-made bucket, which is not only sturdy and durable in material but also has a large

SpecificationsValue
No.972799
Tonnage (tons)38
Working weight (kg)36900
Bucket capacity (m³)1.9
Rod length (mm)Short forearm 2600/ Ultra short 2250
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino J08E
Rated power (kw/rpm)209/2100
Cylinder diameter × stroke (mm)112 x 130
Maximum torque (N.m)998/1600
Number of cylinders (PCS)6
Displacement (L)7.684
Working formDirect injection; Turbocharging; Built-in intercooling
Rotation speed (rpm)10
Climbing ability (%)70%/35 degrees
Bucket digging force (kN)221/ Supercharged 244
Rod digging force (kN)205/ Supercharged 225
Maximum tractive force (kN)322
Travel speed (km/h)5.6/3.3
Type of walking hydraulic motorTwo sets of two-speed plunger motors
Maximum flow of main pump (l/min)2 x 294-20
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29
Control Hydraulic Circuit (Mpa)5
Main pump typeDouble variable axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)34.3/ Supercharging 37.8
Pilot pump flow (L/min)20
Bucket cylinders - Number × diameter × stroke (mm)1 x 125 x 1200
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 145 x 1635
Boom cylinders - Number × diameter × stroke (mm)2 x 135 x 1235
Fuel Tank (L)580
Hydraulic Tank (L)280
Engine Oil changes (L)28.5
Coolant (L)31.1
Hydraulic System (L)353
Total transport length (mm)11280
Total transport width (mm)3270
Total transport height (mm)3640 (to top of boom)
Full cab height (mm)3233
Counterweight ground clearance (mm)1190
Minimum ground clearance (mm)500
Minimum turning radius of front working device (mm)4450
Back end turning radius (mm)3500
Onboard width (mm)3080
Total track length (mm)4980
Track gauge (mm)2600
Track plate width (mm)600/800
Total track width (mm)3270
Maximum digging radius (mm)10610
Maximum digging depth (mm)6860
Maximum excavation height (mm)10260
Maximum unloading height (mm)7005
Maximum vertical digging depth (mm)5840
Maximum excavation radius of stop surface (mm)10400
Maximum effective digging depth (mm)6670
see more

Overview

No.972799

Brand Name:

Kobelco

Model Number:

SK380D

Year:

2016

Location:

Zhejiang China
