2016 Kobelco SK380XD-10







Product Description

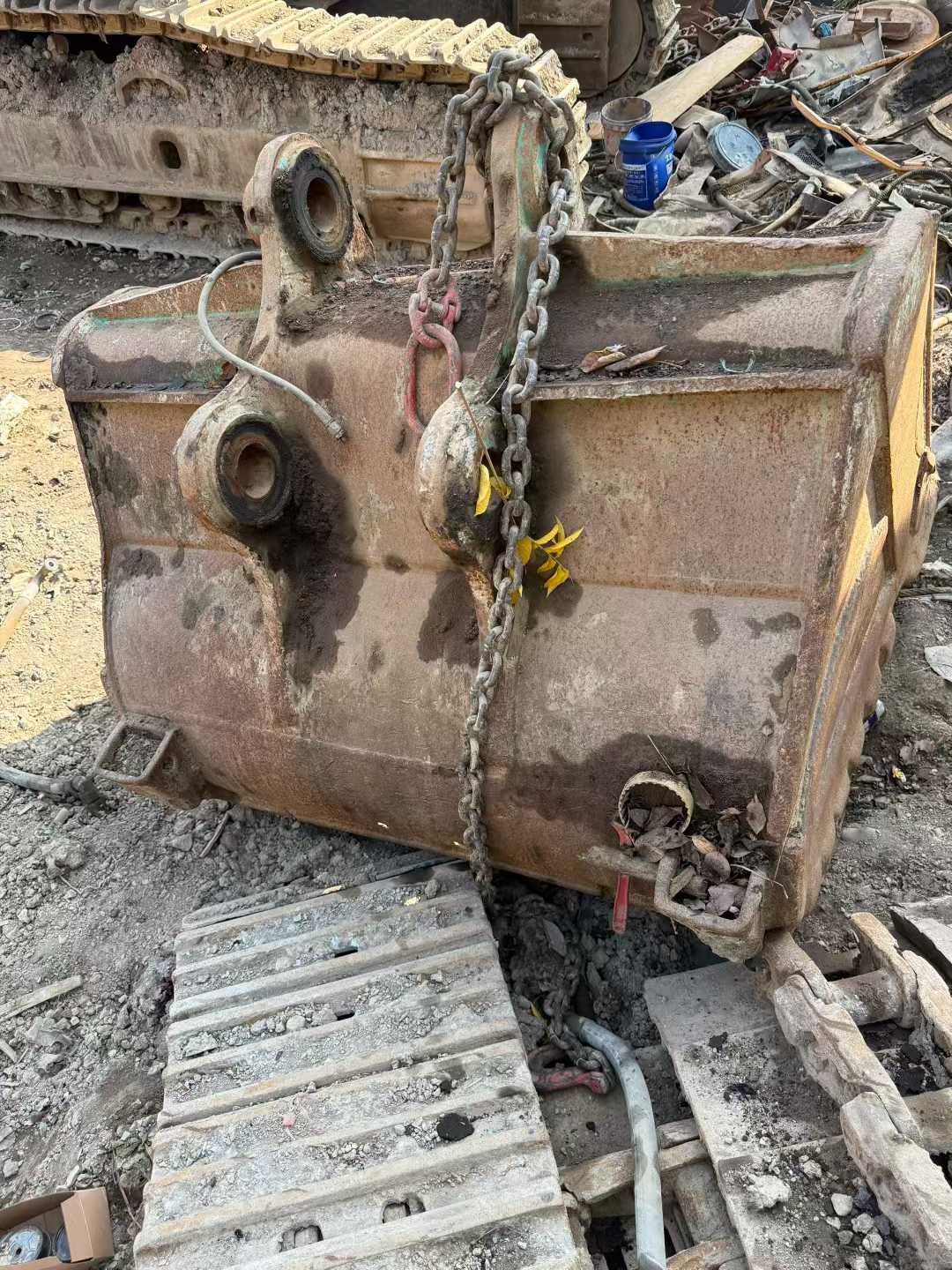

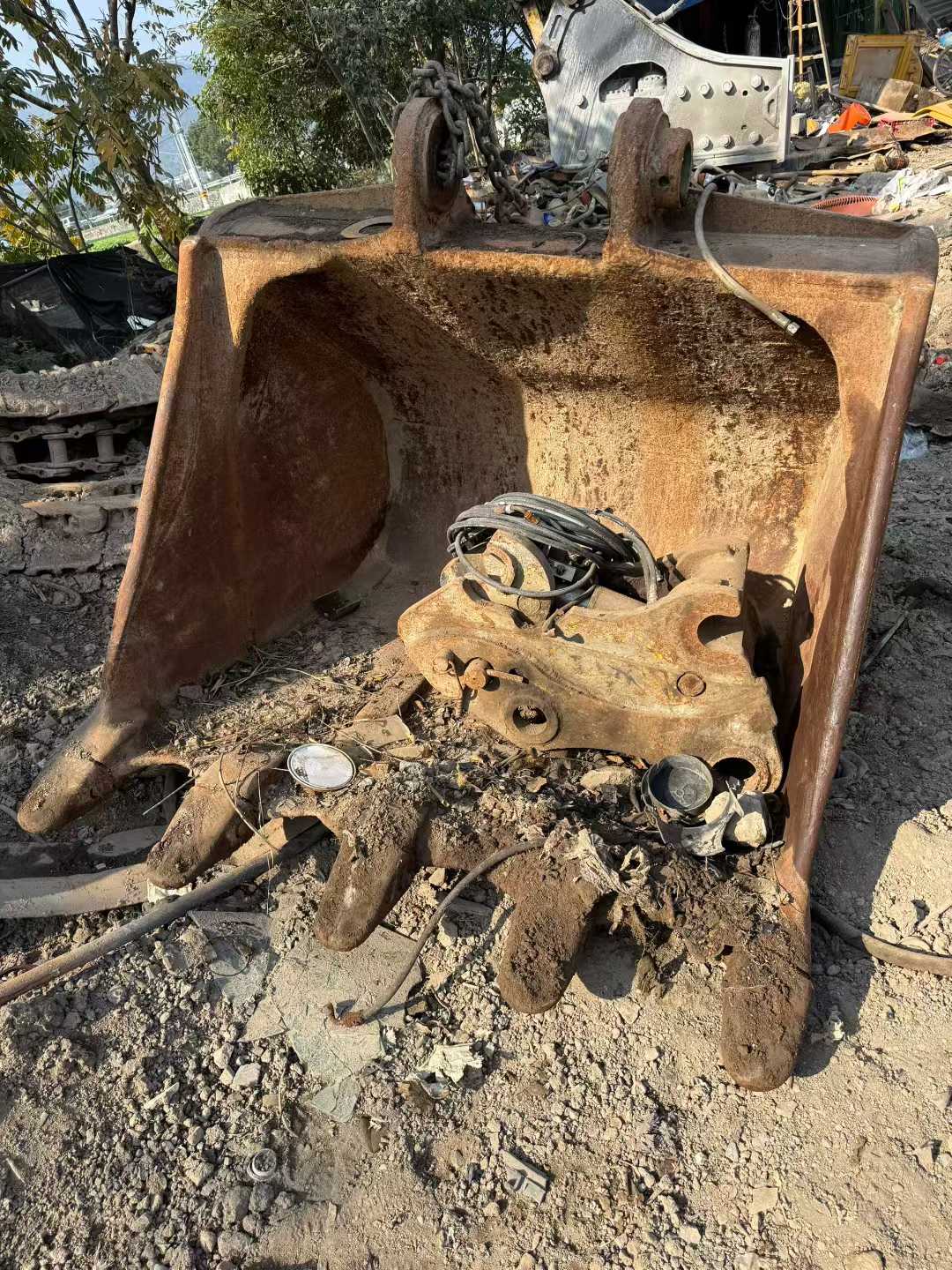

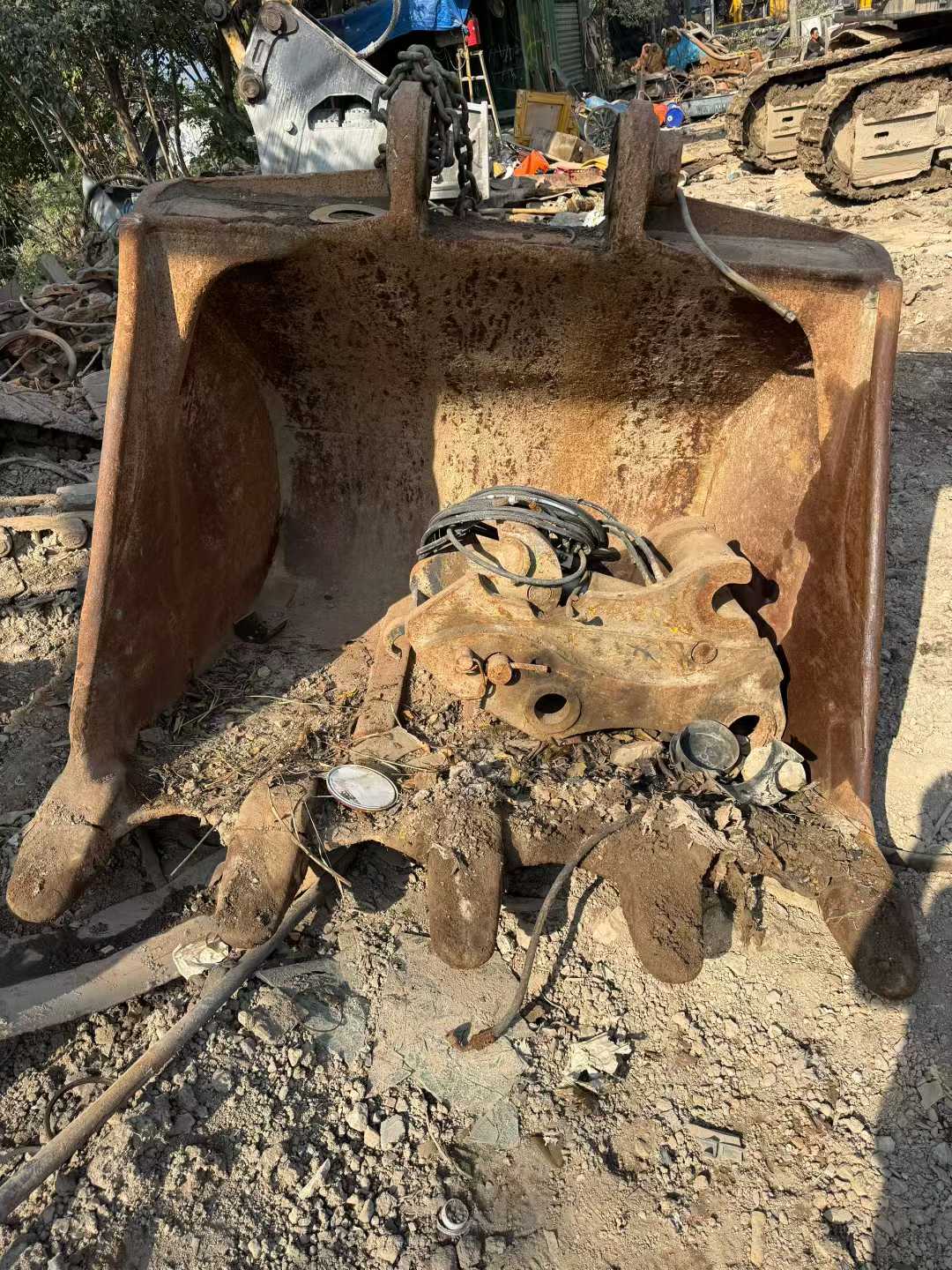

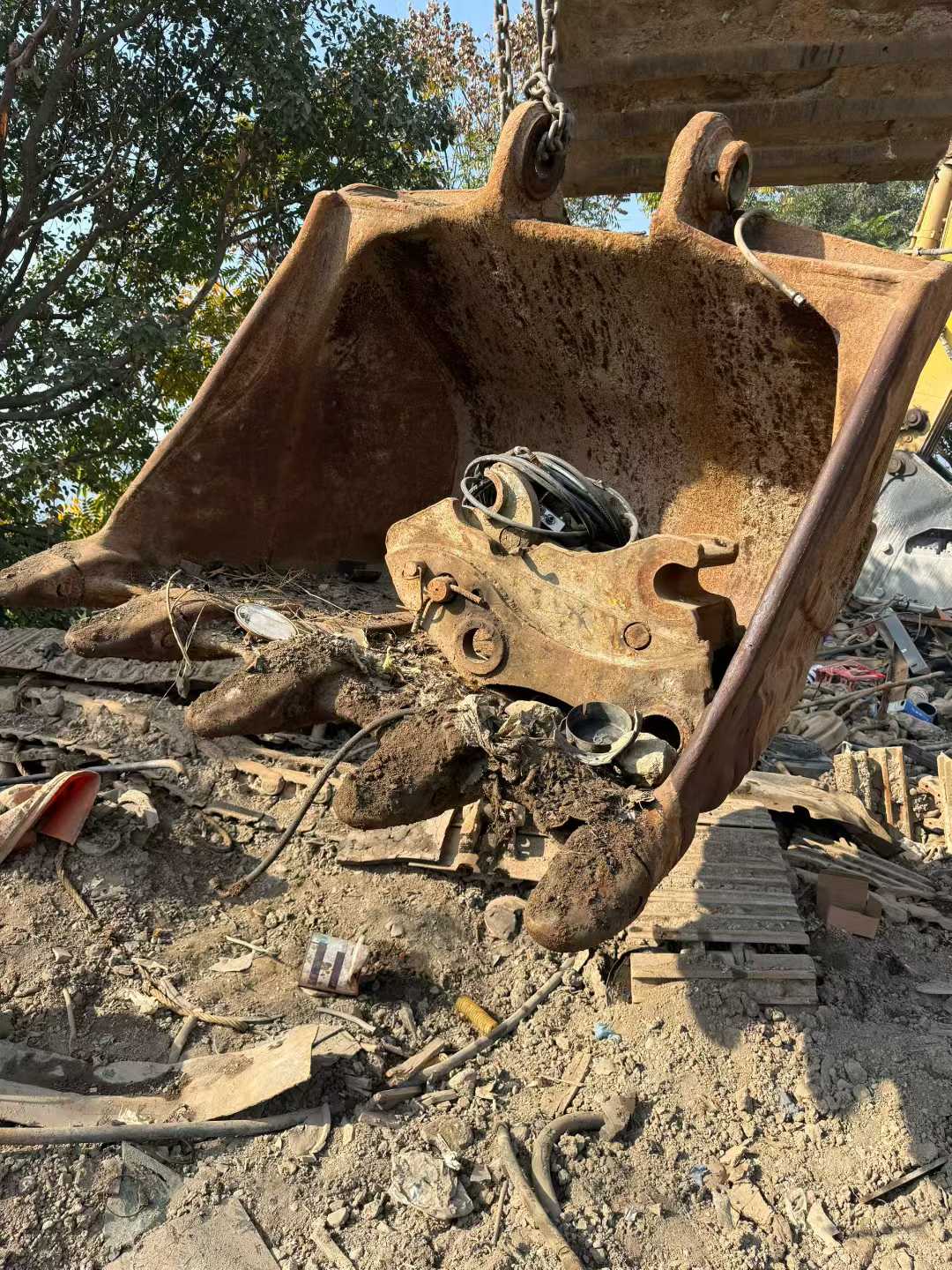

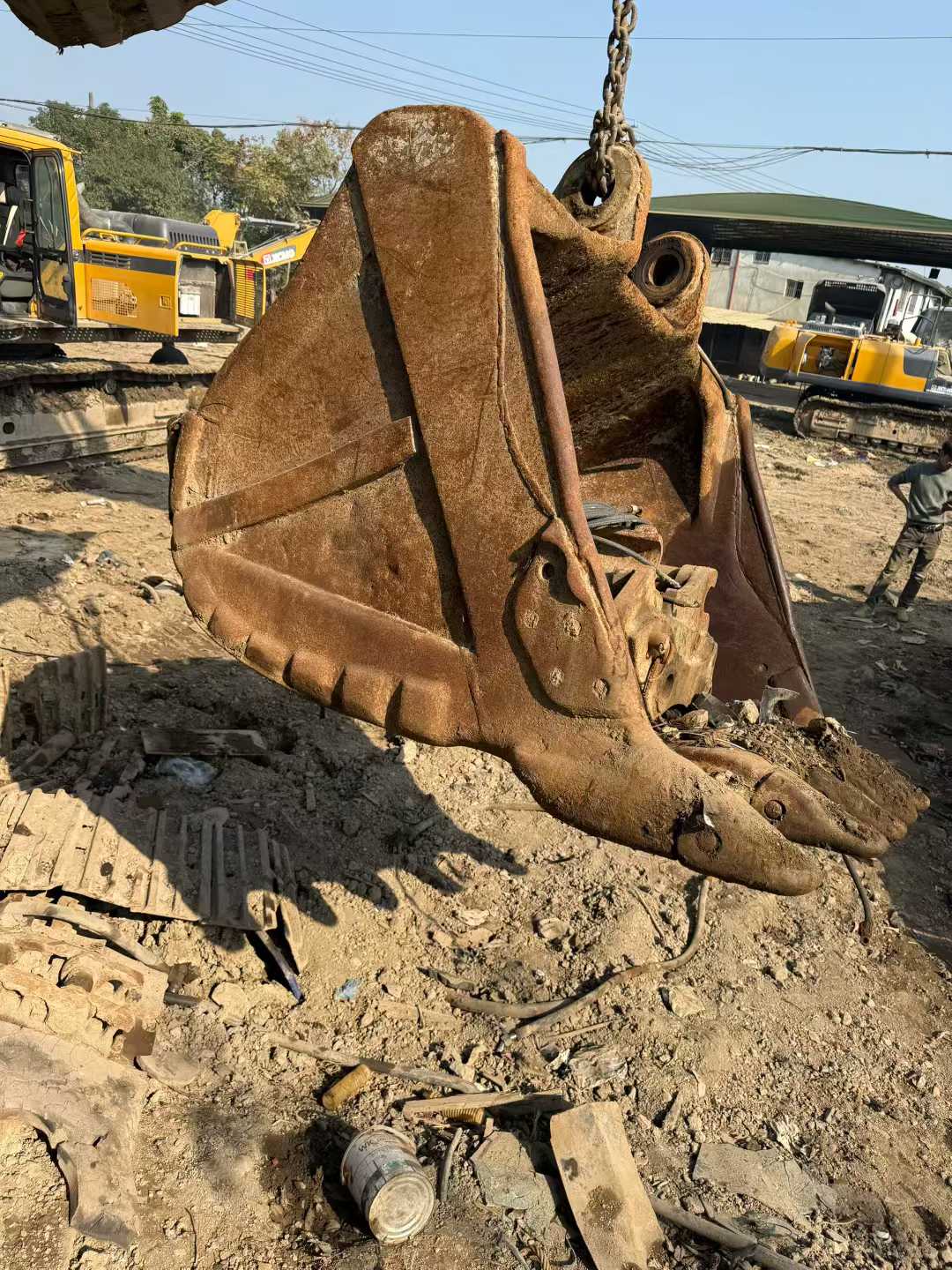

【 Second-hand Kobelco SK380-10 Excavator 】 This second-hand Kobelco SK380-10 excavator has a working time of only 5,000 hours. The overall condition of the vehicle is excellent, and both its appearance and performance remain in the best condition. This machine is equipped with an original imported Cummins QSB6.7-C240 engine, which is powerful and stable, with a maximum output power of up to 190kW, meeting the requirements for efficient operation. Meanwhile, it is also equipped with an advanced electronic fuel injection system, which not only improves fuel economy but also reduces emissions, making it more environmentally friendly. In terms of the hydraulic system, this machine adopts the high-pressure common rail hydraulic system independently developed by Kobelco, which features fast response speed, high control accuracy and flexible operation, and can achieve precise and efficient excavation operations. In addition, this excavator is equipped with an original imported bucket. Its structure is reasonably designed, highly wear-resistant and has a long service life. It is particularly suitable for use in various complex working conditions, such as mining and earthwork projects. It is worth mentioning that its cab is spacious and comfo
| Specifications | Value |
|---|---|
| No. | 971326 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38500 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 2600 |
| Rod length (mm) | 6500 |
| Bucket width (mm) | 1740 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Hino J08ETM-KSDL |
| Rated power (kw/rpm) | 197/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 968/1600 |
| Working form | Direct injection, four stroke, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 72 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 (35°) |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 207 |
| Maximum tractive force (kN) | 331 |
| Travel speed (km/h) | 5.6/3.3 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Axial piston pump motor (1) |
| Type of walking hydraulic motor | Variable capacity axial piston motors (2) |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Fuel Tank (L) | 503 |
| Hydraulic Tank (L) | 245 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11380 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3710 |
| Full cab height (mm) | 3230 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 515 |
| Minimum turning radius of front working device (mm) | 4460 |
| Total track length (mm) | 4980 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4050 |
| Maximum digging radius (mm) | 10610 |
| Maximum digging depth (mm) | 6840 |
| Maximum excavation height (mm) | 10230 |
| Maximum unloading height (mm) | 7070 |
| Maximum vertical digging depth (mm) | 5700 |
| Maximum excavation radius of stop surface (mm) | 10400 |
Overview
No.971326
Brand Name:
KobelcoModel Number:
SK380XD-10Year:
2016
Location:
Zhejiang China
