2018 Kobelco SK75-8

1/6
Used Kobelco SK75-8 Excavator 2018 Model / 1
Used Kobelco SK75-8 Excavator 2018 Model / 2
Used Kobelco SK75-8 Excavator 2018 Model / 3
Used Kobelco SK75-8 Excavator 2018 Model / 4

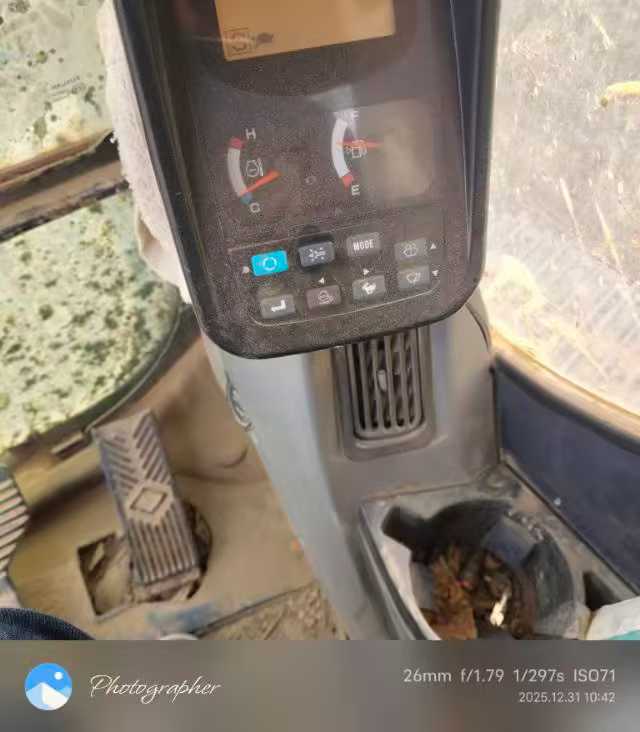

Used Kobelco SK75-8 Excavator 2018 Model / 5

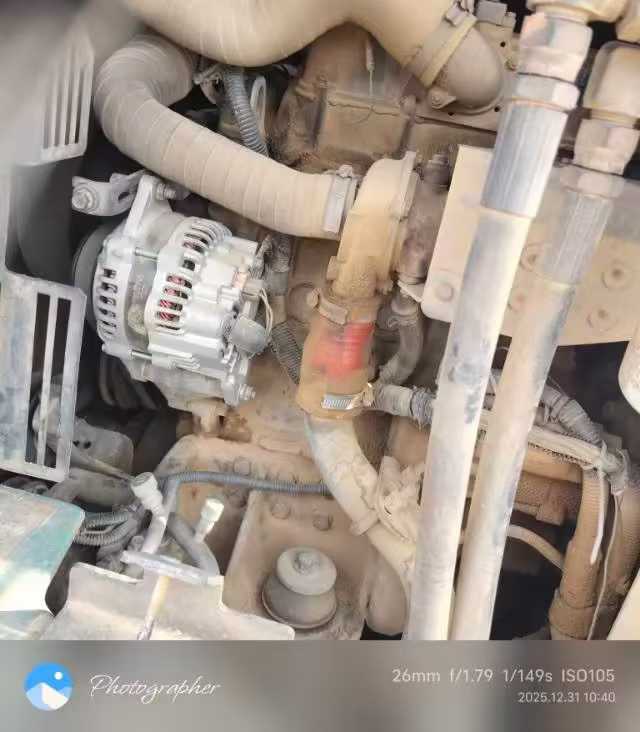

Used Kobelco SK75-8 Excavator 2018 Model / 6

Product Description

We are selling a second-hand 2018 model Kobelco SK75-8 excavator. This equipment has been meticulously maintained and recently undergone a comprehensive paint refurbishment, giving it a completely new look. This excavator is expected to work for approximately 3,000 hours (please consult for the exact usage hours). It is in good working condition and suitable for various medium and small-sized engineering operation requirements. In terms of power, it is equipped with the high-performance Yanmar 4TNV98 engine, with a maximum power output of up to 45.5 kilowatts, ensuring strong and stable power output. At the same time, it has good fuel economy and reduces operating costs. The hydraulic system adopts advanced negative flow control technology, equipped with high-efficiency variable piston pumps and high-quality hydraulic motors, making the entire machine operate more sensitively and smoothly, and capable of easily handling complex and changeable working environments. As a medium-sized excavator, the Kobelco SK75-8 is renowned for its outstanding operational performance, reliable quality and relatively low maintenance costs. It features a spacious and comfortable cab design with an unobstructed view. The sturdy and durable chassis struct

SpecificationsValue
No.976554
Tonnage (tons)7
Working weight (kg)6850
Bucket capacity (m³)0.4
Rod length (mm)1710
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAn ISUZU
Rated power (kw/rpm)42/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85*96
Maximum torque (N.m)211/1600
Number of cylinders (PCS)4
Displacement (L)2.179
Working formDirect injection, turbocharged, built-in intercooling
Ground specific pressure (Kpa)30.8
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)52.7
Rod digging force (kN)39.4
Maximum tractive force (kN)72.2
Travel speed (km/h)5.3/2.8
Maximum flow of main pump (l/min)1*132
Traveling Hydraulic Circuit (Mpa)29.4
Rotary Hydraulic Circuit (Mpa)24.5
Main pump typeVariable displacement axial piston pump
Pilot pump flow (L/min)1*18
Bucket cylinders - Number × diameter × stroke (mm)1*80*735
Bucket rod cylinders - Number × diameter × stroke (mm)1*95*833
Boom cylinders - Number × diameter × stroke (mm)1*110*916
Fuel Tank (L)140
Hydraulic Tank (L)67
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)107
Total transport length (mm)6200
Total transport width (mm)2320
Total transport height (mm)2650
Minimum ground clearance (mm)375
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1750
Total track length (mm)2830
Track gauge (mm)1870
Track plate width (mm)450
Number of track plates (single side) (PCS)39
Maximum digging radius (mm)6460
Maximum digging depth (mm)4170
Maximum excavation height (mm)7400
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3480
Bulldozer lift or depth (mm)475/305
Dodging plate width × height (mm)2320*460
Maximum excavation radius of stop surface (mm)6310
Maximum effective digging depth (mm)3810
see more

Overview

No.976554

Brand Name:

Kobelco

Model Number:

SK75-8

Year:

2018

Location:

Zhejiang China
