Kobelco SK75

2014 Kobelco SK75

1/9

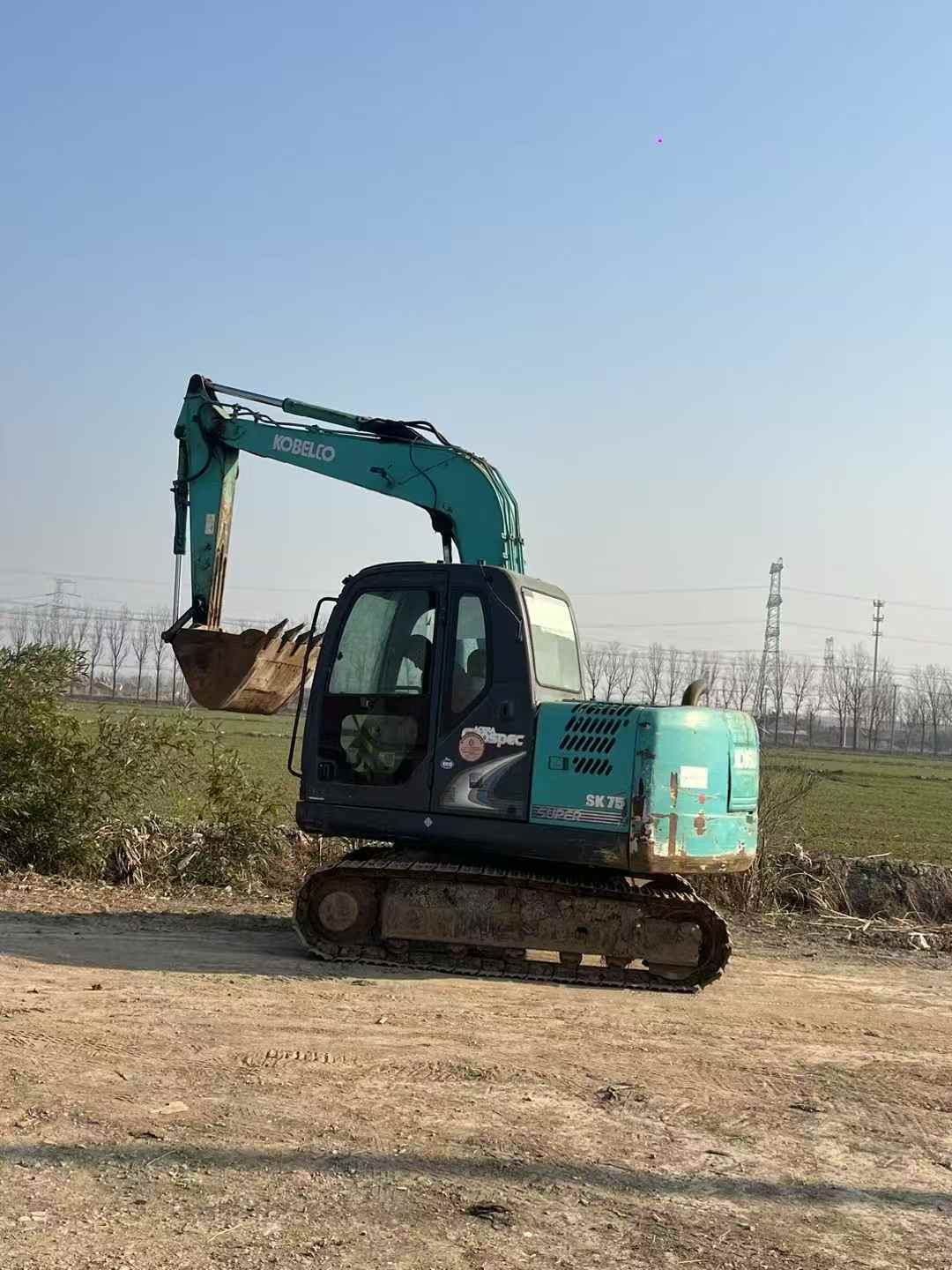

Used Kobelco SK75 Excavator 2014 Model / 1
Used Kobelco SK75 Excavator 2014 Model / 2

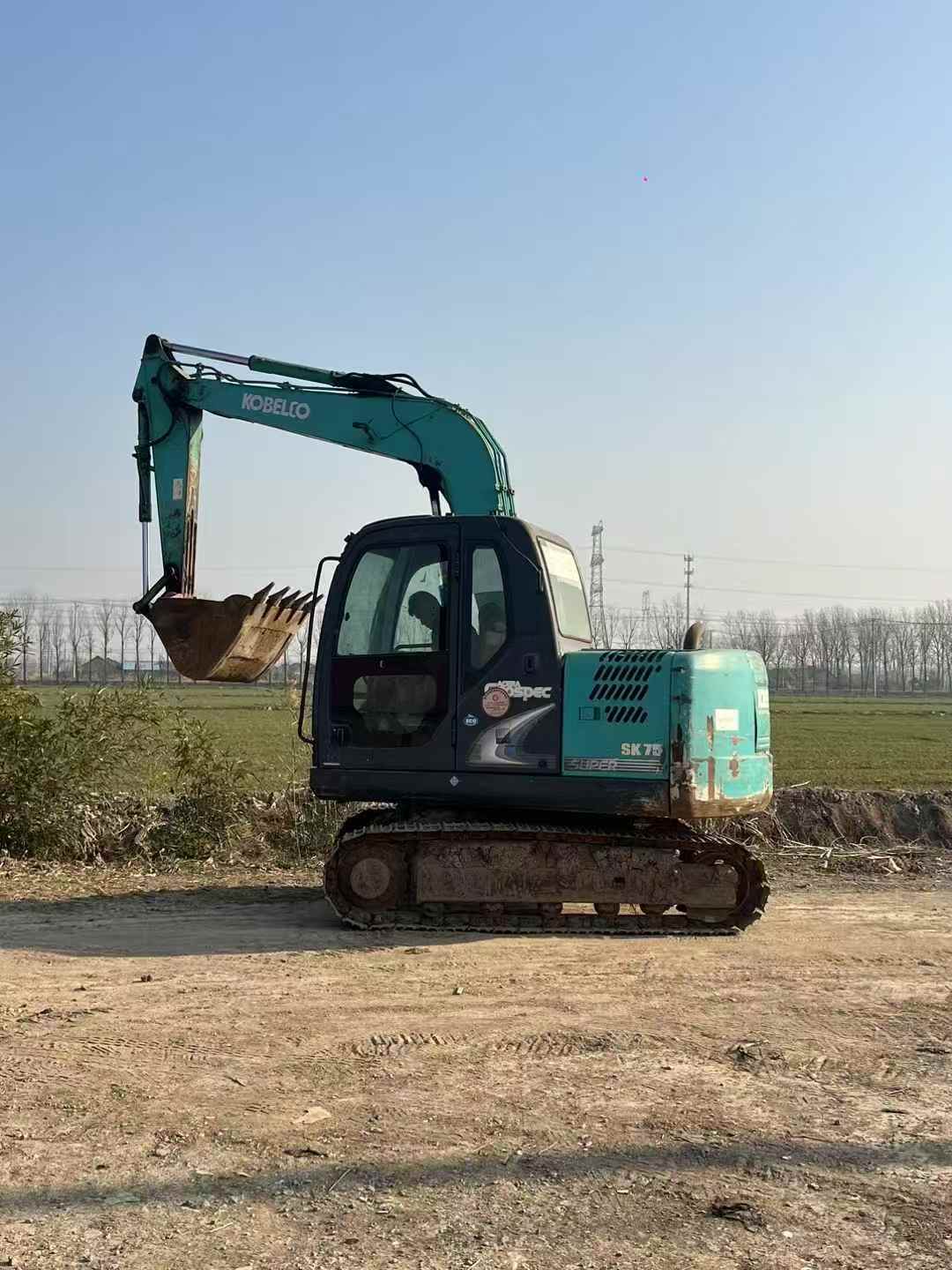

Used Kobelco SK75 Excavator 2014 Model / 3
Used Kobelco SK75 Excavator 2014 Model / 4

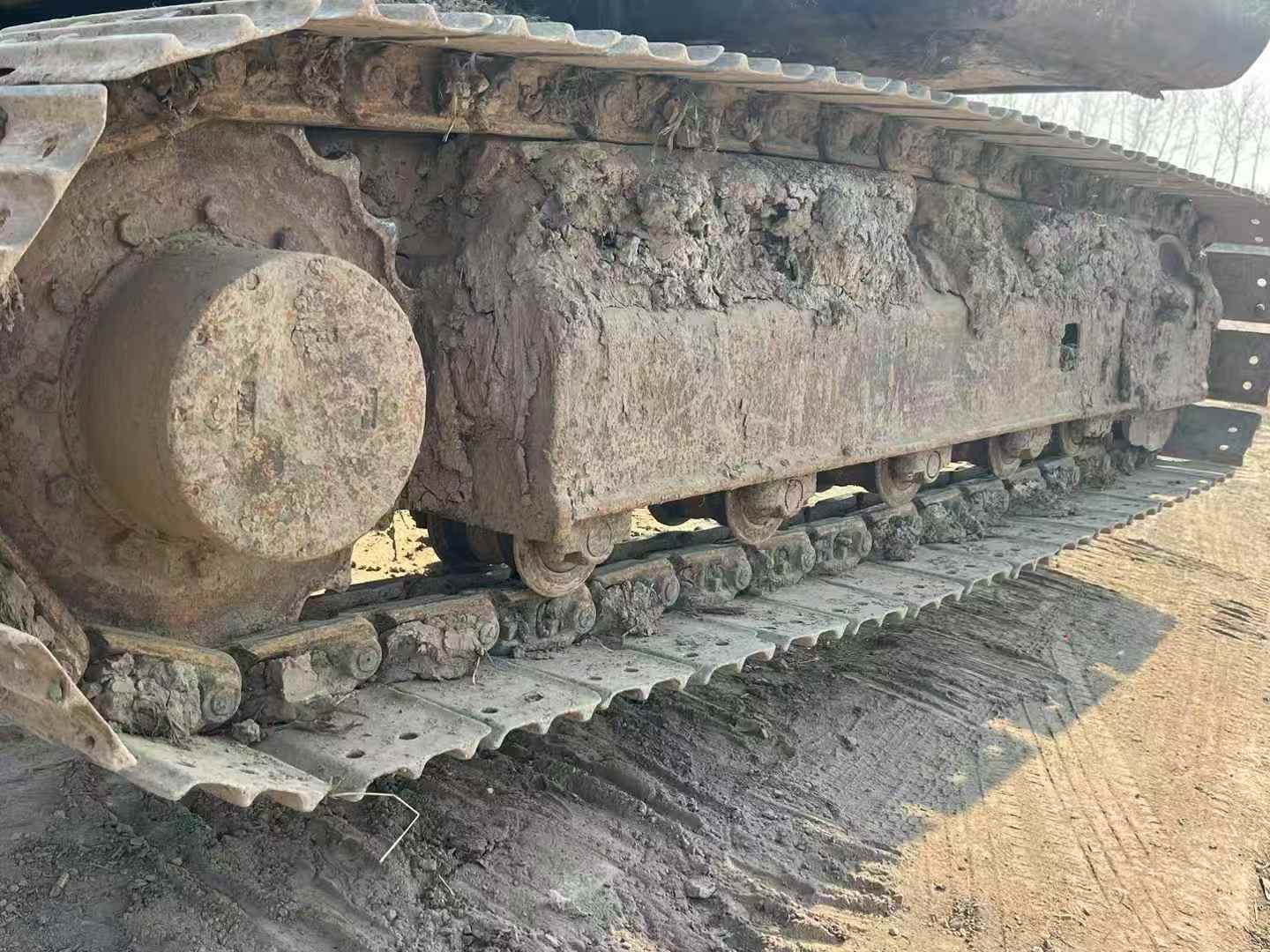

Used Kobelco SK75 Excavator 2014 Model / 5

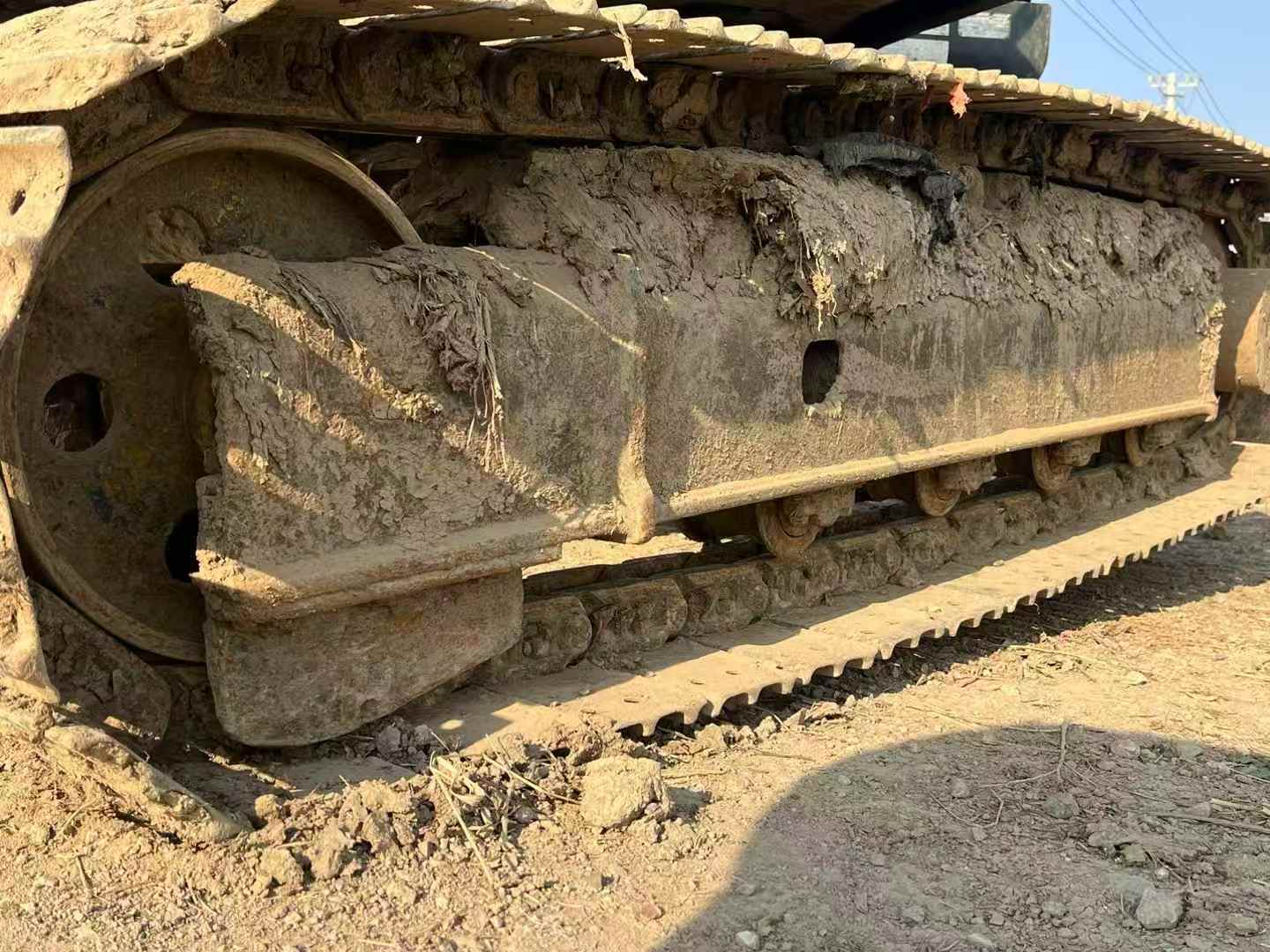

Used Kobelco SK75 Excavator 2014 Model / 6
Used Kobelco SK75 Excavator 2014 Model / 7
Used Kobelco SK75 Excavator 2014 Model / 8
Used Kobelco SK75 Excavator 2014 Model / 9
Product Description
SpecificationsValue
No.962566
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Description

【 Premium Recommendation 】 Second-hand Kobelco SK75-8 excavator from 2014, full original version, no modification at all, absolutely genuine vehicle, outstanding performance, ready for immediate operation upon arrival. This excavator is a carefully maintained working vehicle by the customer. Its cumulative working time is only 3,000 hours, which is far lower than the average usage time of similar equipment, indicating that it still has a long service life waiting for excavation. In terms of the power system, the Yanmar 4TNV98 engine, which has been well-tested in the market, is adopted. This four-cylinder direct injection diesel engine is renowned for its powerful output and excellent fuel economy. It can handle both flat ground operations and slope construction with ease. Meanwhile, its low noise and low emissions features make it more competitive in today's increasingly strict environmental protection requirements. The hydraulic system is a high-performance configuration independently developed by Kobelco, ensuring smooth operation and rapid response of the entire machine. Whether it is precise operation or heavy-load work, it can handle it with ease. This system also places particular emphasis on energy-saving design, effectively

Overview

No.962566

Brand Name:

Kobelco

Model Number:

SK75

Year:

2014

Location:

Jiangsu China
