| Specifications | Value |
|---|---|
| No. | 966830 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

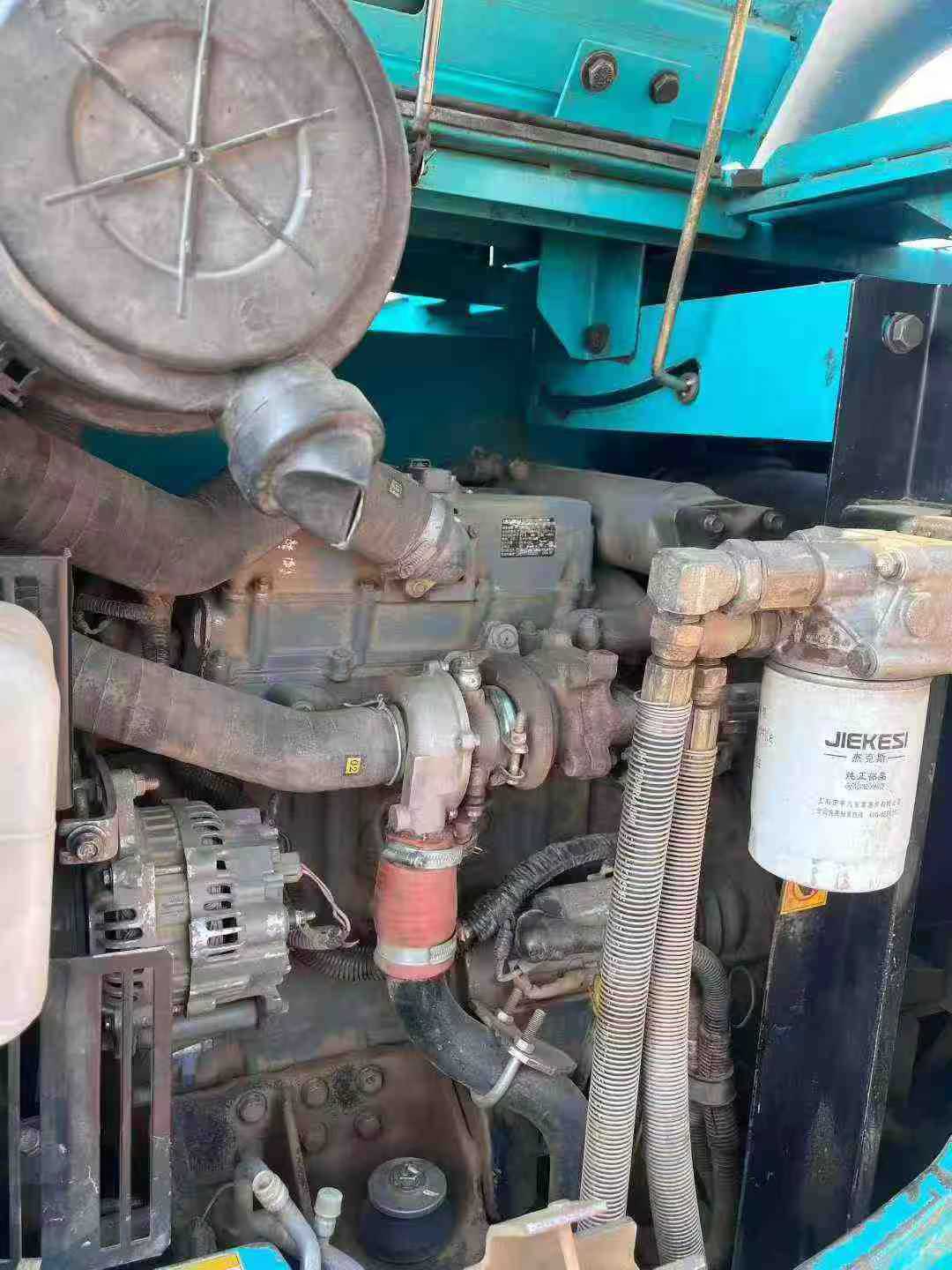

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
Description

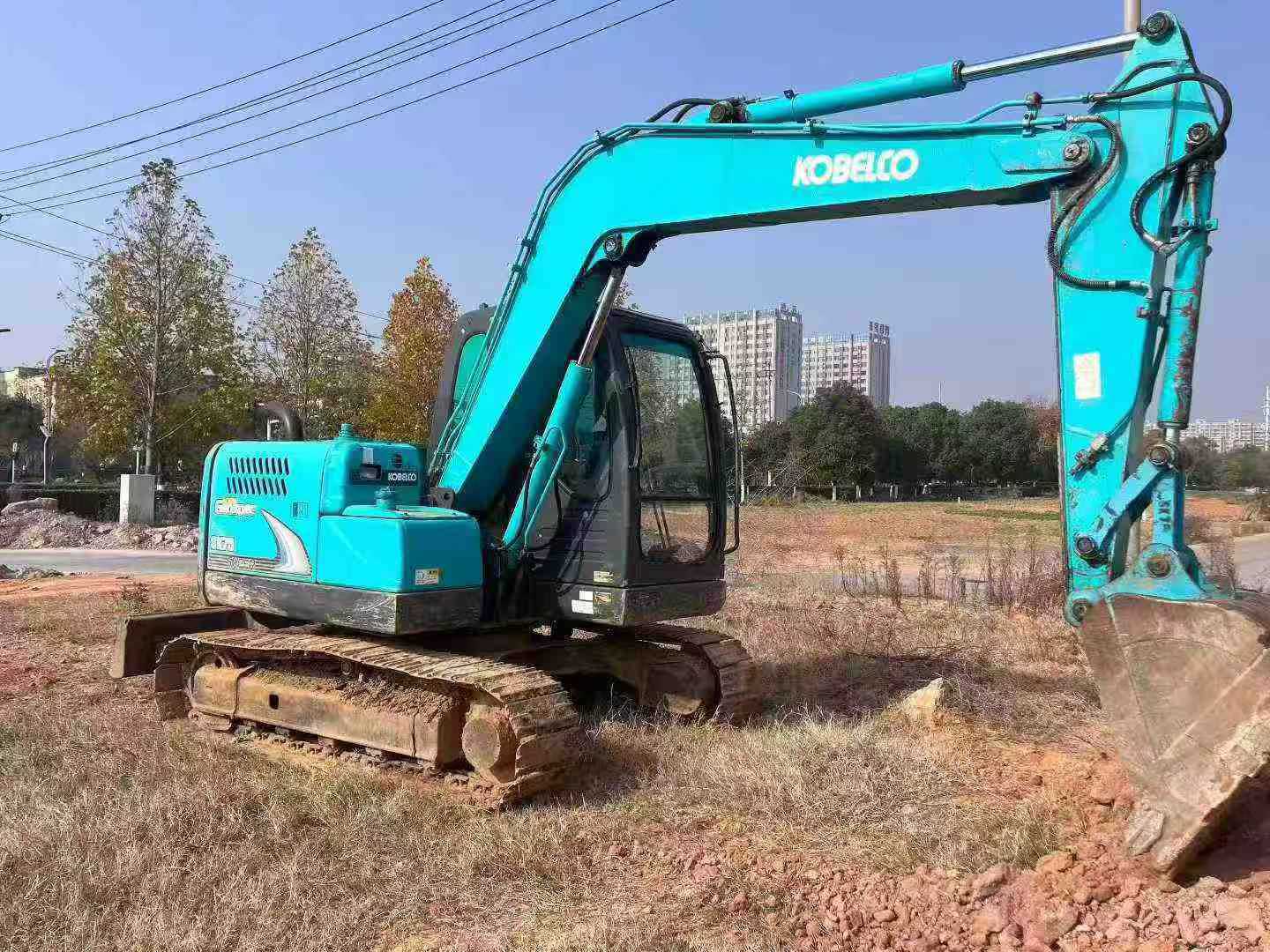

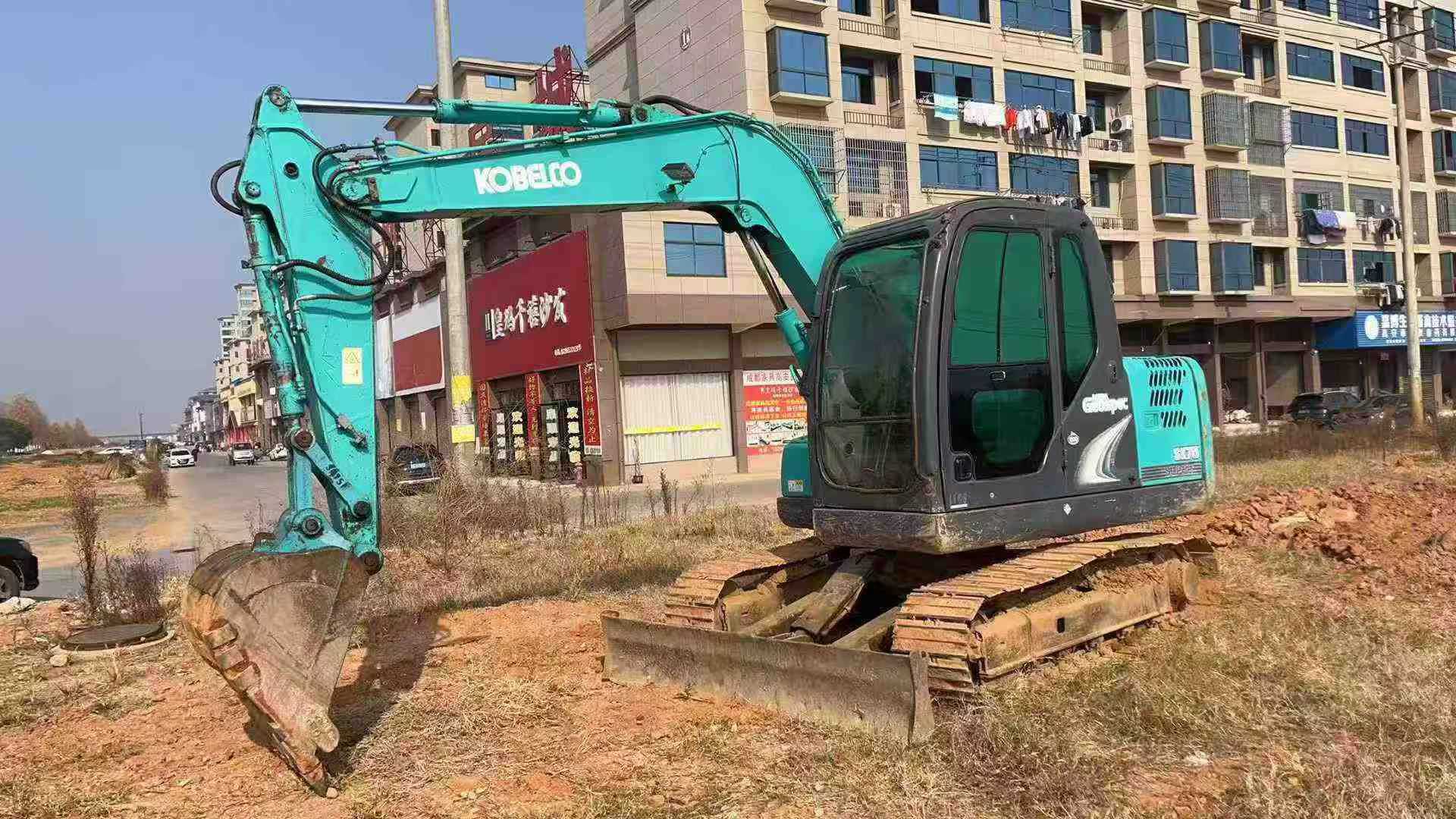

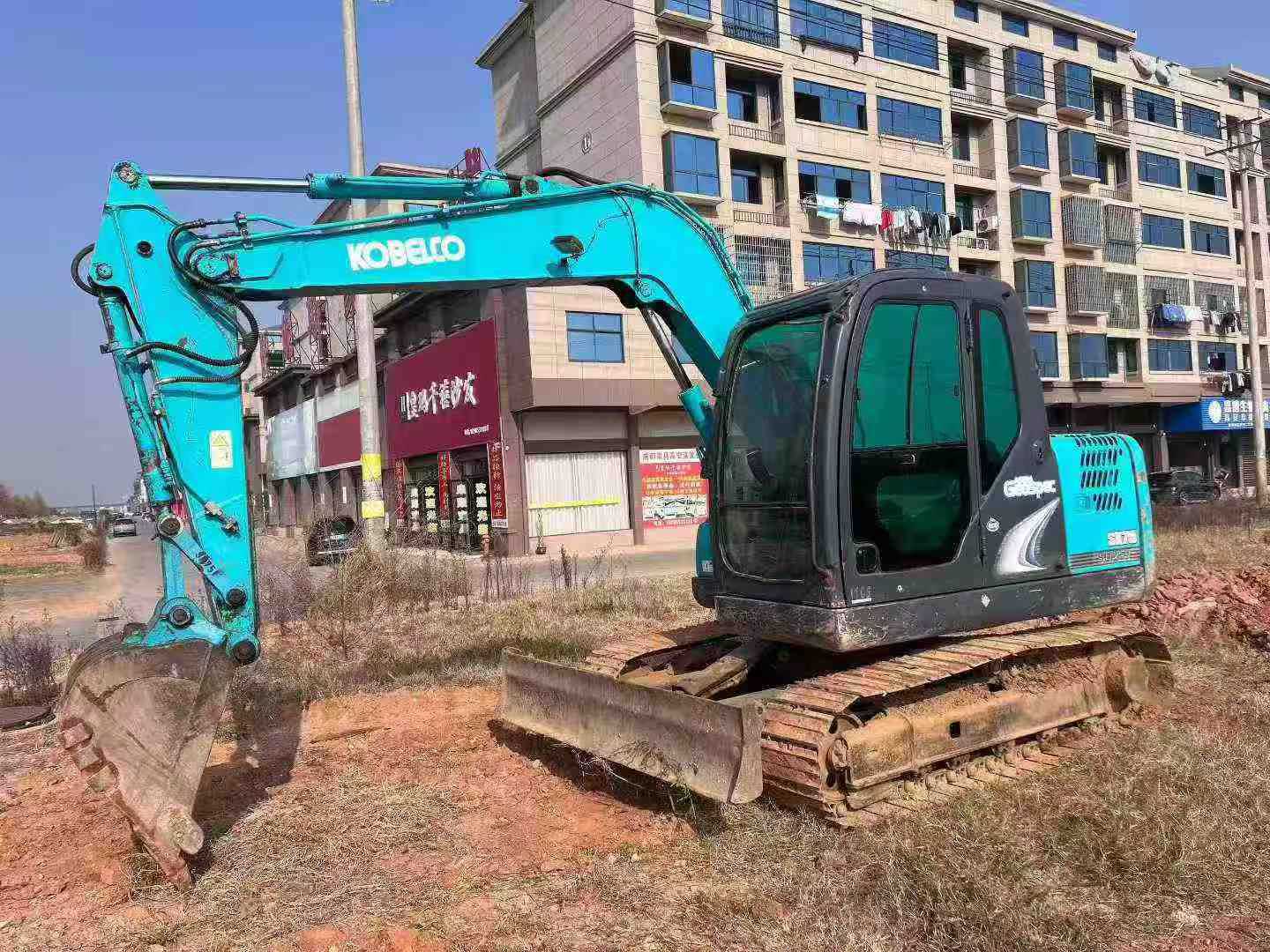

【 Premium Recommendation 】 Second-hand black frame Kobelco 75 excavator with shovel This black-frame Kobelco 75 second-hand excavator with a shovel is one of the most favored medium-sized excavators in the market. The original version of the entire machine has no accidents and is in excellent condition. It has undergone comprehensive inspection and maintenance by a professional team, ensuring the stability and reliability of the equipment. This excavator has a working time of only 3,200 hours and is in the best mechanical performance condition, making it highly suitable for engineering projects that require high-efficiency operations. In terms of the power system, this excavator is equipped with a high-performance original imported engine, which is powerful and has good fuel economy. It can handle both flat ground excavation and complex terrain operations with ease. It can maintain a stable output power even under long-term continuous operation, reducing the problem of work interruption caused by insufficient power. The hydraulic system adopts an advanced load-sensitive control system, which can automatically adjust the oil pressure and flow rate according to the actual working requirements, making the operation more precise and smo
