Kobelco SK75

2019 Kobelco SK75

1/9

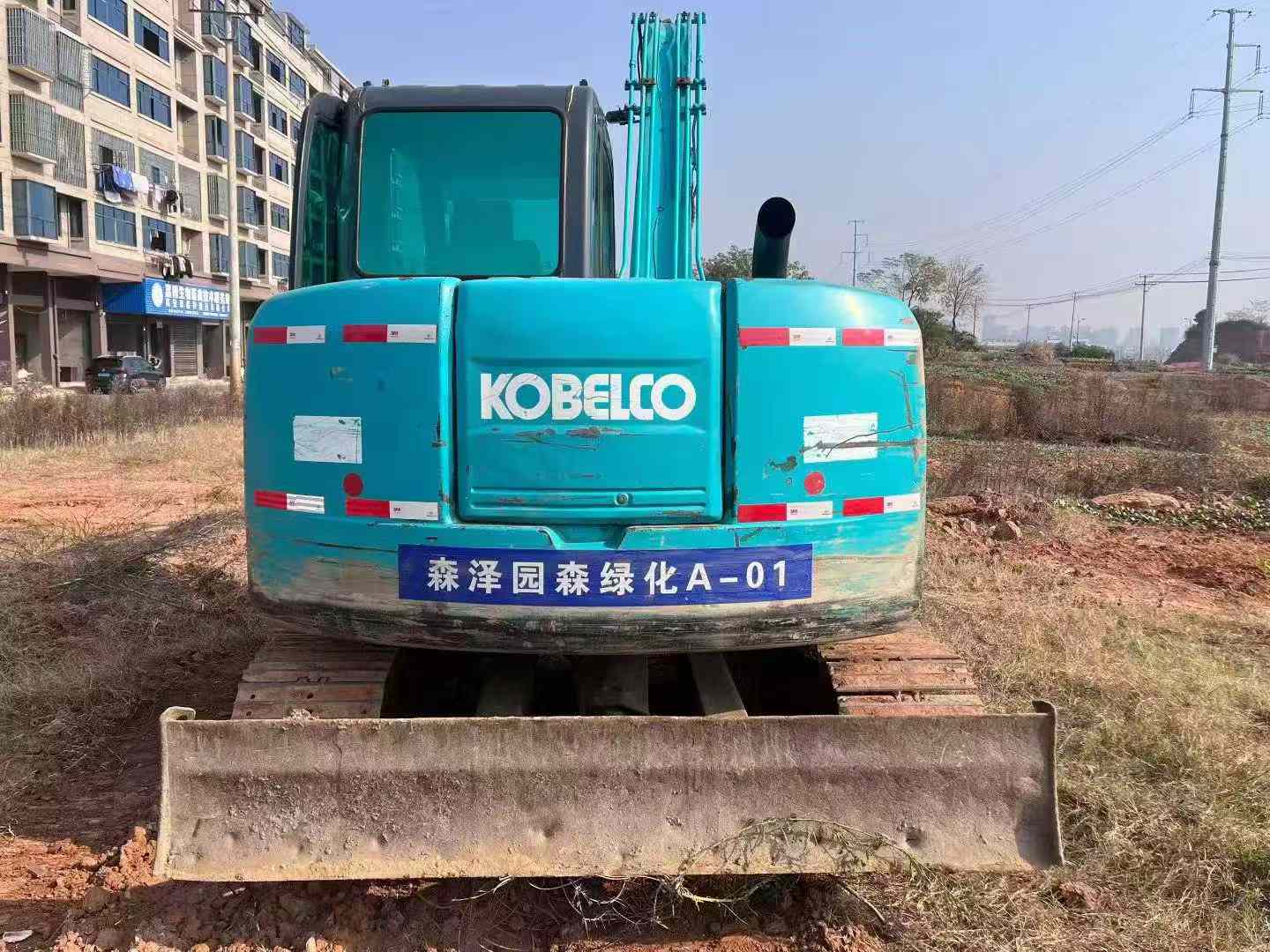

Used Kobelco SK75 Excavator 2019 Model / 1

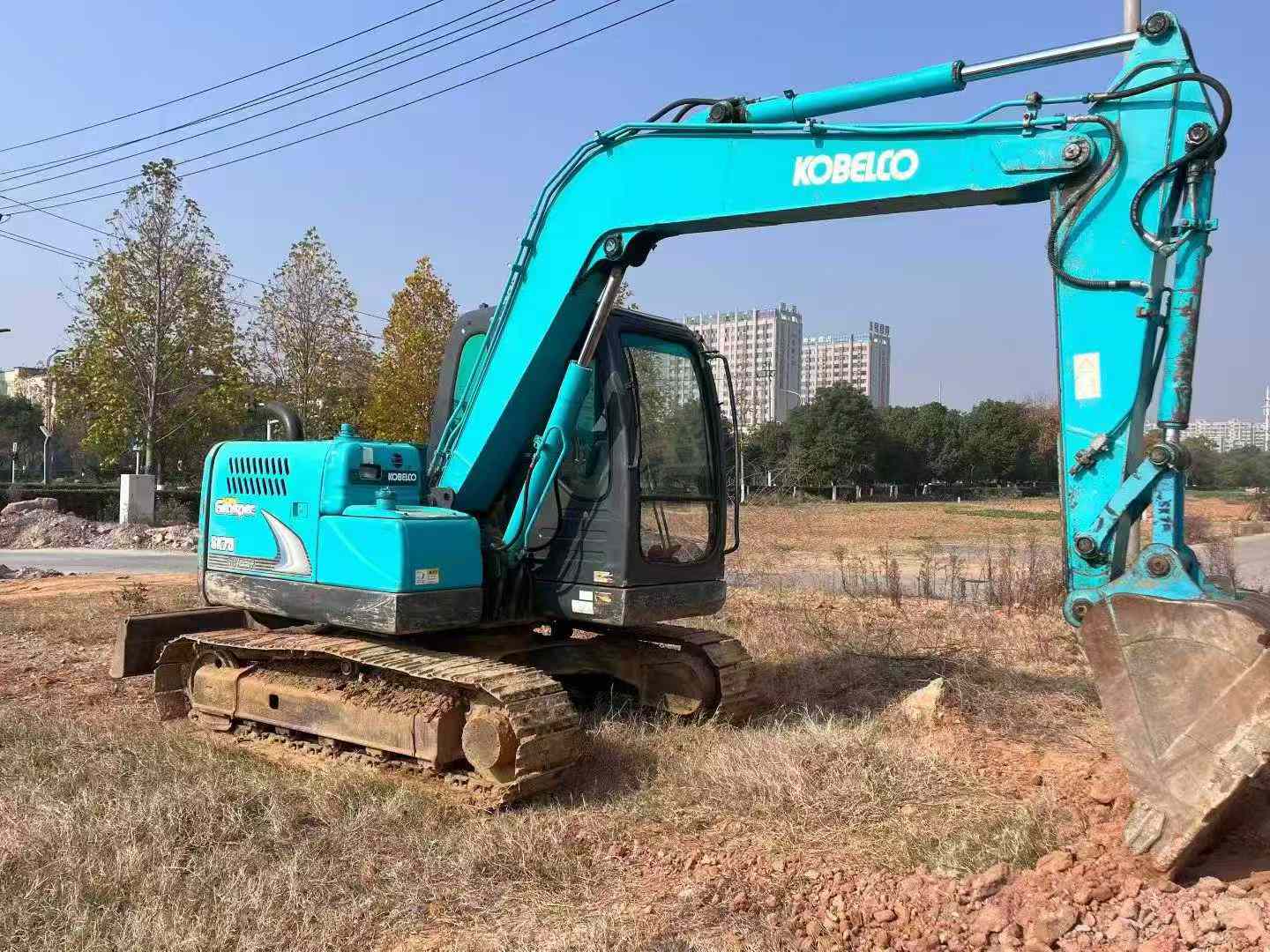

Used Kobelco SK75 Excavator 2019 Model / 2

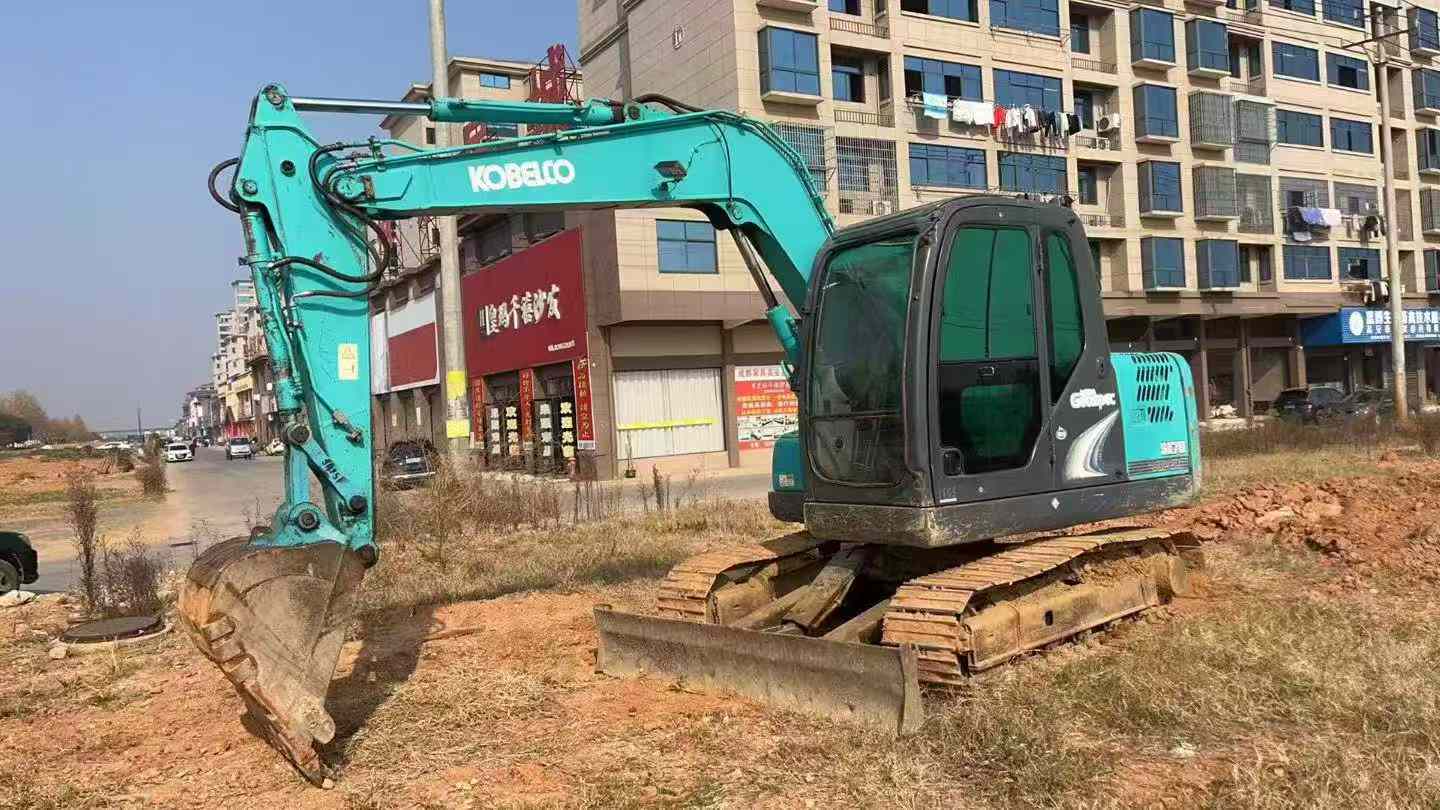

Used Kobelco SK75 Excavator 2019 Model / 3

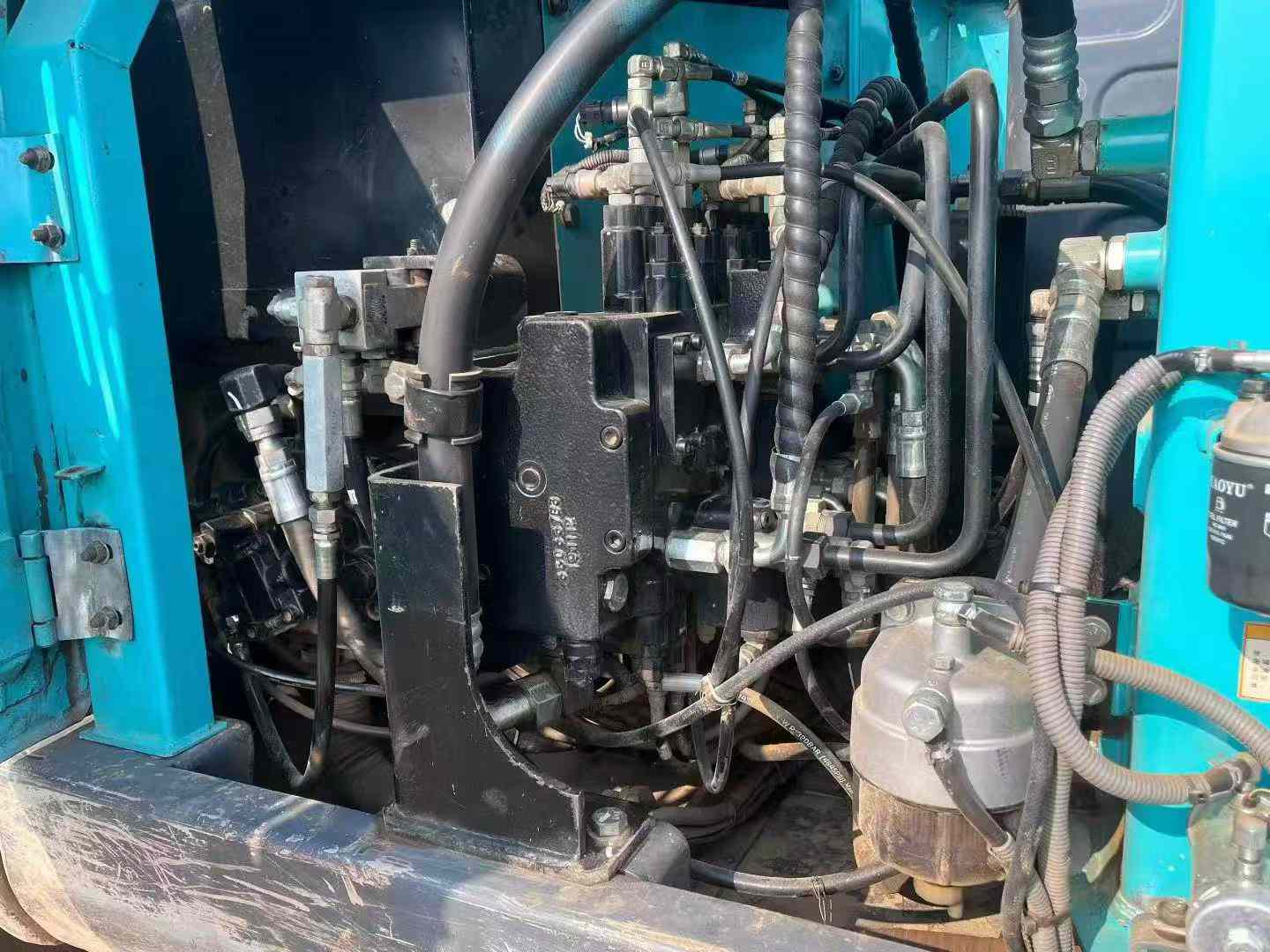

Used Kobelco SK75 Excavator 2019 Model / 4
Used Kobelco SK75 Excavator 2019 Model / 5

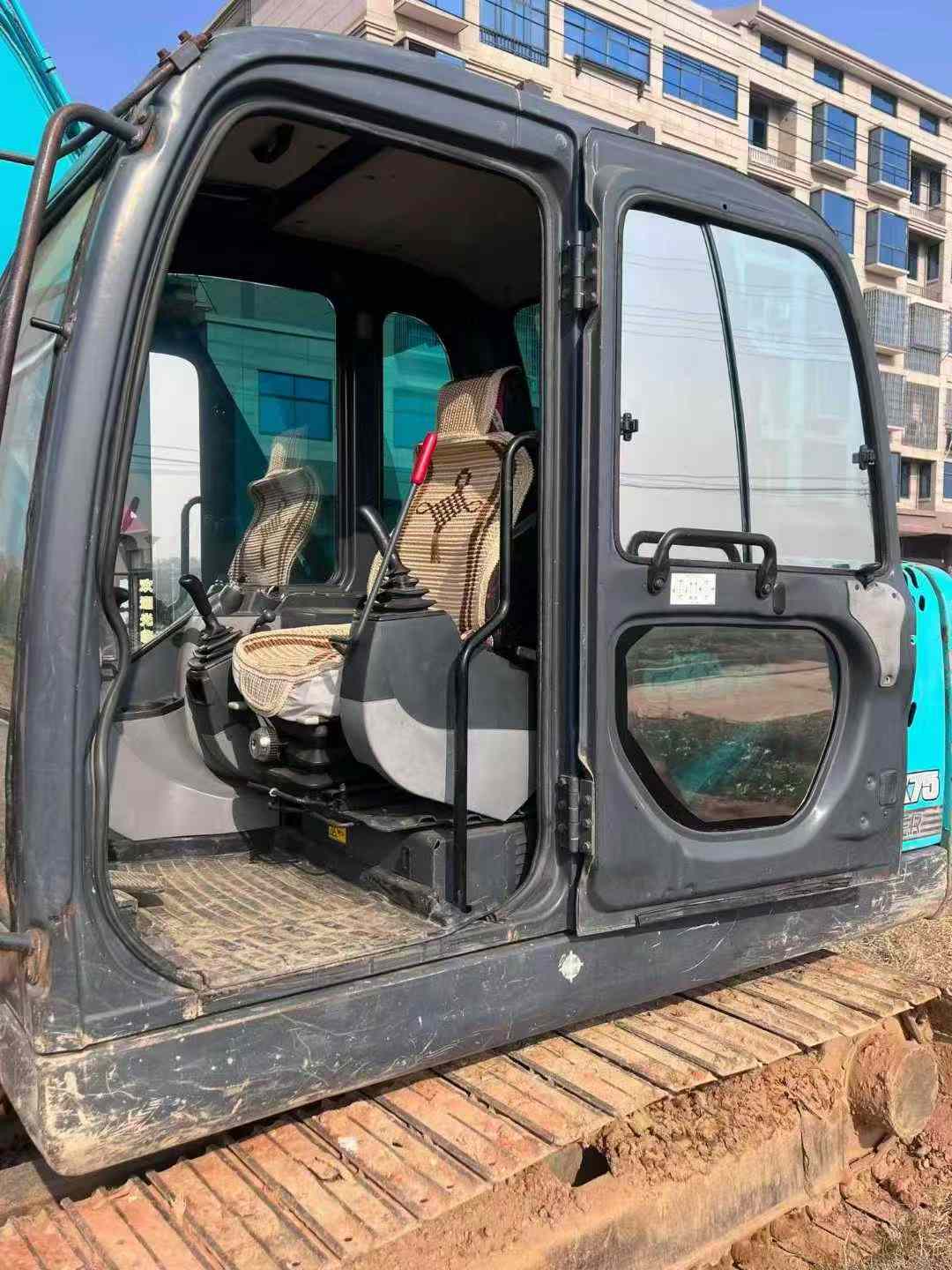

Used Kobelco SK75 Excavator 2019 Model / 6

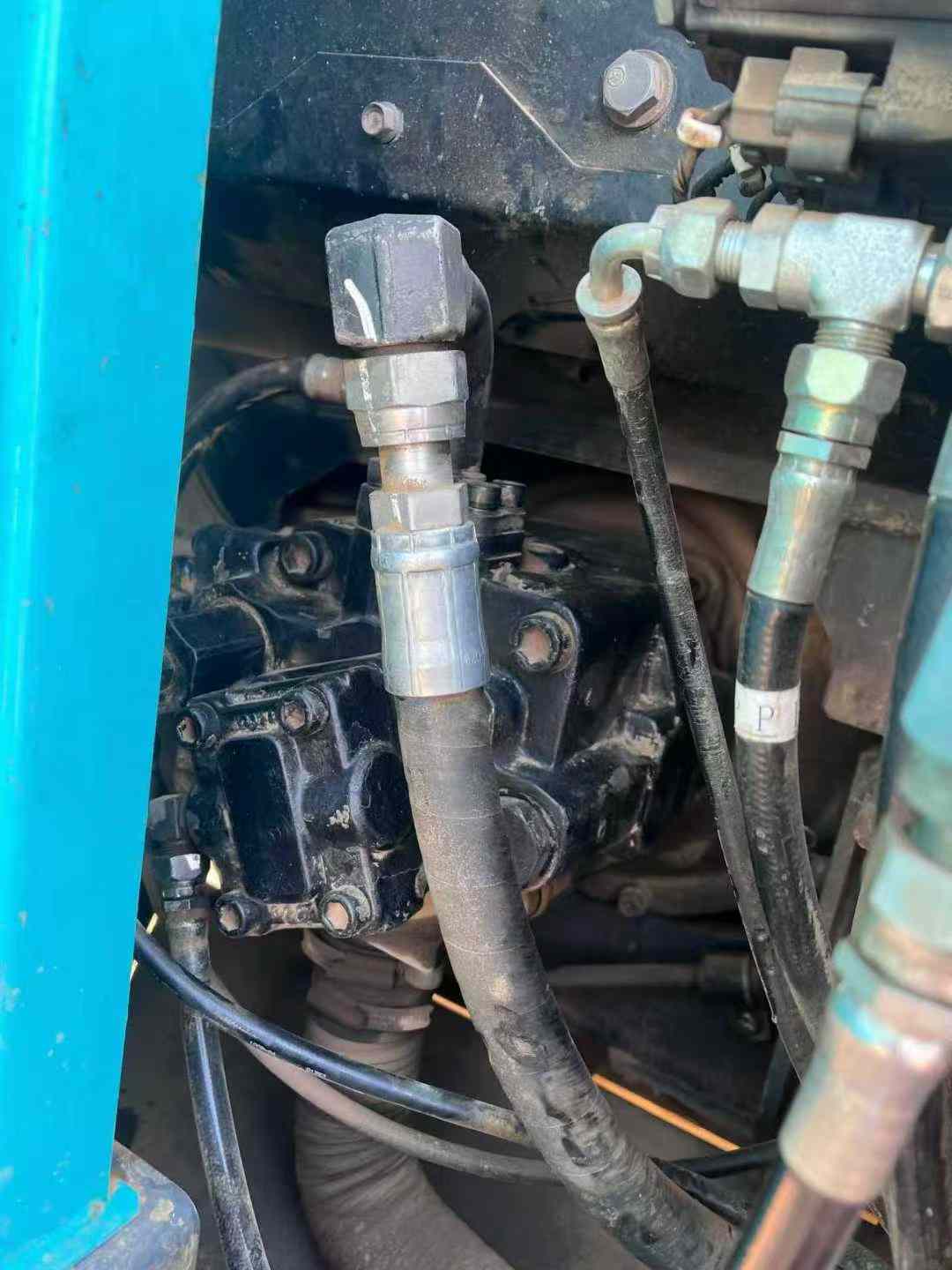

Used Kobelco SK75 Excavator 2019 Model / 7

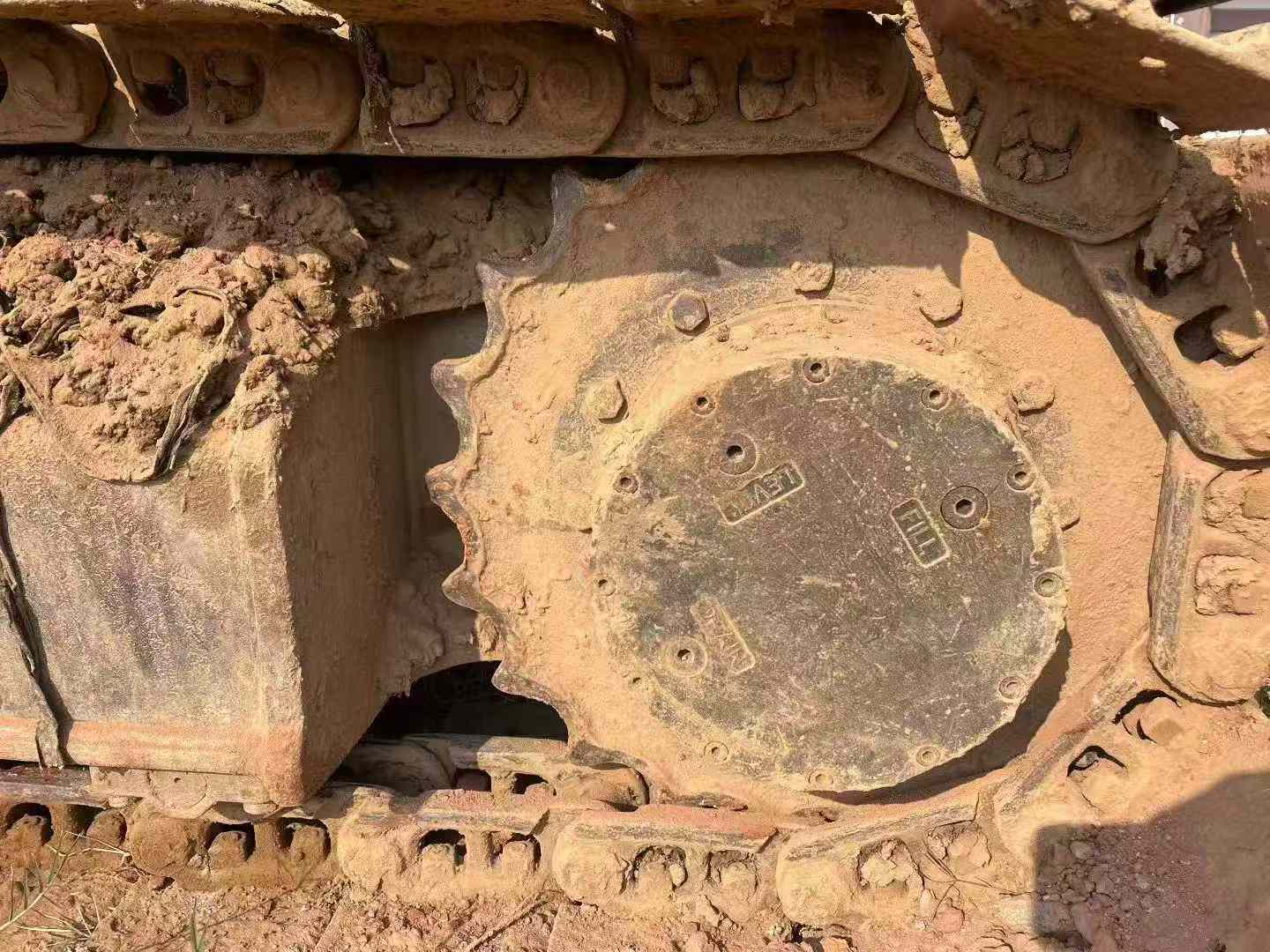

Used Kobelco SK75 Excavator 2019 Model / 8
Used Kobelco SK75 Excavator 2019 Model / 9
Product Description
SpecificationsValue
No.970829
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Description

【 Premium Recommendation 】 Second-hand Kobelco SK75-8 excavator from 2019, original complete machine without modification, in excellent condition, no need to worry about any issues. This excavator has only been in operation for 2,300 hours since it left the factory, which is far lower than the average usage time of similar equipment. This means that it is still in the best working condition and has a very high cost performance. In terms of the power system, this Kobsteel SK75-8 is equipped with a high-performance Yanmar 4TNV98 engine, with a maximum output power of up to 40.5 kilowatts. It not only provides strong power support but also has excellent fuel economy. Even after long-term operation, it can maintain a low fuel consumption level, reducing operating costs. In addition, this engine is equipped with an advanced exhaust gas recirculation system (EGR) and diesel particulate filter (DPF), meeting the latest emission standards and featuring outstanding environmental protection performance. The hydraulic system is another highlight of this excavator. It adopts the HIOS IIIA hydraulic control system independently developed by Kobelco. By optimizing the matching relationship between the main pump and the control valve, it achieves a
