HOME>>Brands>>Kobelco SK75

2013 Kobelco SK75

1/5

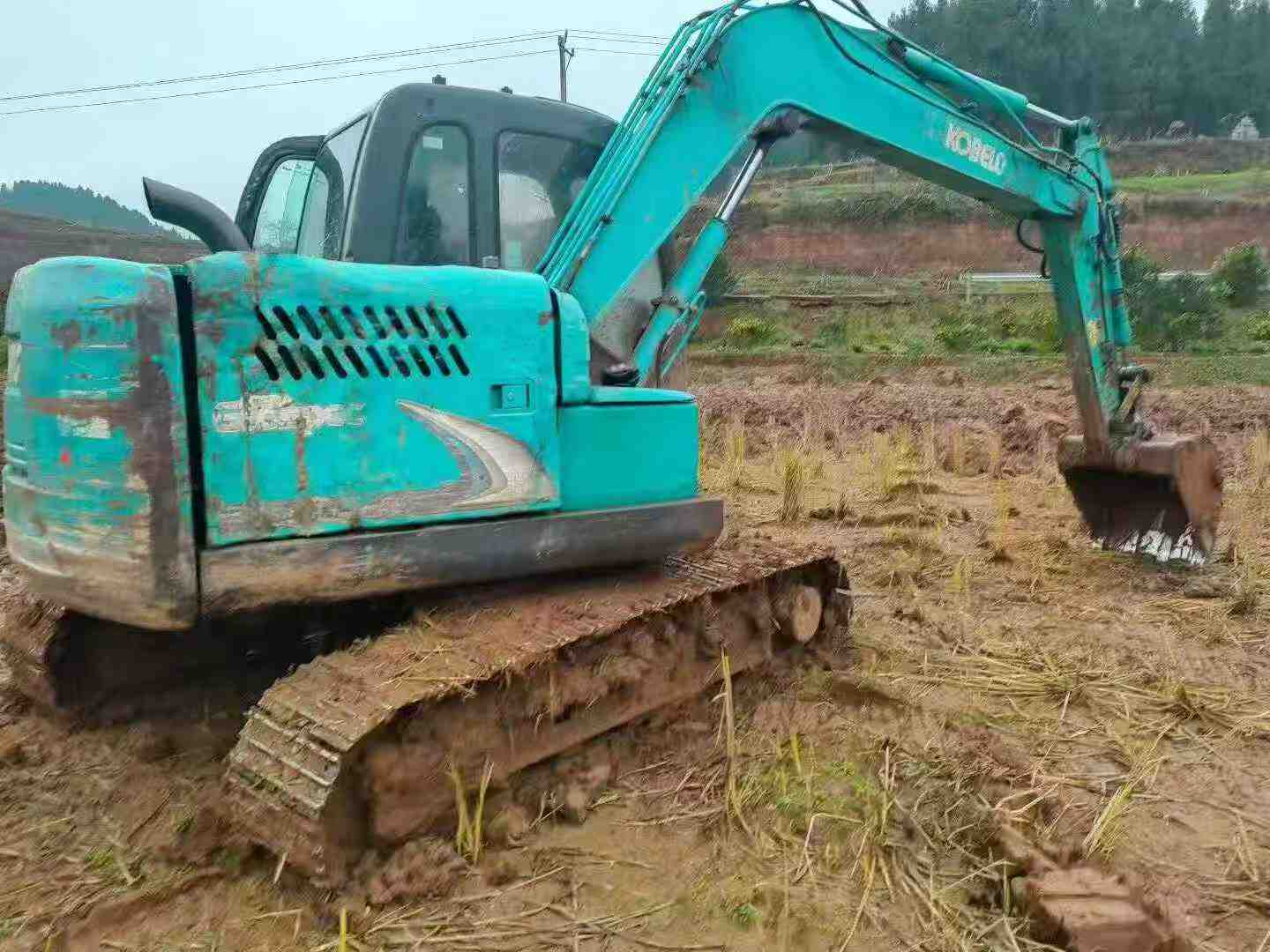

Used Kobelco SK75 Excavator 2013 Model / 1

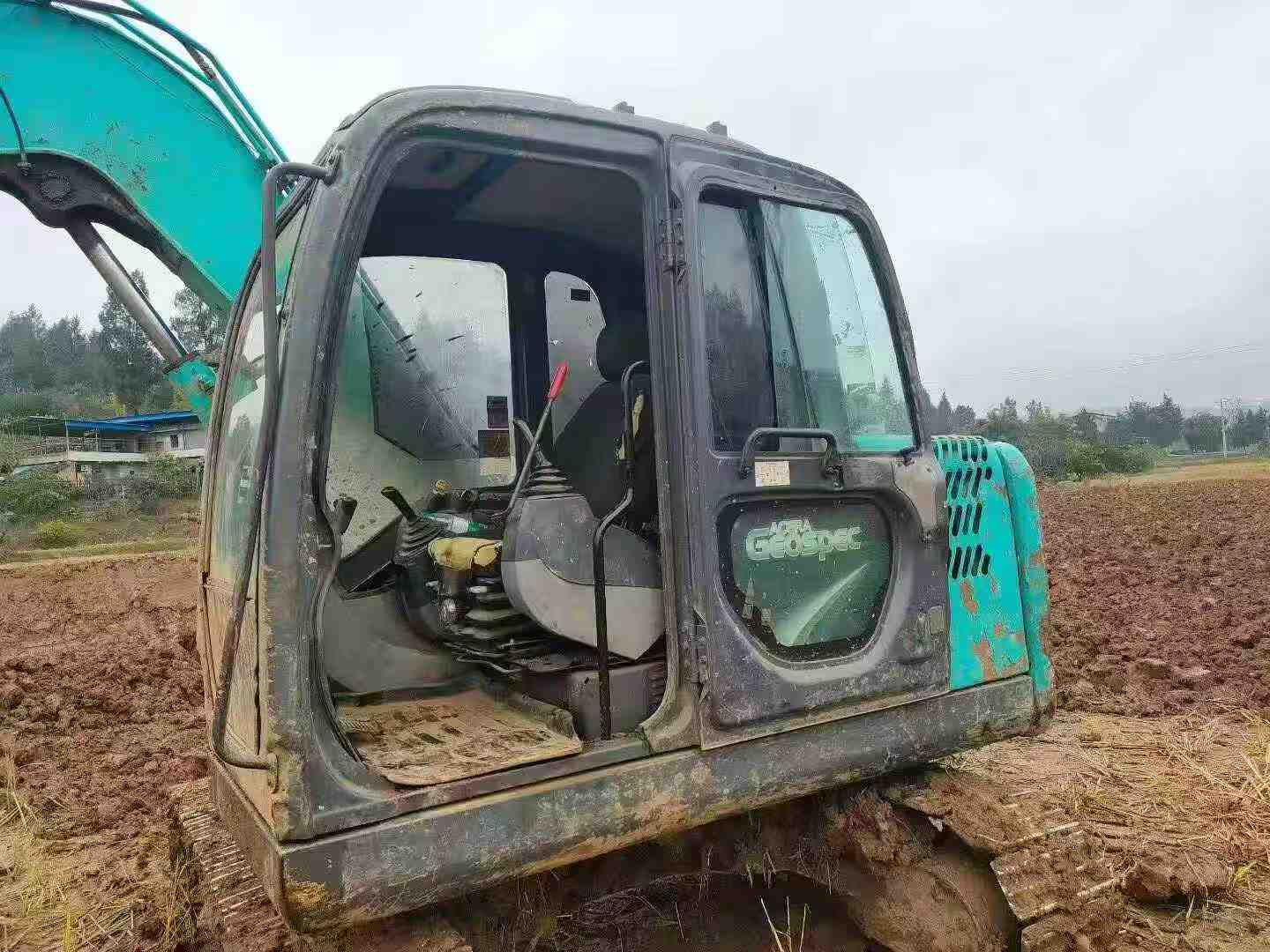

Used Kobelco SK75 Excavator 2013 Model / 2

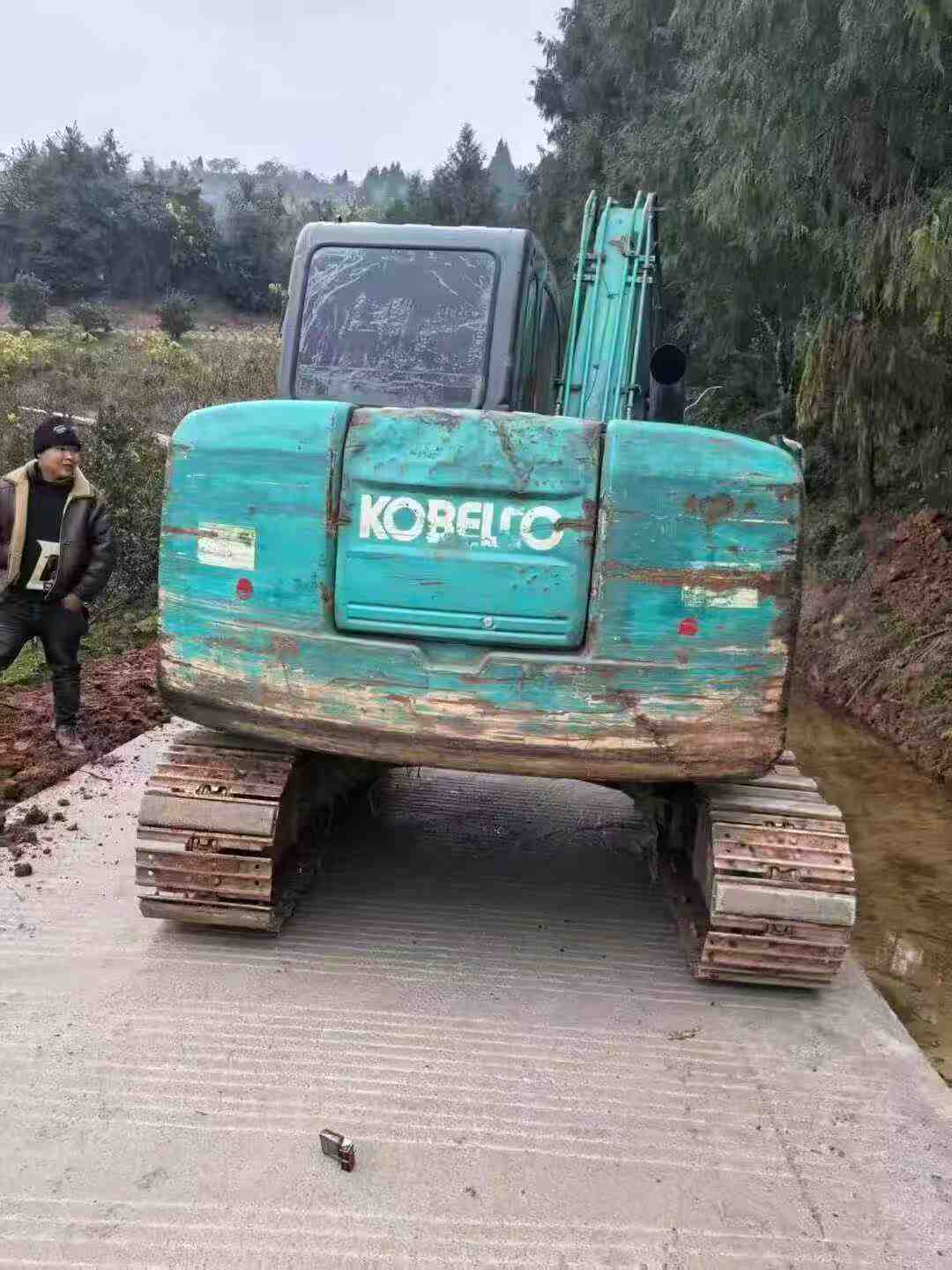

Used Kobelco SK75 Excavator 2013 Model / 3

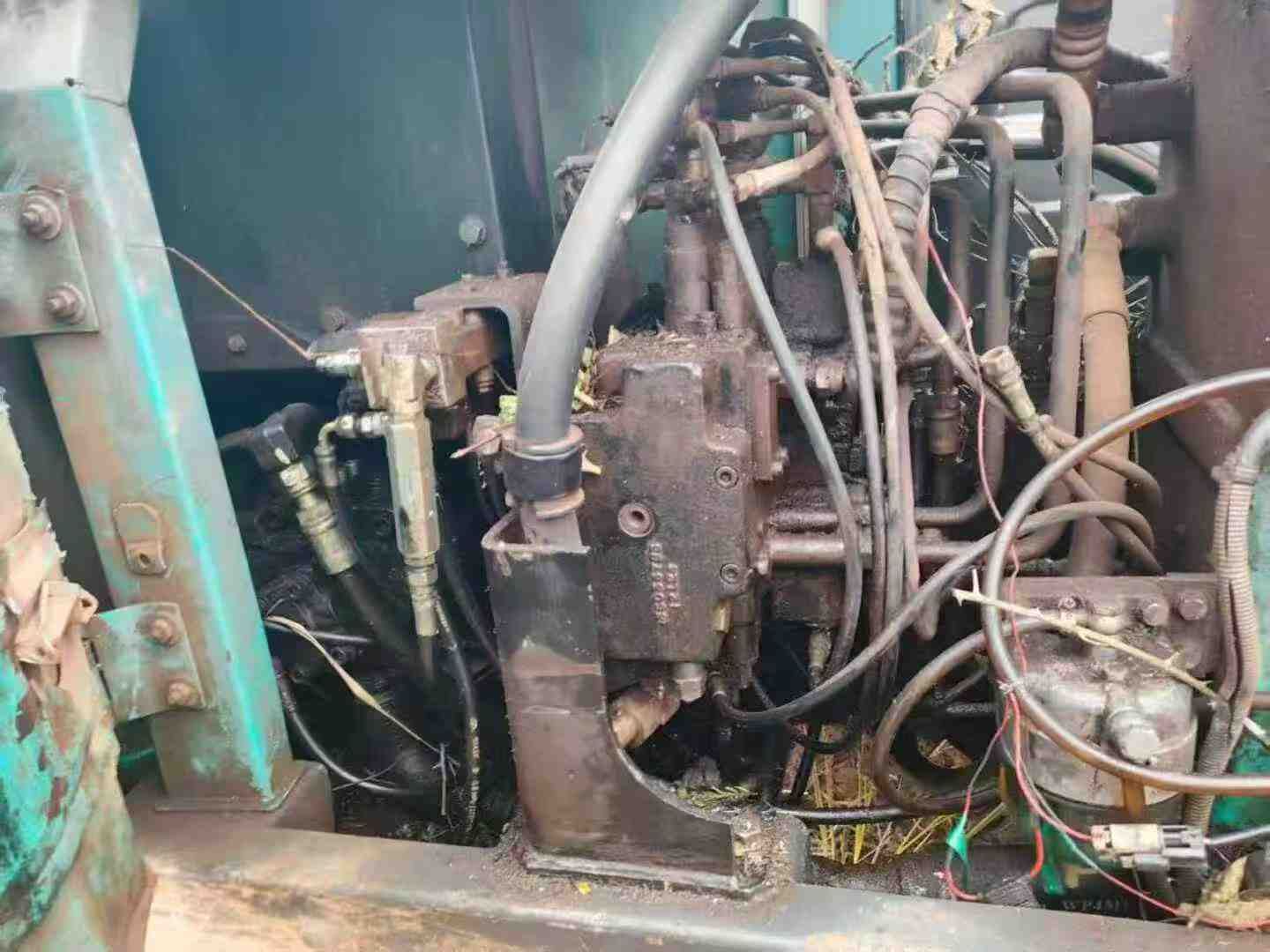

Used Kobelco SK75 Excavator 2013 Model / 4

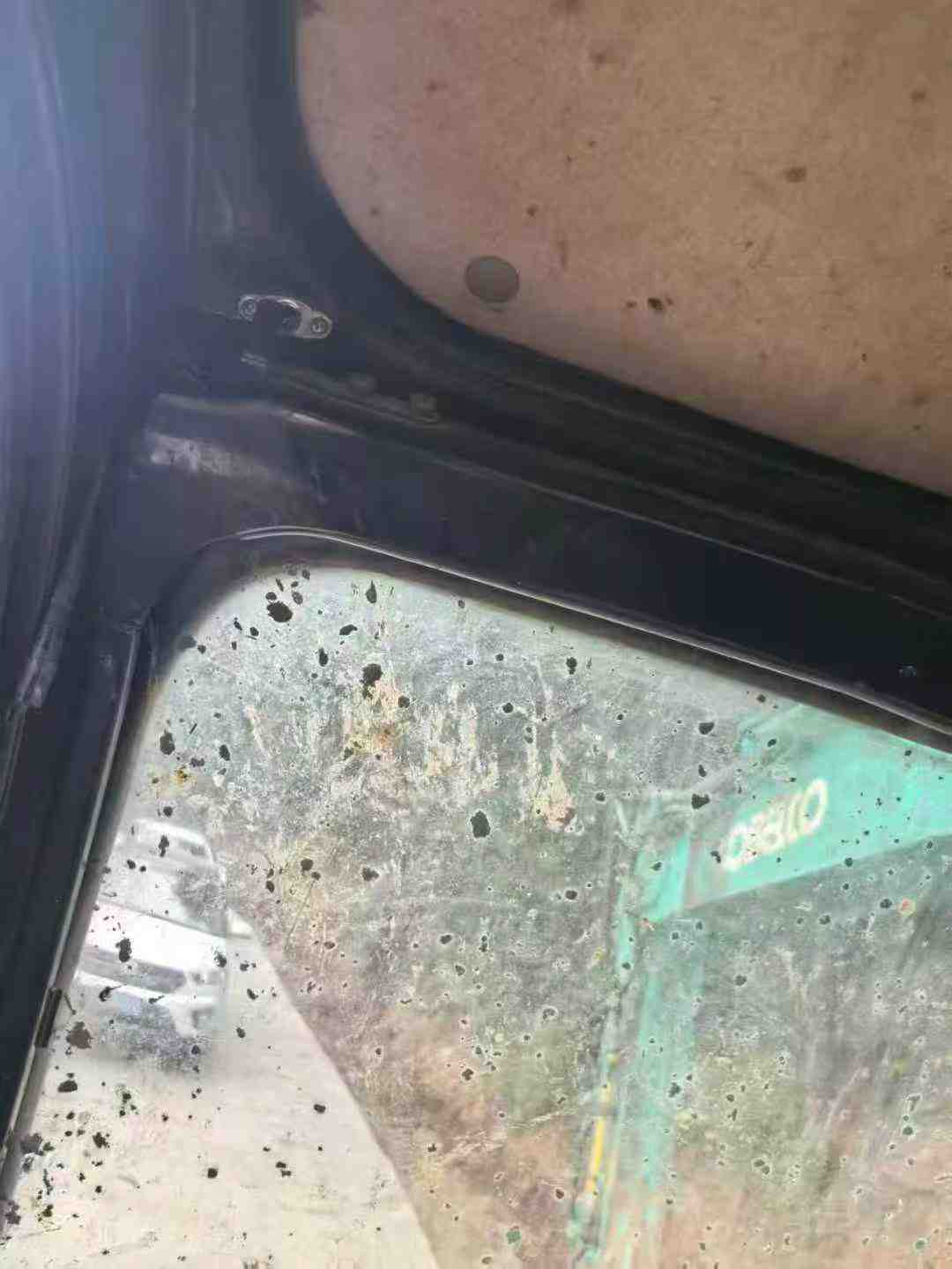

Used Kobelco SK75 Excavator 2013 Model / 5

Product Description

There is currently a second-hand Kobelco SK75 excavator produced in 2013, priced at only over 50,000 yuan, offering an extremely high cost performance. The equipment is expected to operate for approximately 4,000 hours. It is in good overall condition with stable and reliable performance. In terms of power, this excavator is equipped with a high-performance Yanmar engine with a rated power of approximately 40 kilowatts, ensuring strong output and efficient operation under various complex working conditions. The engine features excellent fuel economy and low emissions, which not only reduces operating costs but also meets environmental protection requirements. In terms of the hydraulic system, Kobelco's proprietary high-pressure common rail technology is adopted, equipped with a high-quality combination of hydraulic pumps and hydraulic motors, which can provide a smooth and precise operation experience. This advanced hydraulic control system enables the machine to perform operations such as excavation and loading more flexibly and freely, enhancing work efficiency while reducing energy consumption. In addition, this SK75 also has the following major advantages: - Compact structure and strong adaptability: Suitable for operations in n

SpecificationsValue
No.976105
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.976105

Brand Name:

Kobelco

Model Number:

SK75

Year:

2013

Location:

Sichuan China
