Product Description

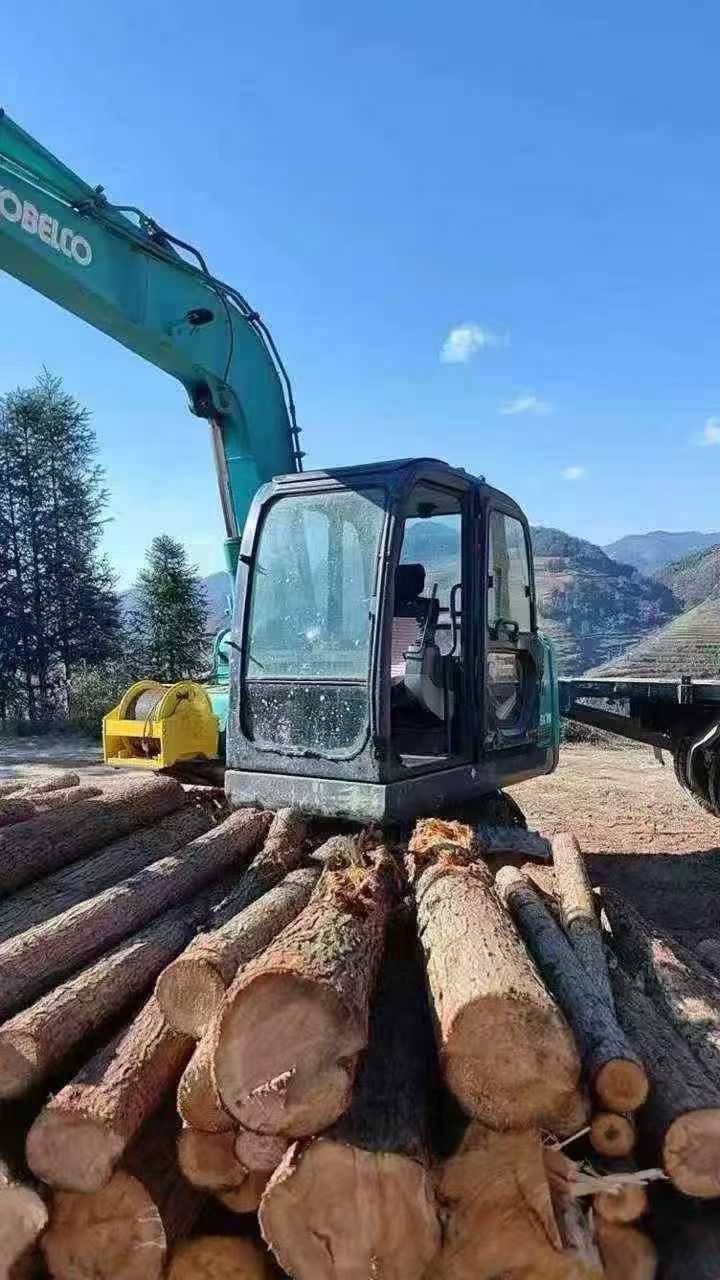

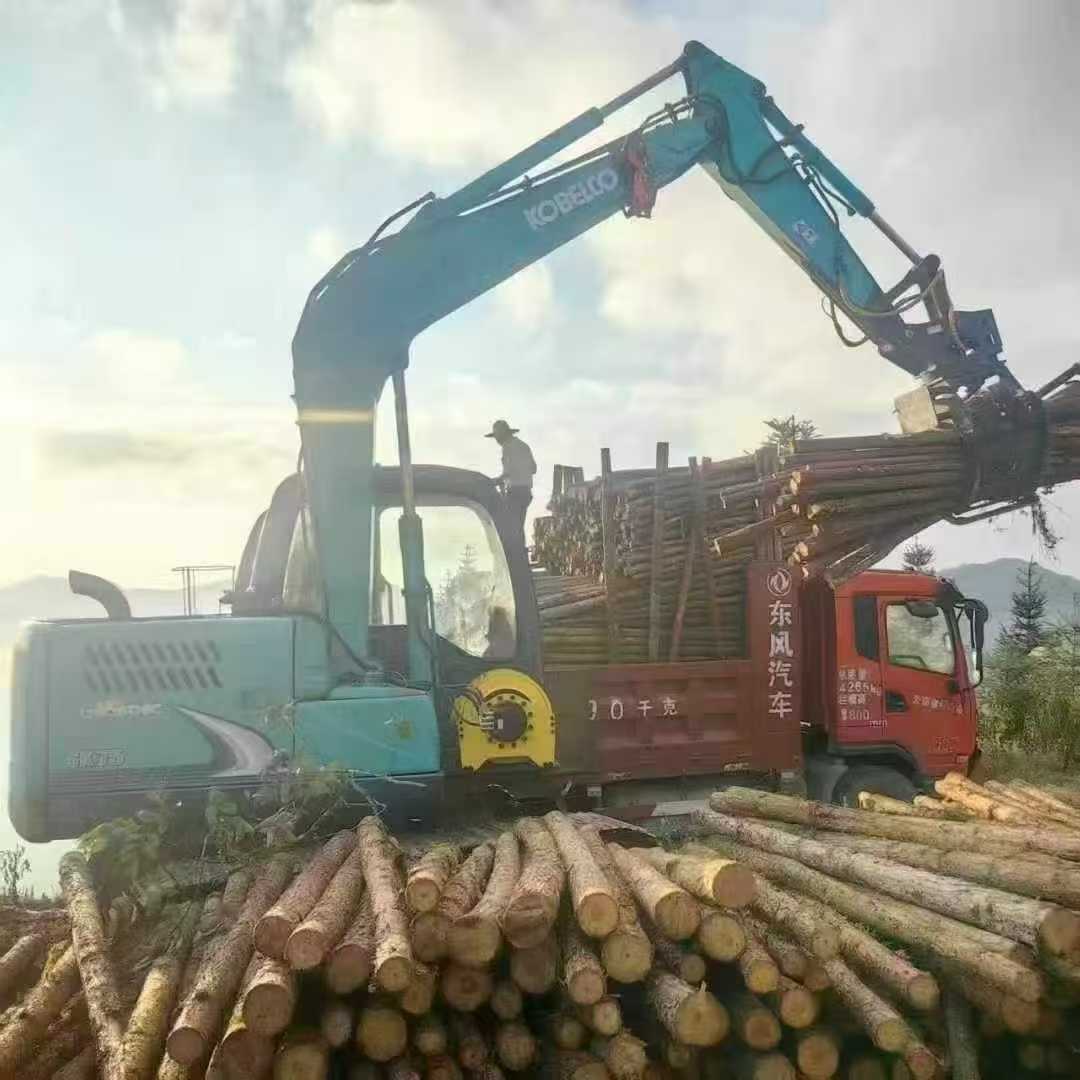

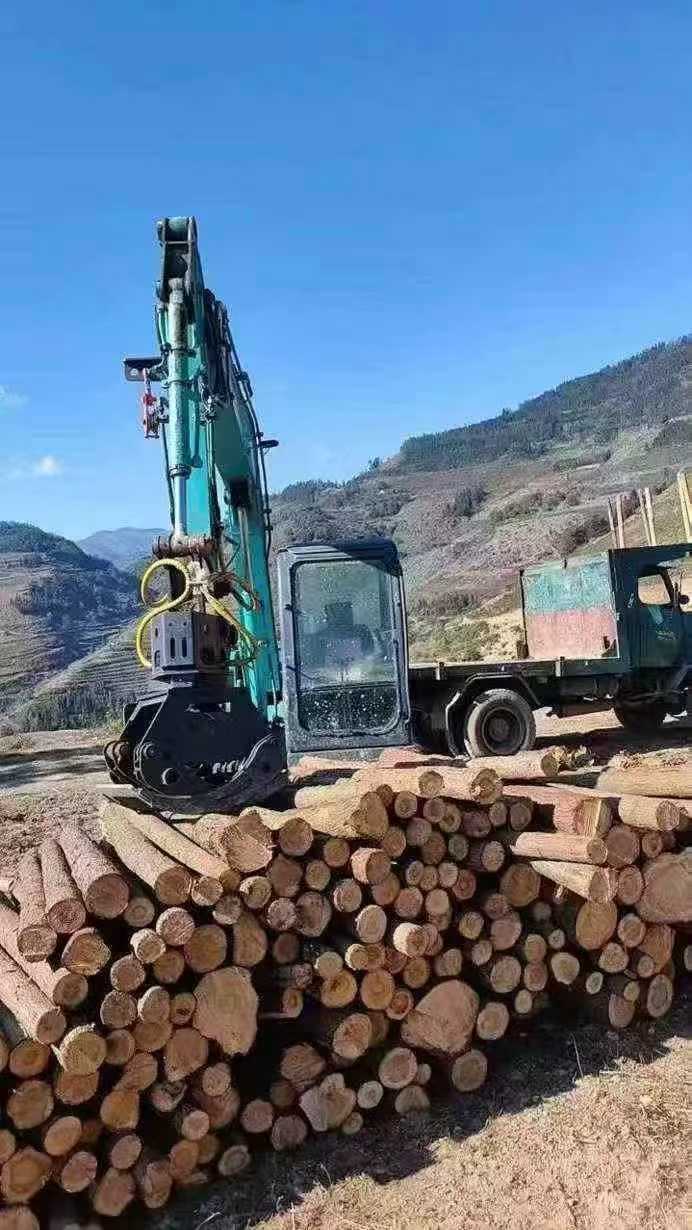

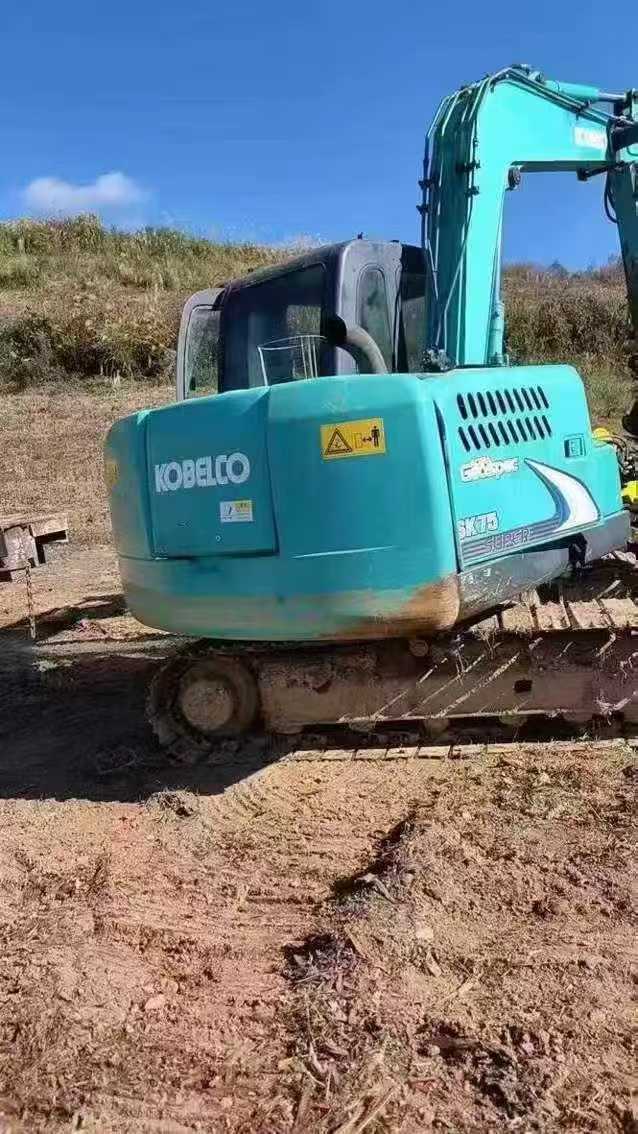

We currently have a first-hand second-hand Kobelco SK75 excavator in stock. It has only been driven for about 50,000 hours and is in good overall condition. It is only equipped with a standard bucket and is very suitable for users who pursue cost performance. This excavator is equipped with an efficient engine (possibly model KOMATSU SAA4D102E-1), which has strong power and can provide stable and reliable power output, ensuring excellent performance under various working conditions. In terms of the hydraulic system, an advanced variable piston pump combined with a high-quality hydraulic motor is adopted, making the entire machine operation more flexible and precise, with a fast response speed and high working efficiency. Kobelco SK75 is renowned in the industry for its outstanding durability and reliability. Its robust structural design ensures stability during long-term high-intensity operation. Meanwhile, the features of low fuel consumption and easy maintenance have also significantly reduced the operating costs for users. For friends who need to carry out earthwork excavation, site leveling and other engineering operations, this is an ideal and rare choice. Welcome everyone to come for a test drive experience. We believe it will b
| Specifications | Value |
|---|---|
| No. | 977200 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

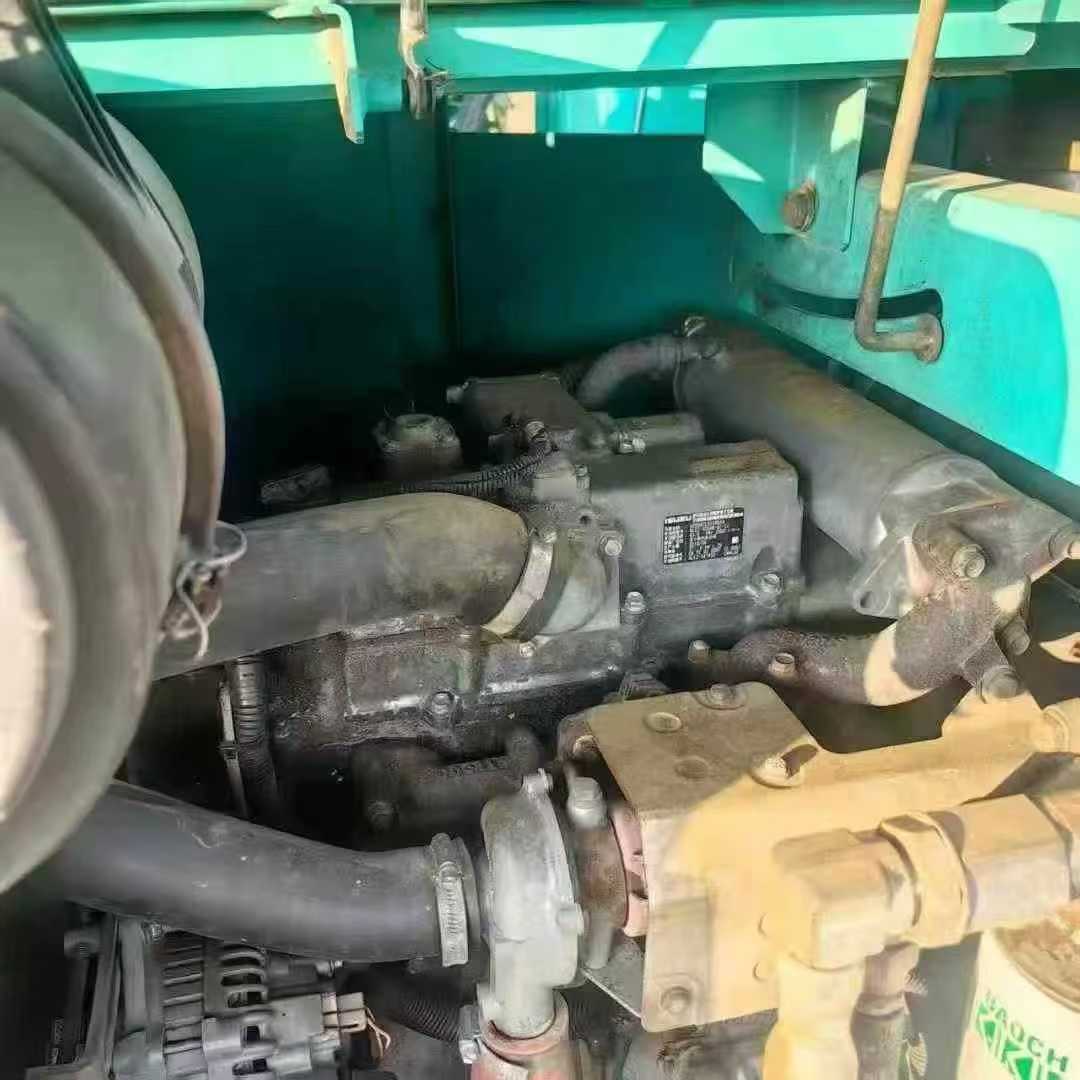

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
