2015 Kobelco SK75

1/5

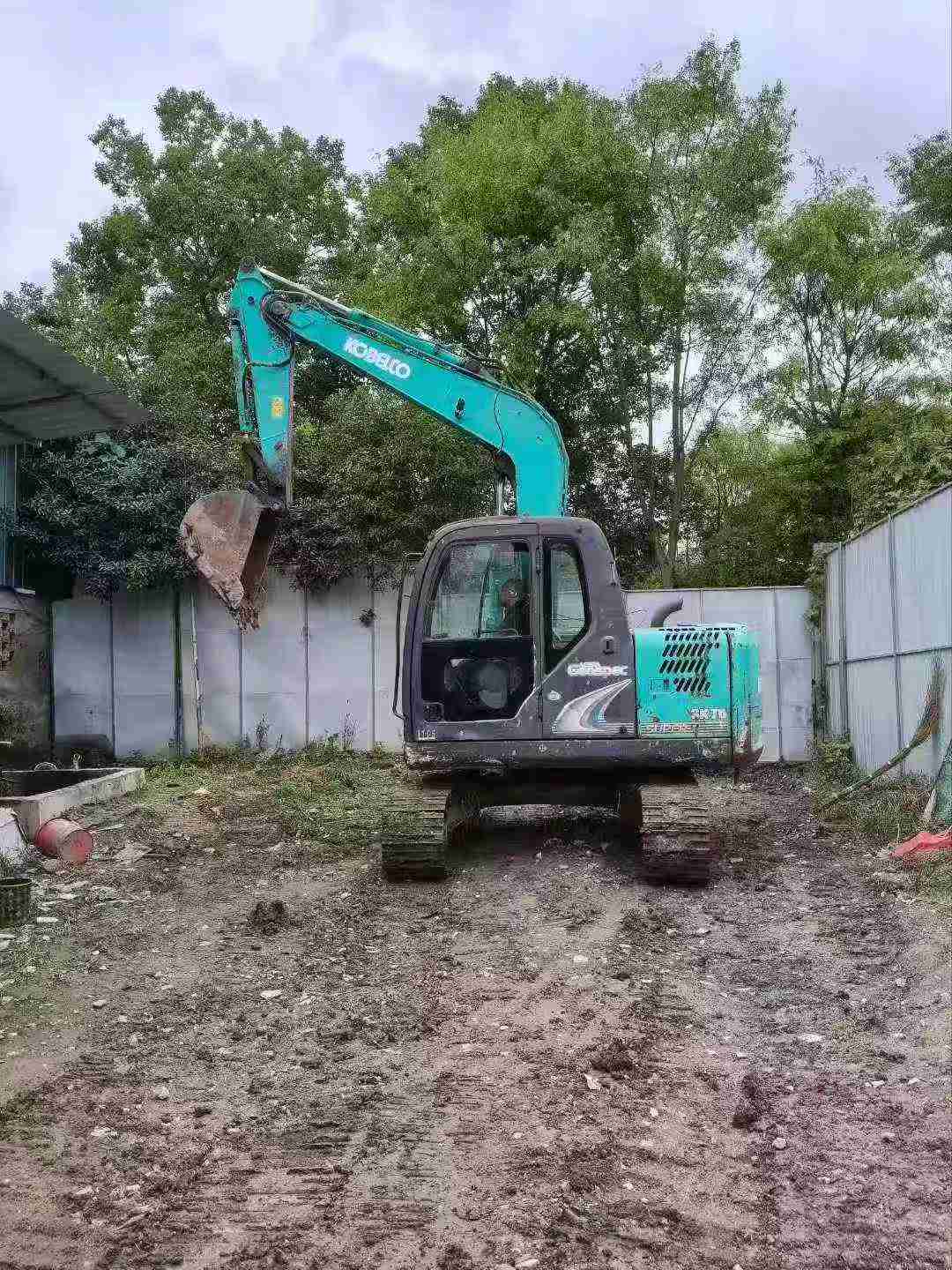

Used Kobelco SK75 Excavator 2015 Model / 1

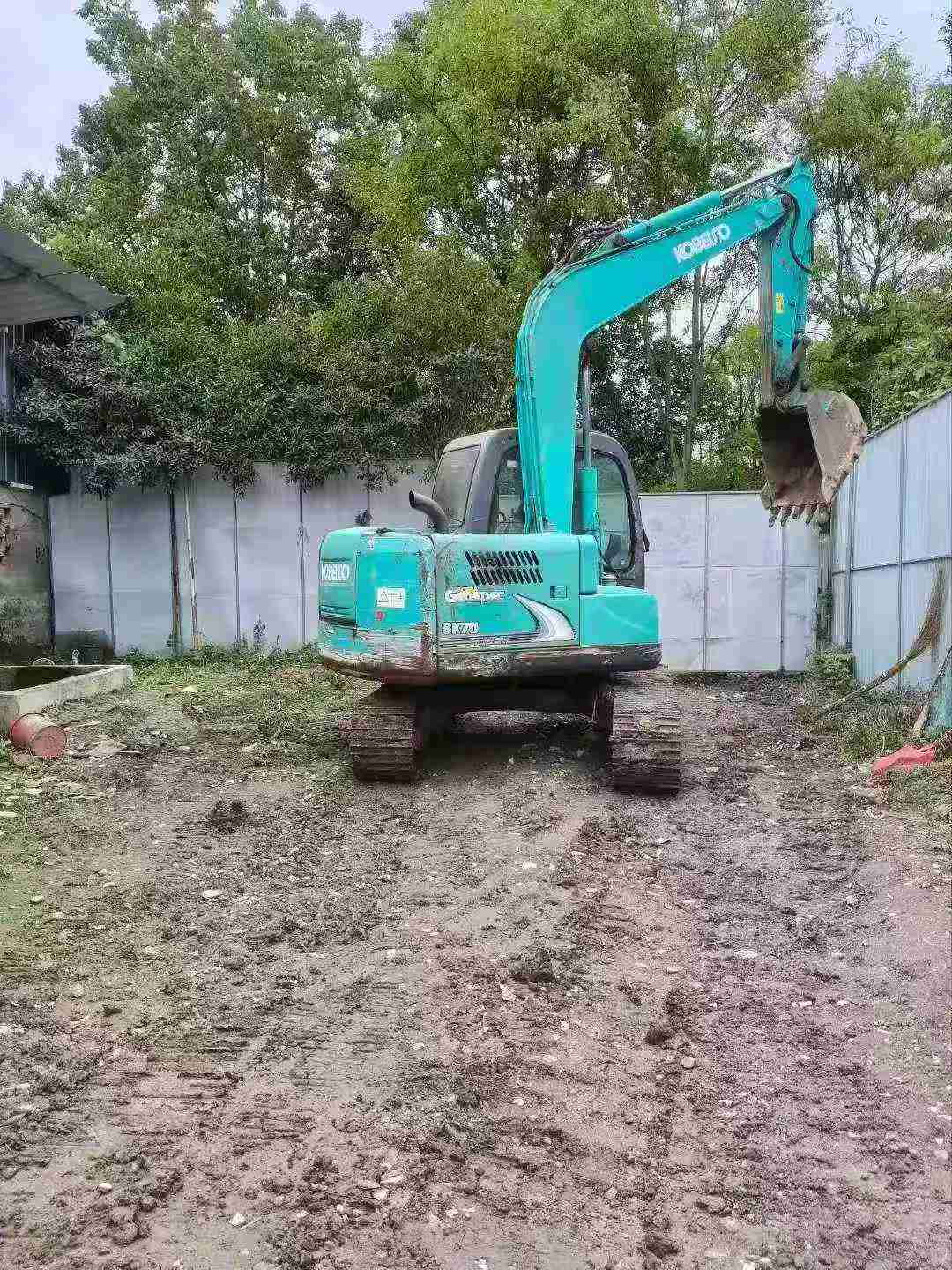

Used Kobelco SK75 Excavator 2015 Model / 2

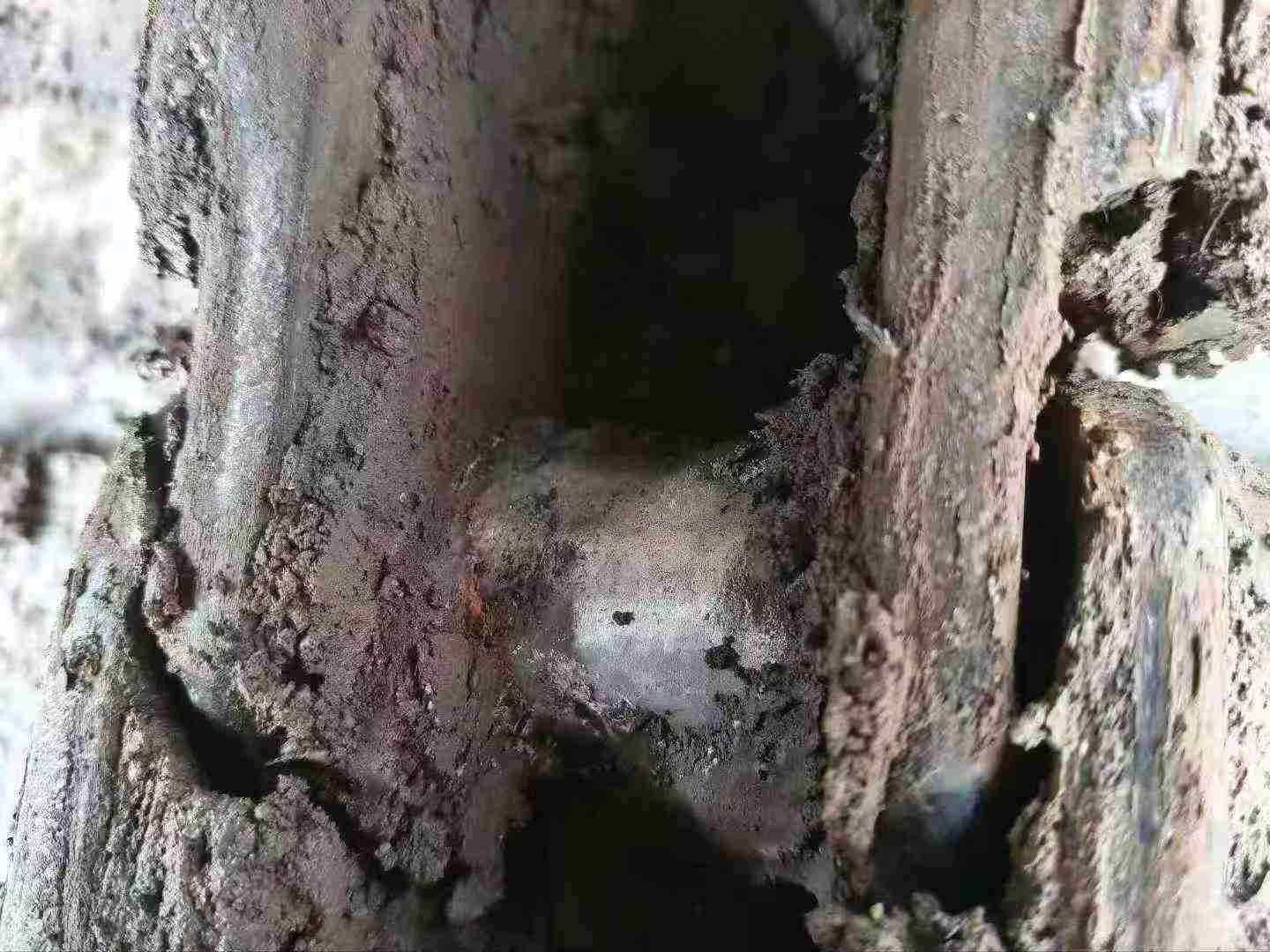

Used Kobelco SK75 Excavator 2015 Model / 3

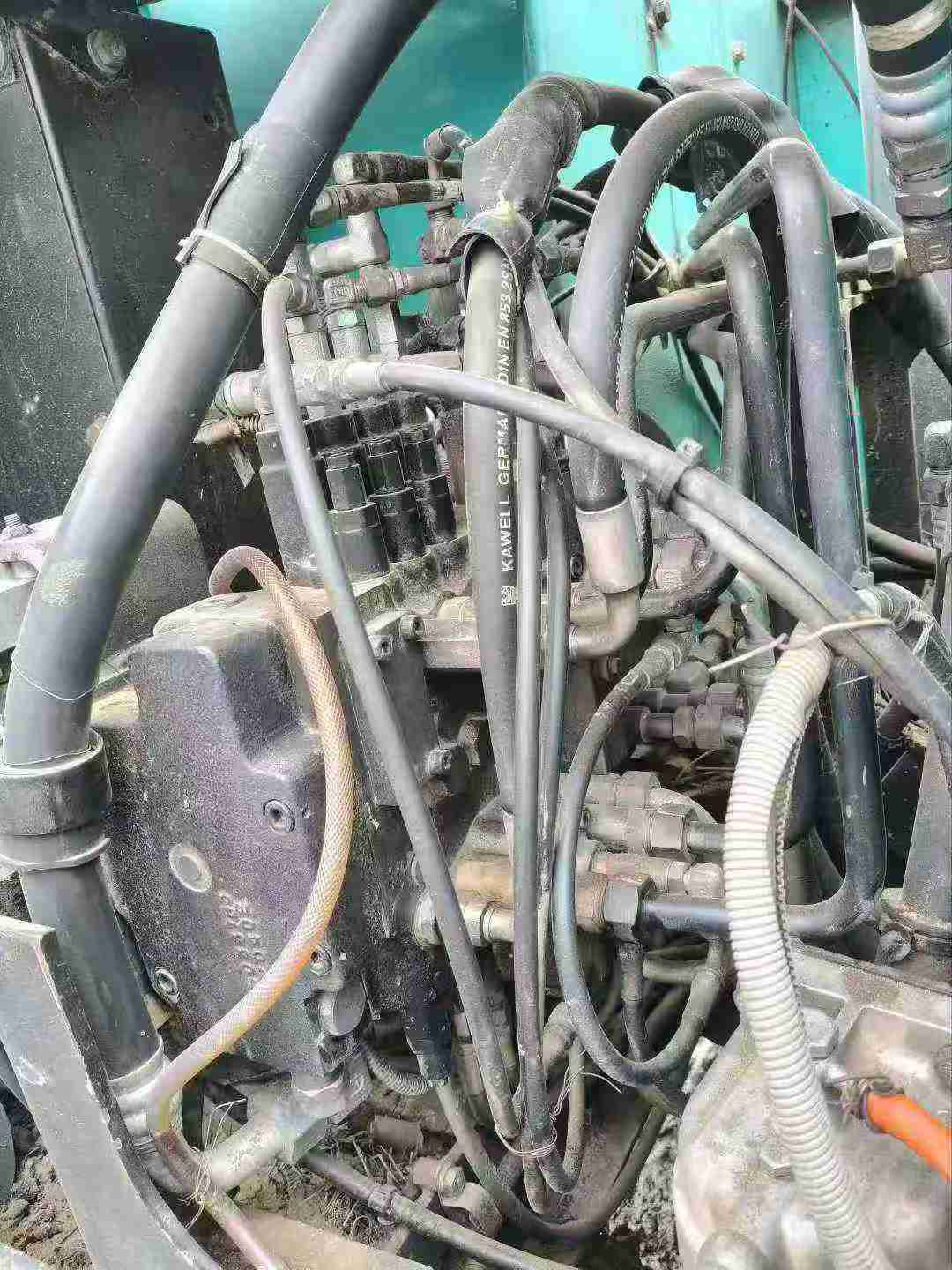

Used Kobelco SK75 Excavator 2015 Model / 4

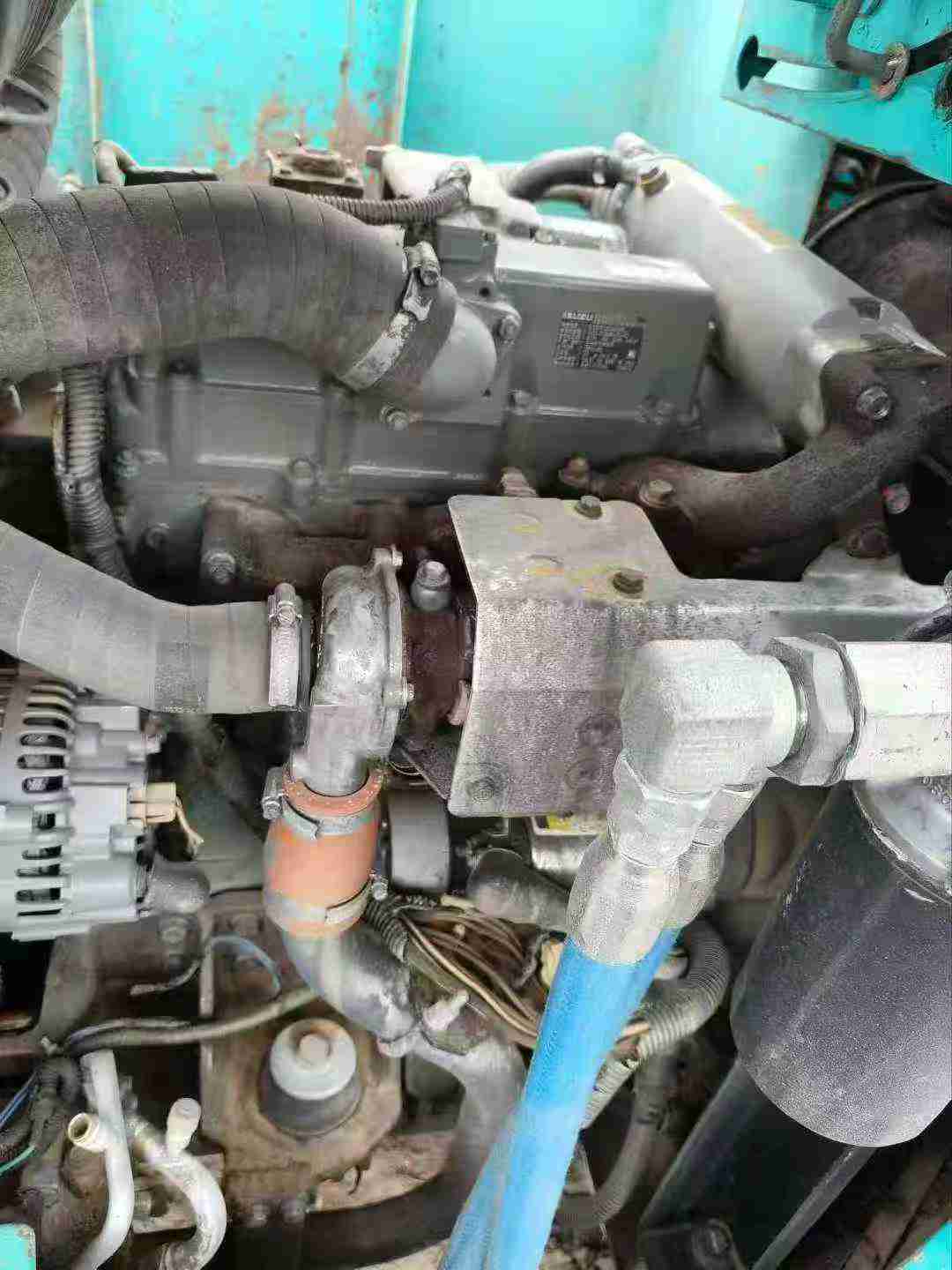

Used Kobelco SK75 Excavator 2015 Model / 5

Product Description

There is currently a second-hand 2015 model Kobelco SK75 excavator with a total working time of approximately 4,000 hours. It features stable performance and good maintenance. This device is equipped with an efficient Yanmar engine, with an estimated power output of around 45 kilowatts, ensuring a perfect combination of strong power output and fuel economy. Its hydraulic system adopts a combination of high-quality hydraulic pumps and hydraulic motors, which can provide a smooth and precise operation experience. It performs well in both digging force and rotation speed, meeting the operation requirements under various complex working conditions. The main advantages of this Kobelco 75 excavator include but are not limited to: First, its compact design enables it to operate flexibly even in narrow Spaces; Second, the cab is spacious and comfortable, equipped with an advanced instrument panel and air conditioning system, which greatly improves the working environment for the operator. Third, maintenance and repair are convenient and fast, and key components are easily accessible, reducing long-term operating costs. In addition, the current price is only over 70,000 RMB, offering an extremely high cost performance and making it an ideal ch

SpecificationsValue
No.977316
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.977316

Brand Name:

Kobelco

Model Number:

SK75

Year:

2015

Location:

Sichuan China
