2013 Kobelco SK75

1/9
Used Kobelco SK75 Excavator 2013 Model / 1
Used Kobelco SK75 Excavator 2013 Model / 2
Used Kobelco SK75 Excavator 2013 Model / 3

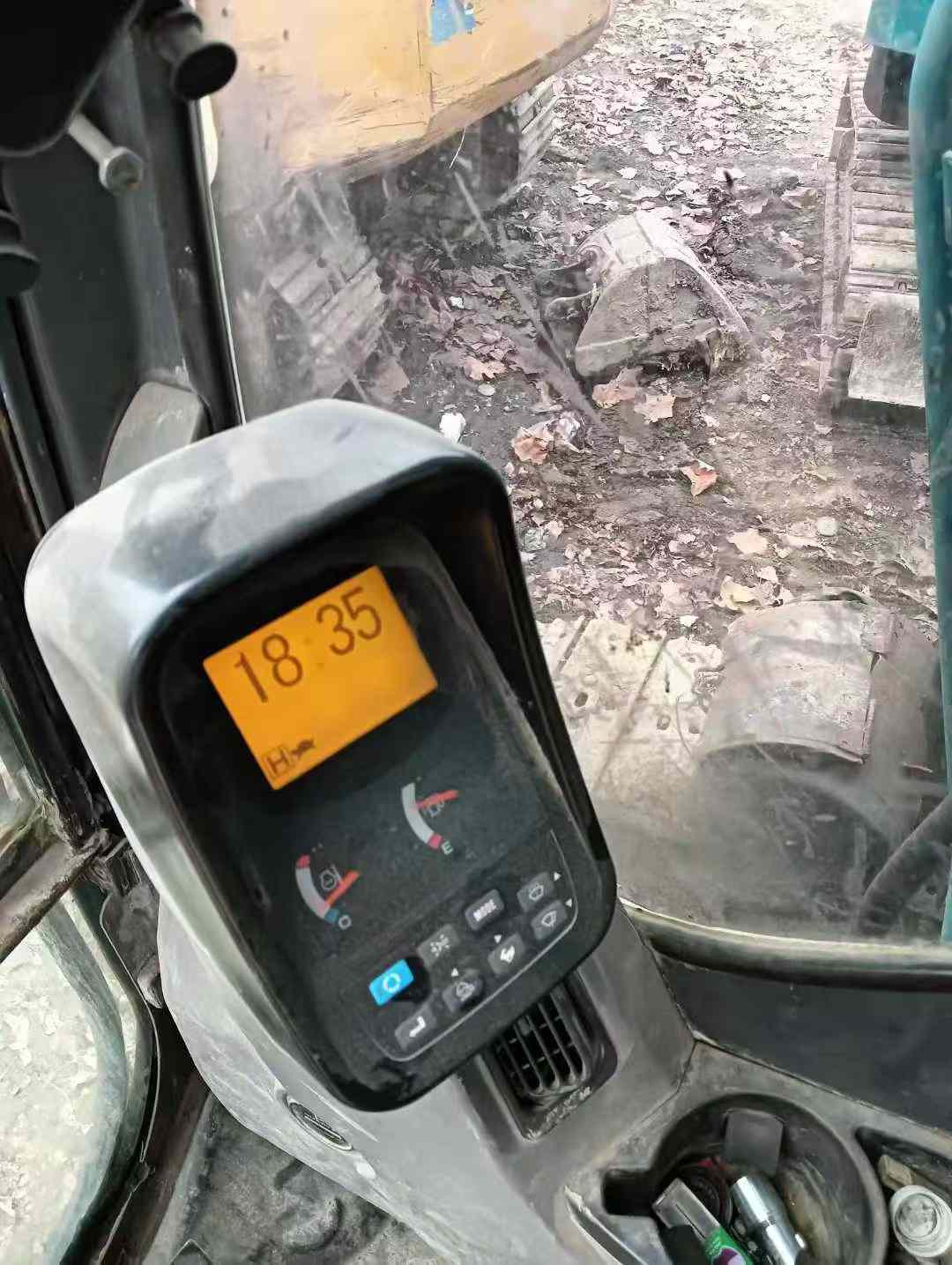

Used Kobelco SK75 Excavator 2013 Model / 4

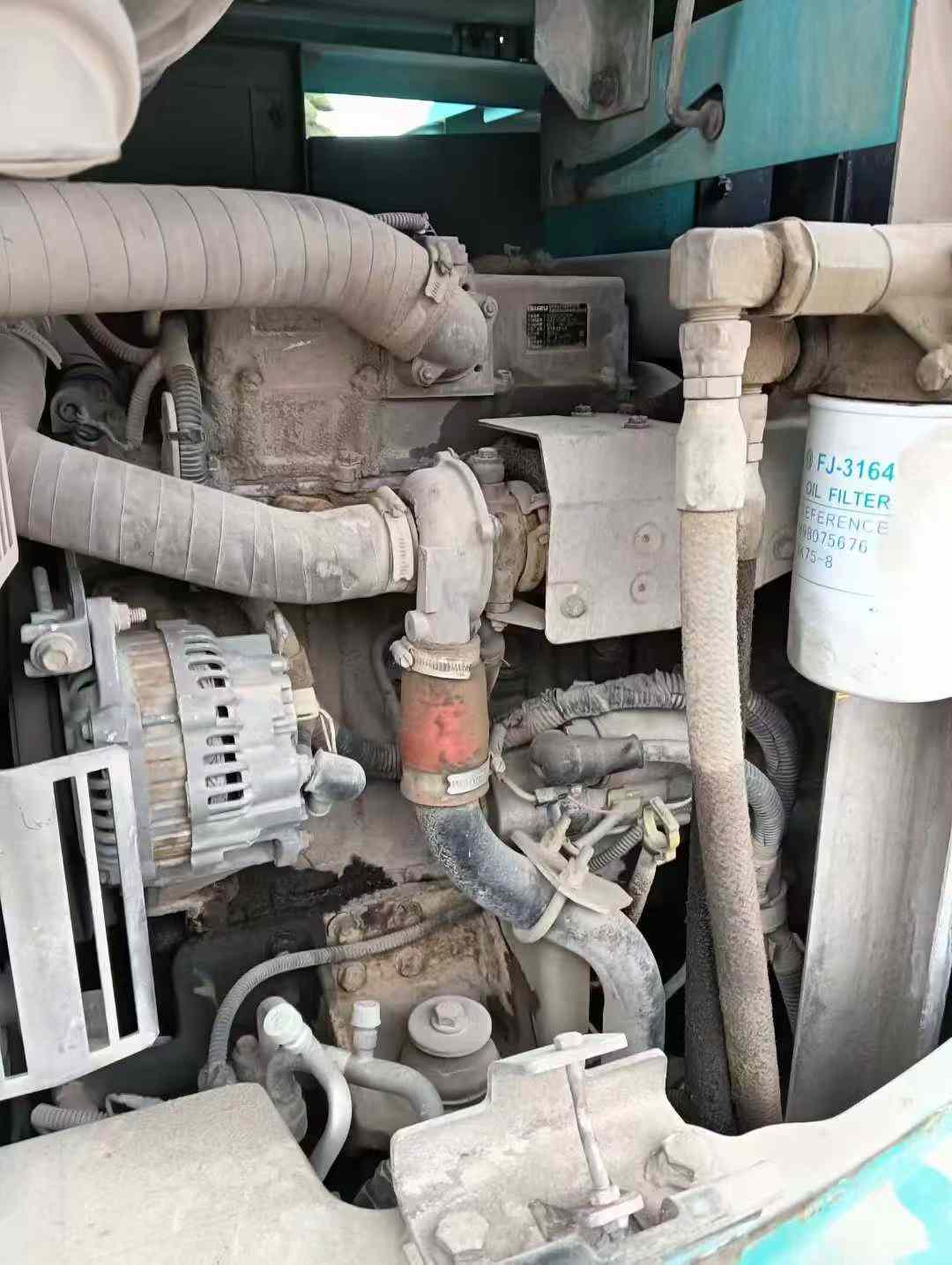

Used Kobelco SK75 Excavator 2013 Model / 5

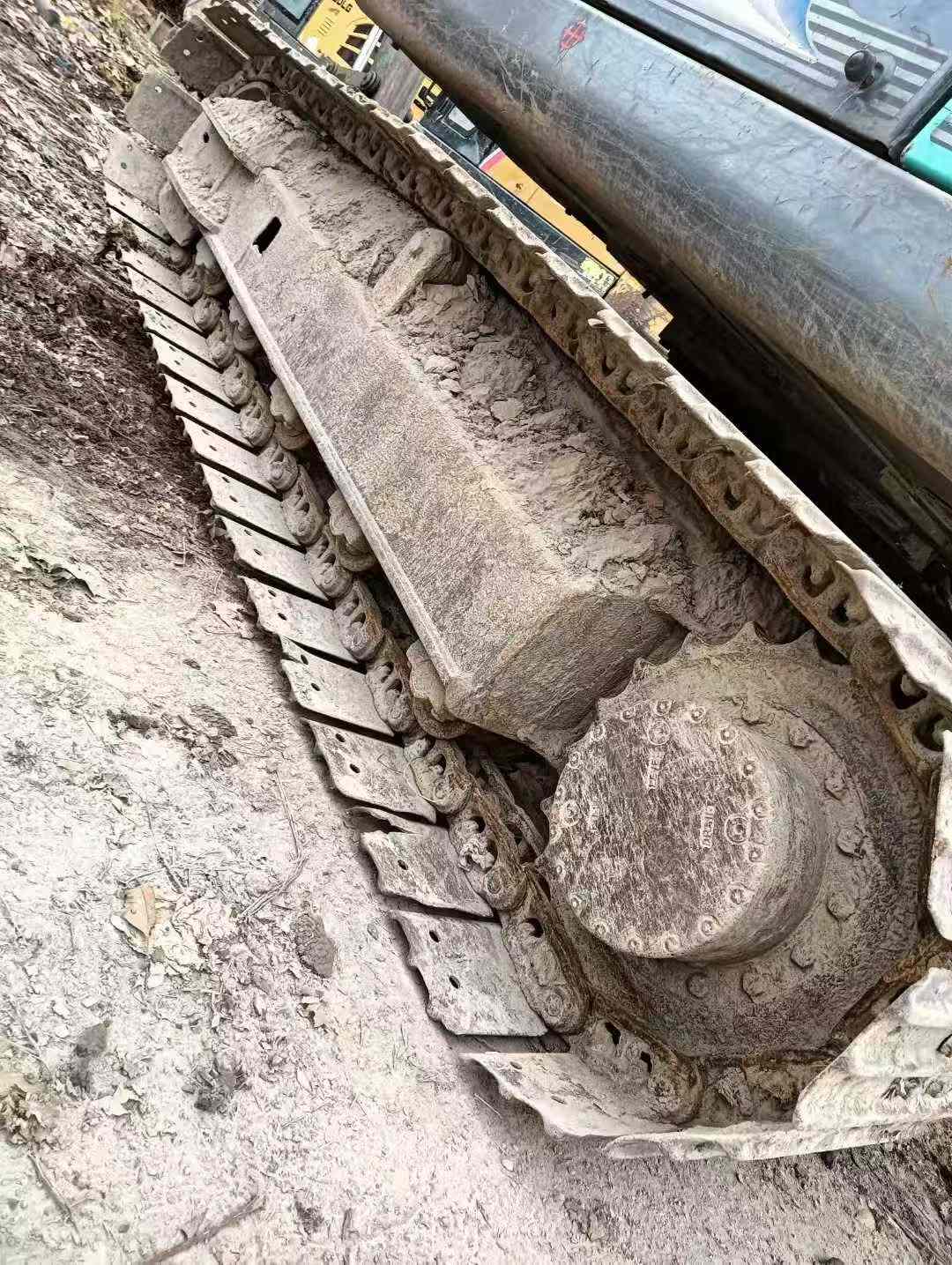

Used Kobelco SK75 Excavator 2013 Model / 6

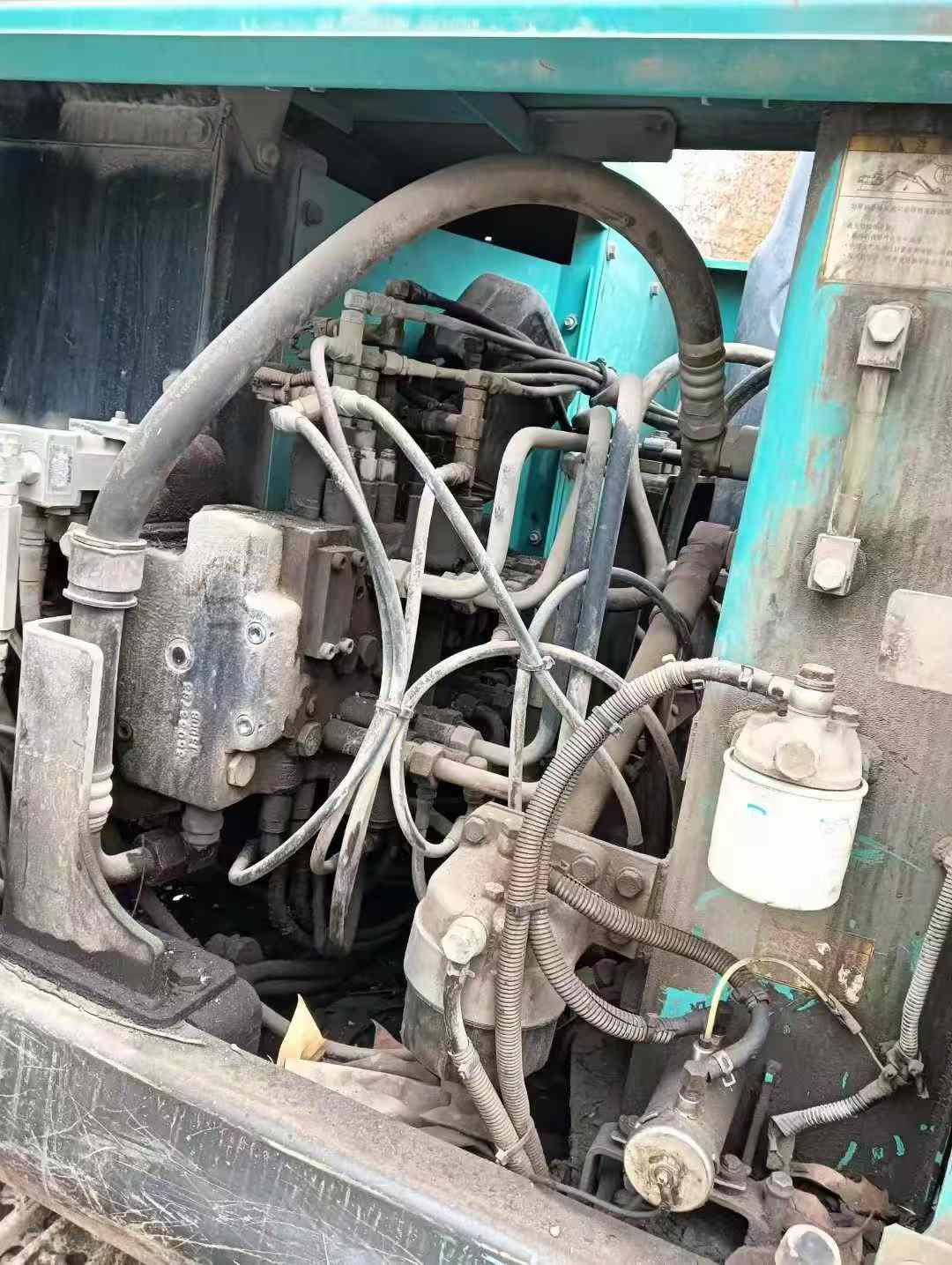

Used Kobelco SK75 Excavator 2013 Model / 7

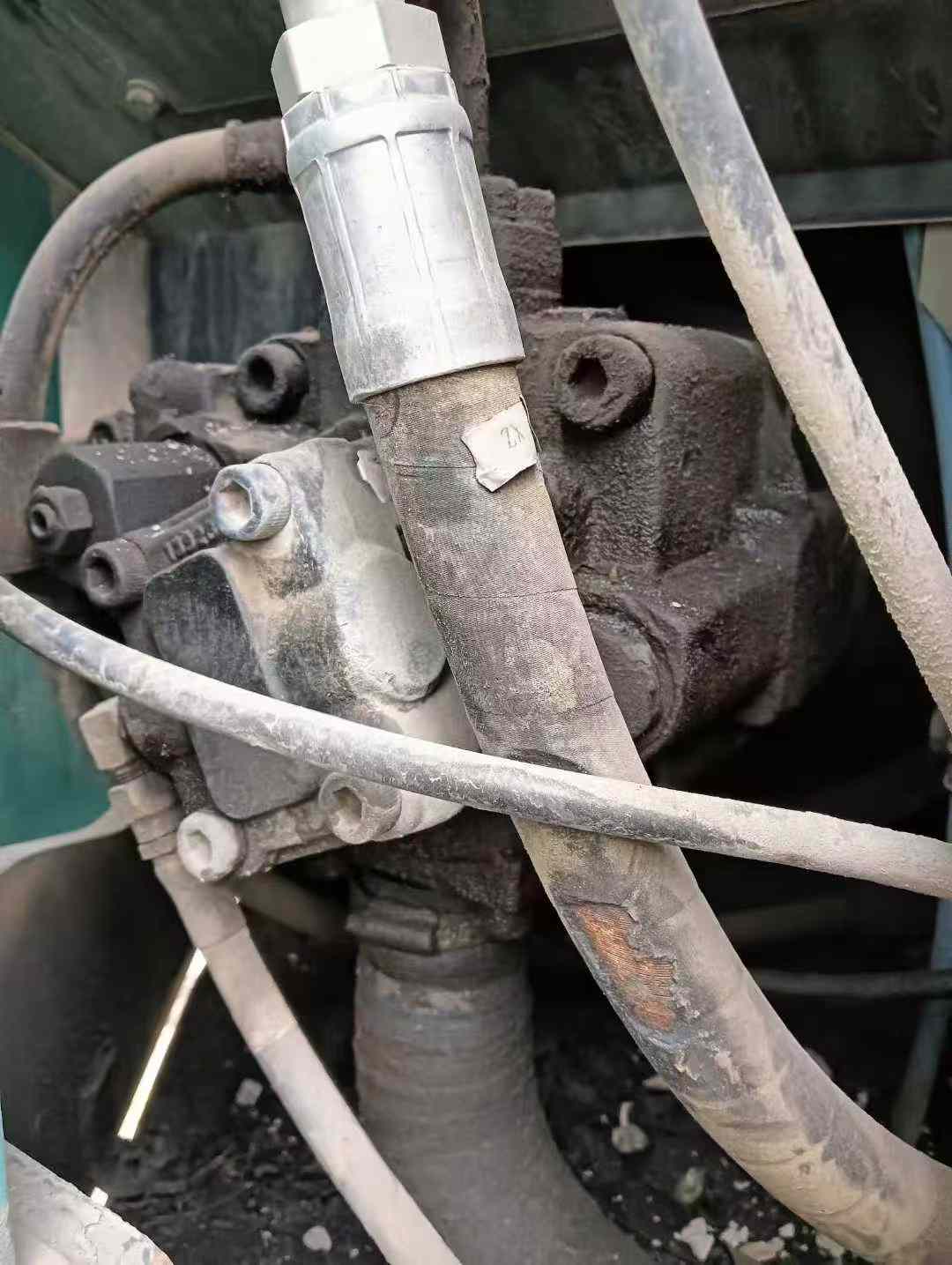

Used Kobelco SK75 Excavator 2013 Model / 8

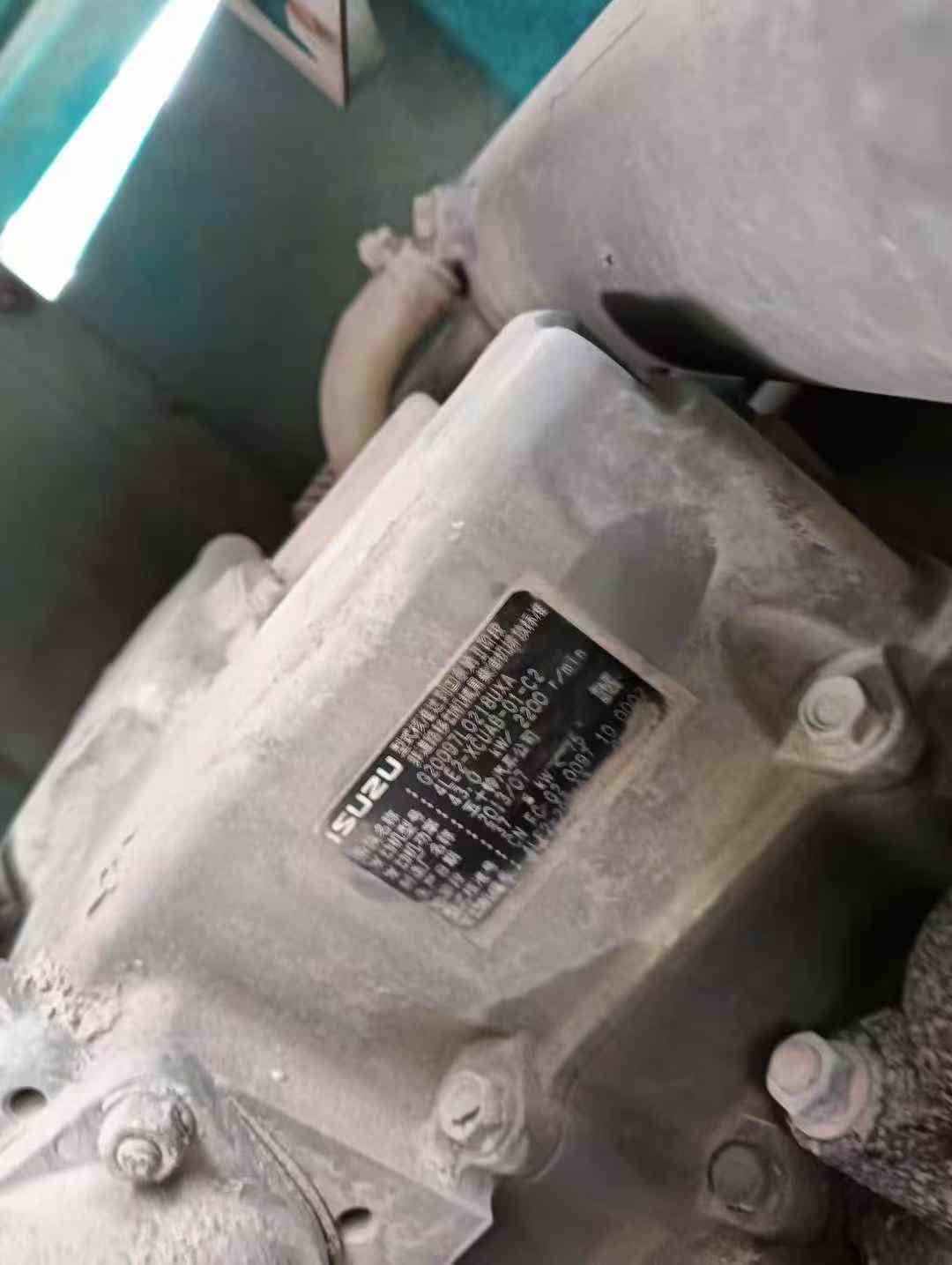

Used Kobelco SK75 Excavator 2013 Model / 9

Product Description

There is currently a second-hand Kobelco SK75 excavator produced in 2013, which can be used for approximately 6,000 to 8,000 hours and is priced at just over 60,000 yuan. This is a small excavator with outstanding performance and extremely high cost performance, especially suitable for urban construction and small-scale engineering operations. In terms of the power system, this device is equipped with the highly efficient and energy-saving Yanmar 4TNV98 engine, with a rated power of 40.5 kilowatts, ensuring stable and reliable power output under various complex working conditions. Its low fuel consumption and low emissions also make this excavator perform exceptionally well in terms of environmental protection. The hydraulic system adopts advanced negative flow control technology and is equipped with a high-quality variable piston pump and hydraulic motor combination, which can achieve precise and rapid operation response, while ensuring high efficiency and stability during long-term operation. In addition, through the optimized design of the heat sink layout, the overall heat dissipation capacity of the machine has been effectively enhanced, and the service life of key components has been prolonged. As a compact excavator, the Kobe

SpecificationsValue
No.977534
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.977534

Brand Name:

Kobelco

Model Number:

SK75

Year:

2013

Location:

Zhejiang China
