2013 Kobelco SK75

1/9
Used Kobelco SK75 Excavator 2013 Model / 1

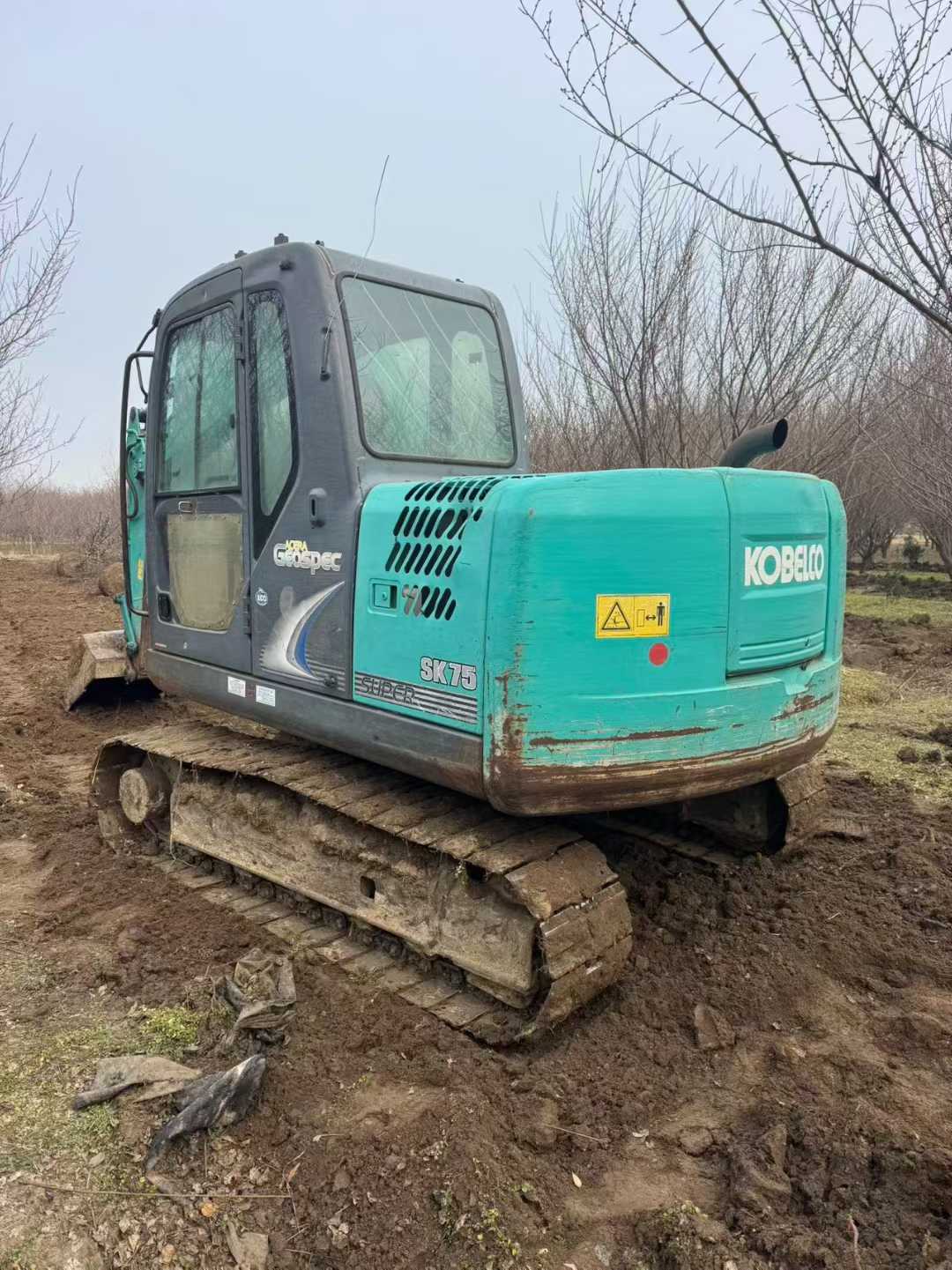

Used Kobelco SK75 Excavator 2013 Model / 2

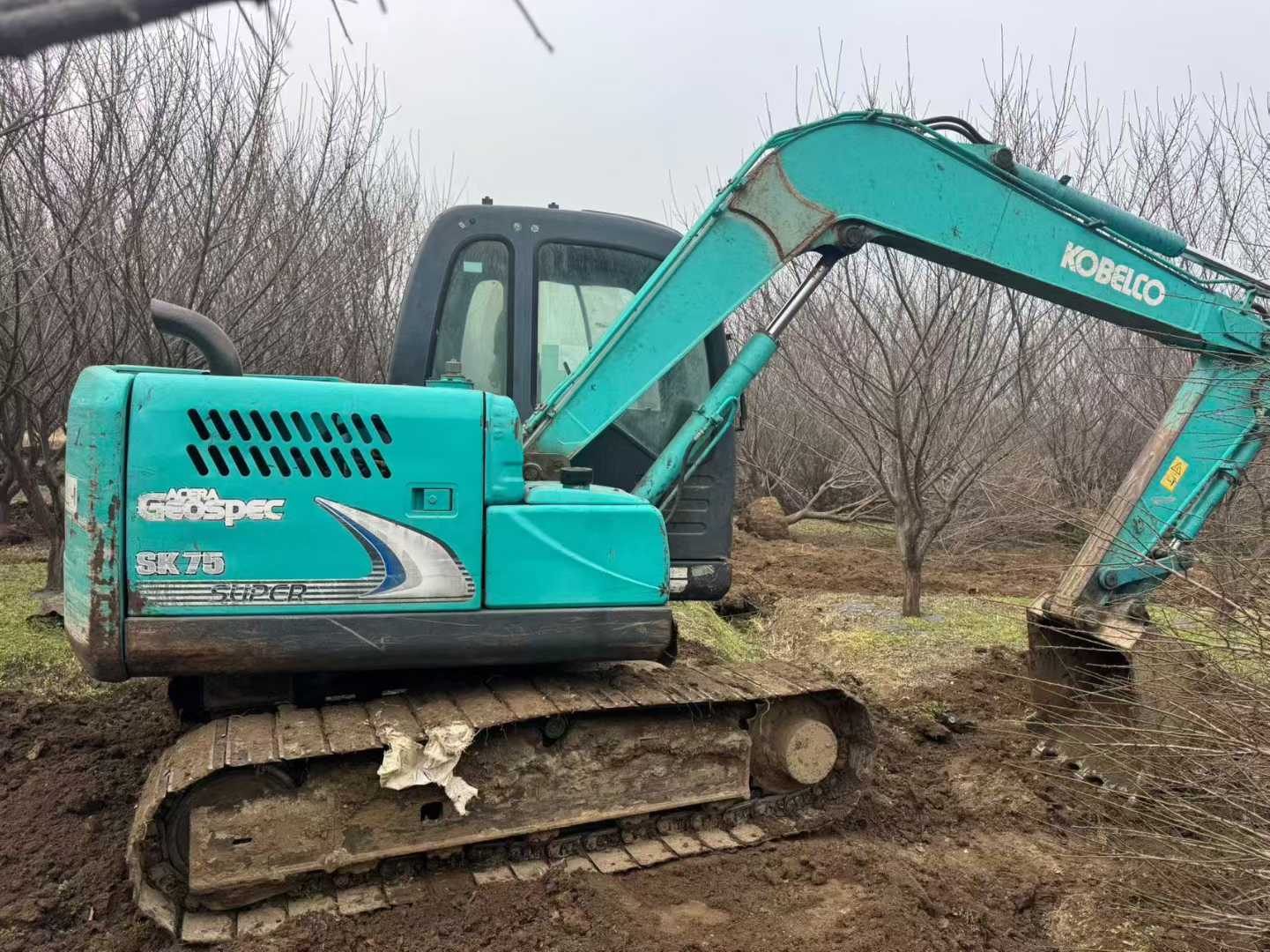

Used Kobelco SK75 Excavator 2013 Model / 3

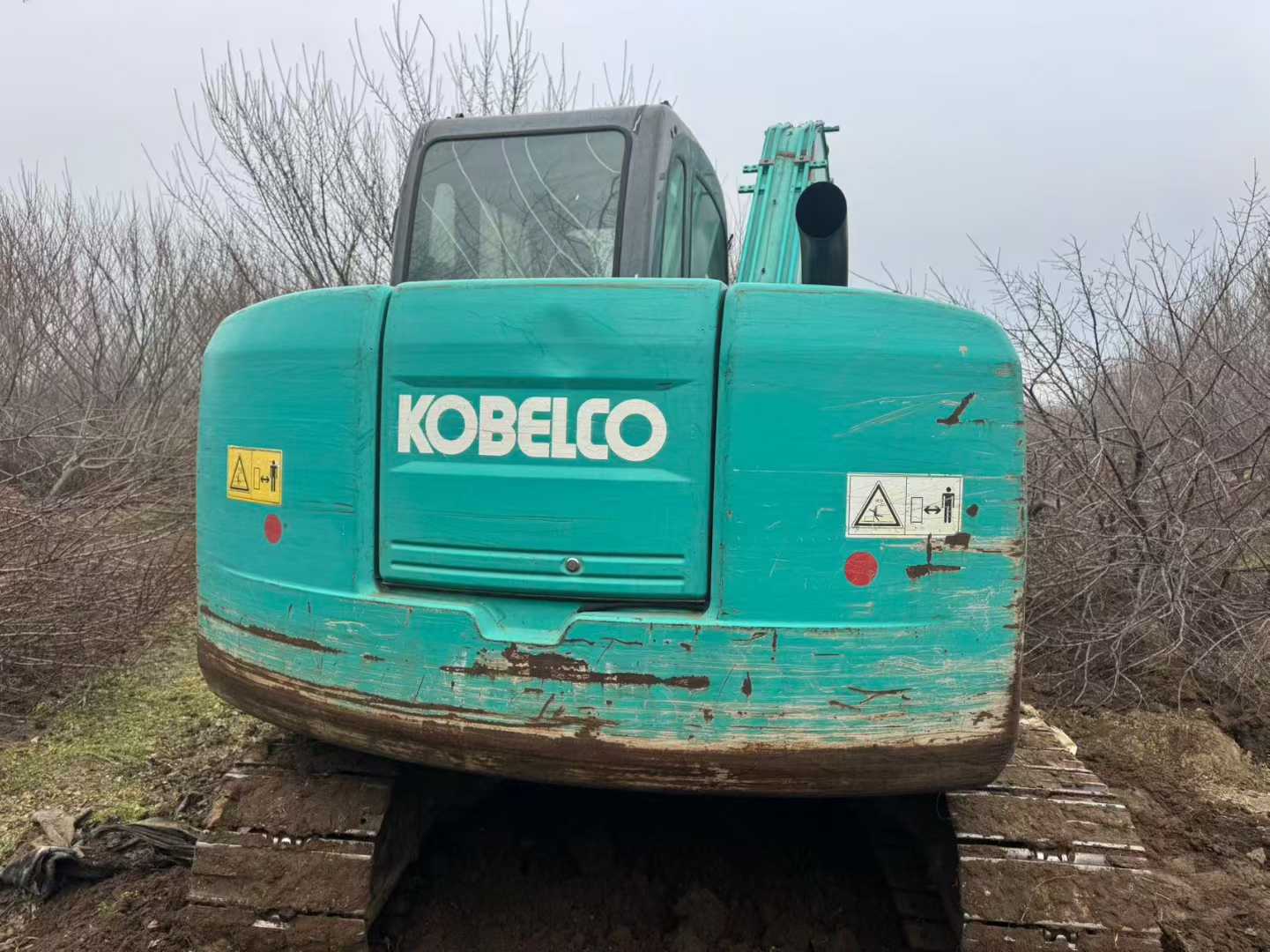

Used Kobelco SK75 Excavator 2013 Model / 4

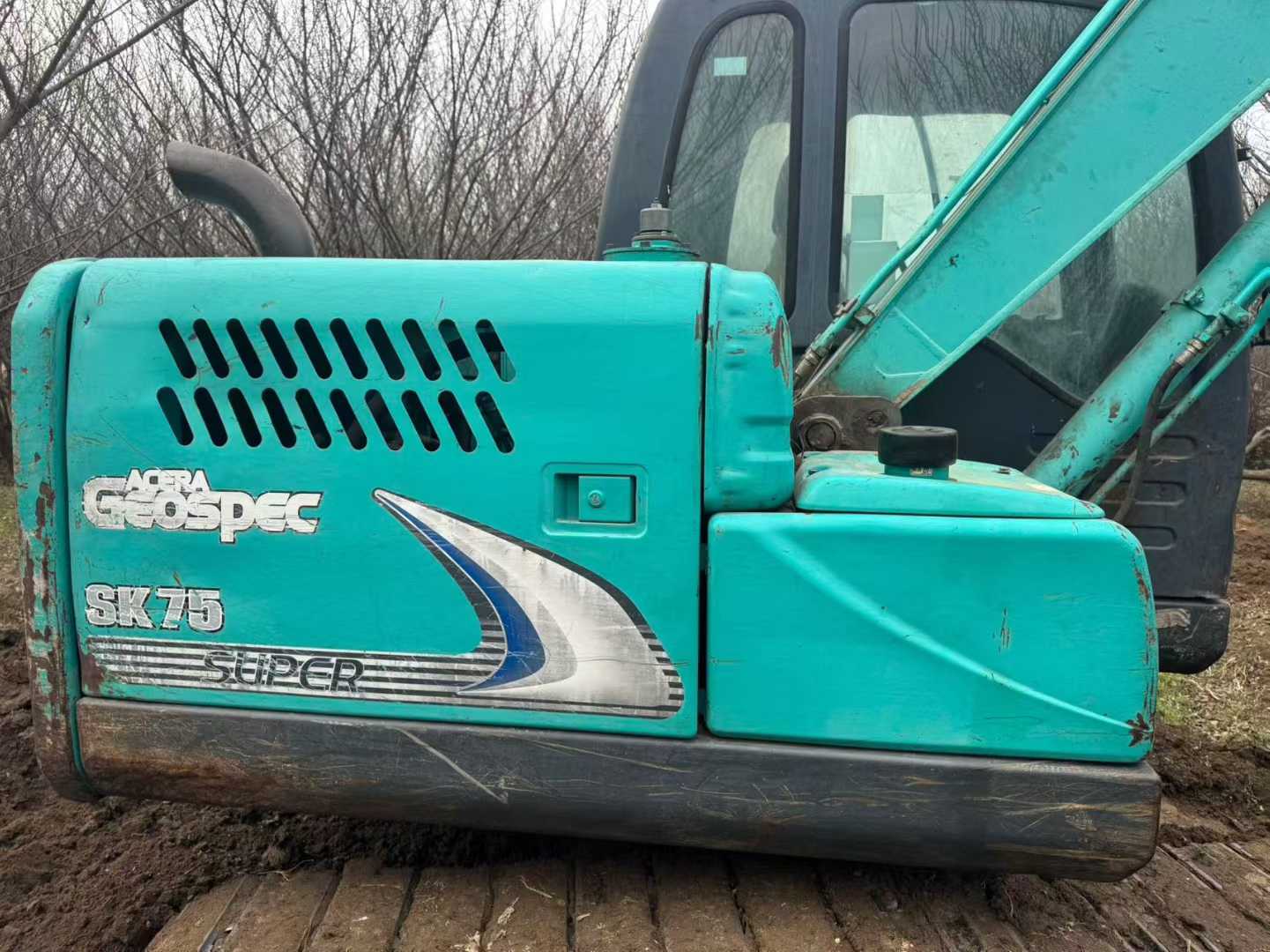

Used Kobelco SK75 Excavator 2013 Model / 5
Used Kobelco SK75 Excavator 2013 Model / 6
Used Kobelco SK75 Excavator 2013 Model / 7

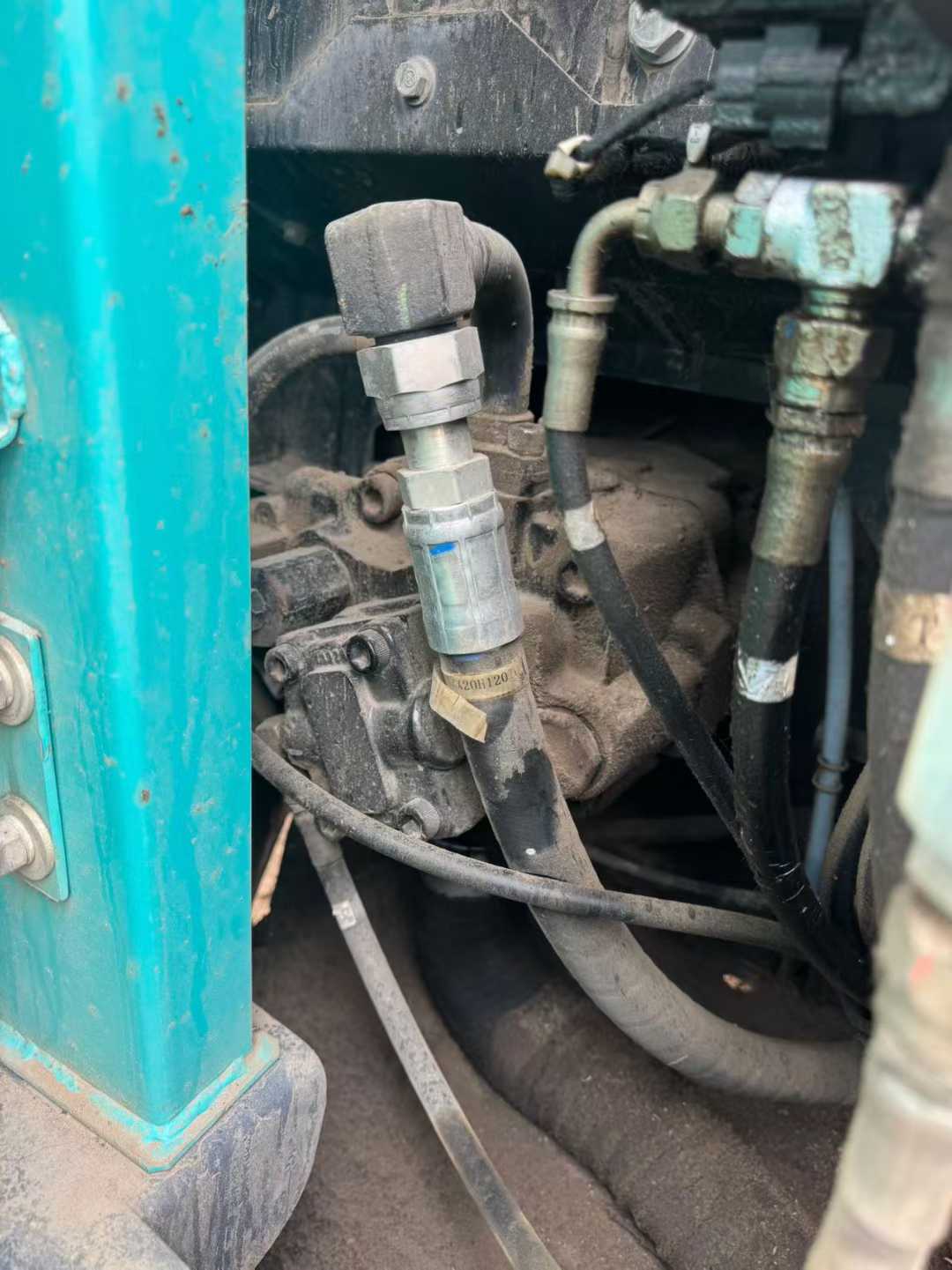

Used Kobelco SK75 Excavator 2013 Model / 8
Used Kobelco SK75 Excavator 2013 Model / 9

Product Description

We currently have a first-hand supply of second-hand Kobelco SK75 excavators from 2013. This equipment has a working time of approximately 6,000 hours, with stable overall performance and a clean appearance. This excavator is equipped with an efficient Isuzu 4BG1 engine, with a maximum power output of 45.5 kilowatts (approximately 61 horsepower), ensuring strong and stable power output under various complex working conditions. In terms of the hydraulic system, it is equipped with high-quality Kawasaki hydraulic pumps and motors, featuring excellent response speed and smoothness, making the operation more precise and fluid. In addition, this excavator also has the following significant advantages: By adopting advanced negative flow control technology, fuel consumption is effectively reduced and work efficiency is enhanced. The cab design is humanized, offering a wide field of vision and low noise, ensuring comfort even during long periods of operation. Maintenance and upkeep are convenient, and key components are easy to disassemble and inspect, reducing the cost of later use. The structure is sturdy and durable, suitable for various construction environments, including municipal construction, landscaping and other projects. As a medi

SpecificationsValue
No.978441
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.978441

Brand Name:

Kobelco

Model Number:

SK75

Year:

2013

Location:

Jiangsu China
