2016 Kobelco SK75

1/3

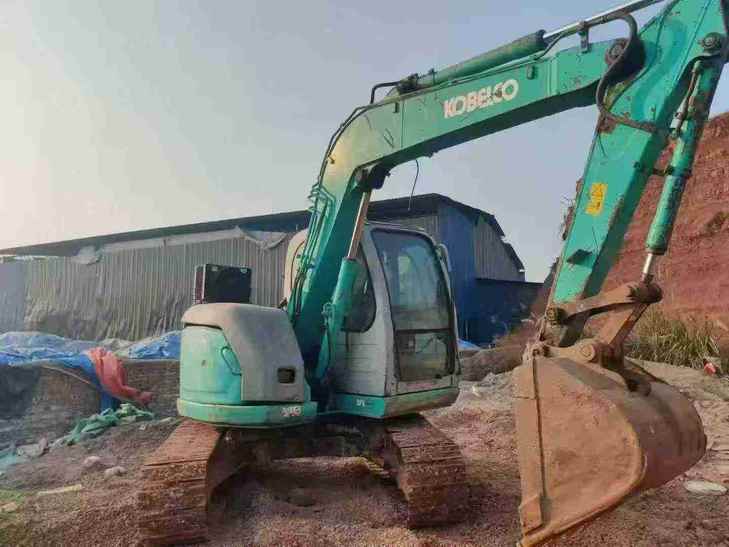

Used Kobelco SK75 Excavator 2016 Model / 1
Used Kobelco SK75 Excavator 2016 Model / 2
Used Kobelco SK75 Excavator 2016 Model / 3

Product Description

There is currently a second-hand imported Kobelco SK75 excavator priced at 45,000 yuan. This equipment features outstanding performance and reliability, making it an ideal choice for your engineering construction. The working time of this excavator is approximately 3,000 hours. It is in good condition and well maintained. The power system adopts the original imported Yanmar engine, model 4TNV98-Z, with a rated power of 42 kilowatts, ensuring efficient and stable working performance. This engine is renowned for its low fuel consumption, high efficiency and environmental friendliness, and can meet the demands of various working conditions. In terms of the hydraulic system, it is equipped with high-quality variable piston pumps and hydraulic motors, providing powerful and smooth power output. It may be equipped with an advanced load sensing system, which can automatically adjust the hydraulic oil flow according to the actual working load, thereby improving work efficiency and reducing energy consumption. In addition, the Kobelco SK75 excavator also features the following main advantages and characteristics: It adopts a reinforced structural design, which enhances the durability and stability of the entire machine. The cab is spacious a

SpecificationsValue
No.978769
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.978769

Brand Name:

Kobelco

Model Number:

SK75

Year:

2016

Location:

Sichuan China
