Product Description

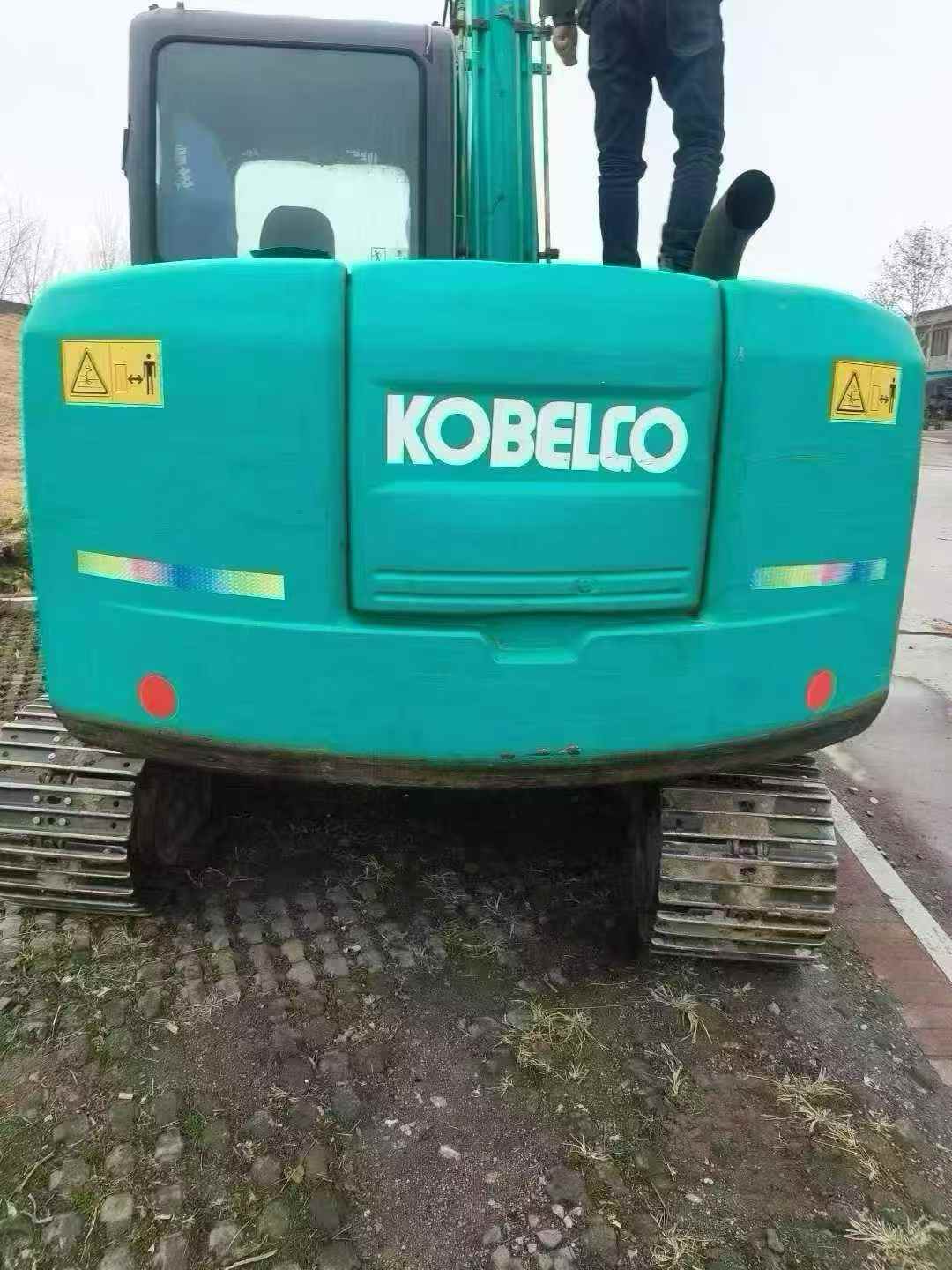

Maximize your construction budget with this reliable 2012 Kobelco SK75 excavator, delivering exceptional value at a fraction of new equipment costs. Built in Chengdu with proven Japanese engineering, this 7-ton workhorse features a robust ISUZU AU4LE2X engine producing 41kW of power, ensuring consistent performance across demanding jobsites.
Key specifications include:
- Maximum digging depth: 4,160mm with 6,460mm reach
- Compact design: 2,630mm transport height for easy mobilization
- Efficient hydraulics: 29.4 MPa working pressure with double variable displacement pump
- Dual travel speeds: 2.8/5.3 km/h for versatility
- Generous fuel capacity: 120L tank for extended operation
Currently located in Zhangzhou, Fujian Province, this SK75 combines Kobelco's renowned durability with smart economics. Water-cooled 4-cylinder engine and axial piston hydraulic system provide the reliability your projects demand without the premium price of new equipment. Perfect for contractors seeking proven performance and immediate ROI.
| Specifications | Value |
|---|---|
| No. | 986142 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |

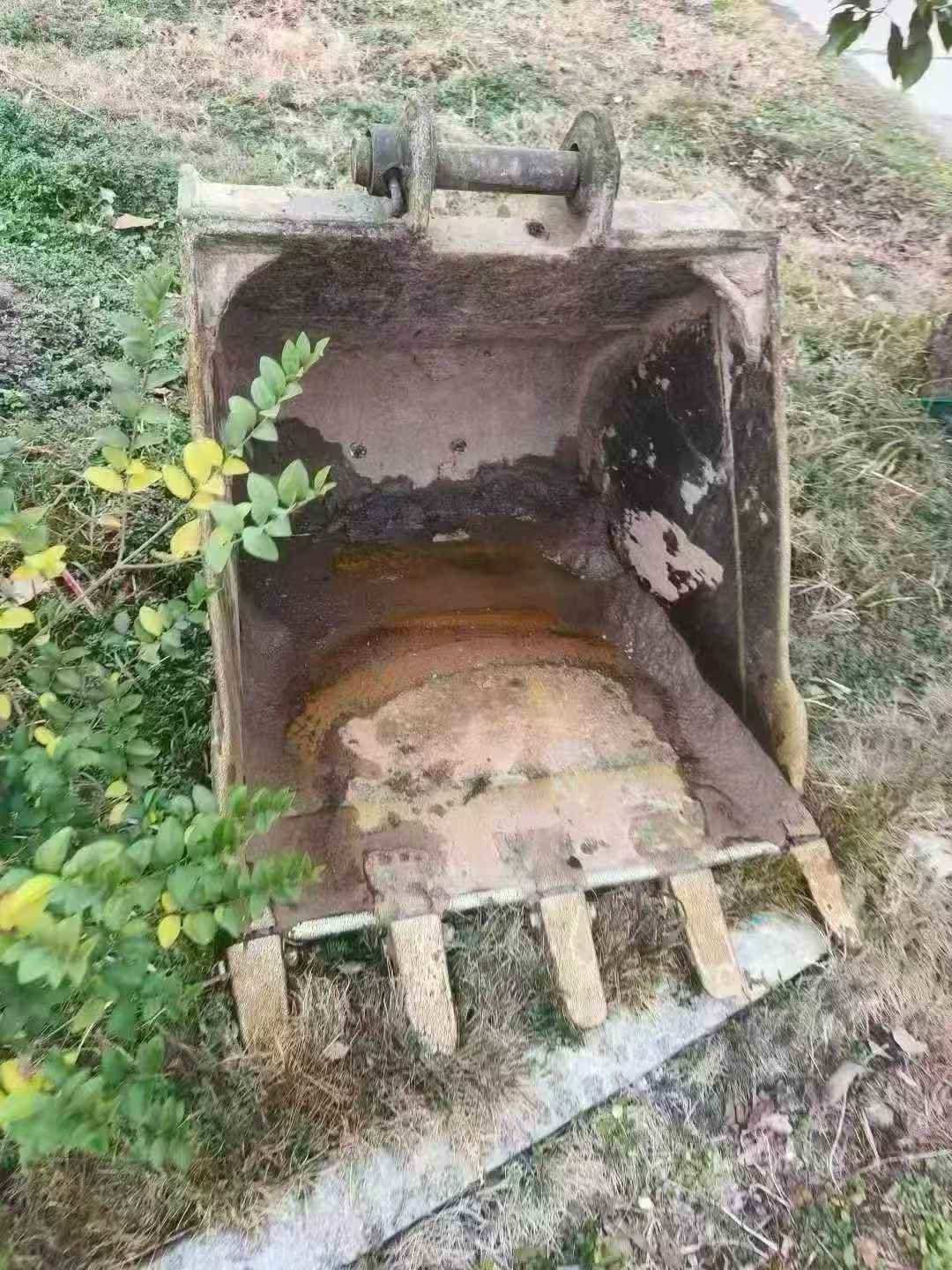

| bucket | backhoe |

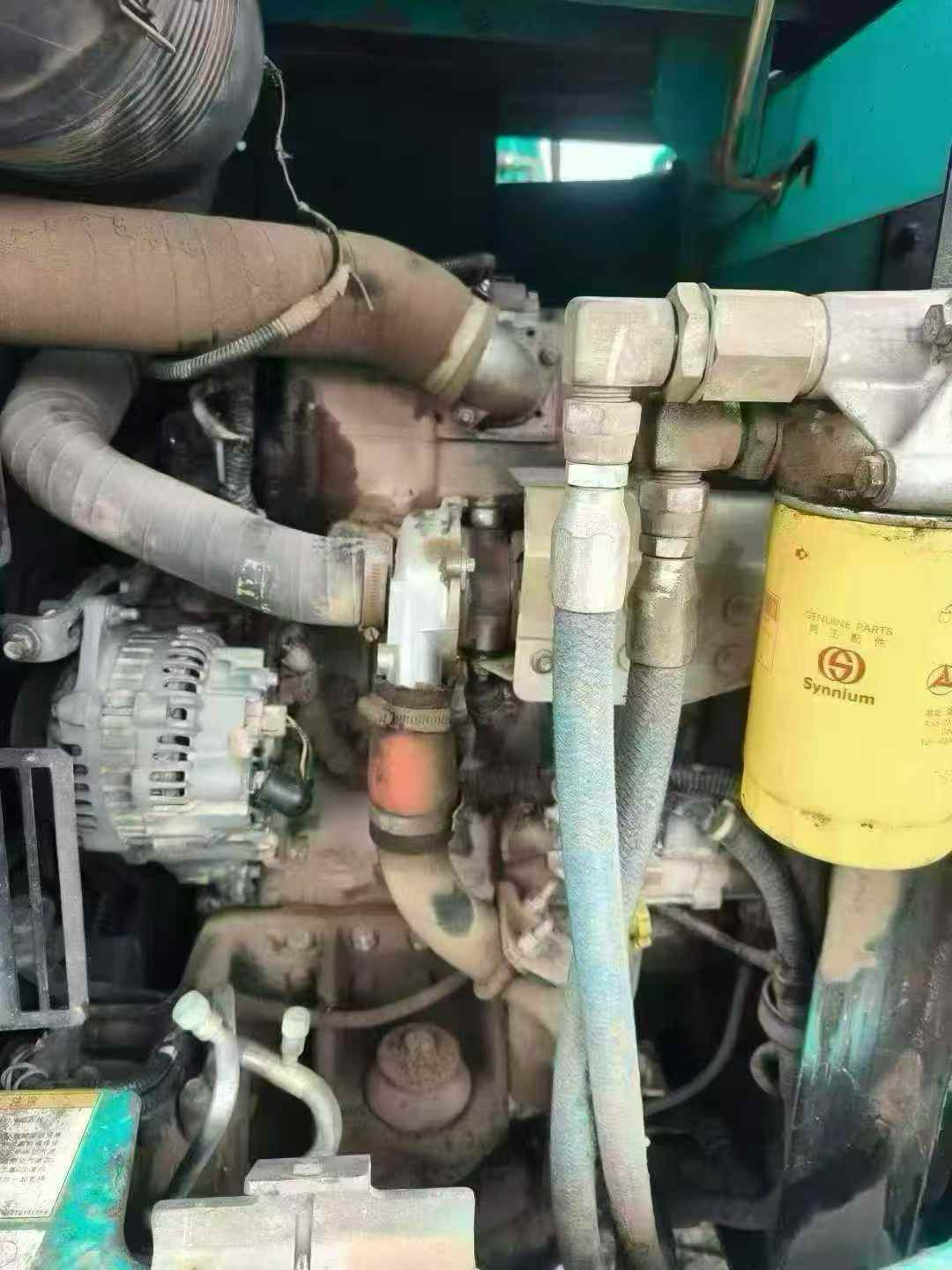

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |

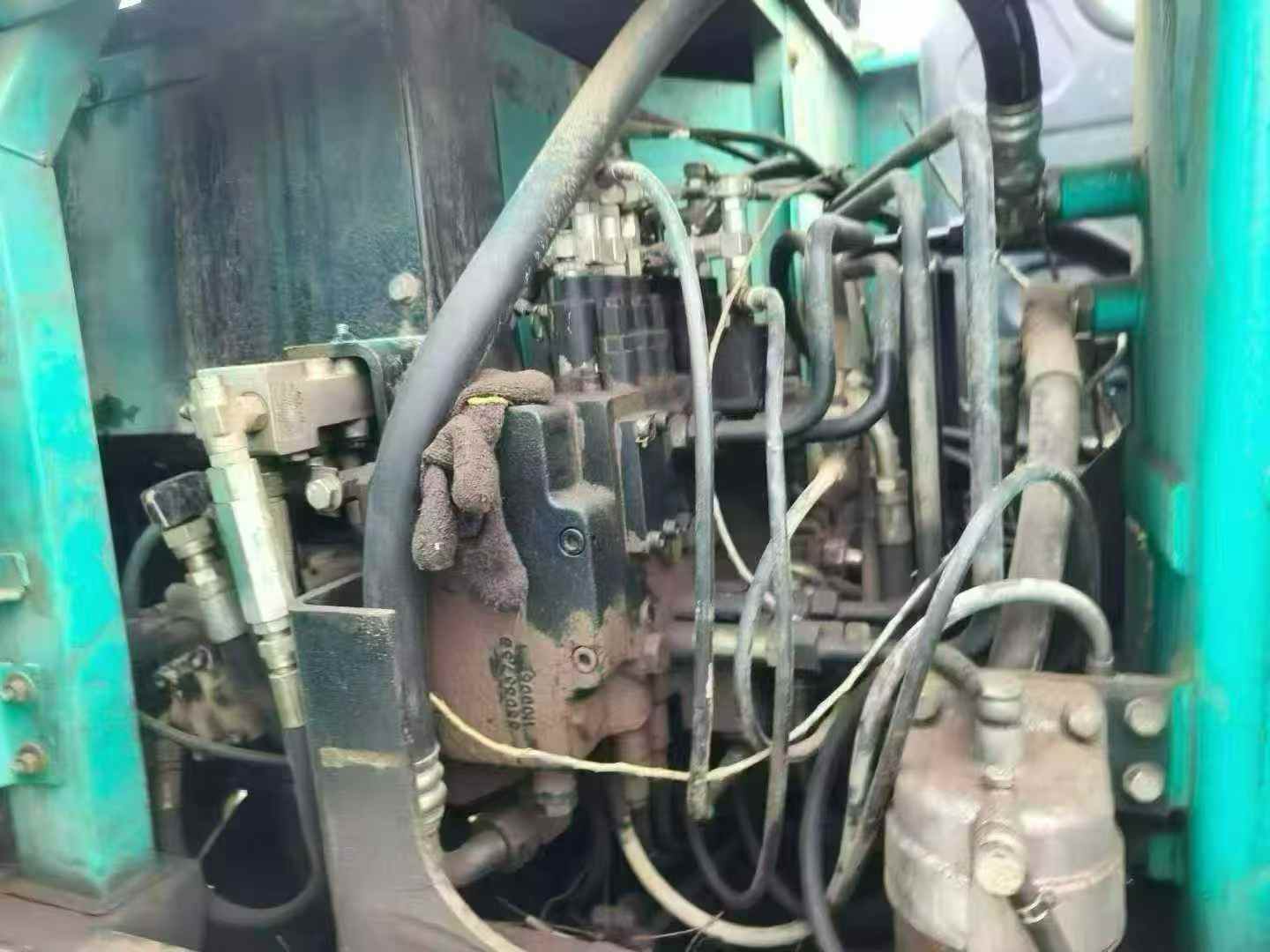

| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
