| Specifications | Value |
|---|---|
| No. | 966697 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12030 |
| Bucket capacity (m³) | 0.5 |
| Rod length (mm) | 2100 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu Komatsu SAA4D95LE-3 |
| Rated power (kw/rpm) | 64/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.26 |
| Working form | Direct injection, turbocharged, intercooled diesel engine |
| Ground specific pressure (Kpa) | 0.39kg/c㎡ |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/30 ° |
| Bucket digging force (kN) | 8800 |
| Rod digging force (kN) | 6300 |
| Travel speed (km/h) | 2.7-5.5 |
| Maximum flow of main pump (l/min) | 226L/min |
| Traveling Hydraulic Circuit (Mpa) | 355kg/c㎡ |
| Rotary Hydraulic Circuit (Mpa) | 295kg/c㎡ |
| Control Hydraulic Circuit (Mpa) | 30kg/c㎡ |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 325kg/c㎡ |
| Fuel Tank (L) | 247 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 13.4 |
| Total transport length (mm) | 7599 |
| Total transport height (mm) | 2175 |
| Full cab height (mm) | 2175 |
| Counterweight ground clearance (mm) | 855 |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 2110 |
| Total track length (mm) | 3610 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8610 |
| Maximum unloading height (mm) | 6170 |
| Maximum vertical digging depth (mm) | 4940 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8170 |
| Maximum effective digging depth (mm) | 5315 |
Description

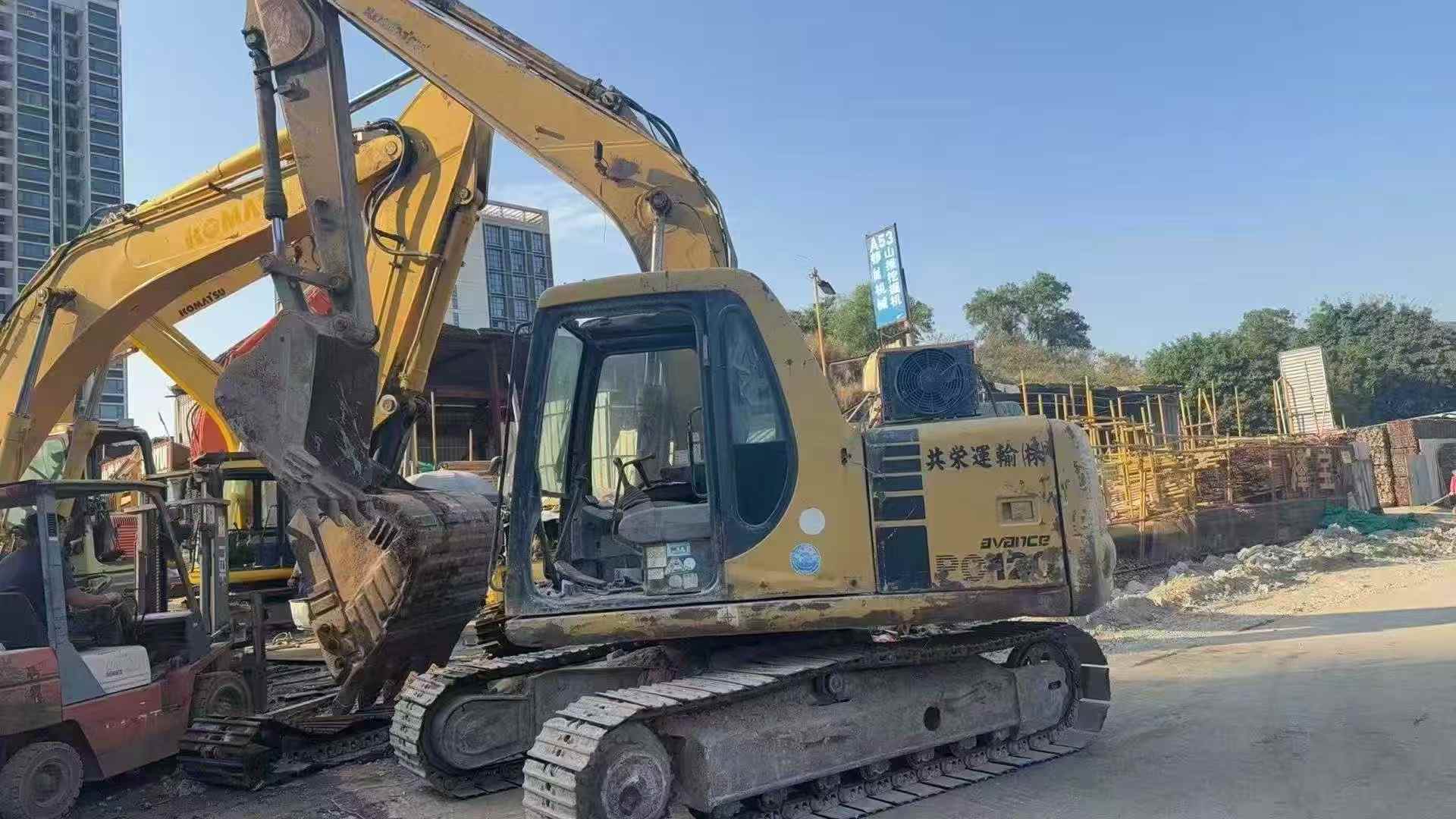

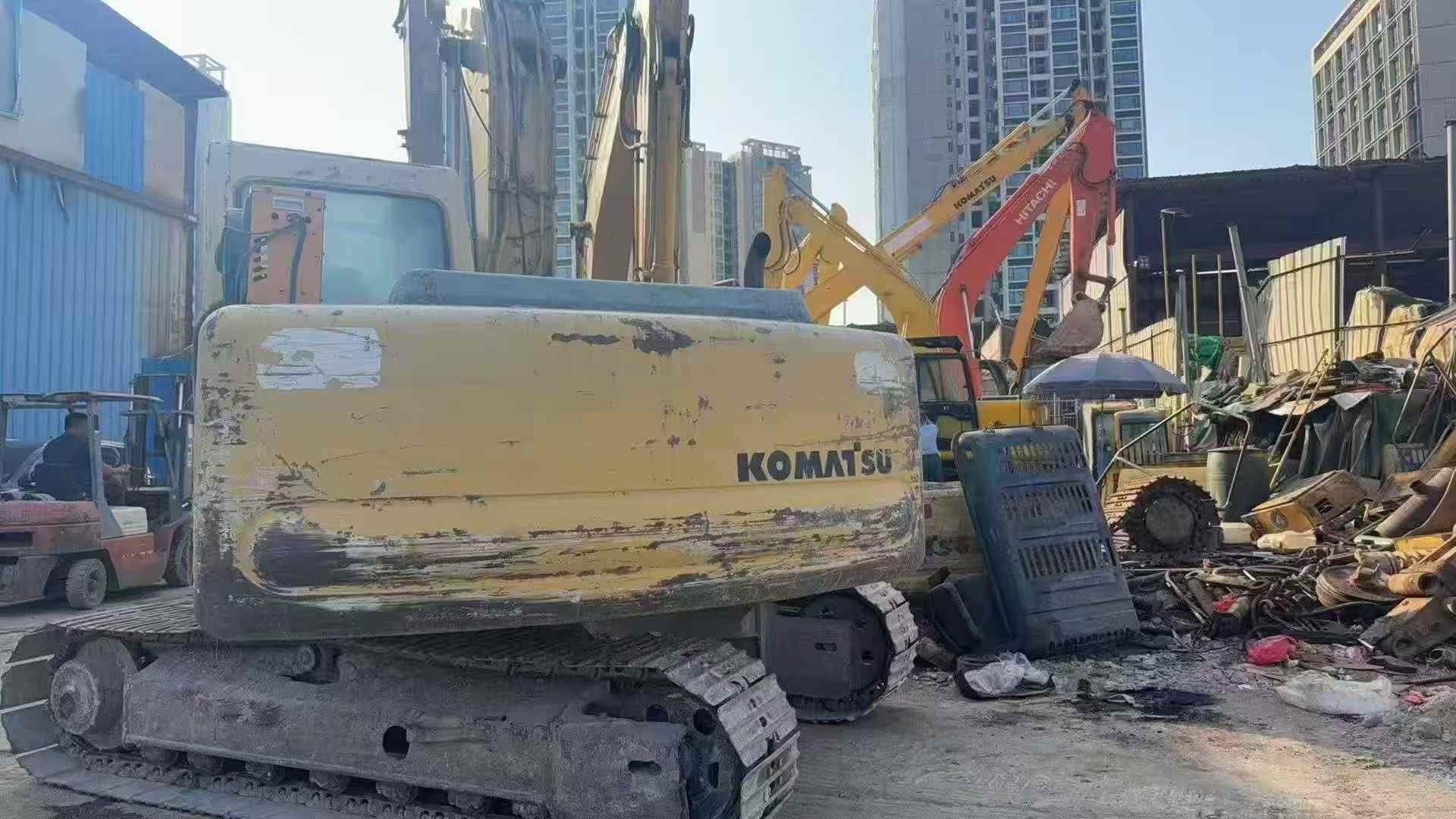

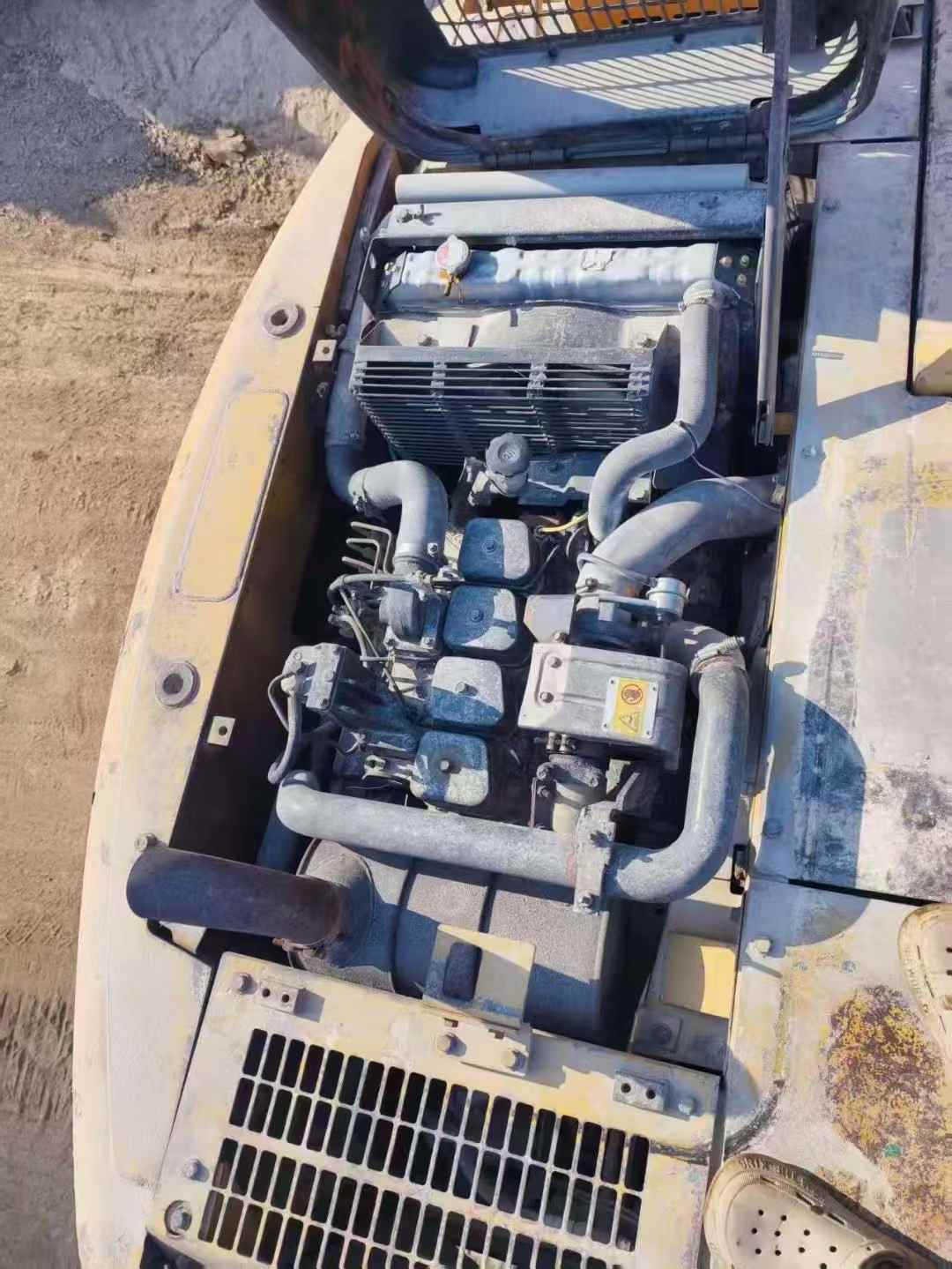

【 Komatsu PC120-6EO second-hand excavator, the best choice for cost performance 】 This second-hand Komatsu PC120-6EO excavator is one of the most favored small excavators in the market, renowned for its outstanding performance and reliability. Currently, this machine is on sale at an extremely good price. For buyers with a limited budget but still hoping to obtain high-quality equipment, it is definitely a rare and excellent opportunity. The cumulative working time of this excavator is only 3,500 hours, which is far lower than the average service life of similar second-hand equipment. This means that it still has a long service life. The power system adopts the well-tested Komatsu SAA4D92LE-5 engine. This four-cylinder in-line turbocharged diesel engine not only has strong power (with a maximum output power of up to 75kW), but also has excellent fuel economy. It can ensure efficient operation while effectively reducing operating costs. In terms of the hydraulic system, Komatsu PC120-6EO is equipped with an advanced CLSS closed center load sensing system, ensuring rapid response and smooth operation. Whether it is in complex working conditions such as excavation, loading or crushing, it can handle them with ease and demonstrate outst
