| Specifications | Value |
|---|---|
| No. | 965431 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20150 |
| Bucket capacity (m³) | 0.9~1.05 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2410 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 103/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | Water-cooled, 4-stroke, direct injection; Turbocharged, post-cooled |
| Ground specific pressure (Kpa) | 46.7 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Maximum tractive force (kN) | 178 |
| Travel speed (km/h) | 5.5/4.1/3.0 |
| Rotary hydraulic motor type | Axial piston motor ×1 (turn-back holding brake) |
| Type of walking hydraulic motor | Axial piston motor ×2 (with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-115 x 1120 x 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1490 x 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1334 x 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 20.4 |
| Total transport length (mm) | 9495 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1085 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3040 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3275 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 9380 |
| Maximum digging depth (mm) | 6095 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6890 |
| Maximum vertical digging depth (mm) | 5430 |
| Maximum excavation radius of stop surface (mm) | 9190 |
Description

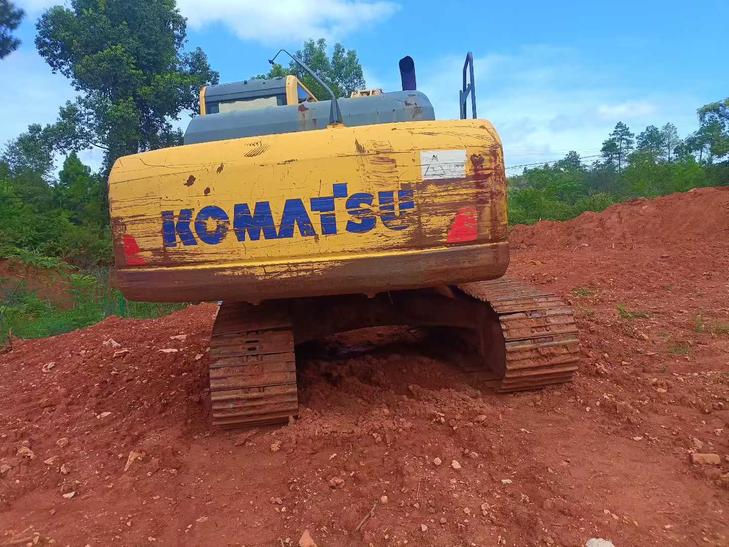

Detailed description of second-hand Komatsu PC200-8M0 Excavator We currently have a high-quality second-hand Komatsu PC200-8M0 excavator. This machine was produced in 2015 and has been in operation for only 3,500 hours so far. It is one of the most popular and cost-effective medium-sized excavators in the market. This model of excavator is renowned for its outstanding performance, reliability and durability, and is highly suitable for various earthwork projects, construction sites and mining operations. "Power System This machine is equipped with the original imported SAA6D107E-1 engine from Komatsu. This inline four-cylinder turbocharged diesel engine not only has strong power (with a rated power of 114kW), but also has excellent fuel economy, which can effectively reduce operating costs. Meanwhile, its advanced emission control system complies with Euro III standards and has excellent environmental protection performance. "Hydraulic System It adopts Komatsu's latest generation CLSS closed center load sensing hydraulic system, which features rapid and accurate operation response and smooth and natural movements. It can perform well both in meticulous excavation and heavy material handling. In addition, by optimizing the design of p
