| Specifications | Value |
|---|---|
| No. | 969068 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20630 |
| Bucket capacity (m³) | 0.9 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2925 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA4D107E-1 |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Displacement (L) | 6.69 |
| Working form | 6-cylinder, direct injection, turbocharged, post-cooled engine; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 34.3 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 3.0/4.1/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 115 * 1120 * 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 135 * 1490 * 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 * 1334 * 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 20.4 |
| Total transport length (mm) | 9425 |
| Total transport width (mm) | 3000 |
| Total transport height (mm) | 3040 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1085 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2710 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 800 |
| Total track width (mm) | 3000 |
| Track ground length (mm) | 3275 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9700 |
| Maximum effective digging depth (mm) | 6370 |
Description

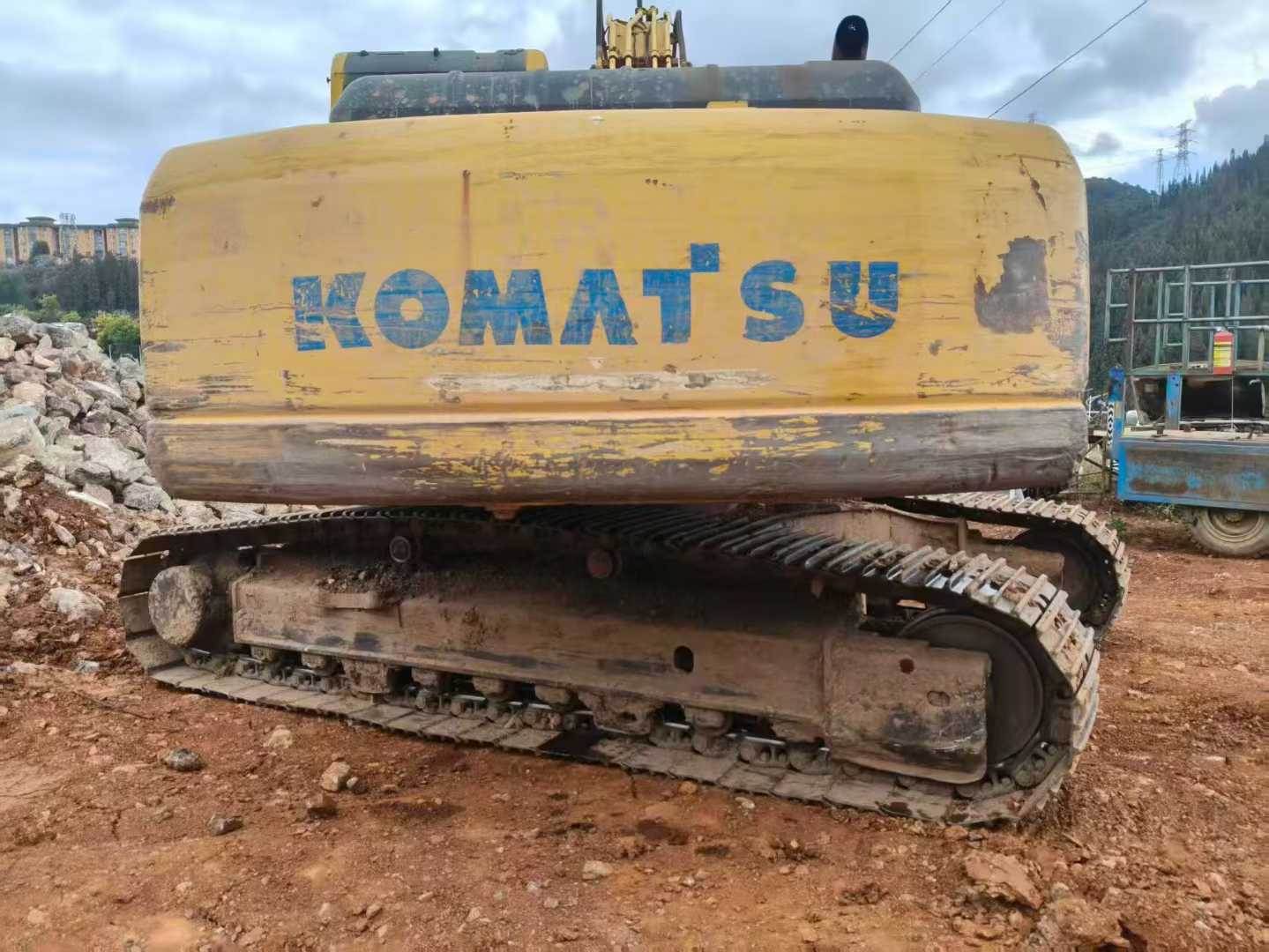

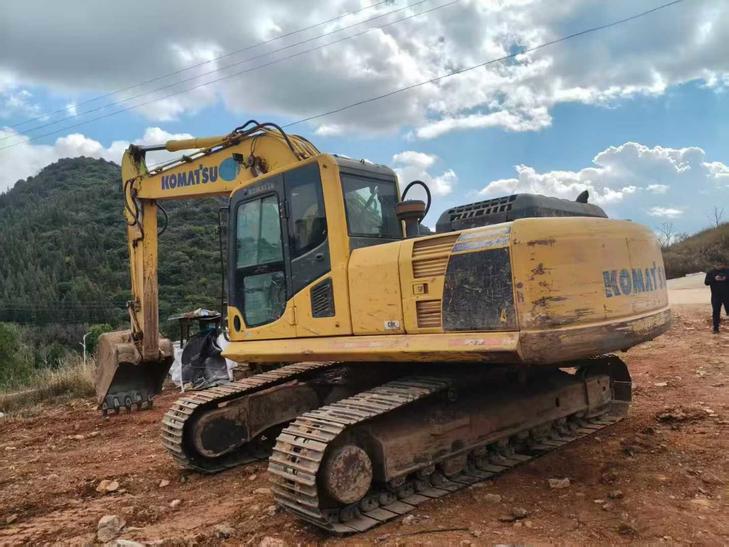

This Komatsu PC210-8MO excavator from 2013 enjoys an extremely high reputation in the market for its outstanding performance and reliability. This machine adopts a large chassis design, significantly enhancing the stability and durability of the entire machine in complex terrains. It is particularly suitable for use in environments such as mines and large construction sites where long-term and high-intensity operations are required. Its cumulative working time is 6,500 hours, in good condition, with complete maintenance records. Regular maintenance keeps the machine in excellent operating condition. In terms of power, the Komatsu PC210-8MO is equipped with an efficient in-line four-cylinder water-cooled diesel engine, with a maximum output power of up to 110kW (approximately 147 horsepower). It not only provides strong power support but also has good fuel economy, effectively reducing operating costs. In addition, this excavator also adopts advanced electronic control technology, which can automatically adjust the engine speed according to the actual load to ensure the best working efficiency and fuel consumption ratio. The hydraulic system is a major highlight of this machine. It adopts Komatsu's unique CLSS closed center load sensi
