2016 Komatsu PC240LC-8

1/9

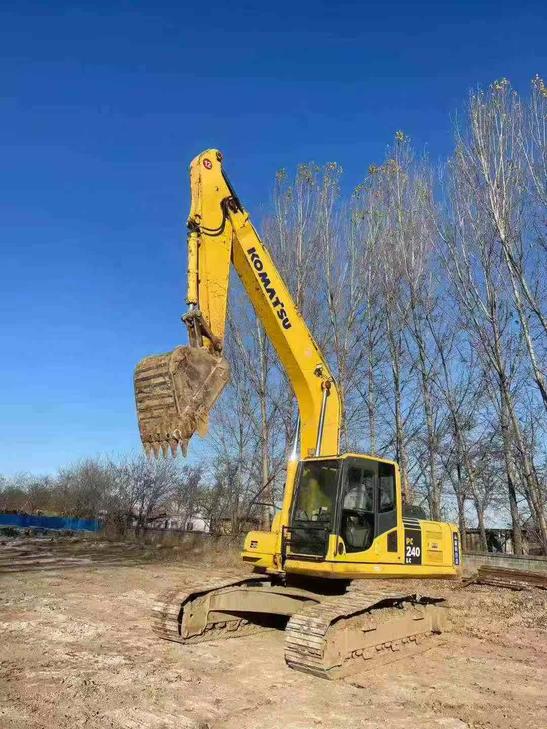

Used Komatsu PC240LC-8 Excavator 2016 Model / 1
Used Komatsu PC240LC-8 Excavator 2016 Model / 2
Used Komatsu PC240LC-8 Excavator 2016 Model / 3
Used Komatsu PC240LC-8 Excavator 2016 Model / 4
Used Komatsu PC240LC-8 Excavator 2016 Model / 5
Used Komatsu PC240LC-8 Excavator 2016 Model / 6
Used Komatsu PC240LC-8 Excavator 2016 Model / 7
Used Komatsu PC240LC-8 Excavator 2016 Model / 8
Used Komatsu PC240LC-8 Excavator 2016 Model / 9

Product Description

【 Premium Recommendation 】 This is the top-quality original Komatsu PC240-8MO excavator. This machine has maintained extremely high quality and performance from beginning to end. It features the original paint throughout the vehicle, with almost no signs of wear and tear on the exterior. The paint surface of the body is as smooth as new, highlighting its excellent maintenance and care condition. The working time is only 6,500 hours. For such an excellent excavator, this usage duration is very ideal, indicating that it is still in the best working condition. In terms of the power system, this Komatsu PC240-8MO is equipped with a high-performance engine, which not only has strong power but also good fuel economy. Even under high-load operation conditions, it can ensure stable output. More importantly, throughout the entire operation process, there is no black smoke or exhaust gas emission, which meets the requirements of modern environmental protection standards. This not only saves users a large amount of later maintenance costs but also reduces the impact on the environment. The hydraulic system adopts advanced technical design, ensuring flexible and precise operation as well as rapid response. Both the digging force and the lifting

SpecificationsValue
No.971664
Tonnage (tons)24
Working weight (kg)25130
Bucket capacity (m³)1.2
Boom length (mm)5850
Rod length (mm)3045
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu SAA6D107E-1
Rated power (kw/rpm)125/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107 x 124
Number of cylinders (PCS)6
Displacement (L)6.69
Working formDirect injection, turbocharged, post-cooling; Meet 2006EPA/Tier3 and EUIIIA standards.
Ground specific pressure (Kpa)41.7
Rotation speed (rpm)11.7
Climbing ability (%)70/35 °
Bucket digging force (kN)172
Rod digging force (kN)129
Travel speed (km/h)3.1/4.2/5.5
Rotary hydraulic motor typeAxial piston motor ×1(rotary holding valve)
Type of walking hydraulic motorAxial piston motor ×2(with parking brake)
Maximum flow of main pump (l/min)439
Traveling Hydraulic Circuit (Mpa)37.3
Rotary Hydraulic Circuit (Mpa)28.9
Control Hydraulic Circuit (Mpa)3.2 Pilot oil circuit
Hydraulic crushing pipeline is standardno
Bucket cylinders - Number × diameter × stroke (mm)130 * 1020 * 90
Bucket rod cylinders - Number × diameter × stroke (mm)140 * 1635 * 100
Boom cylinders - Number × diameter × stroke (mm)130 * 1335 * 90
Fuel Tank (L)400
Hydraulic Tank (L)135
Engine Oil changes (L)23.1
Coolant (L)19.8
Total transport length (mm)9885
Total transport width (mm)3280
Total transport height (mm)3185
Full cab height (mm)3055
Counterweight ground clearance (mm)1100
Minimum ground clearance (mm)440
Back end turning radius (mm)2905
Total track length (mm)4640
Track gauge (mm)2580
Track plate width (mm)700
Total track width (mm)3280
Track ground length (mm)3845
Maximum digging radius (mm)10180
Maximum digging depth (mm)6920
Maximum excavation height (mm)10000
Maximum unloading height (mm)7035
Maximum vertical digging depth (mm)6010
Bulldozer lift or depth (mm)No bulldozer
Maximum excavation radius of stop surface (mm)10020
Maximum effective digging depth (mm)6700
see more

Overview

No.971664

Brand Name:

Komatsu

Model Number:

PC240LC-8

Year:

2016

Location:

Hebei China
