| Specifications | Value |
|---|---|
| No. | 968289 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 41400 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | SAA6D125E-3 |
| Rated power (kw/rpm) | 246/1850 |
| Displacement (L) | 11.04 |
| Ground specific pressure (Kpa) | 77.5 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 275 |
| Rod digging force (kN) | 214 |
| Maximum tractive force (kN) | 329 |
| Travel speed (km/h) | 5.5/3.0 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1–160*1270*110mm |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1–185*1820*120mm |
| Boom cylinders - Number × diameter × stroke (mm) | 2–160*1570*110mm |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 248 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 34.2 |
| Total transport length (mm) | 11940 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3635 |
| Full cab height (mm) | 3265 |
| Counterweight ground clearance (mm) | 1320 |
| Minimum ground clearance (mm) | 555 |
| Back end turning radius (mm) | 3645 |
| Onboard width (mm) | 2995 |
| Total track length (mm) | 5025 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4020 |
| Maximum digging radius (mm) | 12025 |
| Maximum digging depth (mm) | 7820 |
| Maximum excavation height (mm) | 10915 |
| Maximum unloading height (mm) | 7565 |
| Maximum vertical digging depth (mm) | 6870 |
Description

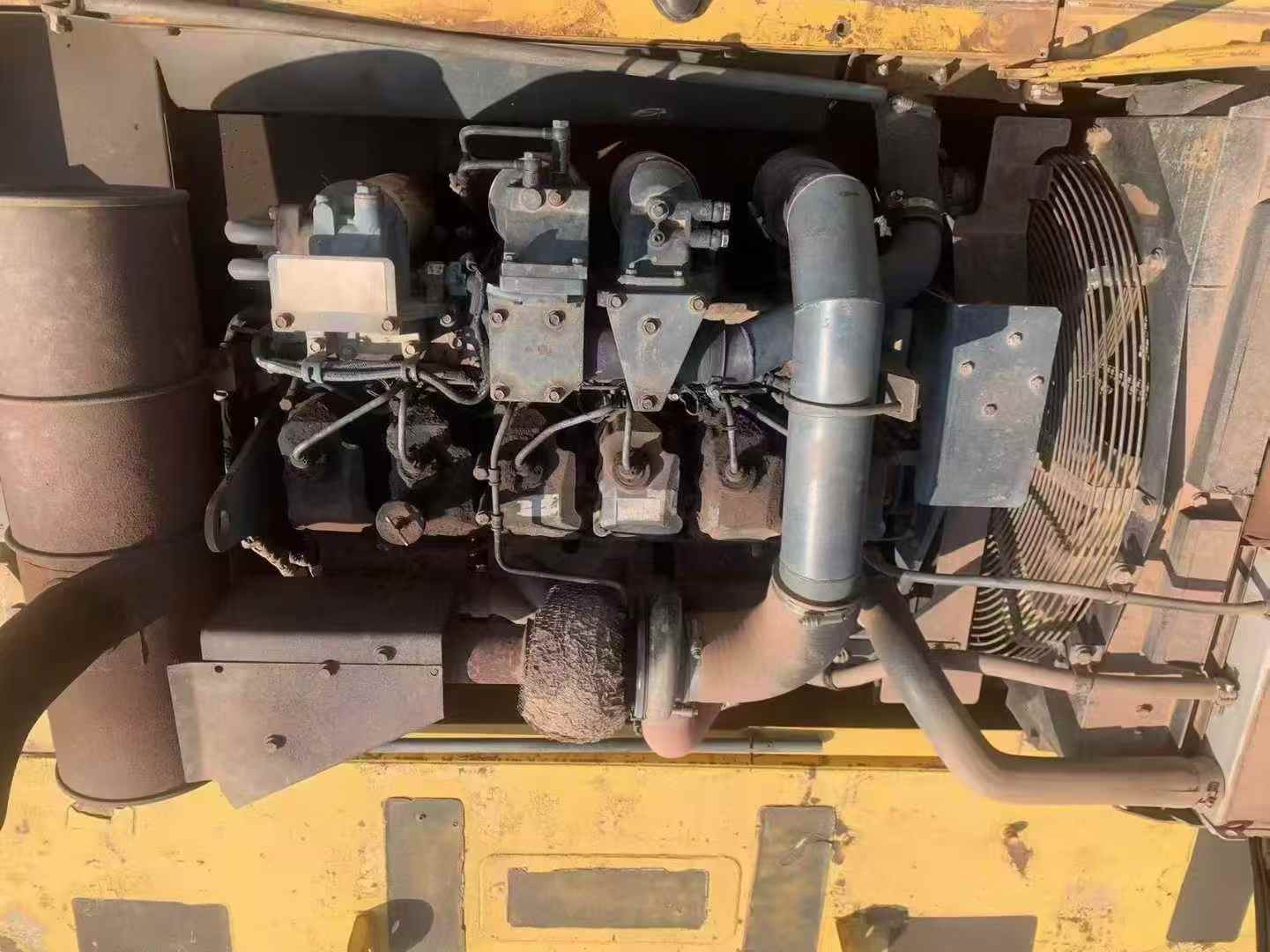

【 Local Stock 】 Second-hand Komatsu PC400-7 excavator, with outstanding quality and stable performance, is your ideal choice for engineering operations. The working time of this excavator is only 6,500 hours, which is far lower than the average usage time of similar equipment, meaning it still has a long service life and good working condition. In terms of the power system, this model is equipped with the original imported SAA6D125E-5 engine from Komatsu, with a maximum power output of 270kW at 1800rpm. It not only has strong power but also excellent fuel economy, effectively reducing operating costs. In addition, this engine features low noise and low emissions, meeting the latest environmental protection standards. It enables you to enjoy efficient operation while also contributing to environmental protection. The hydraulic system adopts Komatsu's advanced CLSS closed center load sensing system, which responds quickly and controls precisely. It can handle both excavation and loading with ease. In combination with the large-capacity fuel tank design, it ensures continuous operation for a long time without pressure. Meanwhile, the optimized matching between the hydraulic pump and the main valve makes the overall operation of the mach
