2016 Komatsu PC60-7

1/7
Used Komatsu PC60-7 Excavator 2016 Model / 1

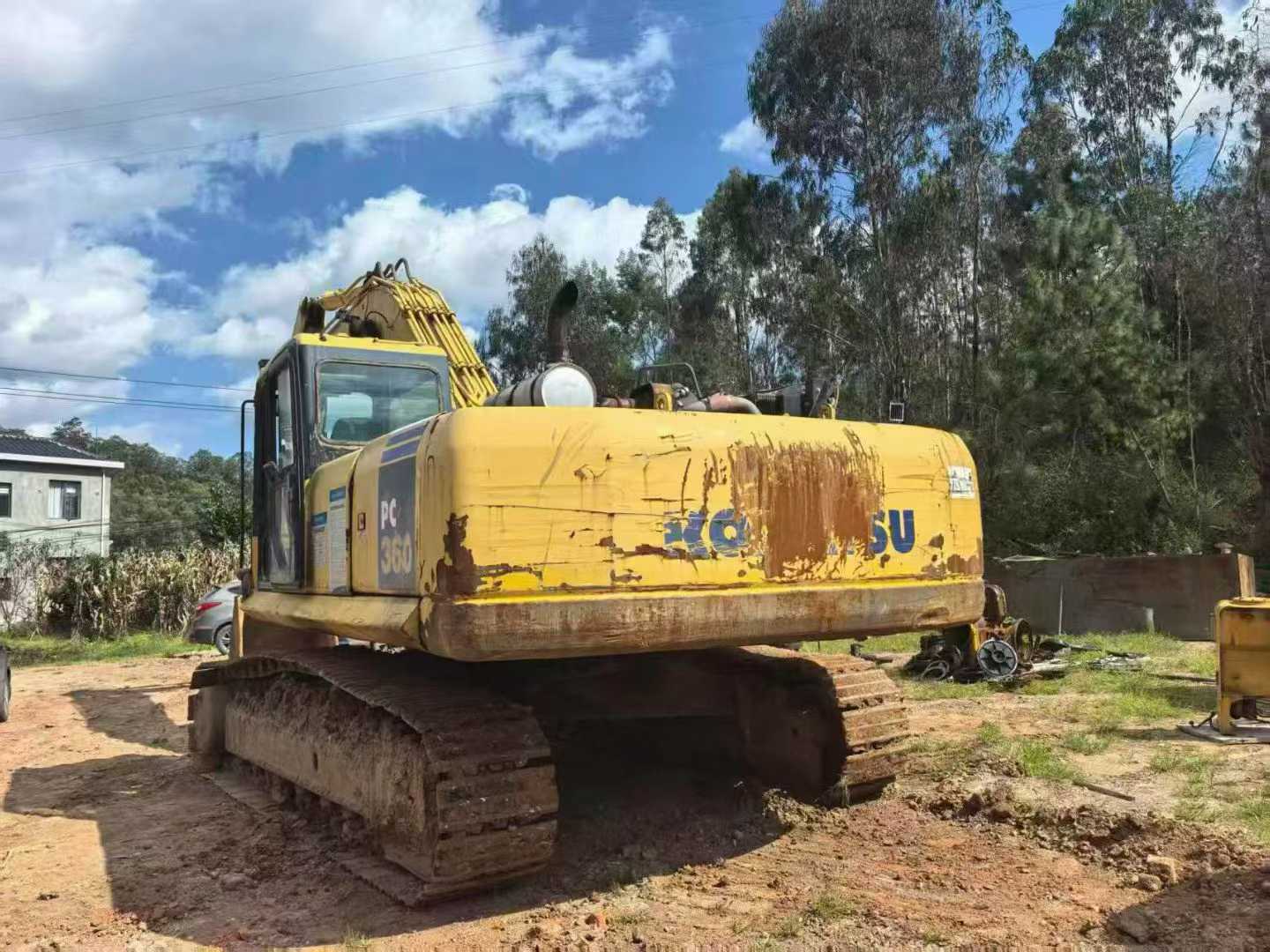

Used Komatsu PC60-7 Excavator 2016 Model / 2

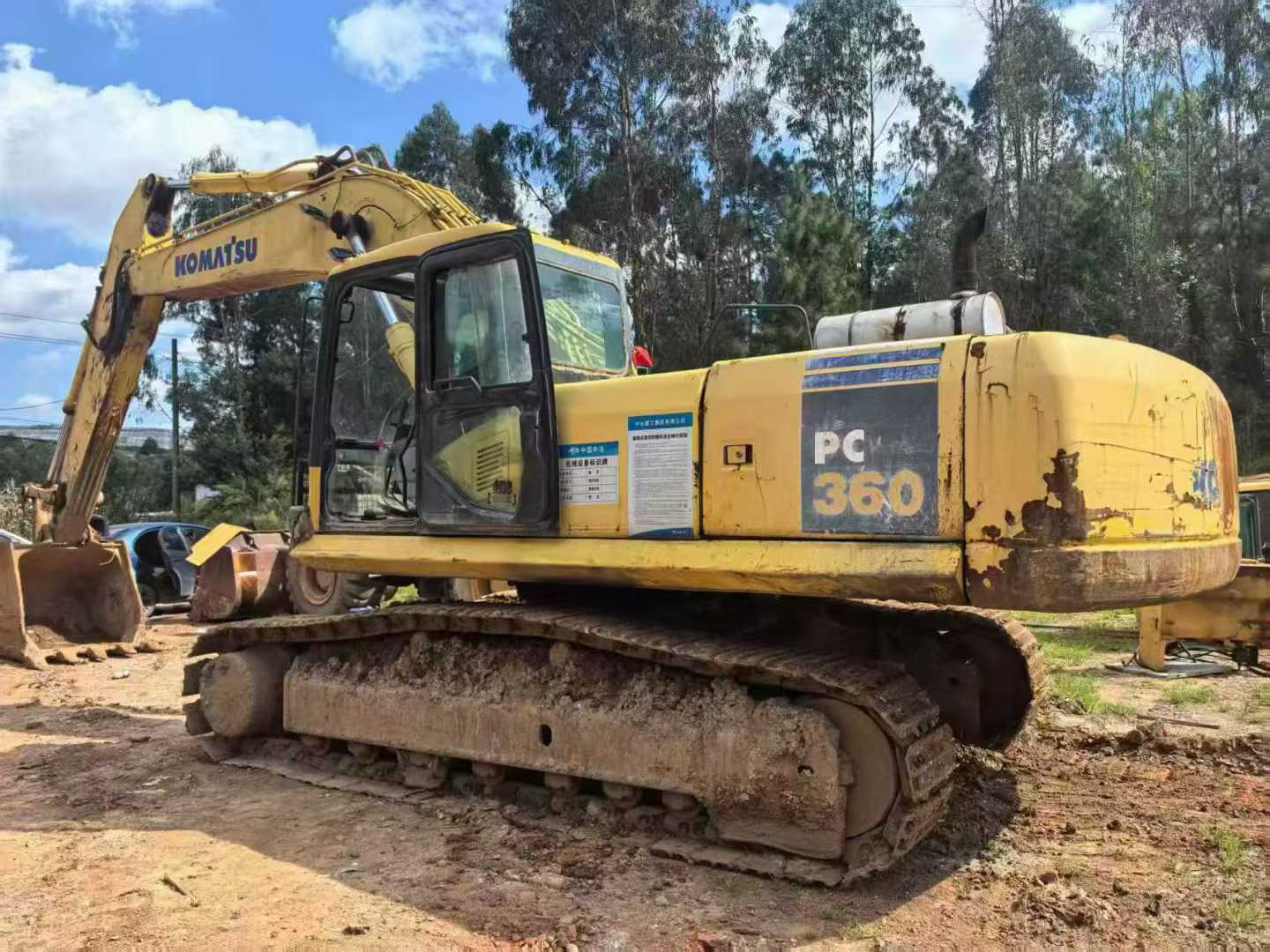

Used Komatsu PC60-7 Excavator 2016 Model / 3

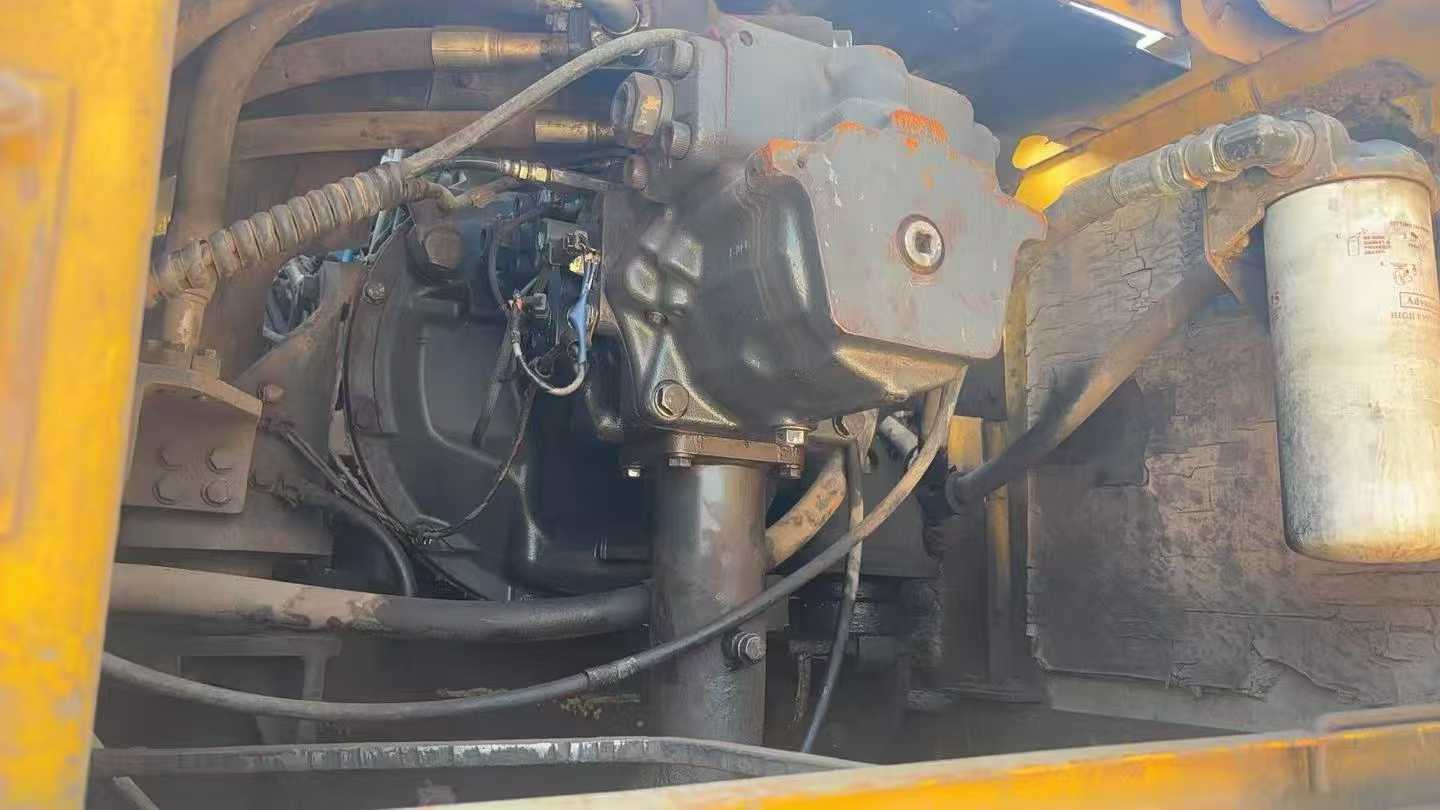

Used Komatsu PC60-7 Excavator 2016 Model / 4

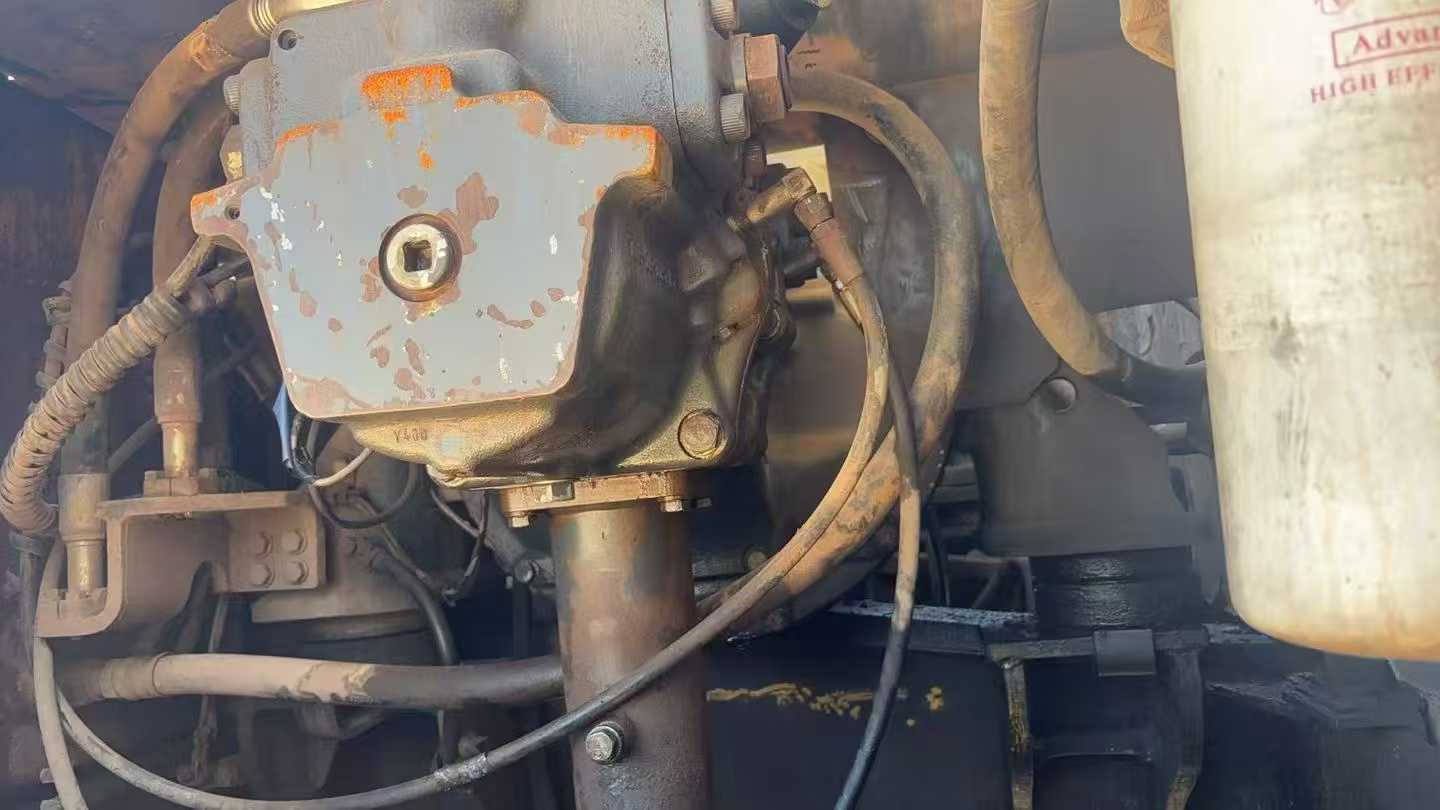

Used Komatsu PC60-7 Excavator 2016 Model / 5

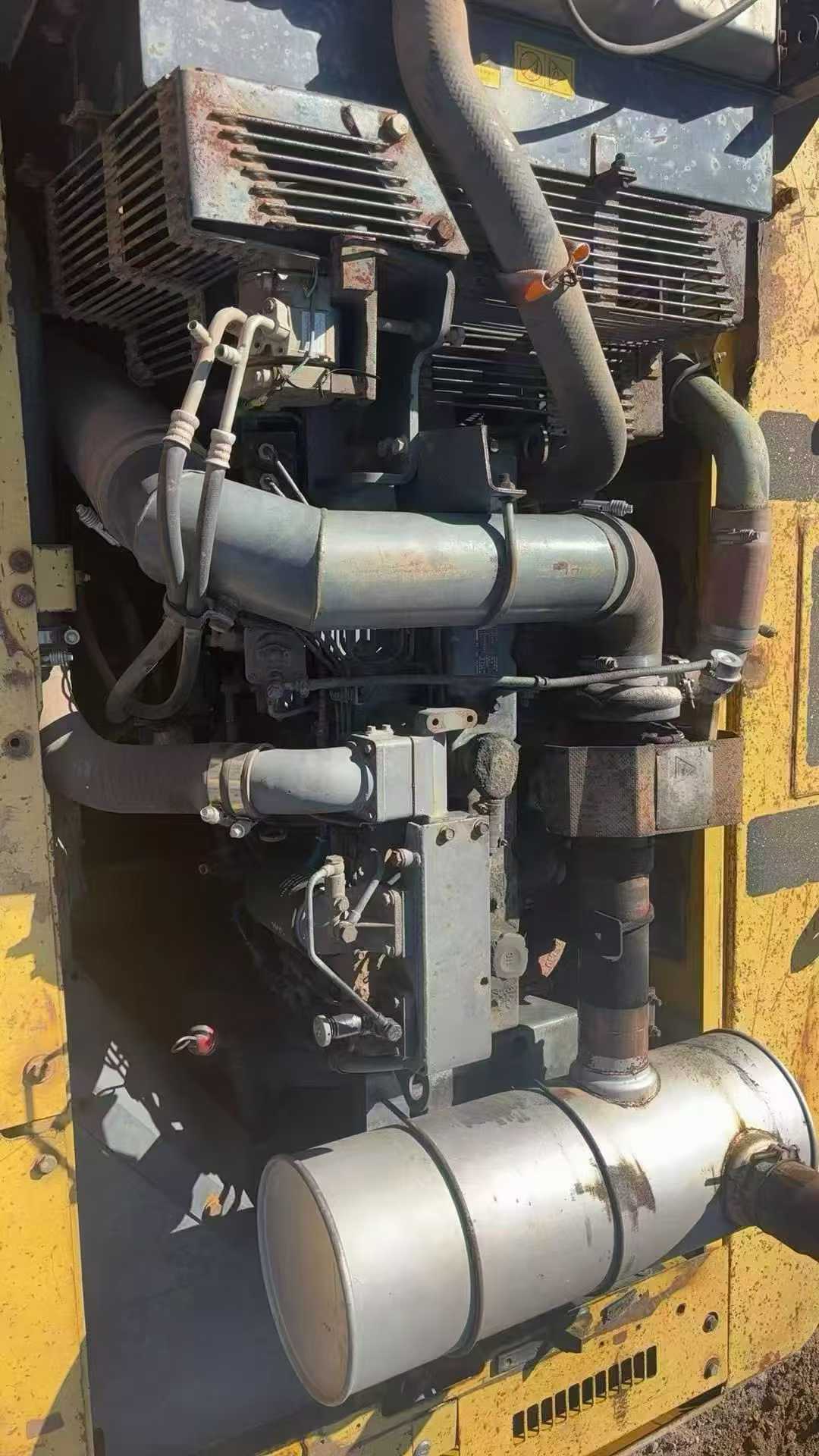

Used Komatsu PC60-7 Excavator 2016 Model / 6

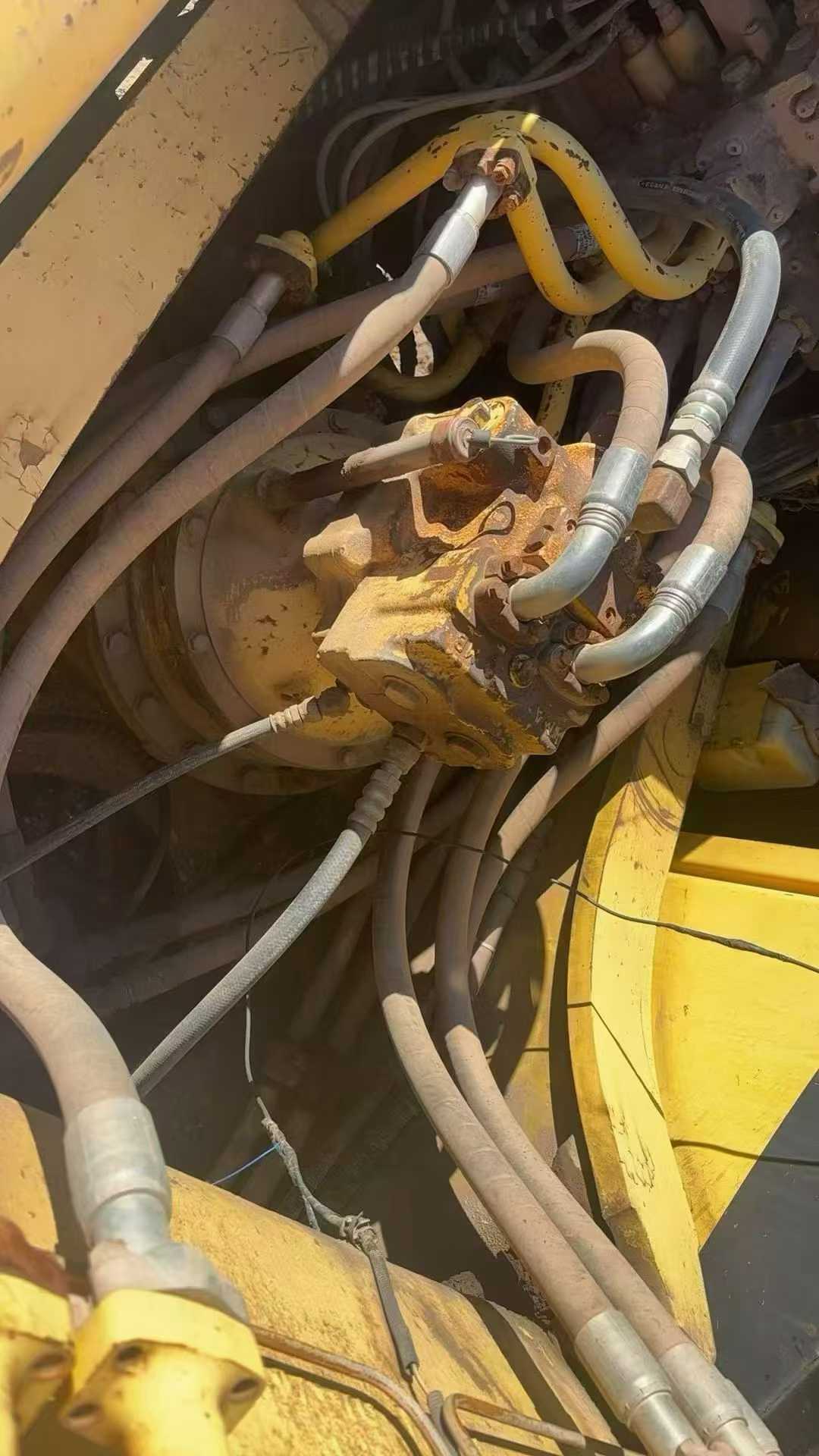

Used Komatsu PC60-7 Excavator 2016 Model / 7

Product Description

【 Premium Recommendation 】 Second-hand Komatsu PC360-7 excavator This second-hand Komatsu PC360-7 excavator has outstanding performance and has undergone comprehensive testing, so there is no need to worry about any mechanical problems. The cumulative working time of this aircraft is 12,000 hours, but its overall condition remains very good. Especially the chassis part, which has only traveled over 90,000 kilometers, has extremely low wear and tear, almost comparable to the stability and durability of a new car. In terms of power, this machine is equipped with an original imported Komatsu SAA6D114E-3 turbocharged engine, which has a large displacement and strong torque. Even under harsh working conditions, it can provide abundant power output, ensuring efficient operation while effectively reducing fuel consumption. More importantly, this engine has been meticulously maintained and serviced, running smoothly without any noise, starting quickly and responding sensitively with power. The hydraulic system adopts the CLSS closed center load sensing system independently developed by Komatsu, which not only enhances operational accuracy and flexibility but also significantly extends the service life of hydraulic components. The entire hyd

SpecificationsValue
No.971142
Tonnage (tons)6
Working weight (kg)6300
Bucket capacity (m³)0.28-0.37
Boom length (mm)3710
Rod length (mm)1650
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu 4D95LE
Rated power (kw/rpm)40/2100
Displacement (L)3.26
Working form4-stroke, water-cooled, direct injection engine; Cylinder diameter :95mm; Travel :115mm; Mechanical full speed regulation.
Ground specific pressure (Kpa)28.4
Rotation speed (rpm)12
Bucket digging force (kN)54.8kN
Rod digging force (kN)37.3kN
Maximum tractive force (kN)56.37KN
Travel speed (km/h)2.8-4.5
Rotary hydraulic motor typeAxial plunger type ×1
Type of walking hydraulic motorAxial plunger type x 2
Maximum flow of main pump (l/min)155L/min
Traveling Hydraulic Circuit (Mpa)24.5
Rotary Hydraulic Circuit (Mpa)19.1
Control Hydraulic Circuit (Mpa)2.9
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)24.5
Bucket cylinders - Number × diameter × stroke (mm)90 x 710 x 60
Bucket rod cylinders - Number × diameter × stroke (mm)100 x 865 x 60
Boom cylinders - Number × diameter × stroke (mm)115 * 840 * 65
Fuel Tank (L)130
Hydraulic Tank (L)90
Engine Oil changes (L)11
Coolant (L)10.3
Total transport length (mm)6080
Total transport width (mm)2225
Total transport height (mm)2590
Full cab height (mm)2590
Counterweight ground clearance (mm)750
Minimum ground clearance (mm)350
Back end turning radius (mm)1750
Total track length (mm)2765
Track gauge (mm)1700
Track plate width (mm)450
Total track width (mm)2150
Track ground length (mm)2130
Maximum digging radius (mm)6360
Maximum digging depth (mm)4100
Maximum excavation height (mm)7150
Maximum unloading height (mm)5015
Maximum vertical digging depth (mm)3505
Bulldozer lift or depth (mm)270/410
Maximum excavation radius of stop surface (mm)6220
Maximum effective digging depth (mm)3755
see more

Overview

No.971142

Brand Name:

Komatsu

Model Number:

PC60-7

Year:

2016

Location:

Yunnan China
