| Specifications | Value |
|---|---|
| No. | 964538 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13500 |
| Bucket capacity (m³) | 0.22-0.7 (0.6) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

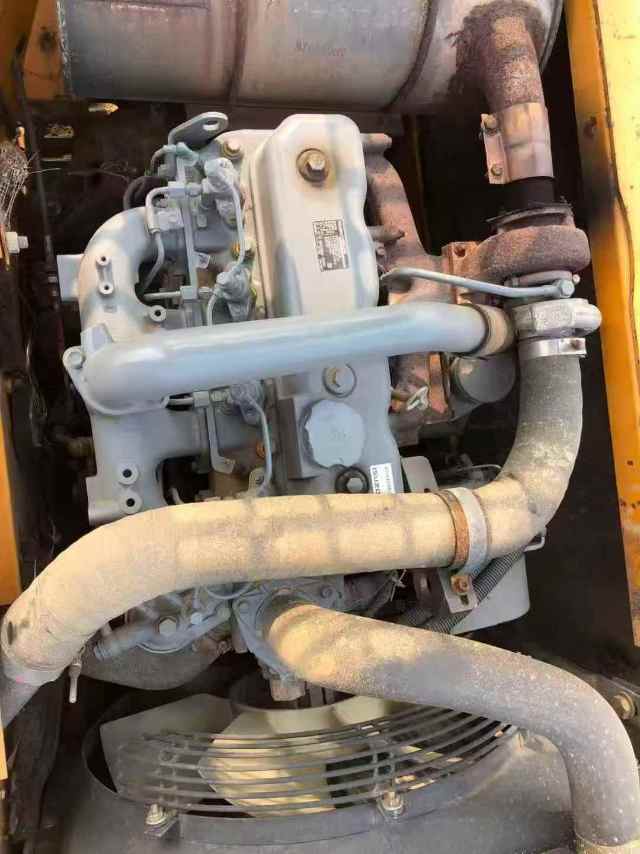

| Engine type | Isuzu 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 365/1600 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.7 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 92.7 |
| Rod digging force (kN) | 66.13 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total transport length (mm) | 7700 |
| Total transport width (mm) | 2550 |
| Total transport height (mm) | 2815 |
| Full cab height (mm) | 2740 |
| Minimum ground clearance (mm) | 425 |
| Minimum turning radius of front working device (mm) | 2500 |
| Back end turning radius (mm) | 2240 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3665 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2930 |
| Maximum height at minimum turning radius (mm) | 6500 |

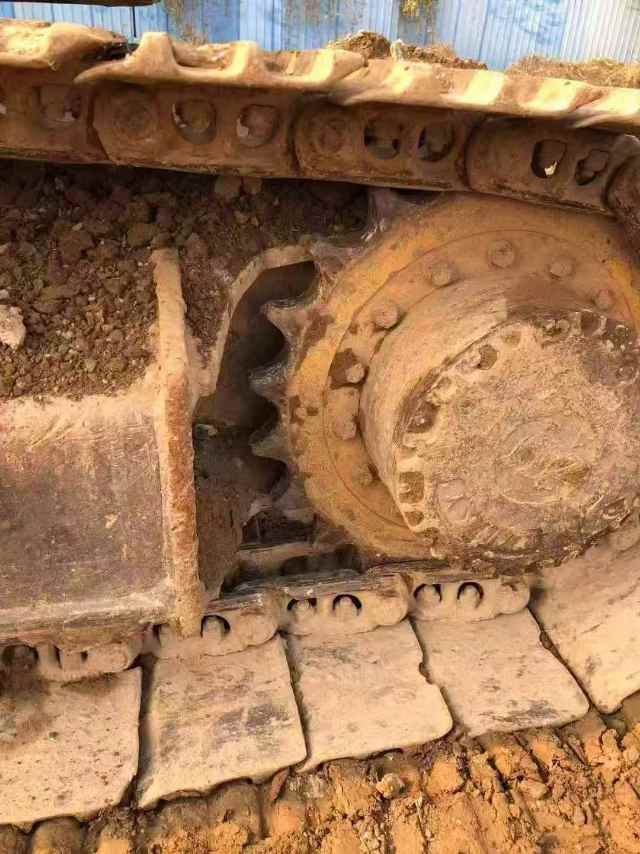

| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 7 |

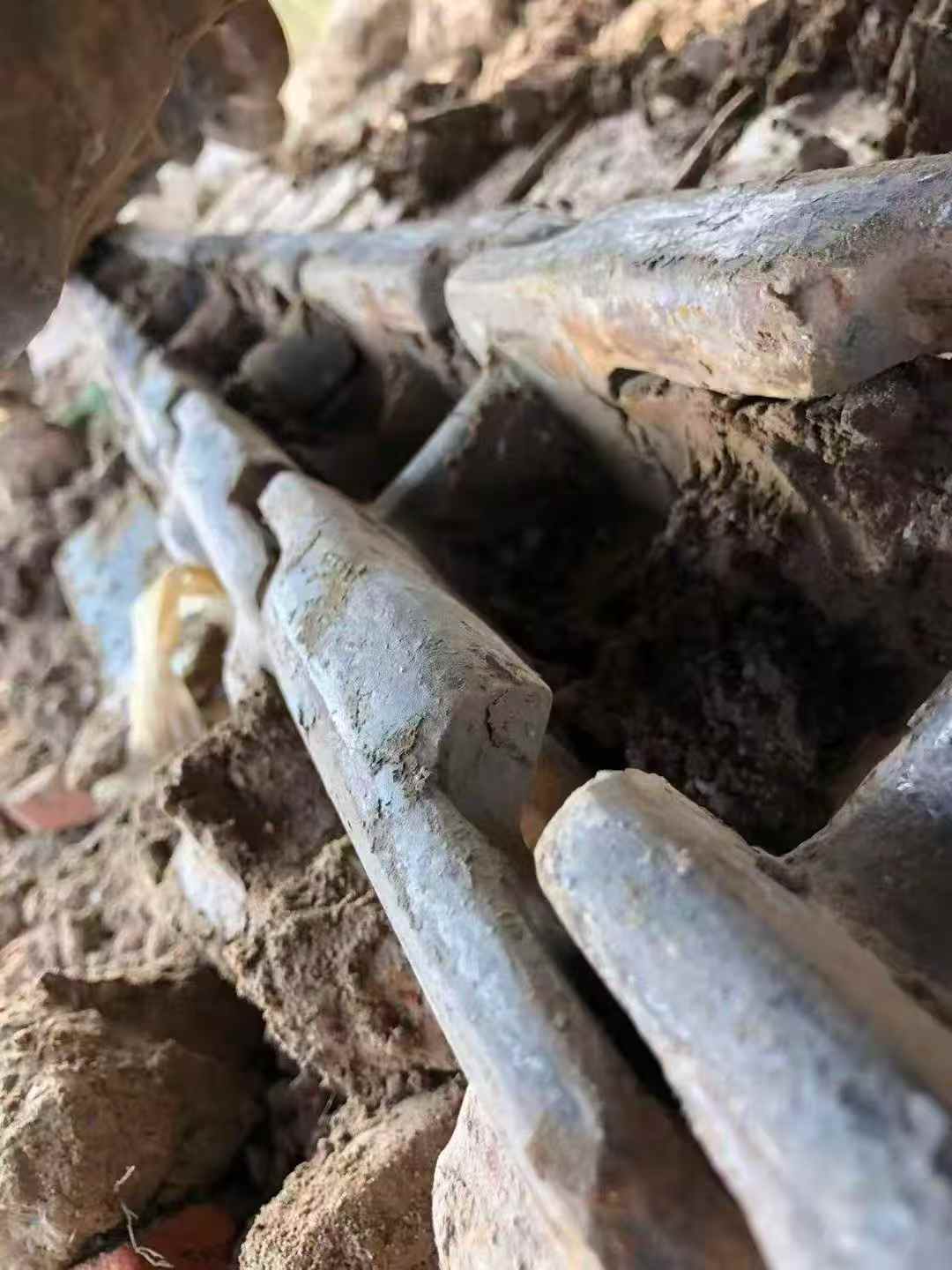

| Number of track plates (single side) (PCS) | 44 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5510 |
| Maximum excavation height (mm) | 8685 |
| Maximum unloading height (mm) | 6180 |
| Maximum vertical digging depth (mm) | 4890 |
Description

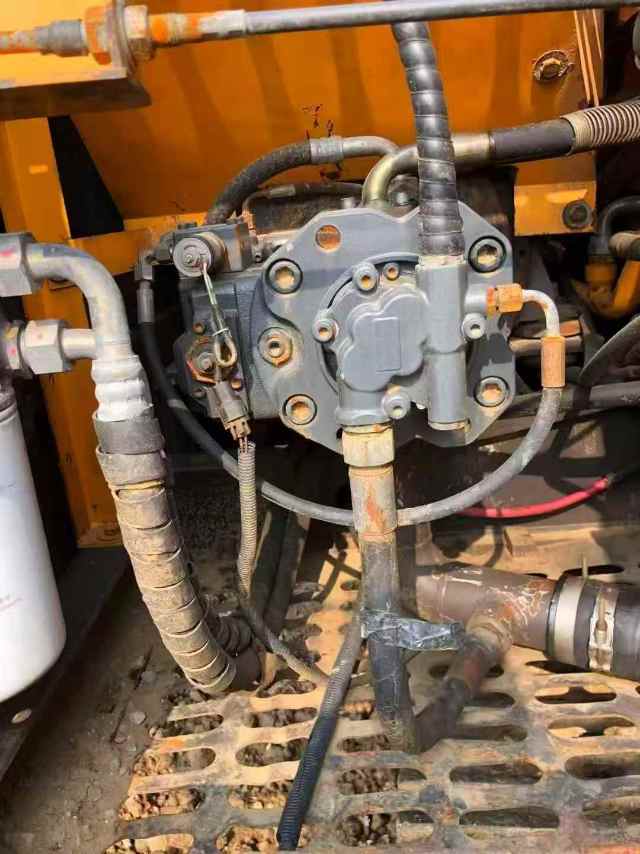

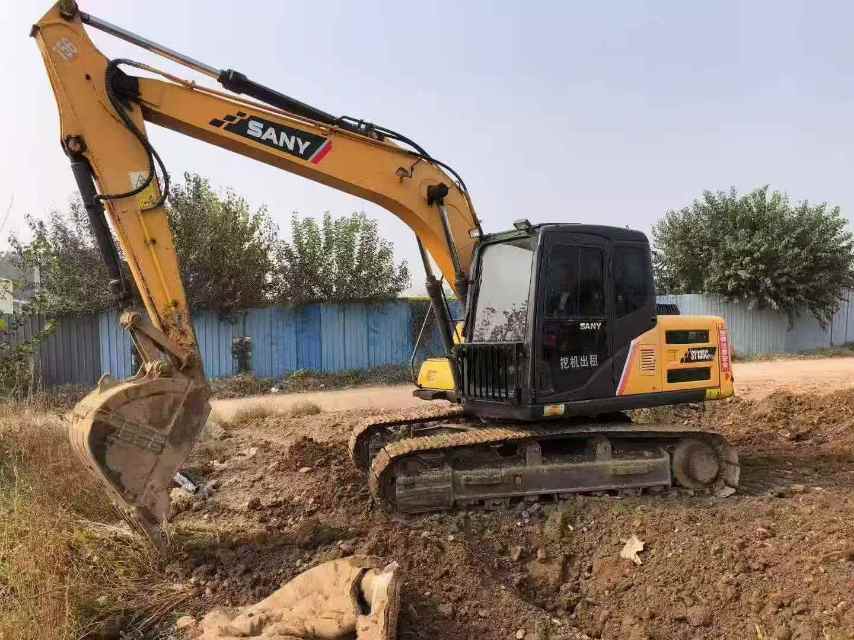

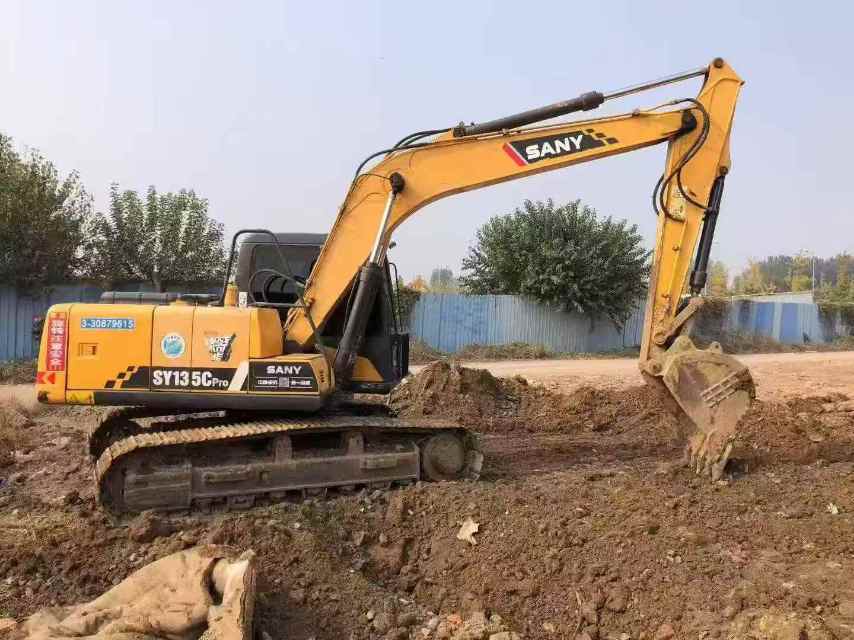

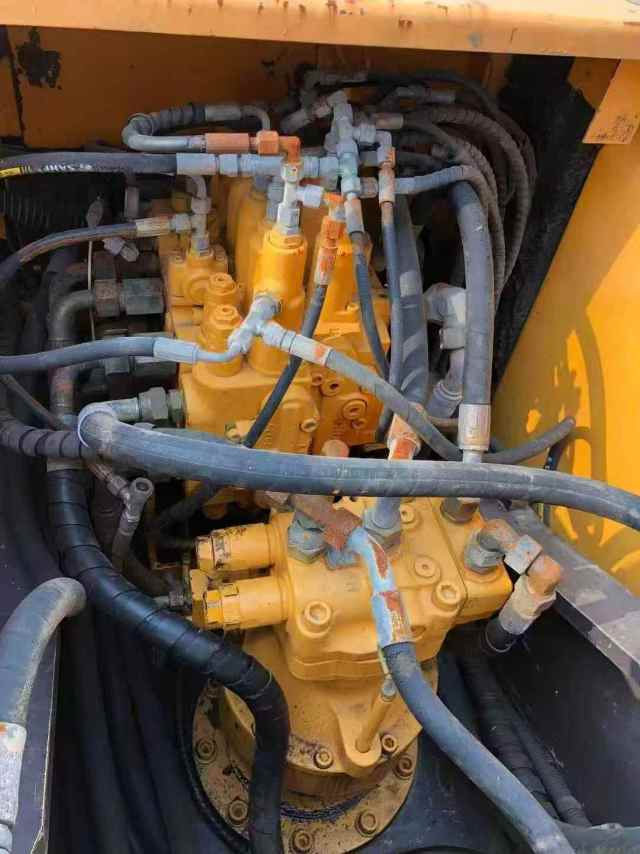

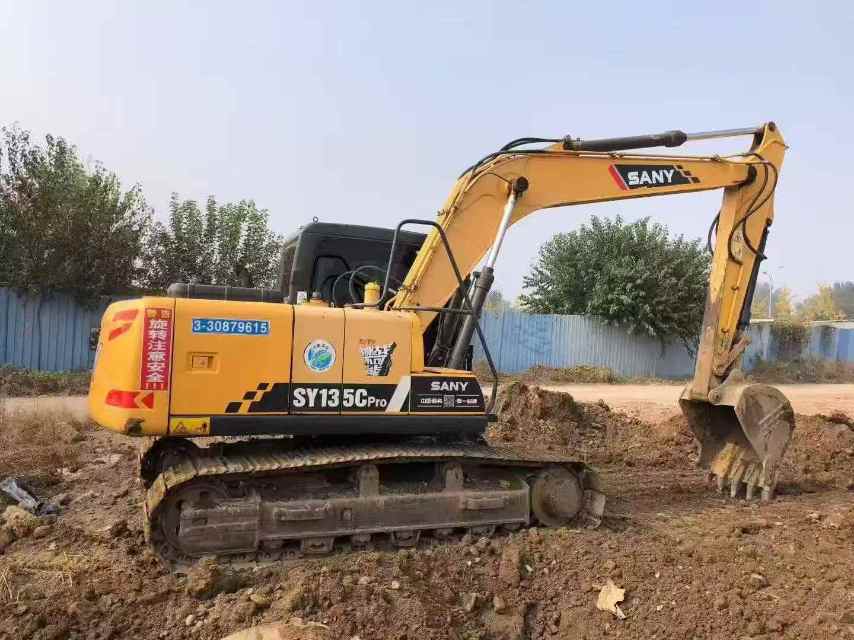

【 Premium Recommendation 】 Sany 135C excavator, in excellent condition and with stable performance, is your reliable assistant for engineering operations! Since its manufacture, this Sany 135C excavator has only worked for a total of 4,000 hours, which is far lower than the average service life of similar equipment. This indicates that it still has a long service life and a good retention rate. The power system adopts a well-known brand engine that has been tested in the market for a long time. It is powerful and fuel-efficient, and can handle both plain and mountainous operations with ease. In terms of the hydraulic system, this machine adopts an advanced negative flow control system, ensuring the smoothness and accuracy of operation, while reducing energy consumption and improving work efficiency. In addition, there was no oil leakage in major components such as engines, pumps, and valves, indicating that they were properly maintained and the internal structure of the machinery remained intact. The vehicle's exterior is neat and tidy, the cab is spacious and comfortable, and the field of vision is wide, making it suitable for long-term operation. All functions have been strictly tested to ensure normal operation. First-hand informa
