| Specifications | Value |
|---|---|
| No. | 962874 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
Description

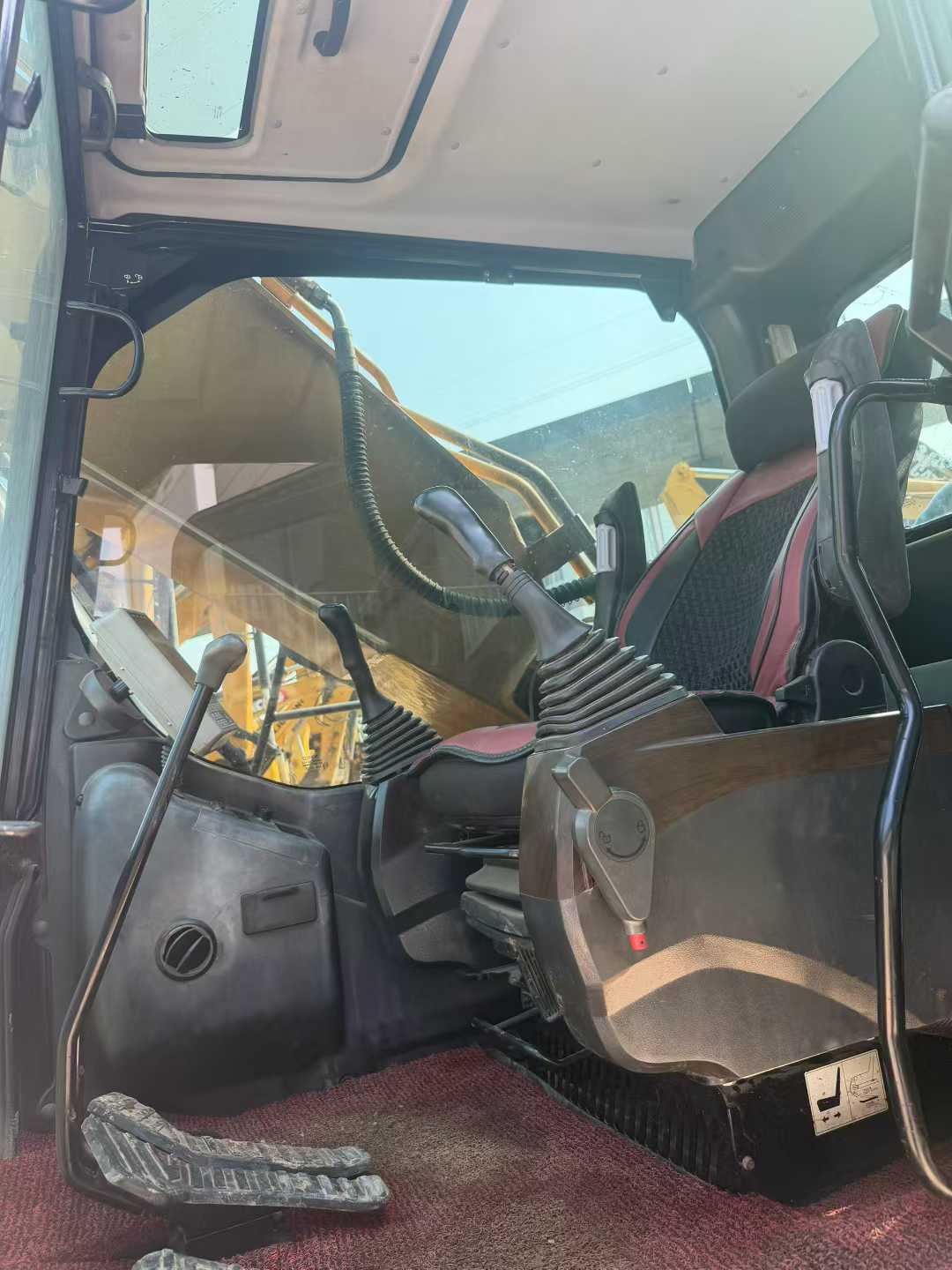

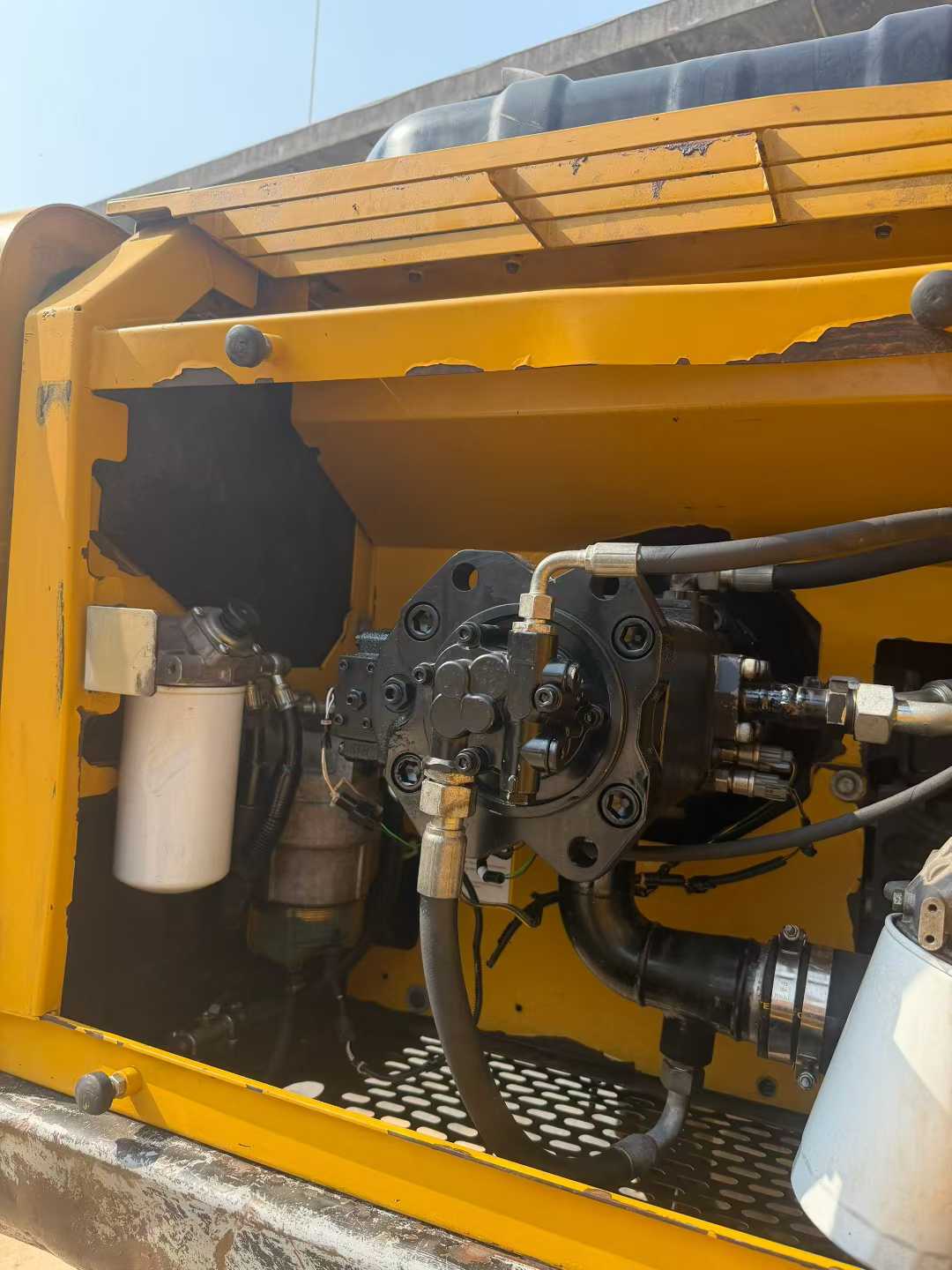

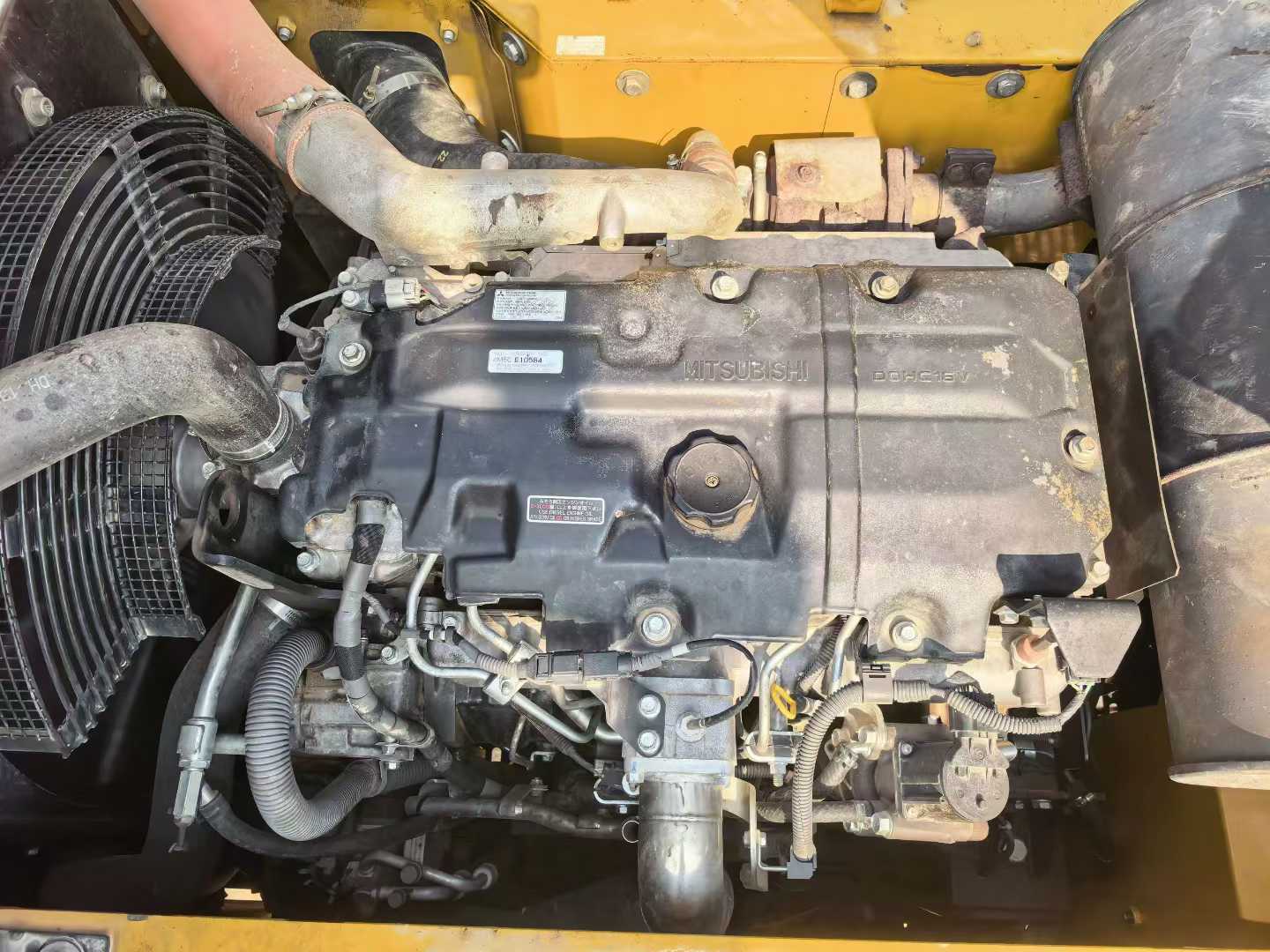

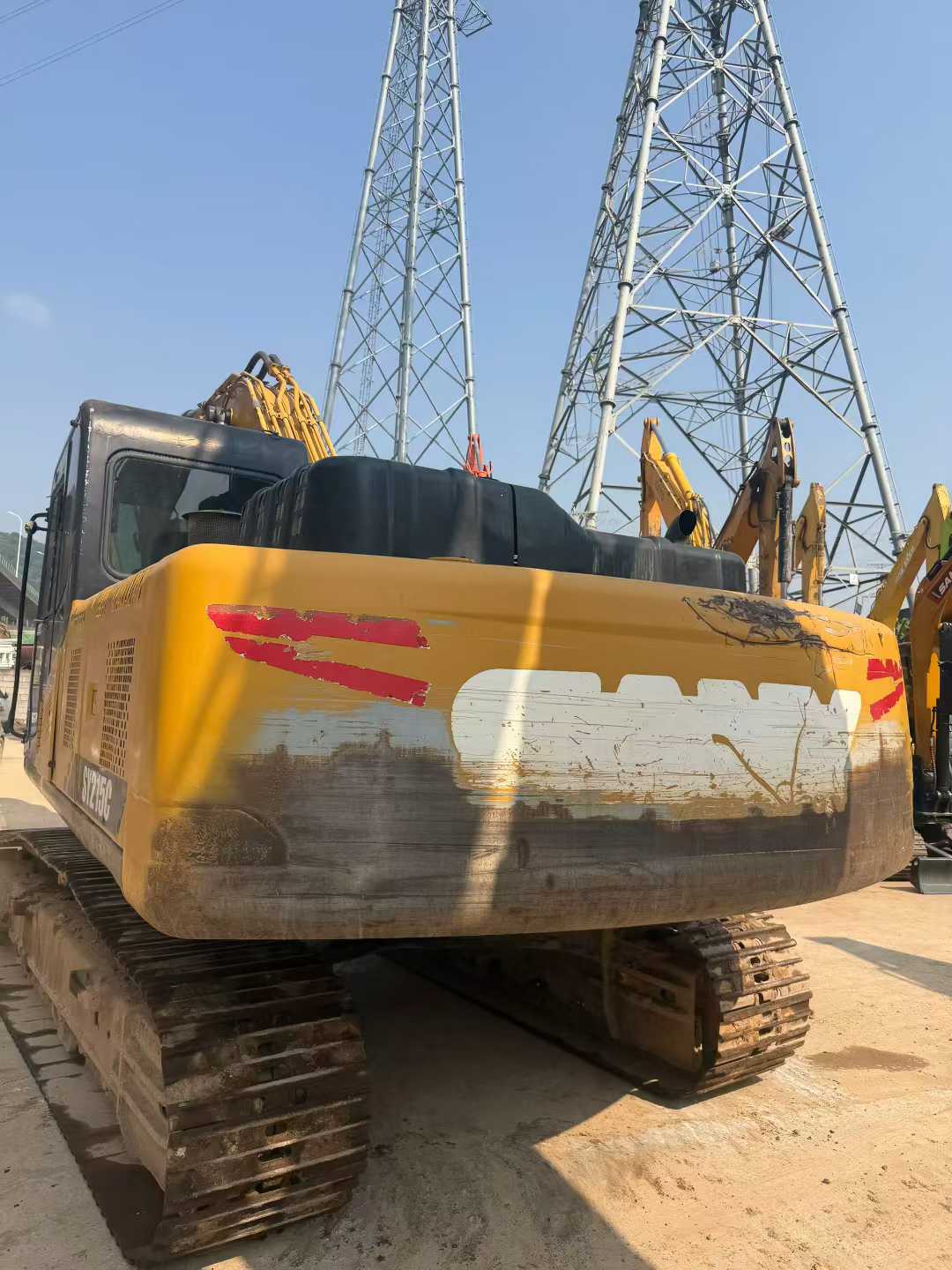

【 Premium Recommendation 】 Sany SY195 excavator from 2018, with outstanding performance and quality guaranteed! Since its commissioning in 2018, this Sany SY195 excavator has accumulated a working time of only 3,000 hours, which is far lower than the average usage time of equipment of the same model and is almost in brand new condition. It is equipped with an efficient Cummins QSB6.7 engine, with a maximum power output of 110KW (approximately 148 horsepower). Not only is it powerful, but it also has excellent fuel economy, capable of easily meeting the operational demands under various complex working conditions. Meanwhile, this model adopts an advanced negative flow hydraulic system, ensuring smoothness and response speed during operation. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, this SY195 is also equipped with a spacious and comfortable cab, offering a wide field of vision and excellent shock absorption, which greatly enhances the driver's working experience. The robust and durable chassis design enhances the overall stability of the machine, ensuring efficient operation even in harsh environments. After comprehensive inspection and maintenance by a professional team, thi
