| Specifications | Value |
|---|---|
| No. | 964239 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
Description

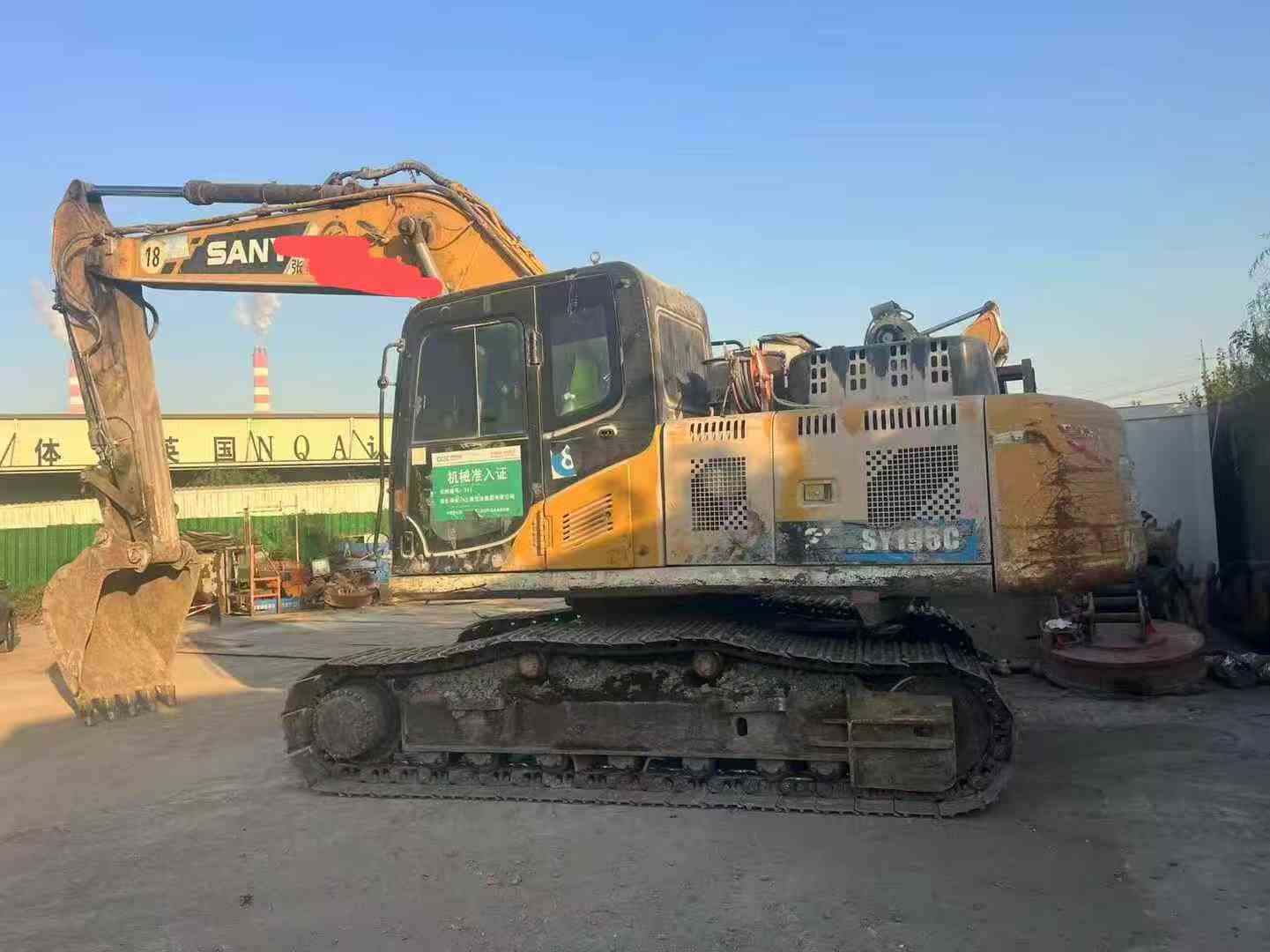

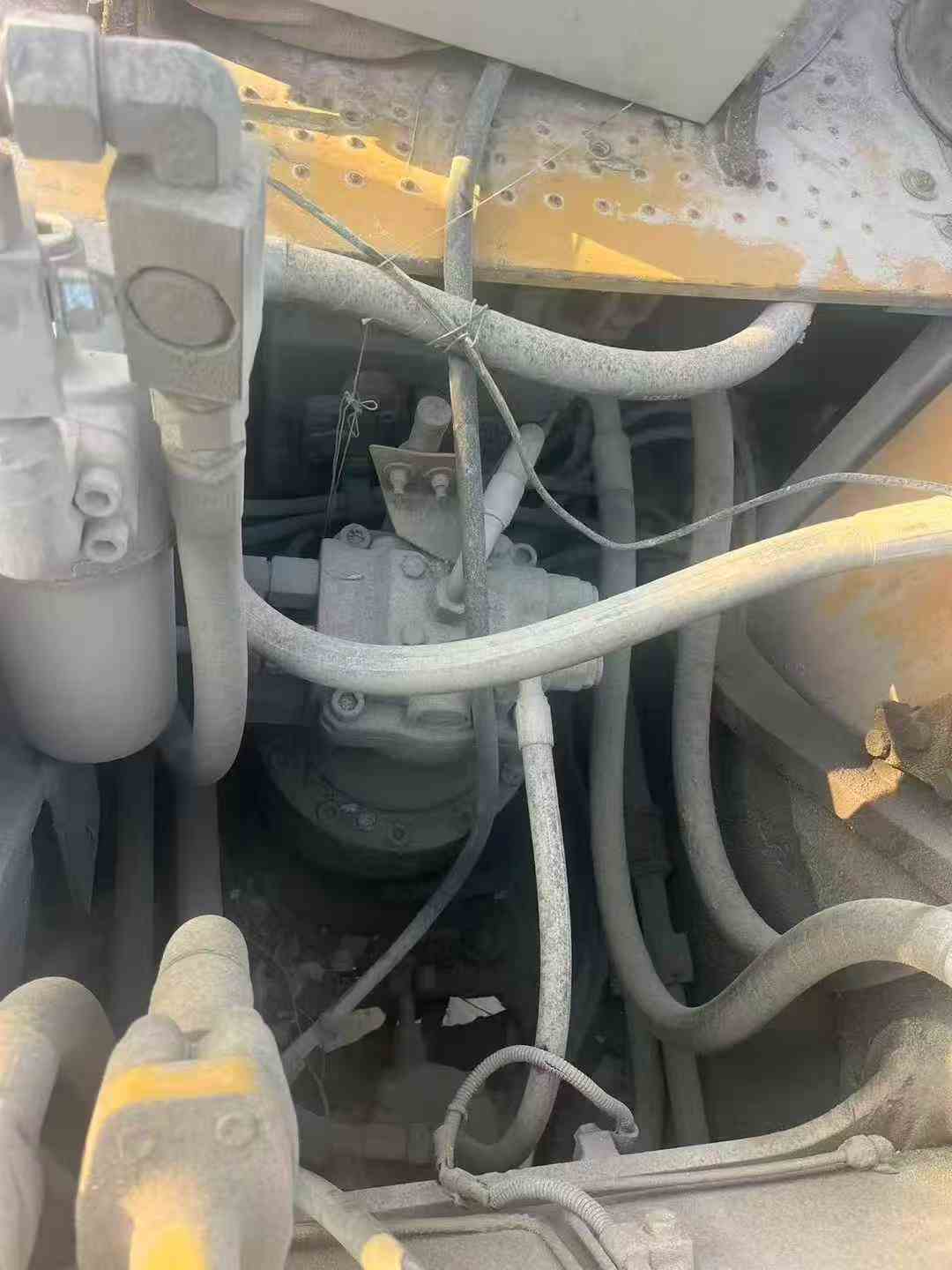

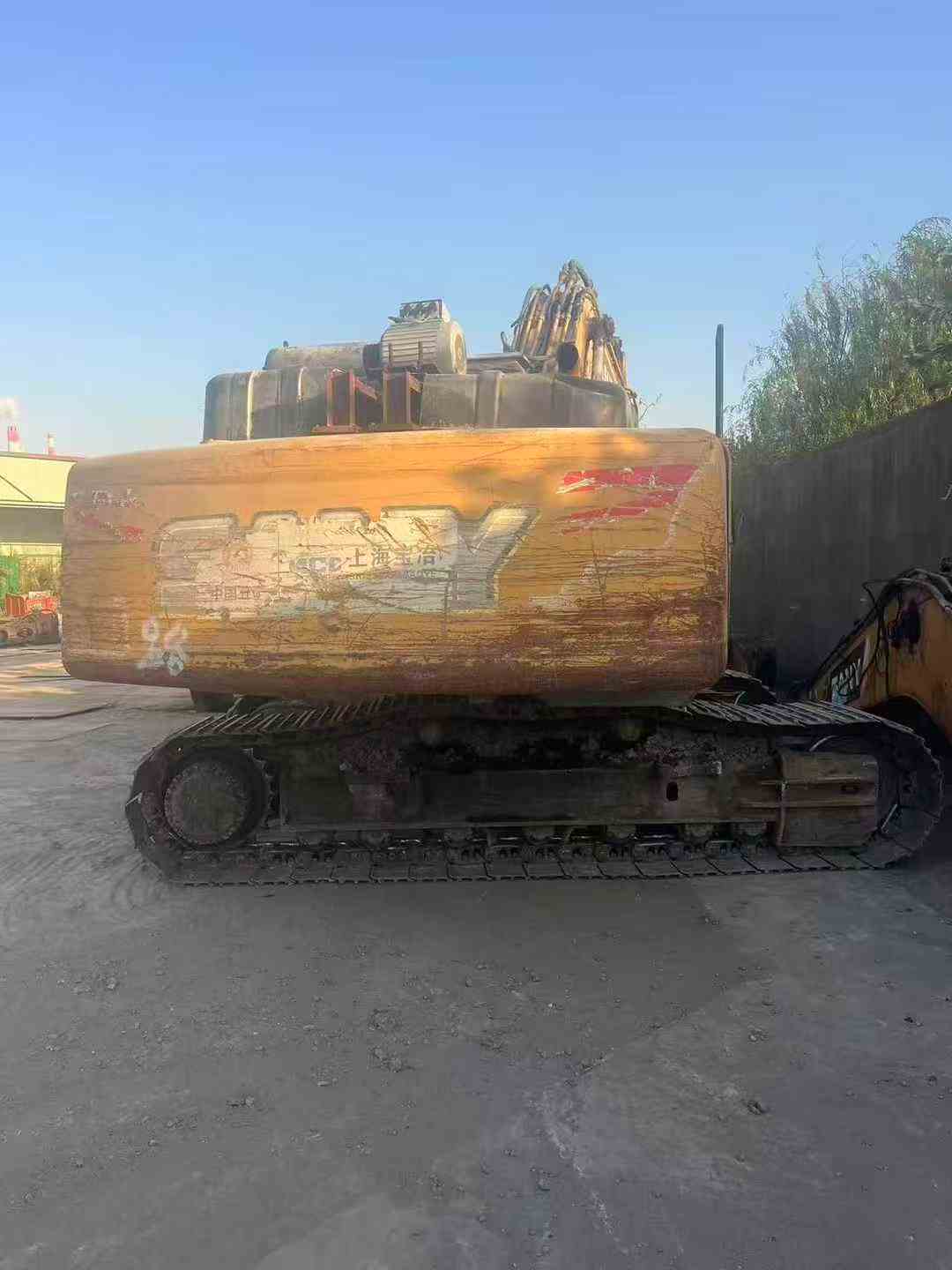

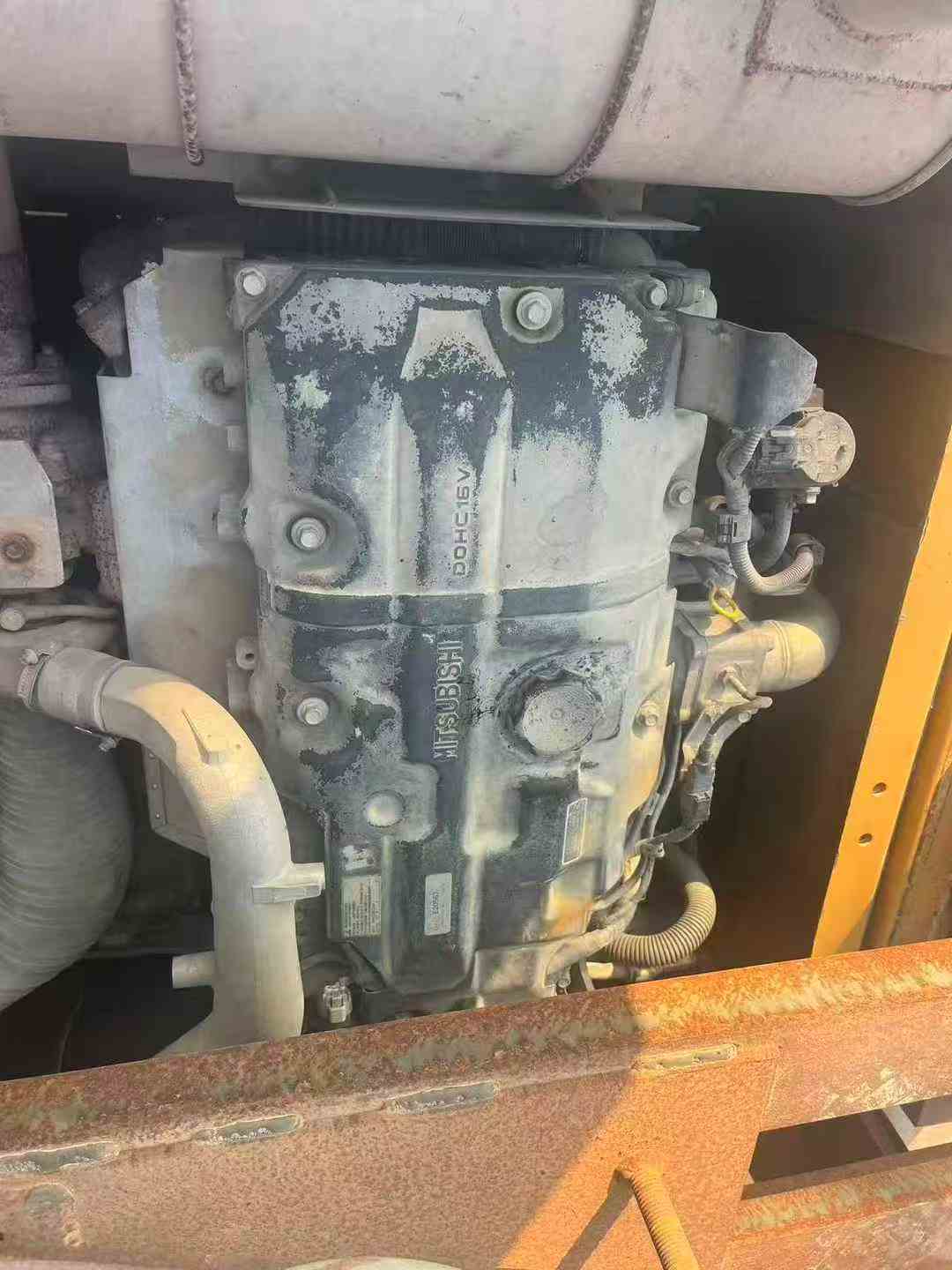

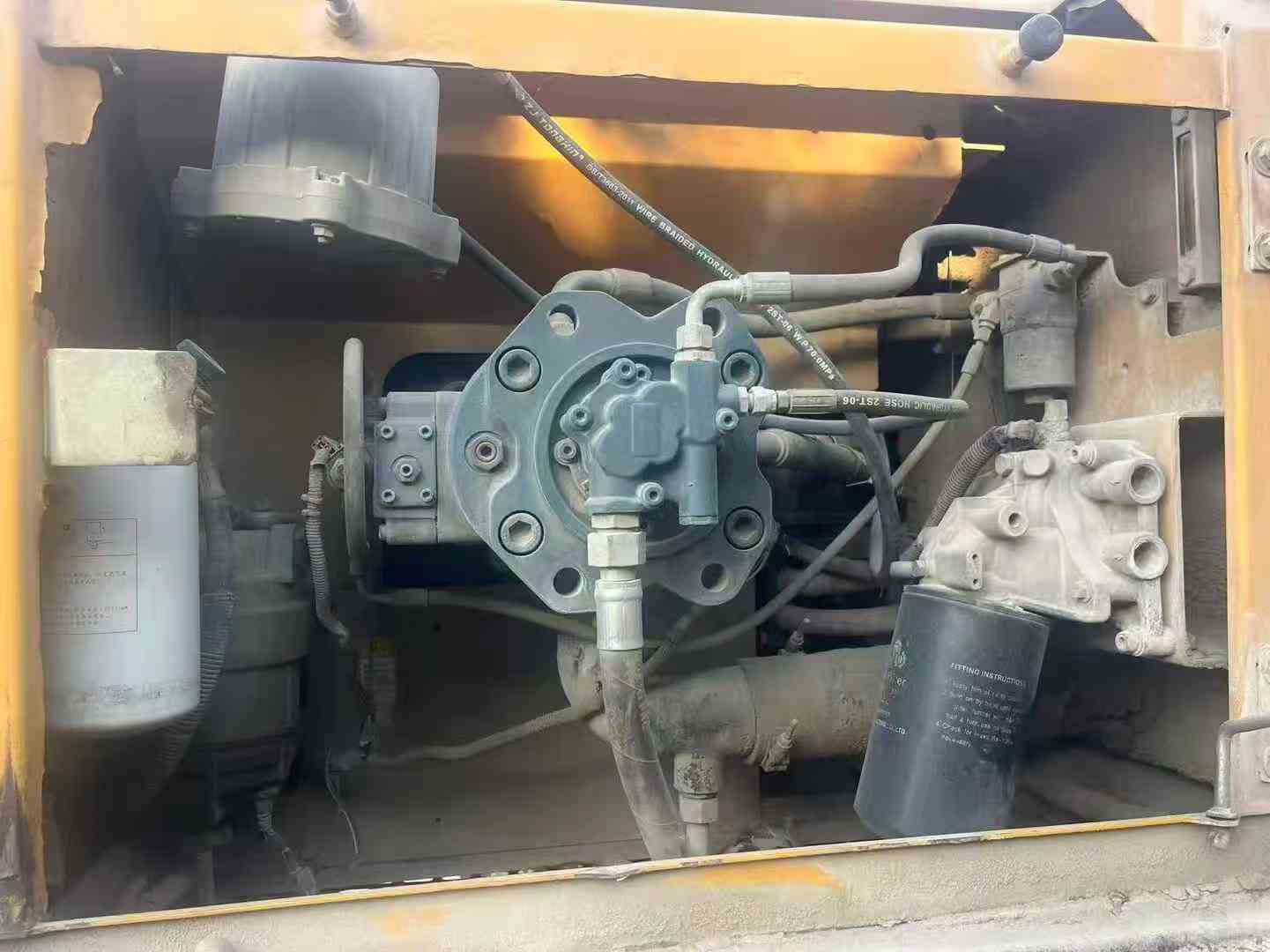

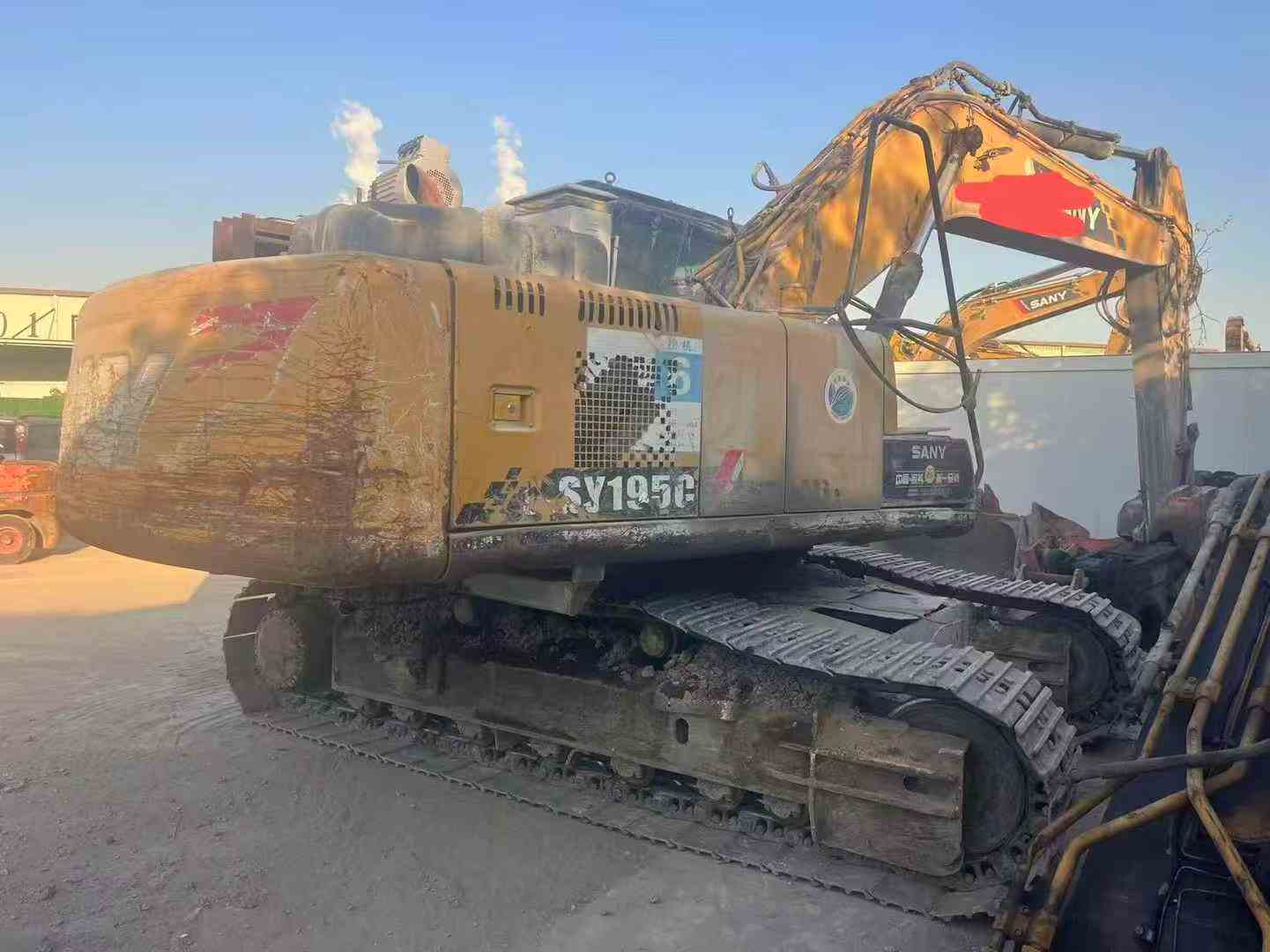

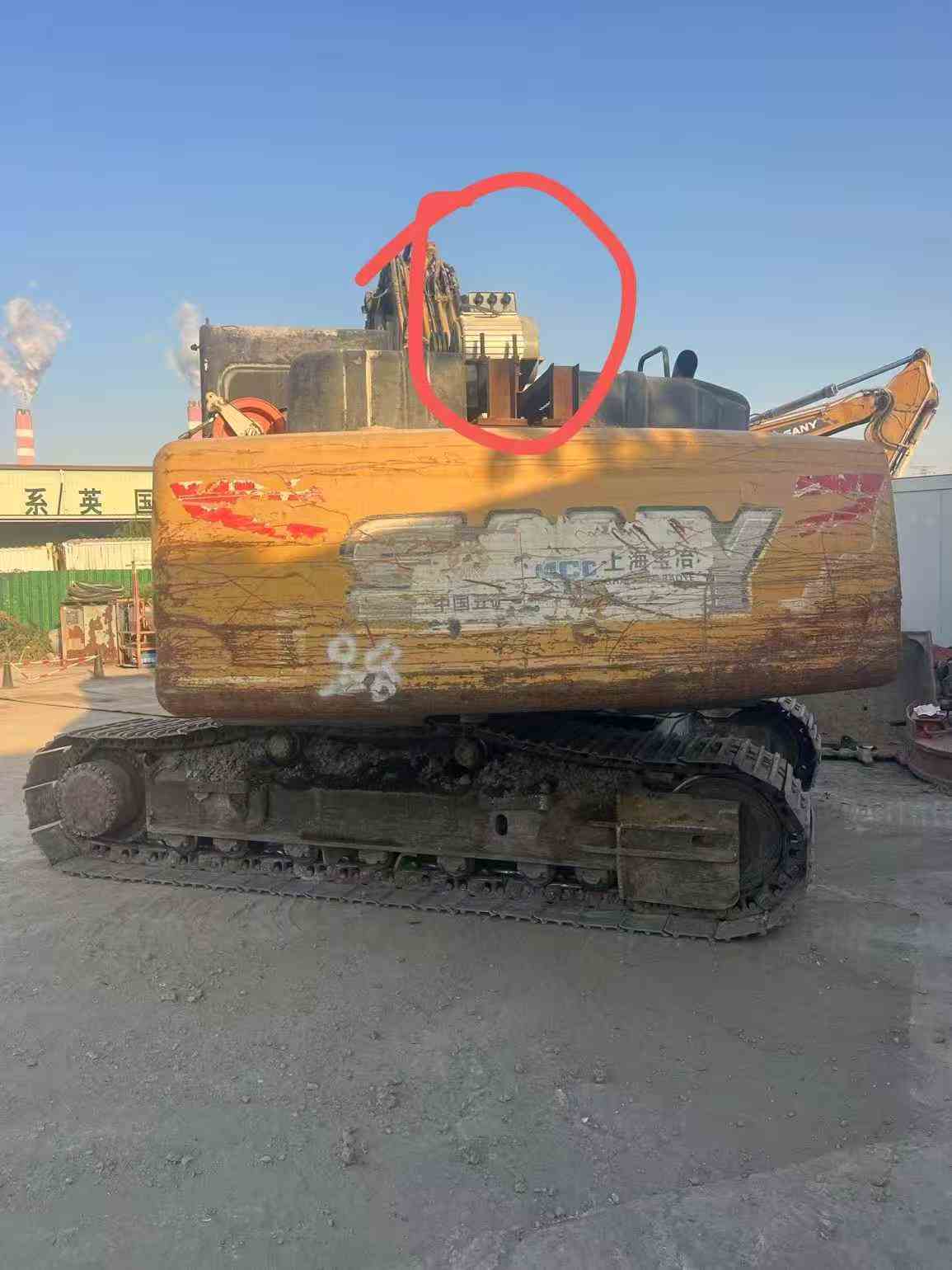

【 Premium Recommendation 】2019 Sany SY195 second-hand excavator, with outstanding performance and extremely high cost performance! Since its manufacture, this excavator has maintained a good working condition, with a total working time of 4,800 hours. It has a moderate usage frequency, proper maintenance, no major repair records, and stable and reliable mechanical performance. In terms of the power system, this machine is equipped with a high-performance engine independently developed by Sany, which is powerful and has good fuel economy. The maximum output power can reach 120kW, and it can easily meet the operation requirements under various complex working conditions. Whether it is urban construction or mining, it can perform outstandingly. The hydraulic system adopts core components of internationally renowned brands, ensuring the flexibility and smoothness of the entire machine's operation. Its advanced hydraulic technology not only enhances work efficiency but also significantly reduces energy consumption, enabling it to maintain high efficiency even during long-term continuous operation. In addition, this system has an excellent heat dissipation effect and can ensure the normal operation of the machine even in high-temperature e
