| Specifications | Value |
|---|---|
| No. | 969848 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
Description

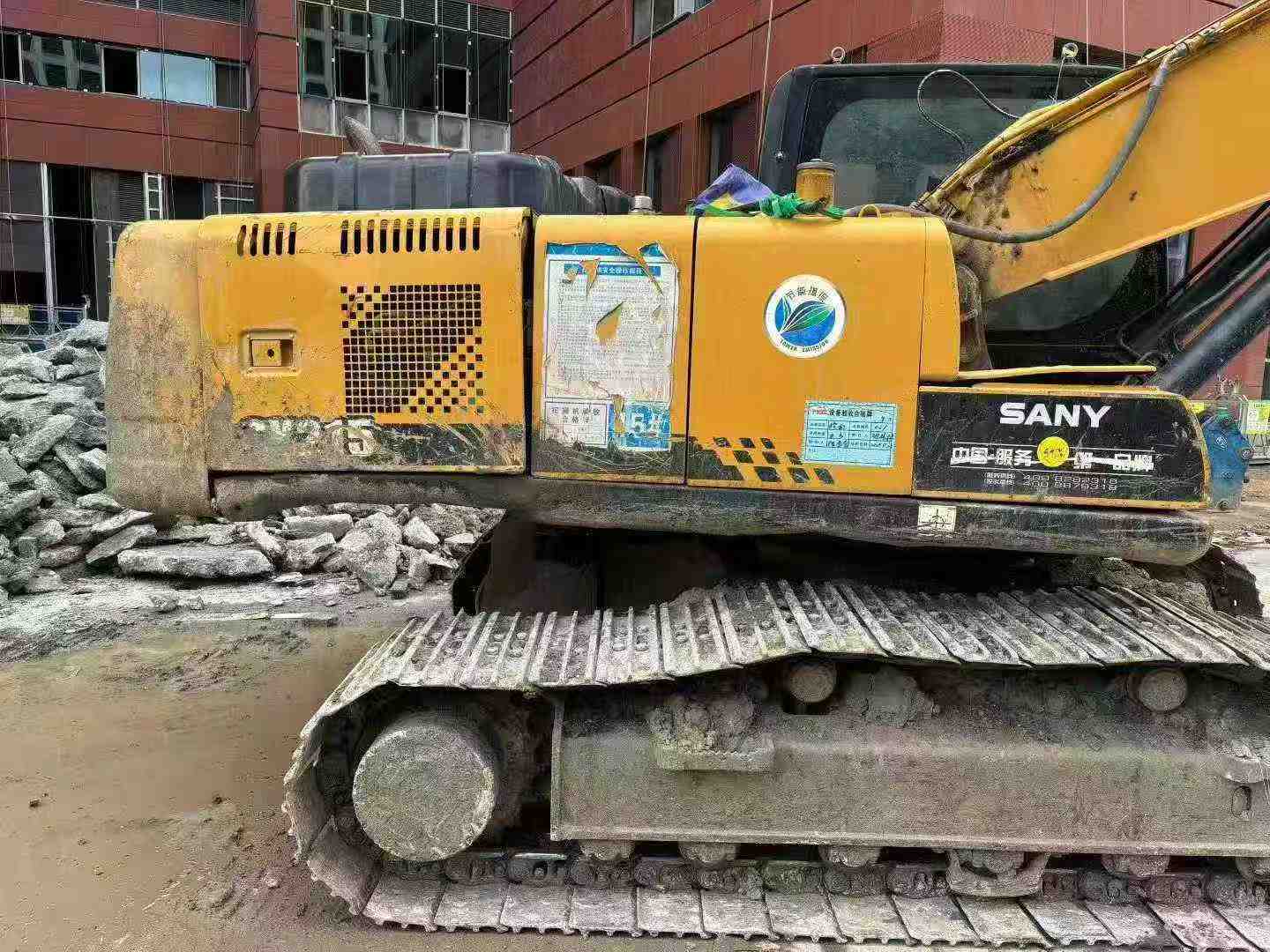

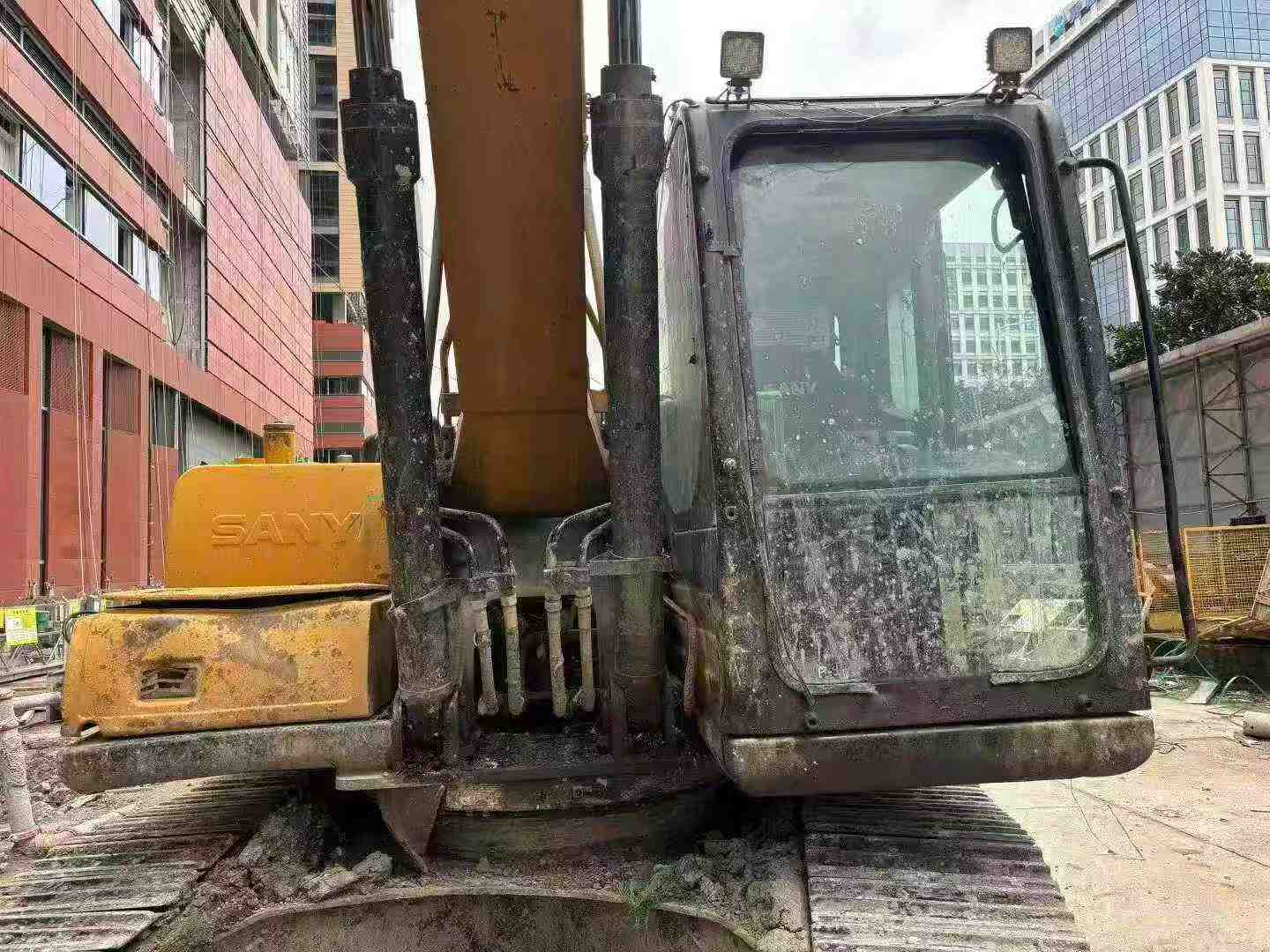

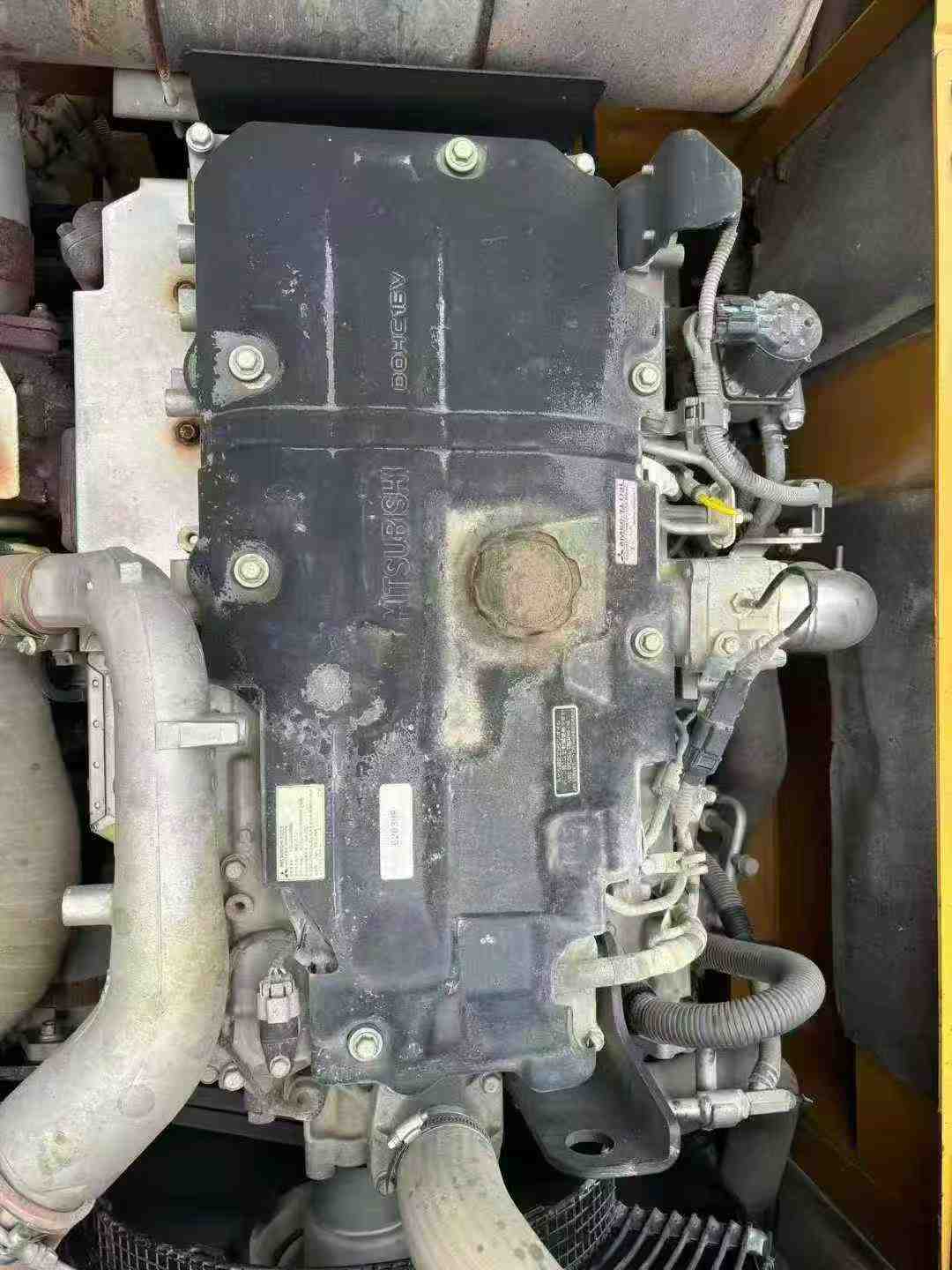

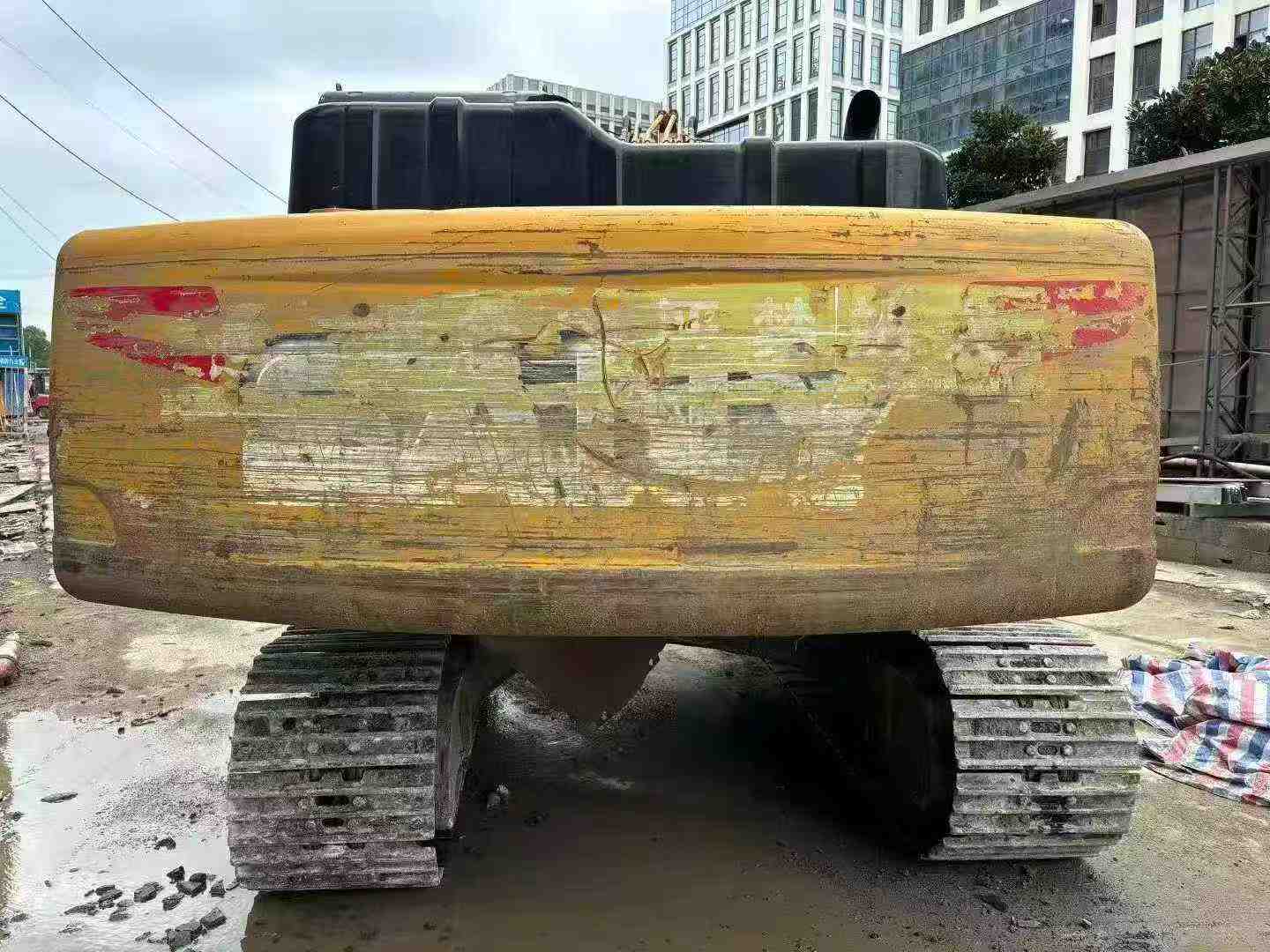

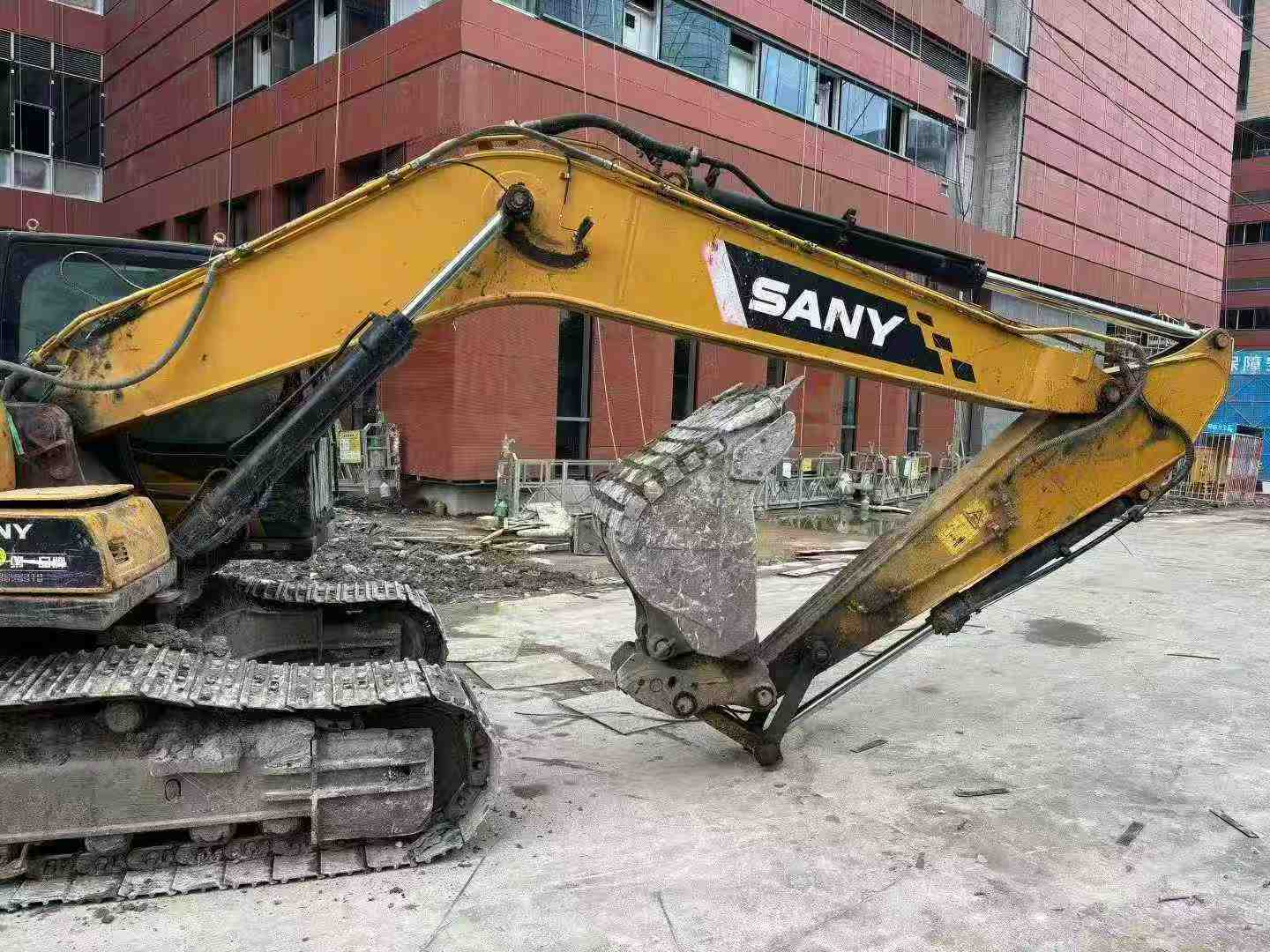

【 Premium Recommendation 】 The second-hand Sany SY195 excavator from 2019 is now priced at only over 140,000 yuan, offering an extremely high cost performance. Since its manufacture, this excavator has been in operation for only 3,000 hours, with a moderate usage frequency. The overall mechanical condition is good and there are no major maintenance records. It is an ideal choice for your engineering operations. In terms of the power system, this excavator is equipped with a high-efficiency and energy-saving engine independently developed by Sany, which features strong power output and excellent fuel economy. In the actual construction process, whether it is excavation, loading or crushing operations, they can all be handled with ease and perform outstandingly. Meanwhile, the engine has undergone strict quality inspection to ensure its stability and reliability under various harsh working conditions. The hydraulic system adopts advanced negative flow control technology, which can automatically adjust the oil supply according to the actual load. This not only improves work efficiency but also significantly reduces energy consumption. The operation is flexible and precise, with a prompt response. Even when facing complex terrains, it ca
