Product Description

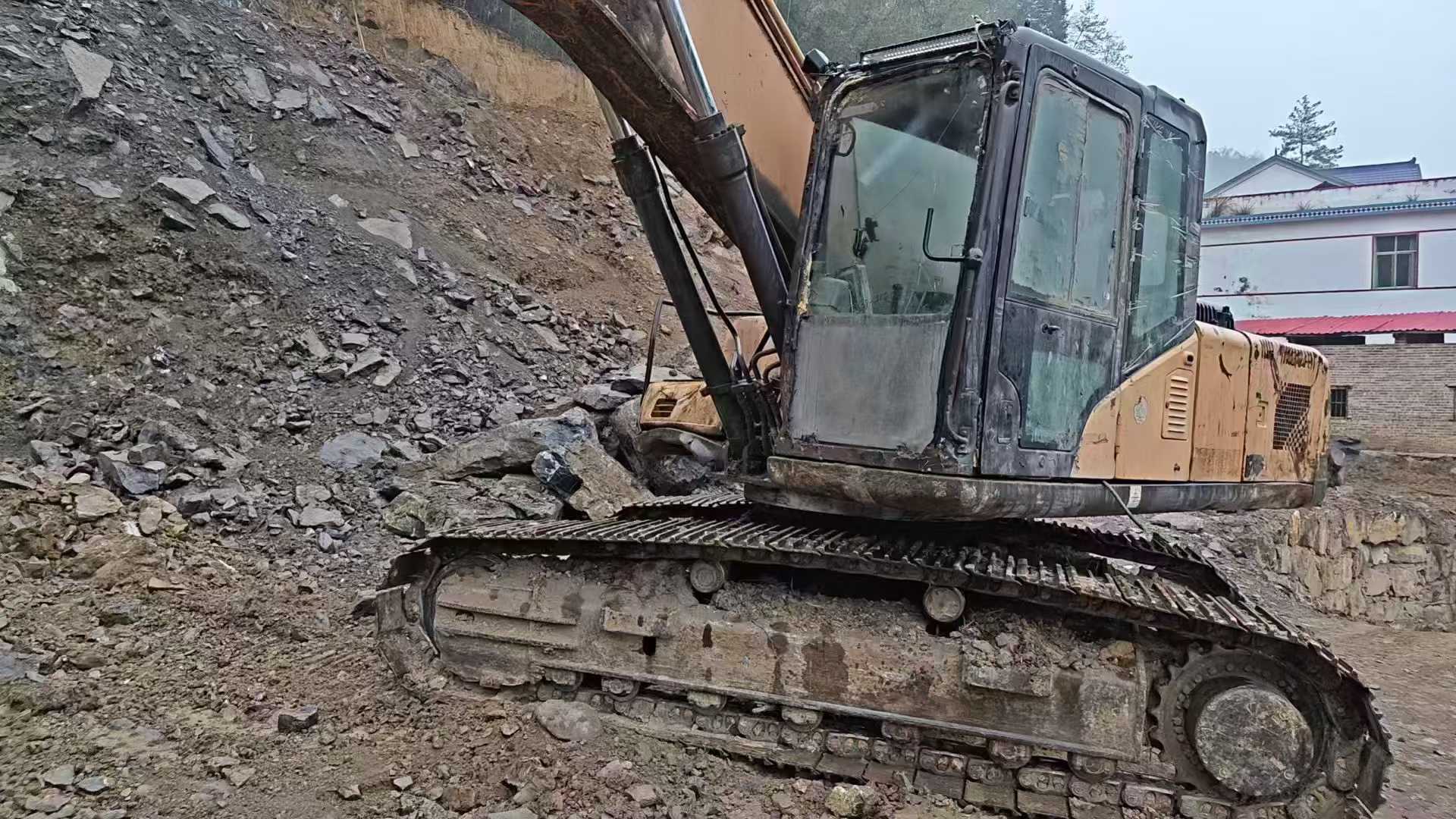

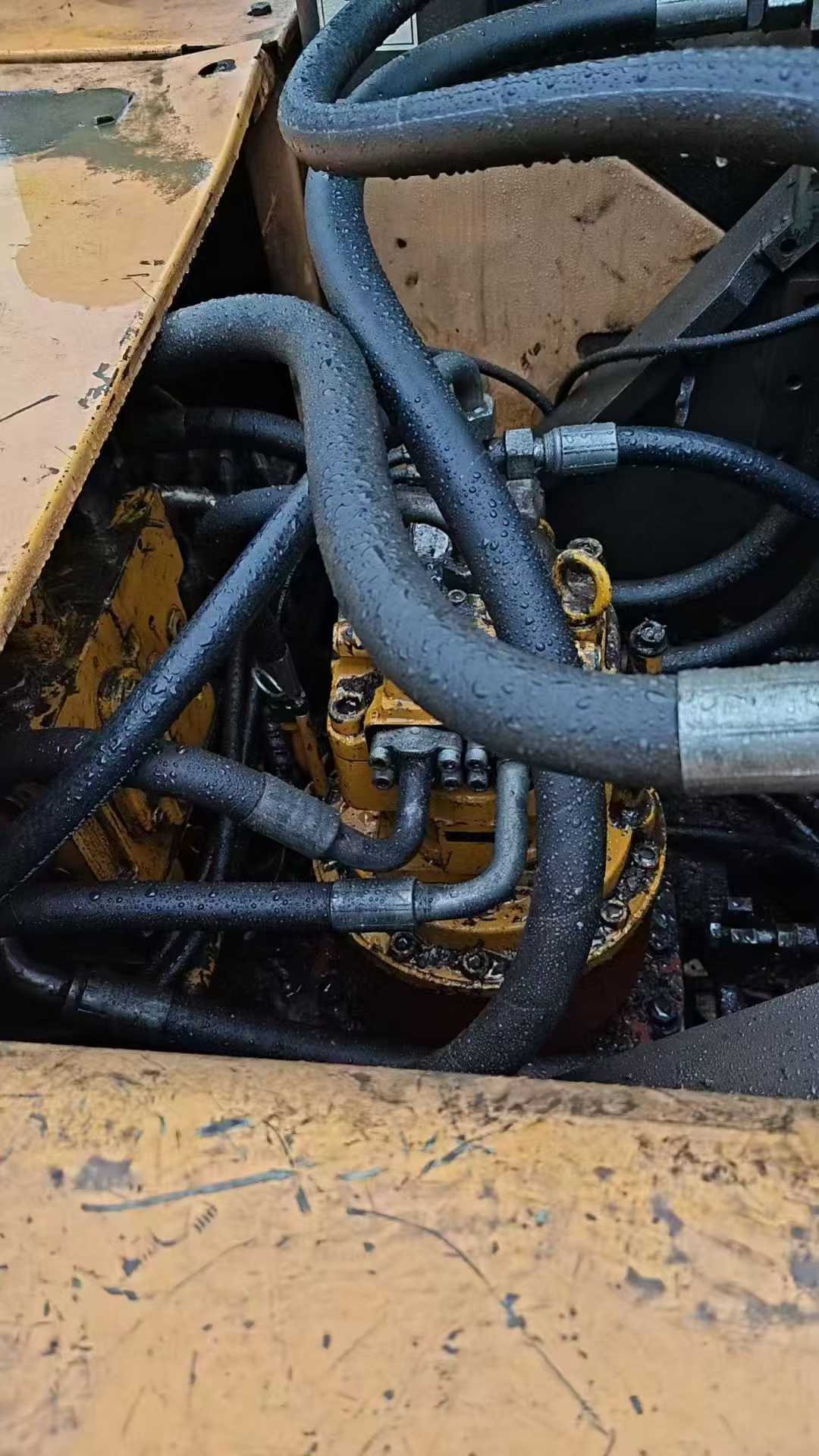

This 2013 Sany SY195 excavator has a reliable operating record of over 60,000 hours, demonstrating its outstanding durability and stability. This device is equipped with a high-performance engine (the model may be Kubota or Yanmar, subject to actual conditions), providing strong power output and ensuring efficient operation under various complex working conditions. The estimated maximum power is approximately 110kW, which can meet the construction requirements of medium-sized engineering projects. In terms of the hydraulic system, this excavator is equipped with advanced variable piston pumps and high-quality hydraulic motors, ensuring smoothness and accuracy during operation. Through the optimized design of the hydraulic circuit, not only has the overall working efficiency of the machine been enhanced, but also energy consumption has been effectively reduced and the service life of key components has been prolonged. In addition, the intelligent control system enables drivers to easily adjust the balance between excavation force and speed according to actual needs, thereby achieving the best working condition. As a second-hand construction machinery with extremely high cost performance, this Sany SY195 excavator not only boasts power
| Specifications | Value |
|---|---|
| No. | 976209 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |

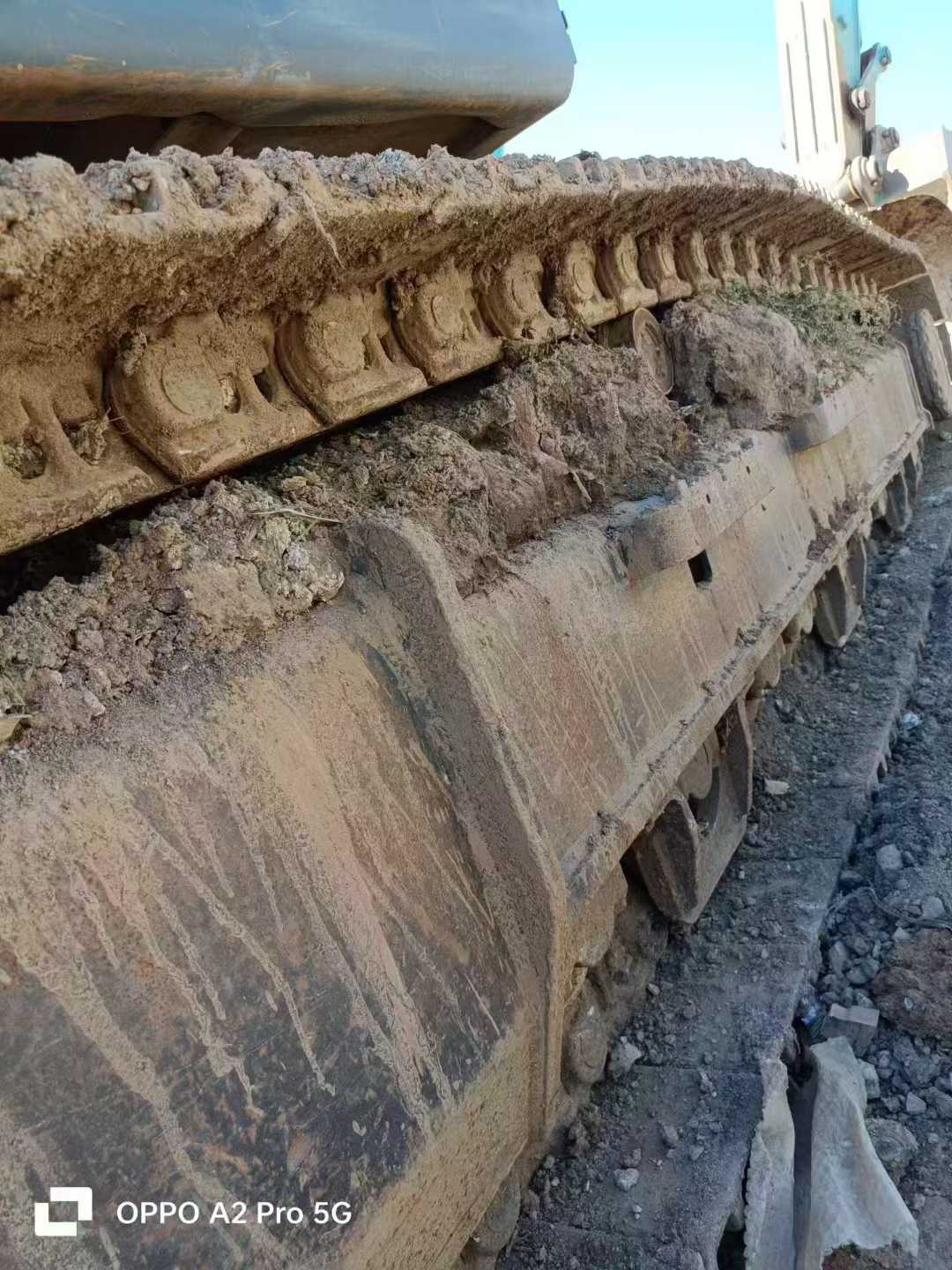

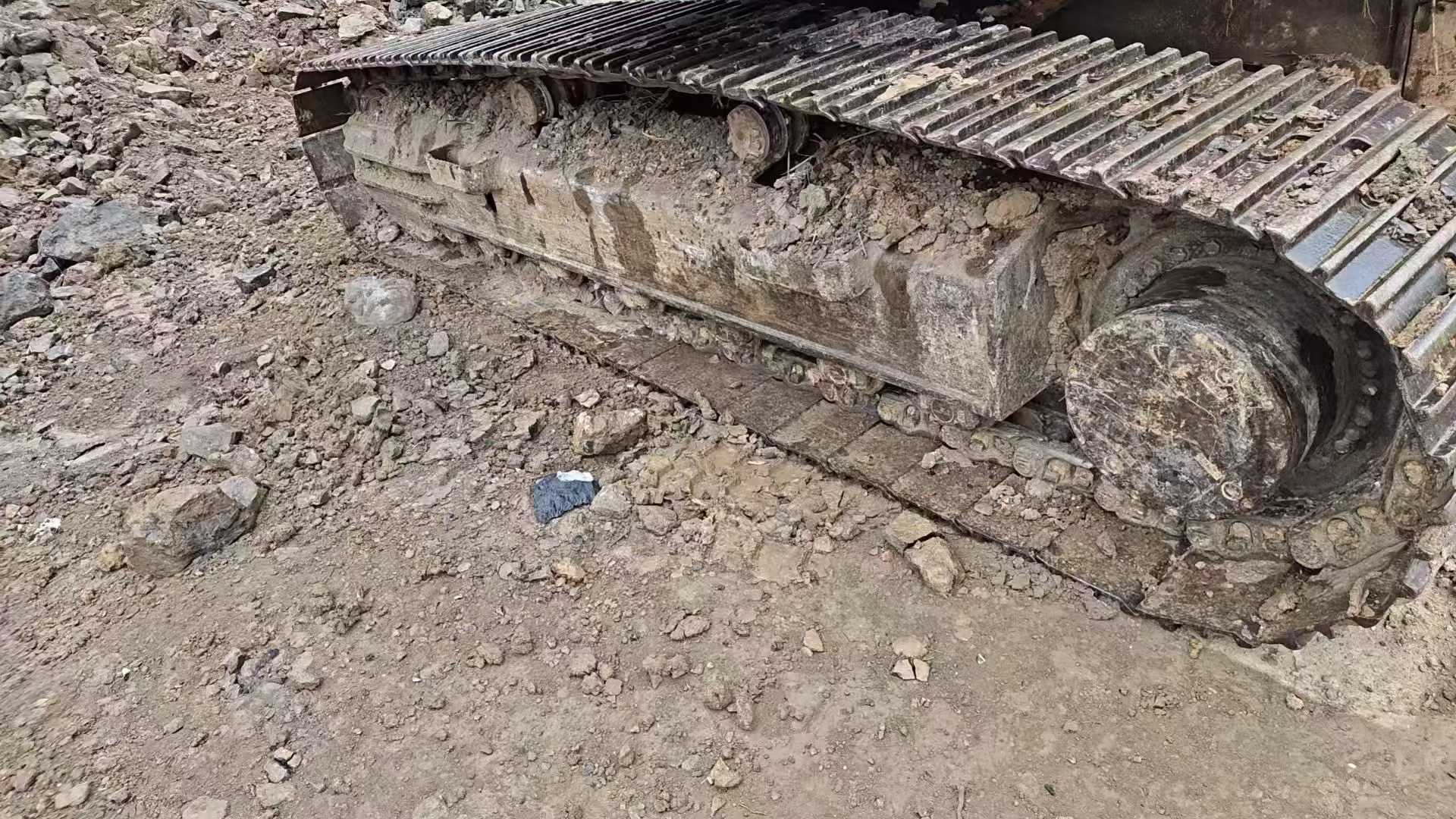

| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
