Product Description

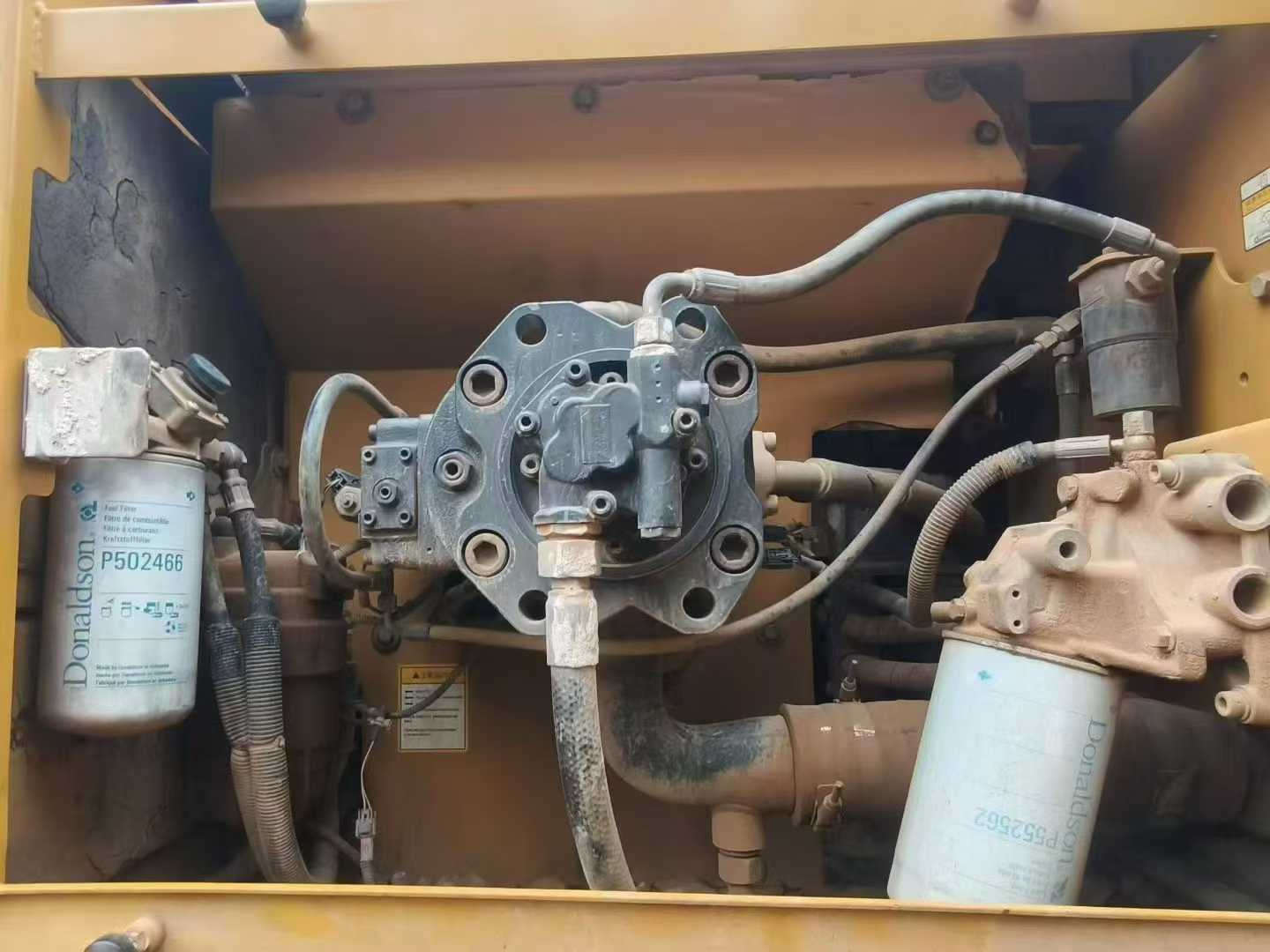

The Sany SY195 second-hand excavator has won wide recognition in the market for its outstanding performance and excellent reliability. The working time of this device is only 162,000 hours, indicating that it has received good maintenance and care during use and still maintains an excellent working condition. In terms of power, this excavator is equipped with an efficient and reliable engine. Although the specific model has not been mentioned, based on the standard configuration of the three series, we estimate its power to be approximately 110 kilowatts, ensuring a strong power output that is sufficient to meet the demands of various complex working conditions. In addition, advanced fuel injection technology enables this machine to ensure powerful performance while effectively reducing fuel consumption and enhancing economic benefits. The hydraulic system is one of the key factors in measuring the performance of an excavator. This Sany SY195 model adopts a high-performance hydraulic pump and motor combination, enabling rapid response and smooth operation. It can handle tasks such as excavation, loading, and crushing with ease. Its unique hydraulic control system has also particularly optimized the coordination of actions, reduced un
| Specifications | Value |
|---|---|
| No. | 976210 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
