2016 Sany SY205C-8S

1/9

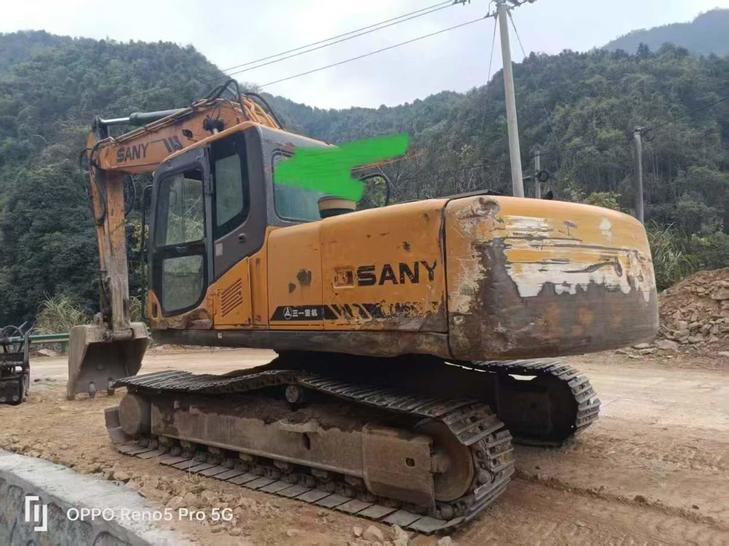

Used Sany SY205C-8S Excavator 2016 Model / 1
Used Sany SY205C-8S Excavator 2016 Model / 2
Used Sany SY205C-8S Excavator 2016 Model / 3
Used Sany SY205C-8S Excavator 2016 Model / 4
Used Sany SY205C-8S Excavator 2016 Model / 5
Used Sany SY205C-8S Excavator 2016 Model / 6
Used Sany SY205C-8S Excavator 2016 Model / 7
Used Sany SY205C-8S Excavator 2016 Model / 8
Used Sany SY205C-8S Excavator 2016 Model / 9

Product Description

【 Premium Recommendation 】 Second-hand Sany 205-8S excavator This Sany 205-8S excavator has a working time of only 51,000 hours, is exempt from inspection in condition, and has outstanding performance. It is equipped with an efficient and reliable engine system (expected to be from Isuzu or Cummins brands), providing strong power output and ensuring stable operation under various complex working conditions. Its maximum power can reach 130 kilowatts, ensuring the durability and reliability of the equipment during high-load operation. In terms of the hydraulic system, this excavator adopts an advanced combination of variable piston pumps and high-performance hydraulic motors, which not only enhances the operational flexibility and response speed of the entire machine but also significantly reduces energy consumption, achieving the goal of energy conservation and environmental protection. In addition, the optimized design of the hydraulic pipeline layout effectively reduces internal pressure loss and further enhances work efficiency. The Sany 205-8S excavator is renowned for its outstanding durability, efficient operation capacity and low maintenance cost, and has broad application prospects in fields such as mining and earthwork engin

SpecificationsValue
No.979315
Tonnage (tons)20
Working weight (kg)20300
Bucket capacity (m³)0.83
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 6D34TL-20
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)44.8
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Rod digging force (kN)100
Travel speed (km/h)5.5/3.2
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9395
Total transport width (mm)2800
Total transport height (mm)2955
Full cab height (mm)2990
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3630
Back end turning radius (mm)2750
Total track length (mm)4065
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3260
Maximum digging radius (mm)9885
Maximum digging depth (mm)6630
Maximum excavation height (mm)9305
Maximum unloading height (mm)6475
Maximum vertical digging depth (mm)5980
Bulldozer lift or depth (mm)There is no
see more

Overview

No.979315

Brand Name:

Sany

Model Number:

SY205C-8S

Year:

2016

Location:

Zhejiang China
