| Specifications | Value |
|---|---|
| No. | 964307 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.83 (optional 0.7~1.0) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 46.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3595 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 (800/700 optional) |
| Track ground length (mm) | 3355 |
| Maximum digging radius (mm) | 9950 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9570 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5800 |
| Maximum excavation radius of stop surface (mm) | 9885 |
Description

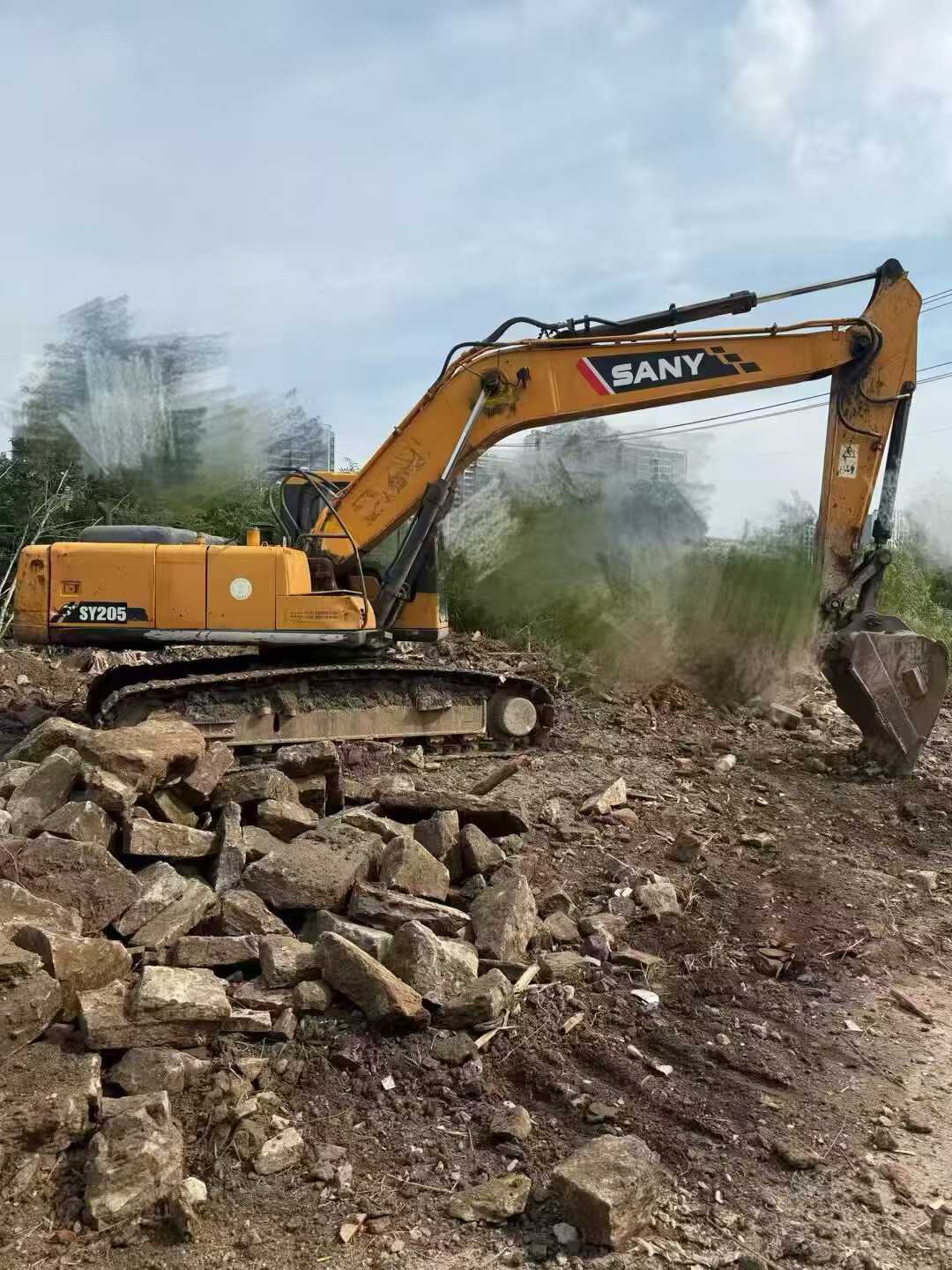

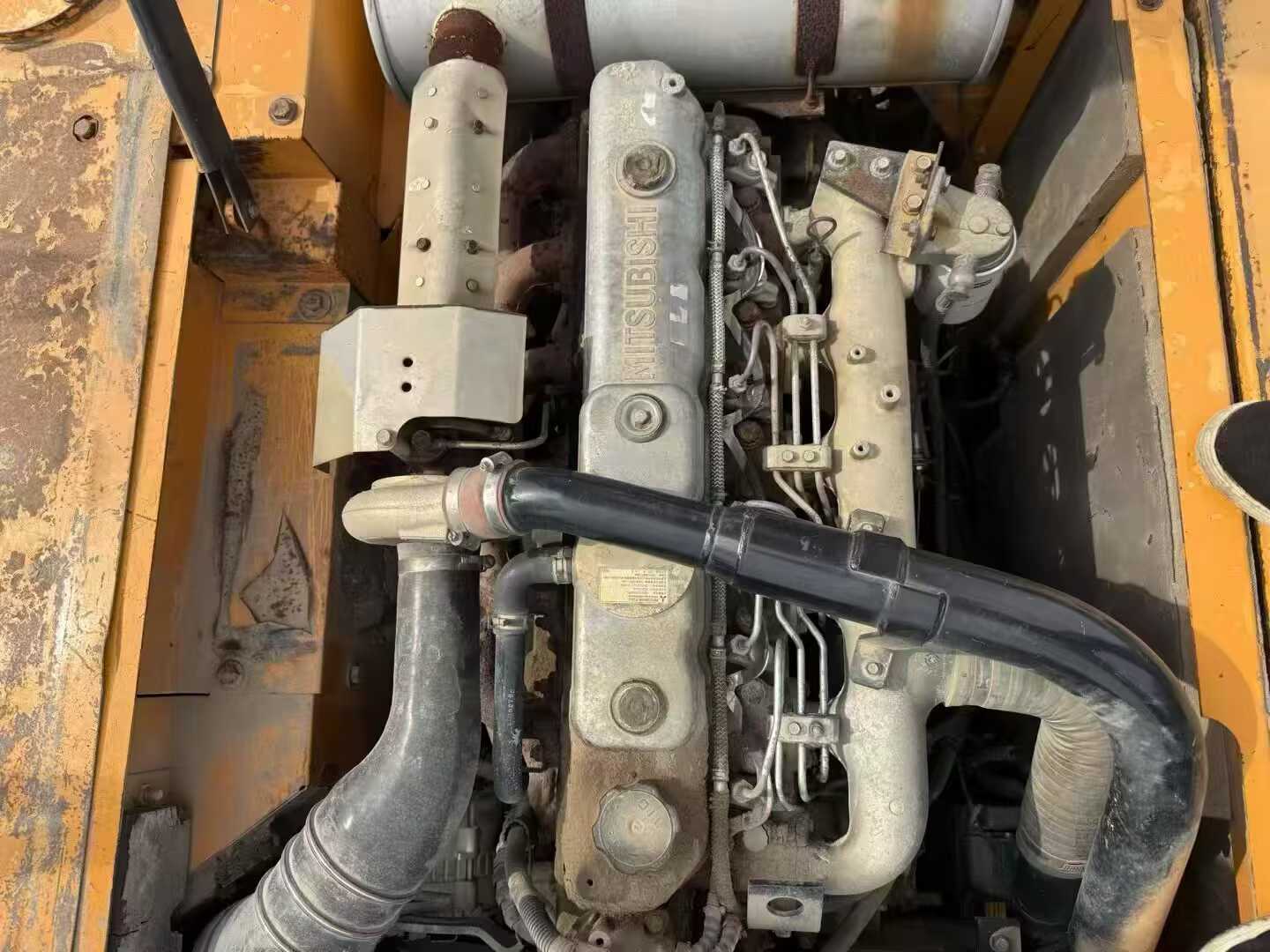

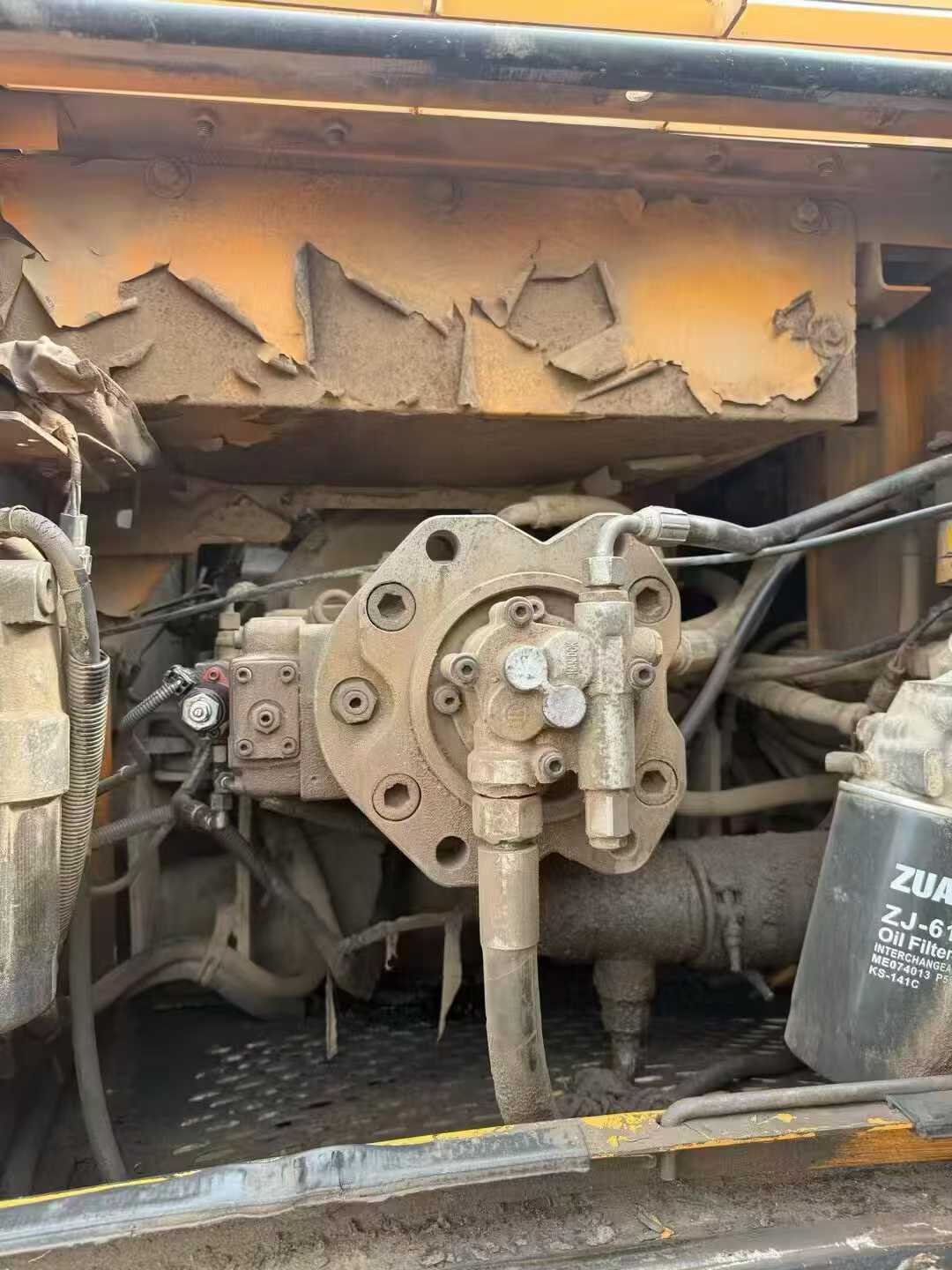

【 Premium Recommendation 】 The Sany SY205-9 excavator from 2012 is of outstanding quality and stable performance, making it the ideal choice for your engineering operations. Since this excavator was put into use in 2012, it has accumulated a working time of only over 60,000 hours. The usage frequency is moderate, the overall condition is good, it is well maintained, there are no major accident records, the appearance is clean and tidy, and the structural components are intact. In terms of the power system, this device is equipped with an imported Cummins engine, which is powerful and has good fuel economy. The maximum power can reach 110kW, and it can easily handle various complex working conditions in both plain and plateau areas. After professional testing, the engine runs smoothly without abnormal noise and has excellent fuel consumption performance, which can effectively reduce operating costs. The hydraulic system adopts components of world-renowned brands, ensuring the efficient operation and long-term durability of the entire machine. The main pump and motor are both original imported, featuring fast response, flexible and precise operation. Even under high-intensity operation, they can maintain stable performance output. In a
