| Specifications | Value |
|---|---|
| No. | 963623 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

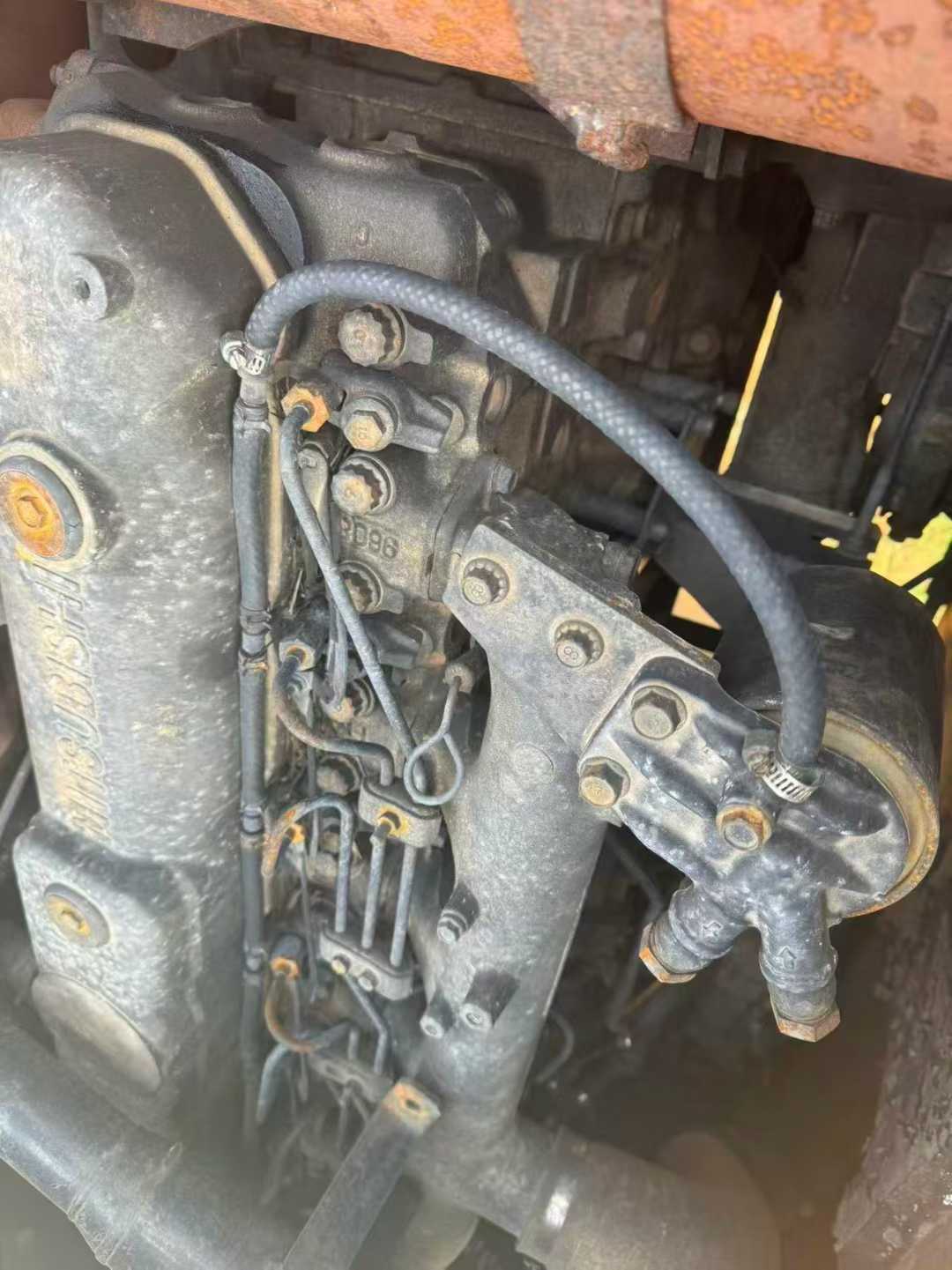

| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Displacement (L) | 5.861 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 100 |
| Travel speed (km/h) | 5.5/3.2 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9395 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2955 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3630 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
Description

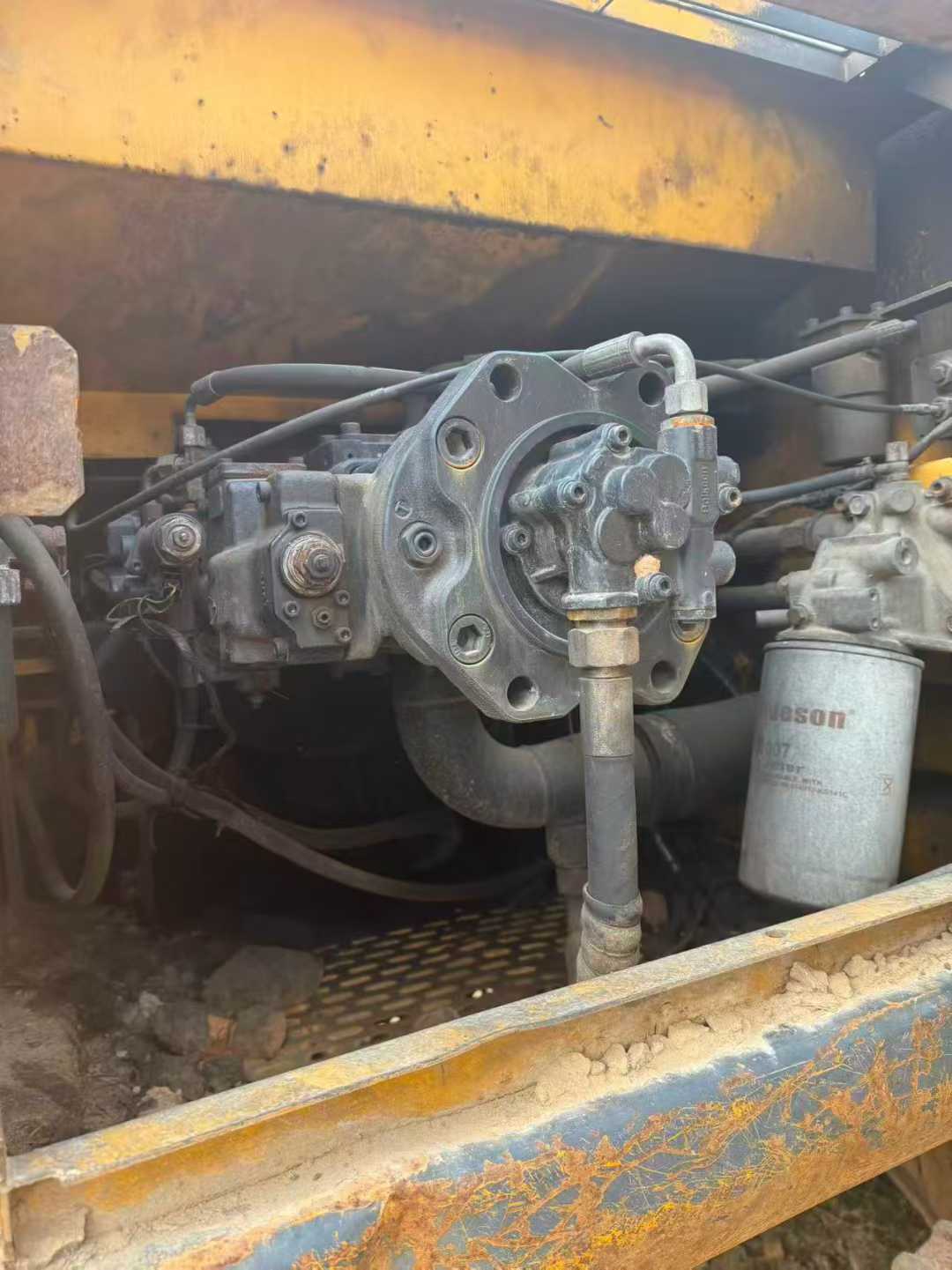

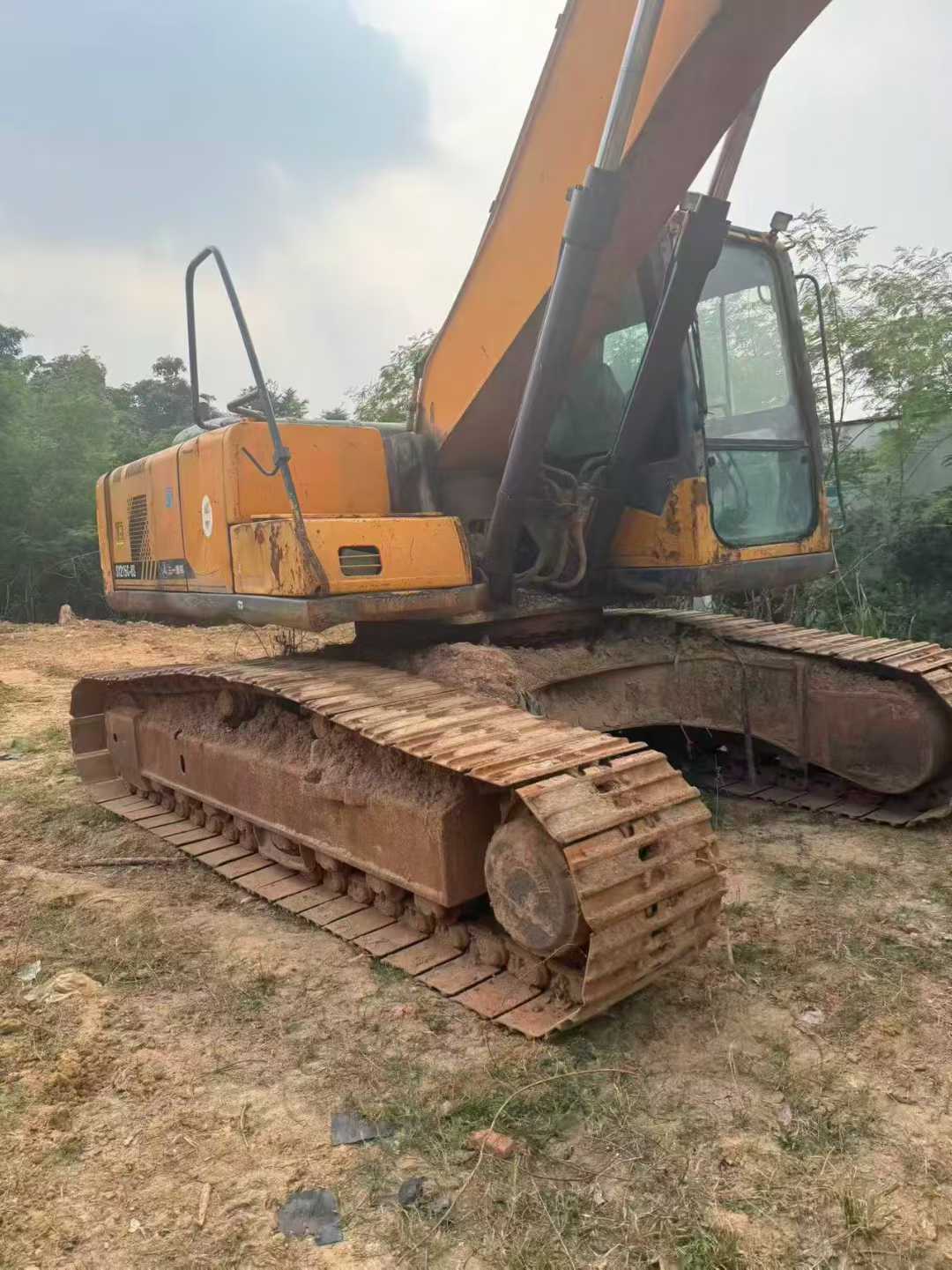

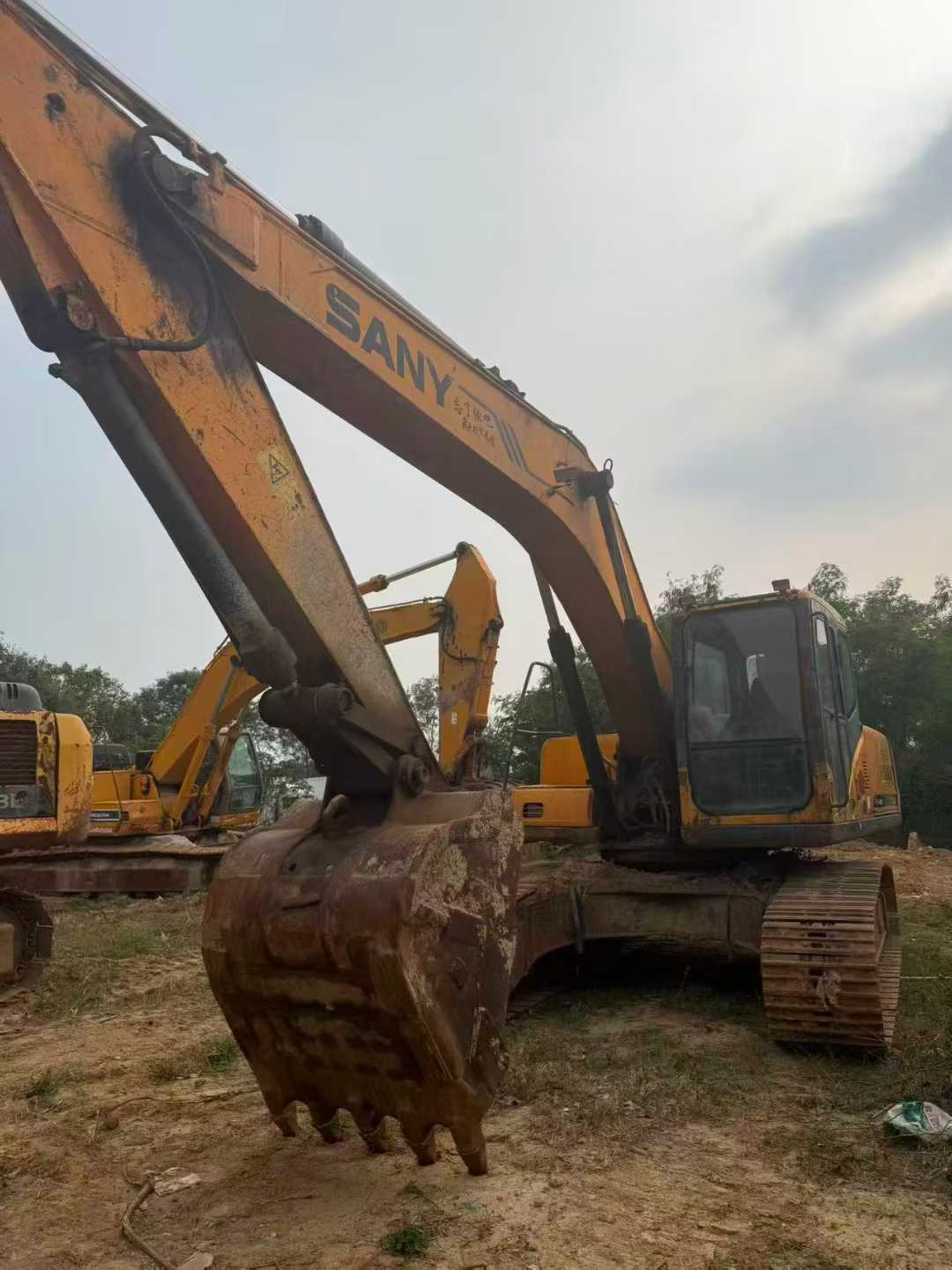

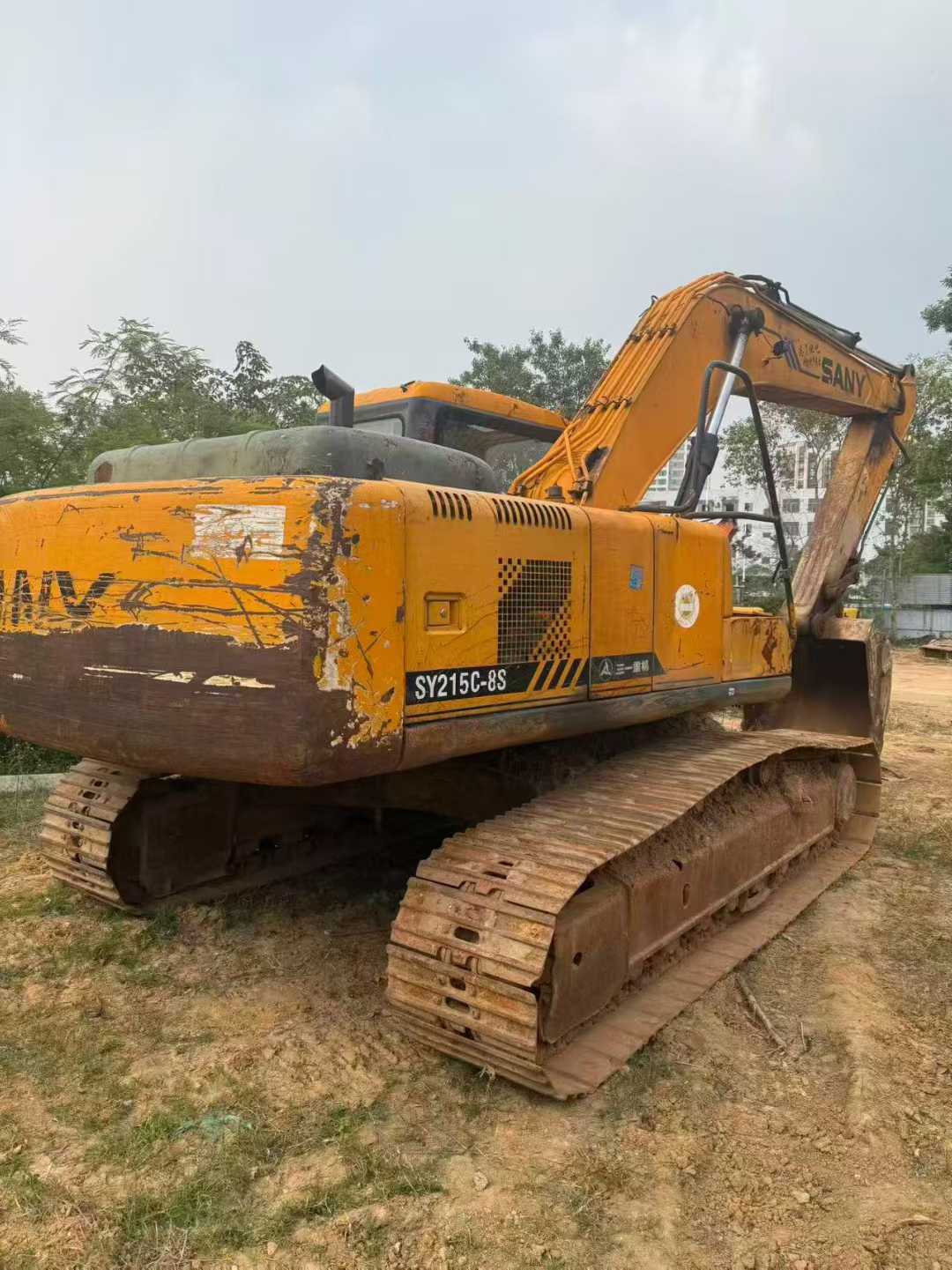

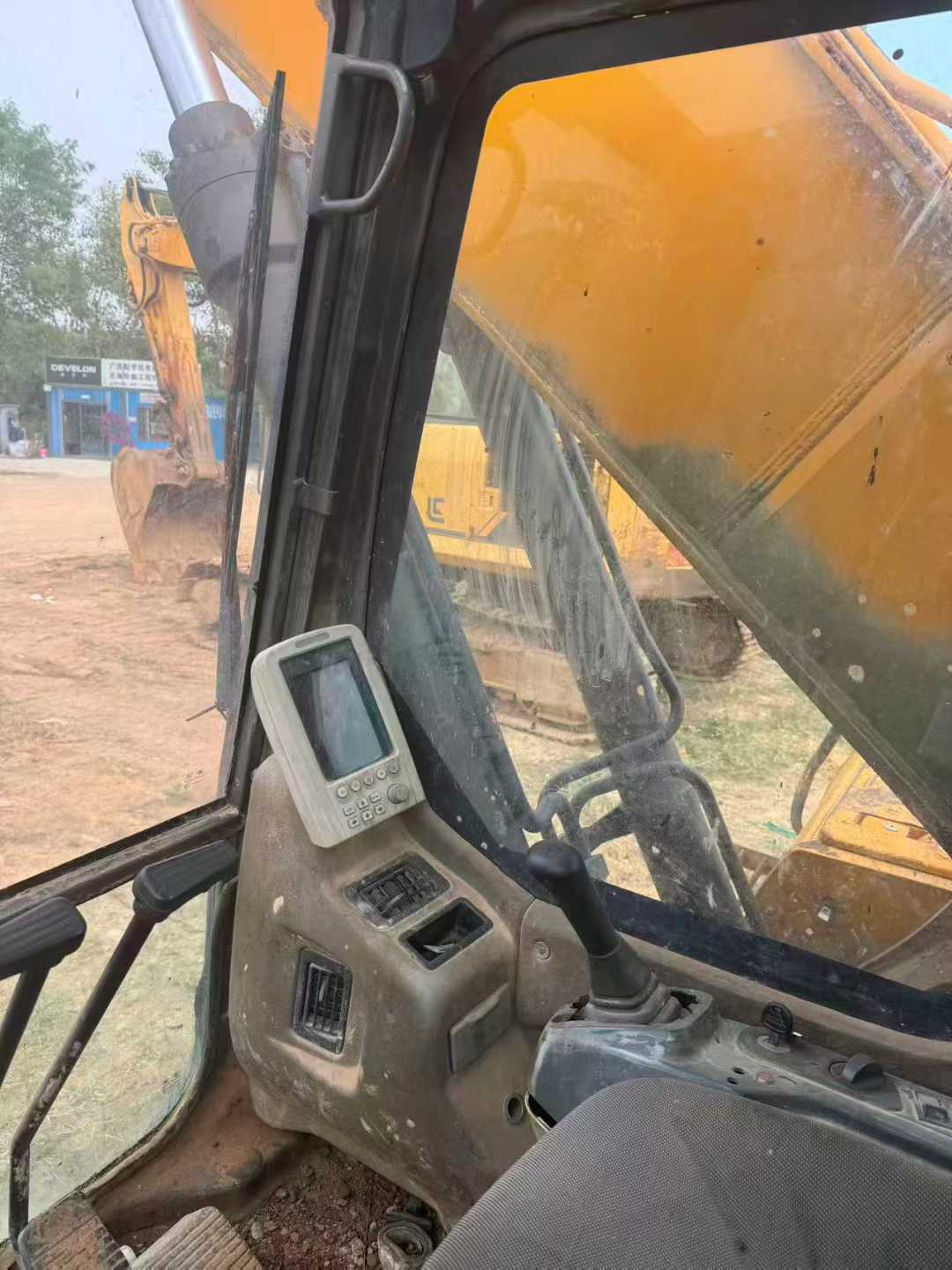

Detailed description of Sany 215-8 second-hand Excavator This second-hand Sany 215-8 excavator is one of the highly praised medium-sized excavators in the market. Since its manufacture, it has accumulated a working time of 4,500 hours. The overall usage condition is good, and the maintenance records are complete, ensuring the good condition and long service life of the equipment. This model adopts the original imported Cummins engine as the core of the power system, featuring strong power output and smooth operation performance. Meanwhile, it has excellent fuel economy and can effectively reduce operating costs. In terms of the hydraulic system, the Sany 215-8 is equipped with an advanced negative flow control system, making the overall operation of the machine more flexible and precise. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, its spacious and comfortable cab design not only enhances the driver's working experience but also indirectly improves work efficiency. After a comprehensive inspection and renovation by a professional team, the current appearance of this machine is clean and undamaged, and its internal structure is as good as new. It can fully meet the construction re
