Product Description

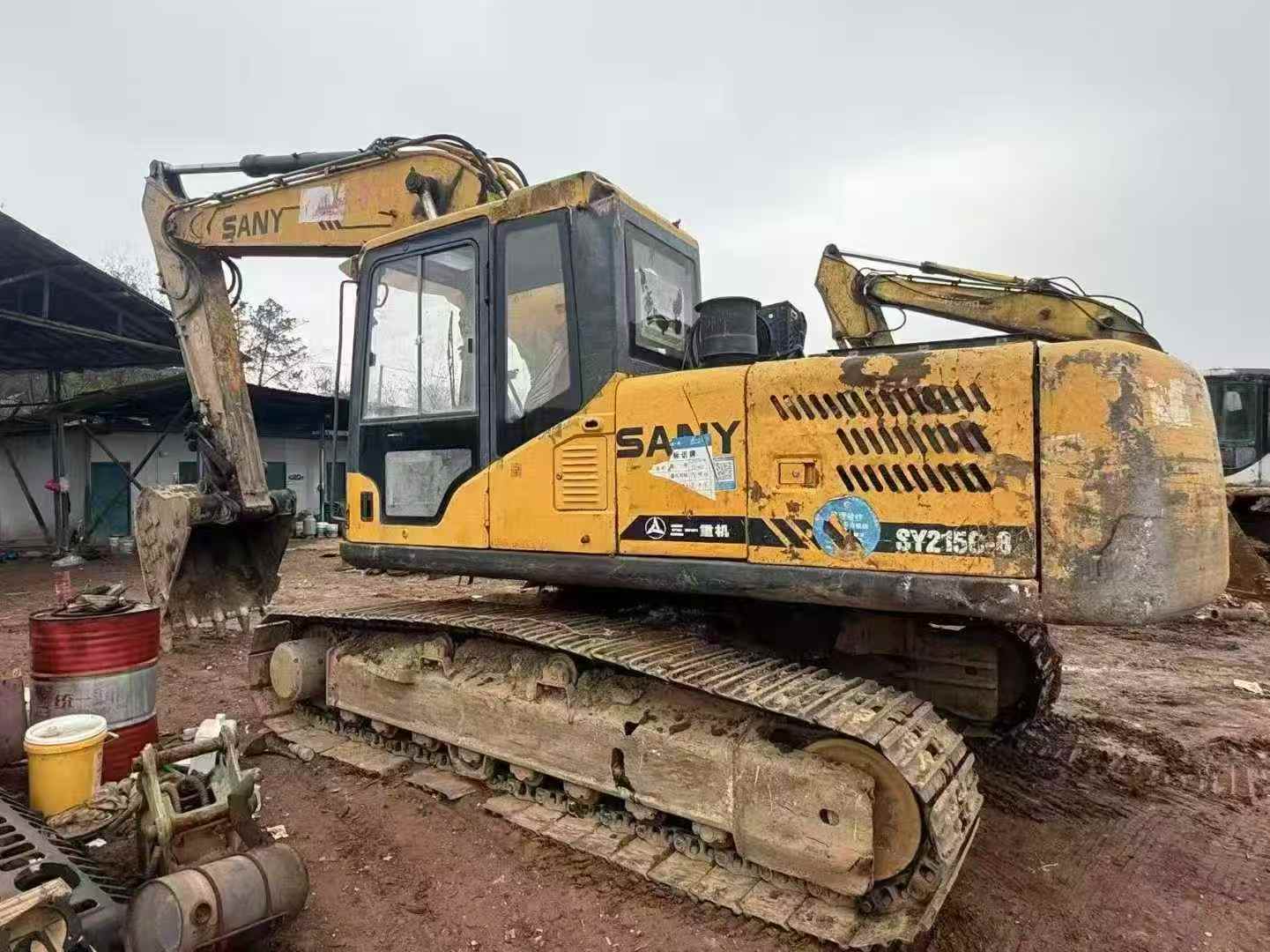

【 Premium Recommendation 】 Sany SY215-8S second-hand excavator, with a working time of only 55,000 hours, has outstanding overall performance and is a reliable assistant in your engineering projects. This excavator is equipped with an efficient and reliable engine (expected to be of Isuzu or Cummins brand), which is powerful and ensures sufficient power support under all working conditions. Its hydraulic system adopts an advanced combination design of hydraulic pumps and motors, which can achieve a precise and smooth operation experience. Whether it is excavation, loading or crushing operations, it can handle them all with ease. The Sany SY215-8S excavator is also equipped with an intelligent control system that can automatically adjust the operation mode according to the actual work requirements, which not only improves work efficiency but also reduces fuel consumption. In addition, this model features a spacious and comfortable cab with a wide field of vision. The operation interface is designed humanely, so you won't feel tired even after long hours of work. The sturdy and durable chassis structure, combined with the high-performance walking device, enables the machine to maintain excellent stability and passability even in harsh e
| Specifications | Value |
|---|---|
| No. | 978476 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

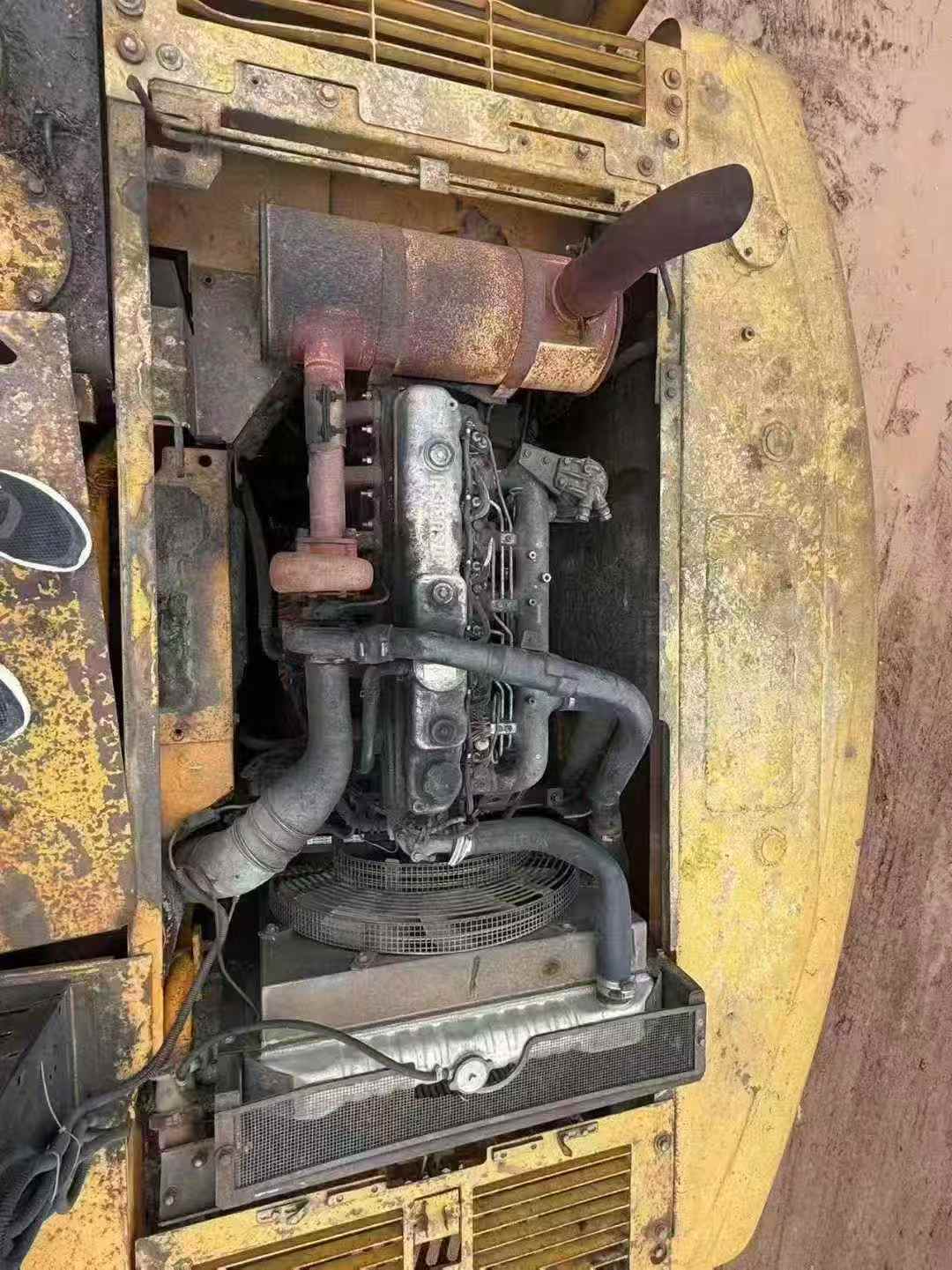

| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Displacement (L) | 5.861 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 100 |
| Travel speed (km/h) | 5.5/3.2 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9395 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2955 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3630 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
