| Specifications | Value |
|---|---|
| No. | 962775 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21800 |
| Bucket capacity (m³) | 0.93 (0.8~1.2) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 46.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3595 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9950 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9570 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5800 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9885 |
Description

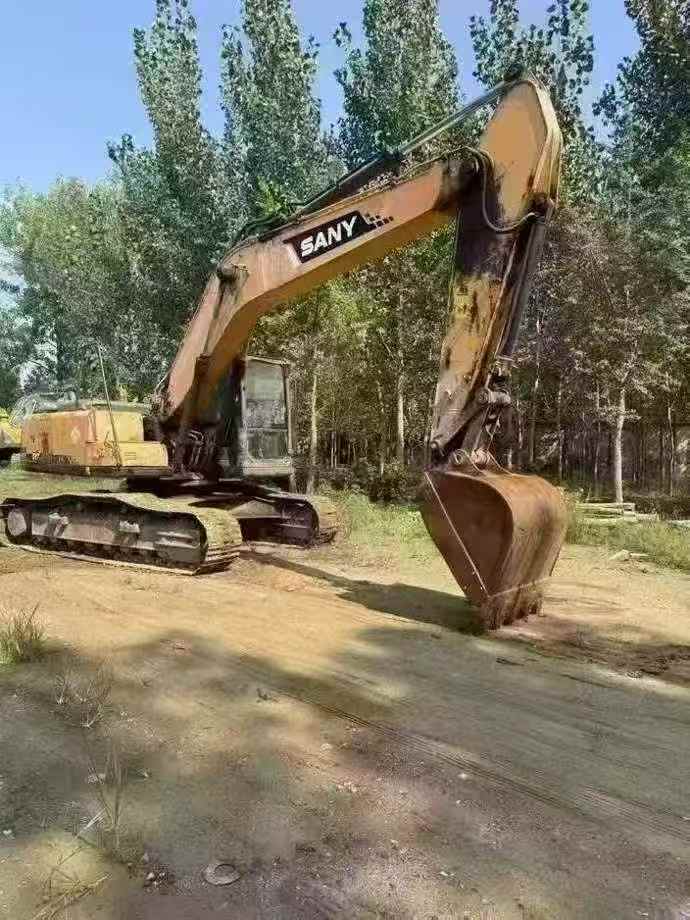

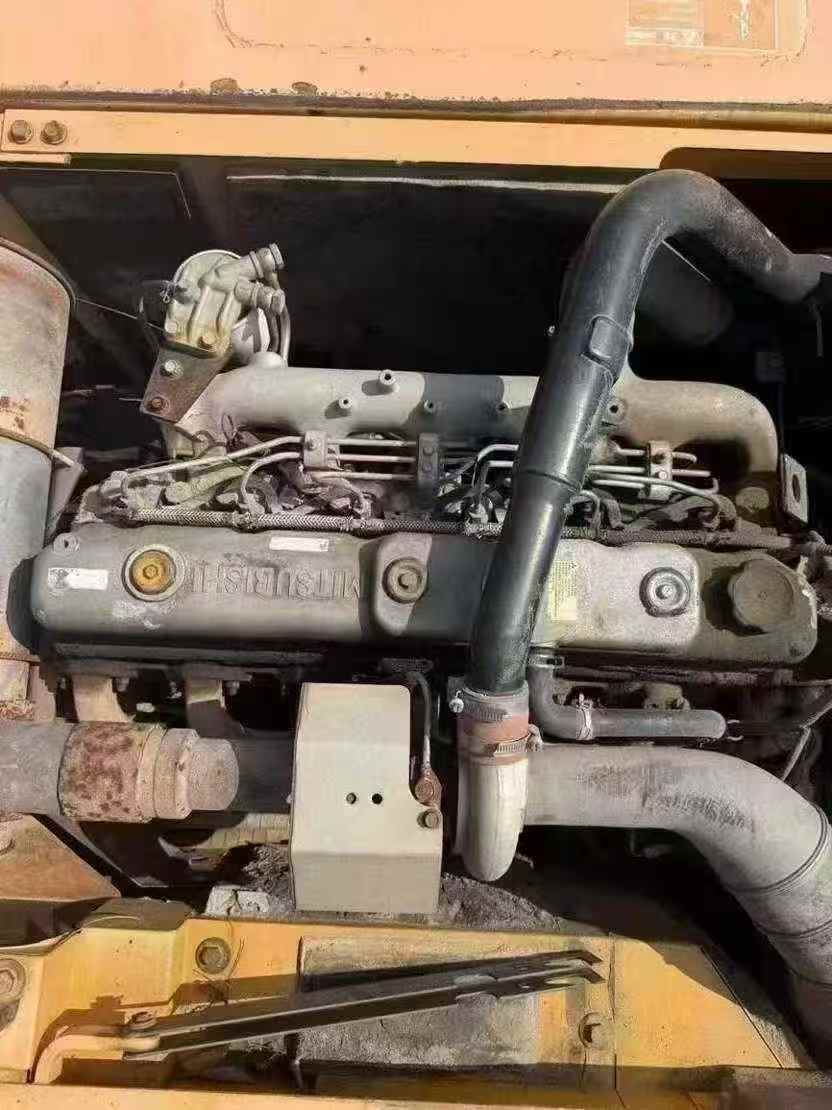

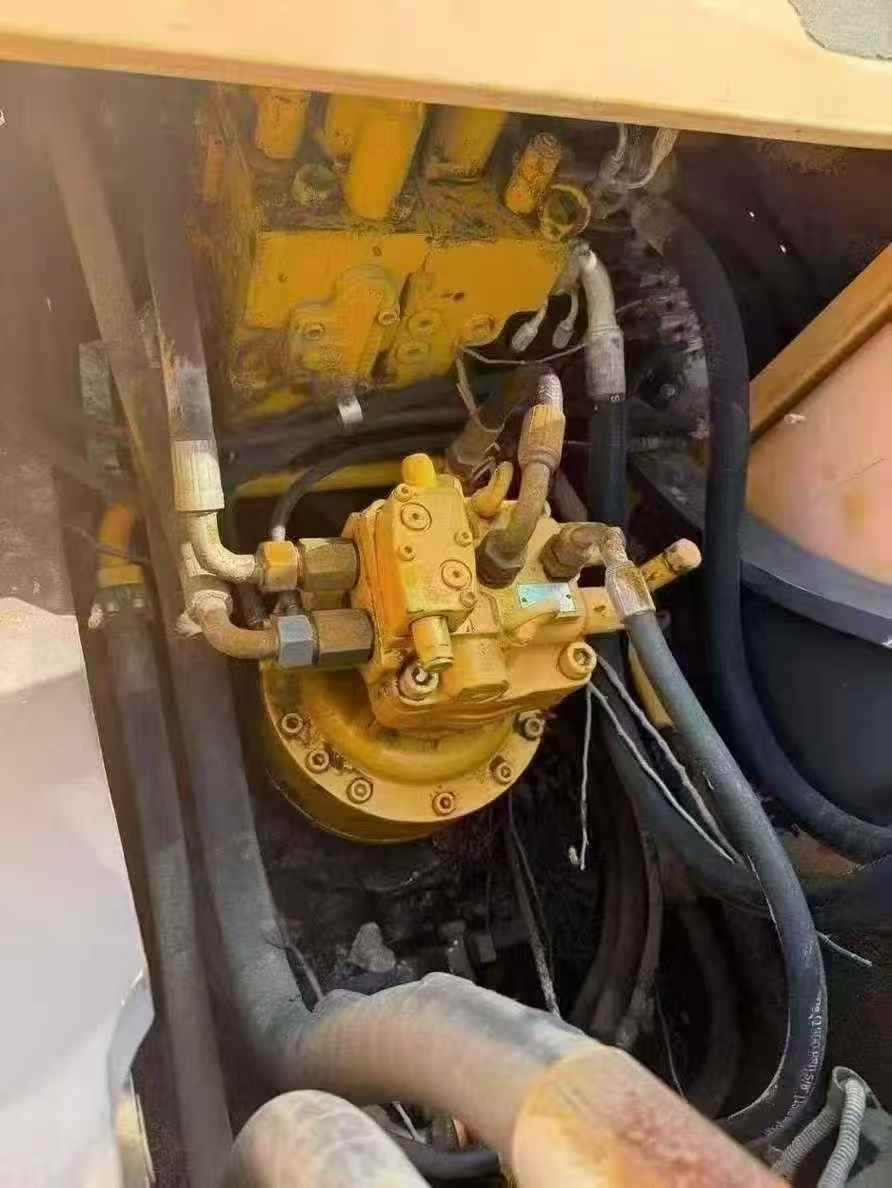

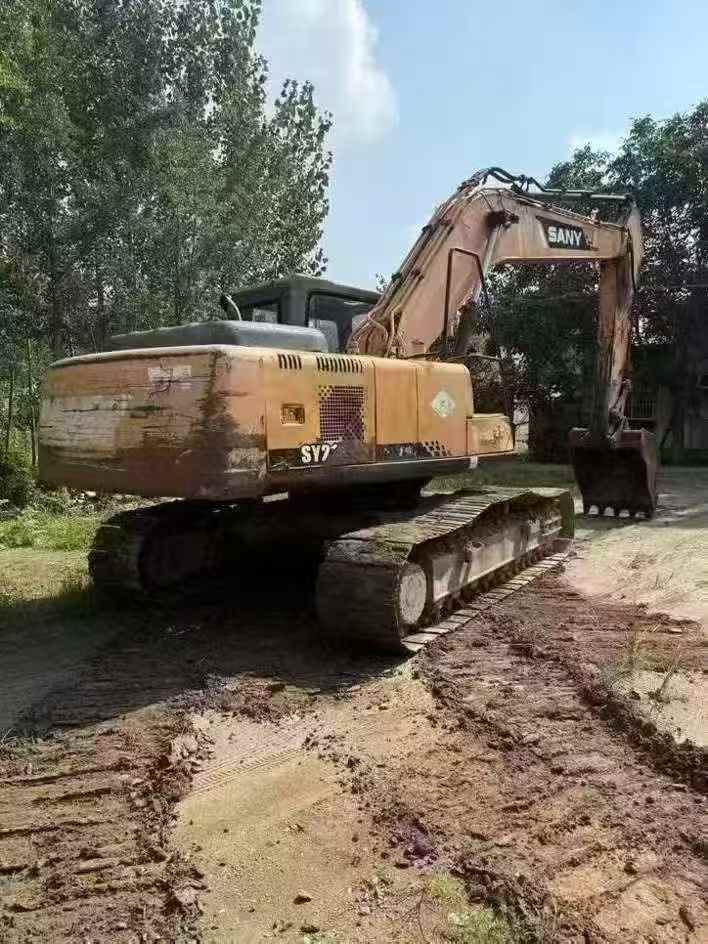

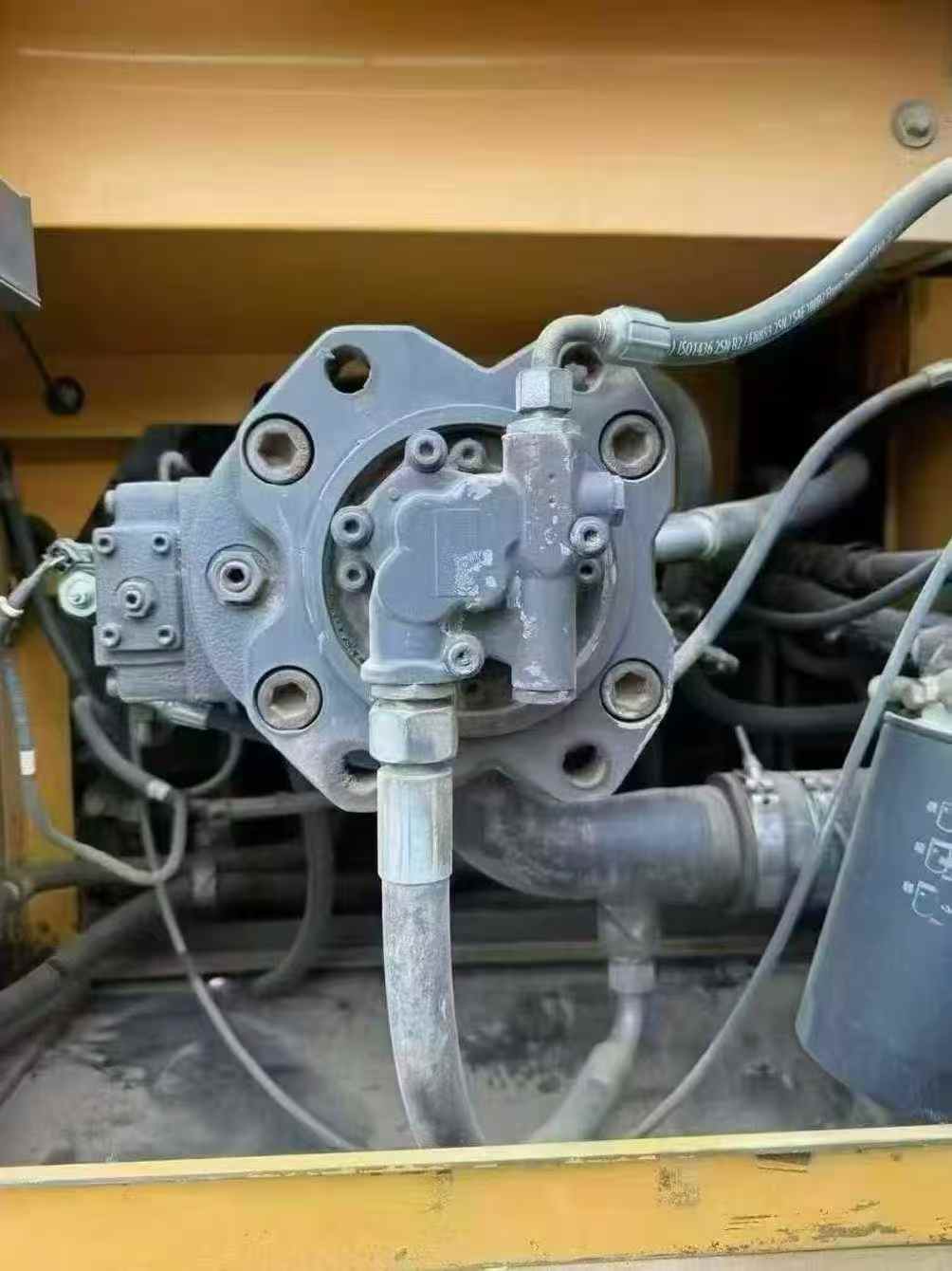

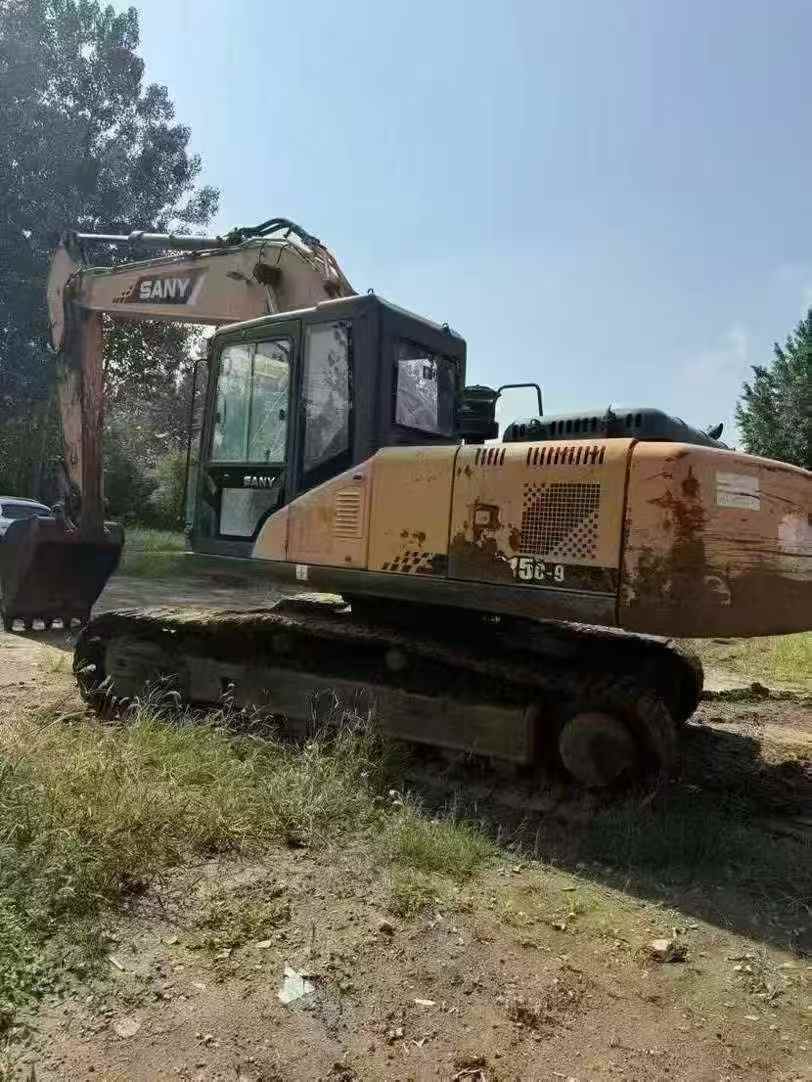

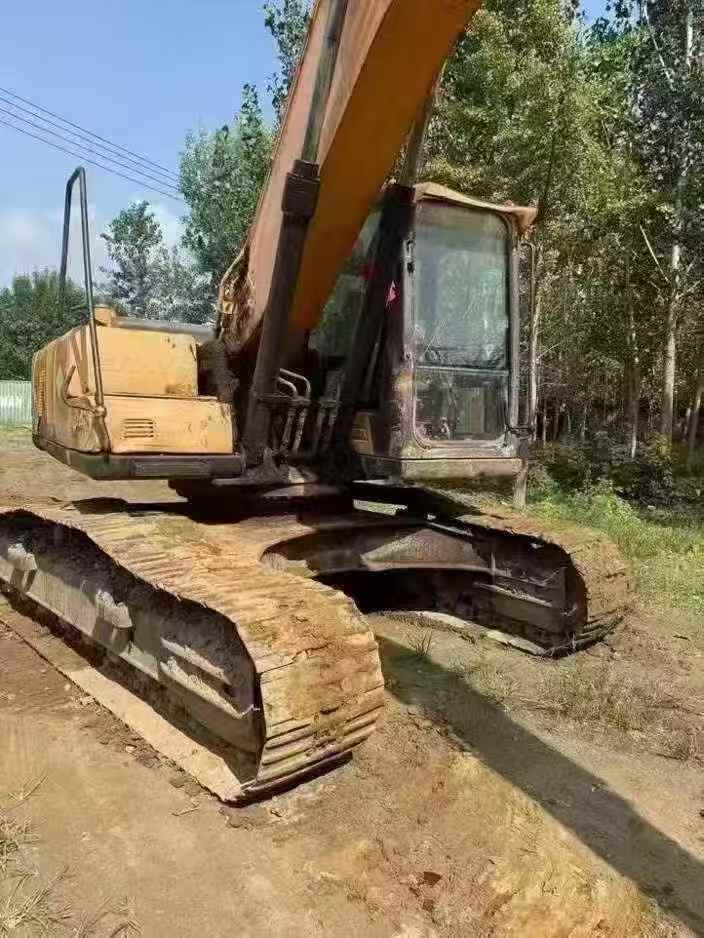

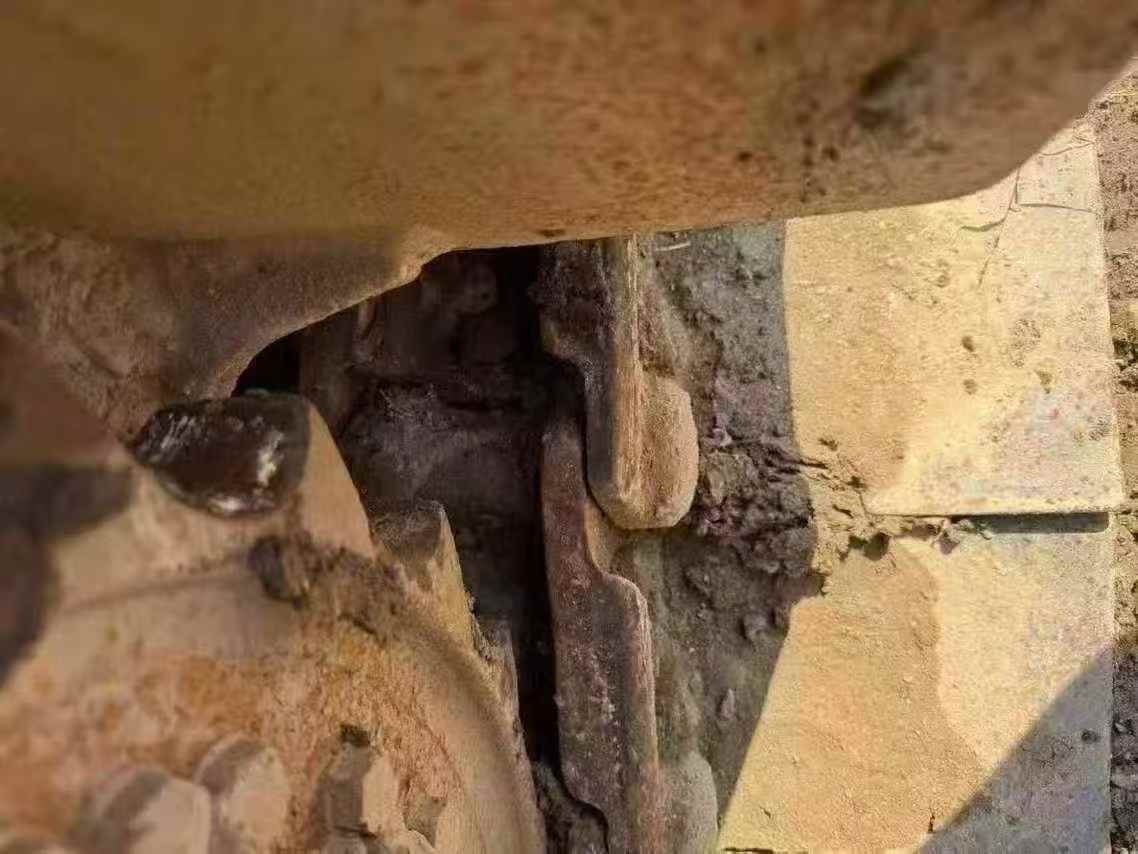

【 Premium Recommendation 】 The Sany SY215-9 excavator from 2014 has a working time of only 11,200 hours, with outstanding performance and quality guaranteed. Since its launch, this excavator has been highly praised by the market, not only for its outstanding durability and reliability, but also for its efficient performance in actual operation. In terms of the power system, this machine is equipped with a high-performance engine, ensuring a perfect combination of strong power output and fuel economy. Whether facing complex terrains or high-intensity tasks, it can handle them with ease, providing stable and abundant power support to make your project progress smoother and more unobstructed. The hydraulic system is a major highlight of this model. It adopts advanced hydraulic technology, making the actions such as excavation and loading more smooth and precise. After professional testing, all indicators have reached or exceeded the factory standards and can meet the requirements of various working conditions. Especially after long-term operation, it can still maintain a good condition, greatly reducing maintenance costs and downtime. In terms of appearance, this excavator is well maintained. The paint on the body is as smooth as new,
