| Specifications | Value |
|---|---|
| No. | 963069 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21800 |
| Bucket capacity (m³) | 0.93 (0.8~1.2) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 46.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3595 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9950 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9570 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5800 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9885 |
Description

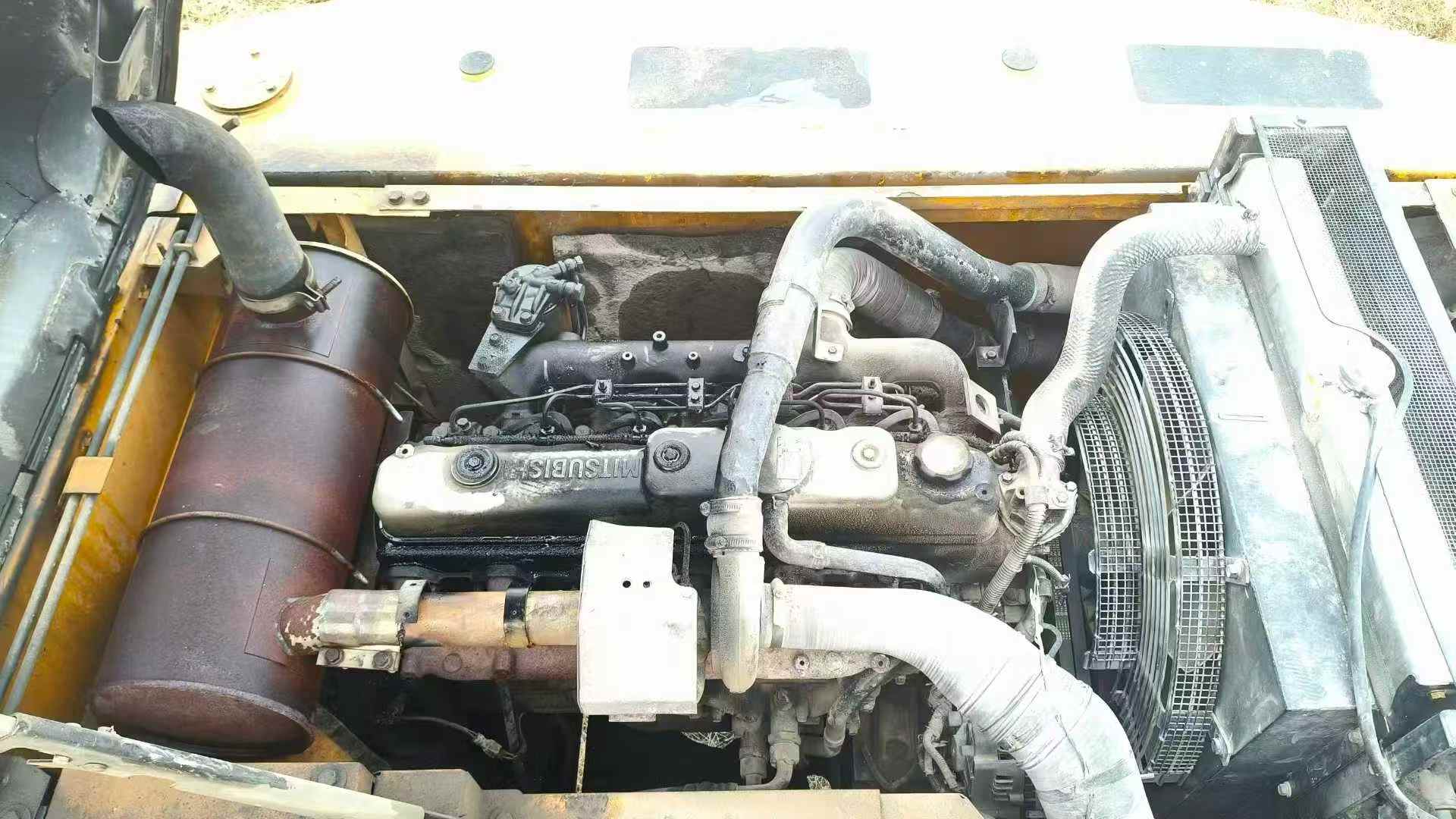

【 Premium Recommendation 】 Sany 215-9 excavator, outstanding quality and affordable price, only over 90,000 yuan! This second-hand excavator is a truly cost-effective choice, making it highly suitable for medium and small-sized projects and rental use. The vehicle is a first-hand source with no accident records. It is well maintained, has a clean appearance and stable mechanical performance. ** Working hours ** : The working hours of this Sany 215-9 excavator are only about 3,000 hours, which is equivalent to the condition of a nearly new vehicle. The wear and tear of all components is low, and it can meet the requirements of long-term and high-intensity operations, with a long service life. ** Power System ** : Equipped with an original imported high-performance engine, it is powerful and has good fuel economy. It can maintain efficient operation even under harsh working conditions. Meanwhile, the engine has undergone professional maintenance, ensuring excellent starting performance and operational stability, reducing the failure rate and lowering maintenance costs. ** Hydraulic System ** : It adopts an advanced closed negative flow control system, which features a fast response speed, flexible and precise operation, and significan
