| Specifications | Value |
|---|---|
| No. | 963097 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21800 |
| Bucket capacity (m³) | 0.93 (0.8~1.2) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 46.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3595 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9950 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9570 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5800 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9885 |
Description

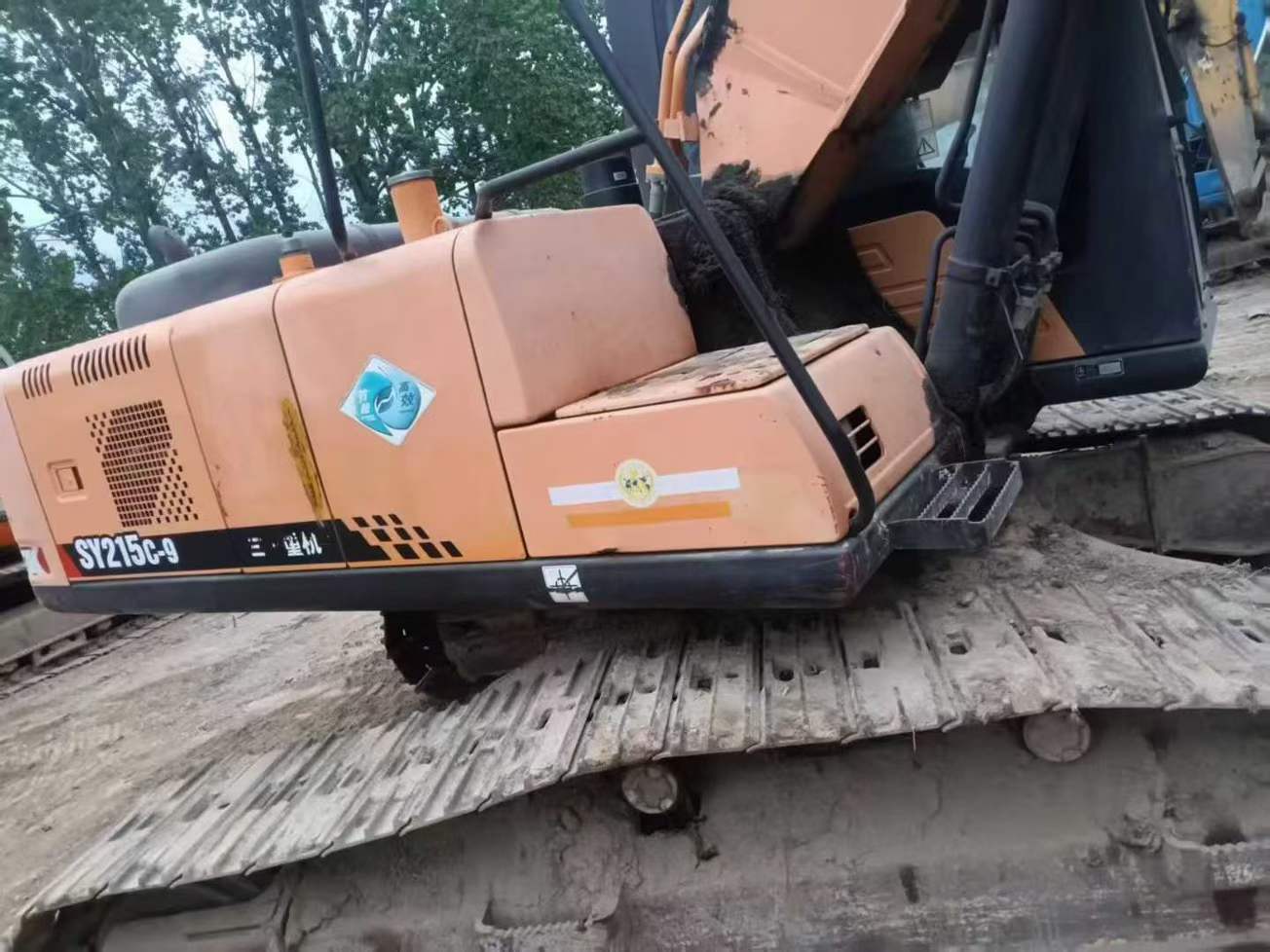

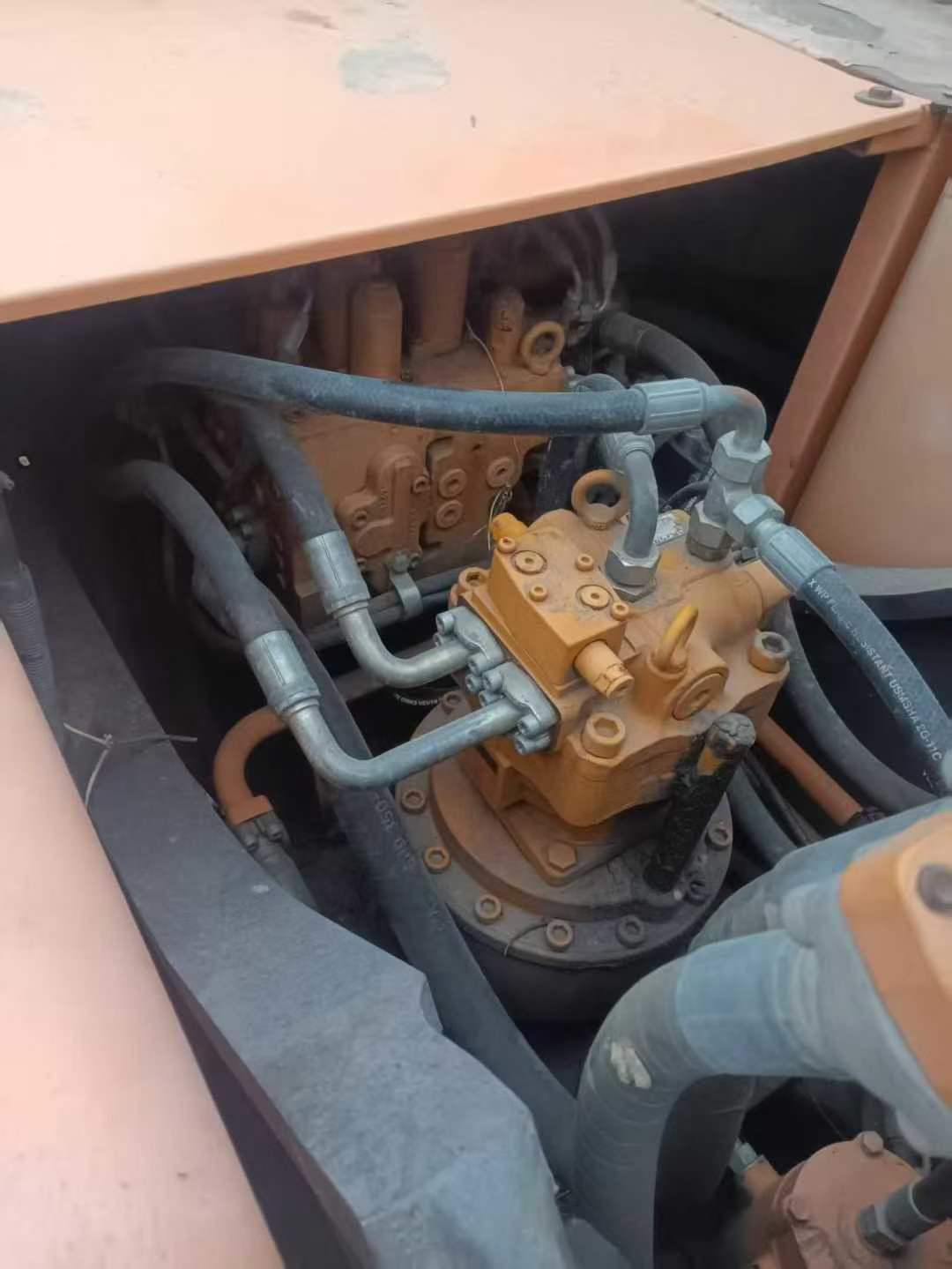

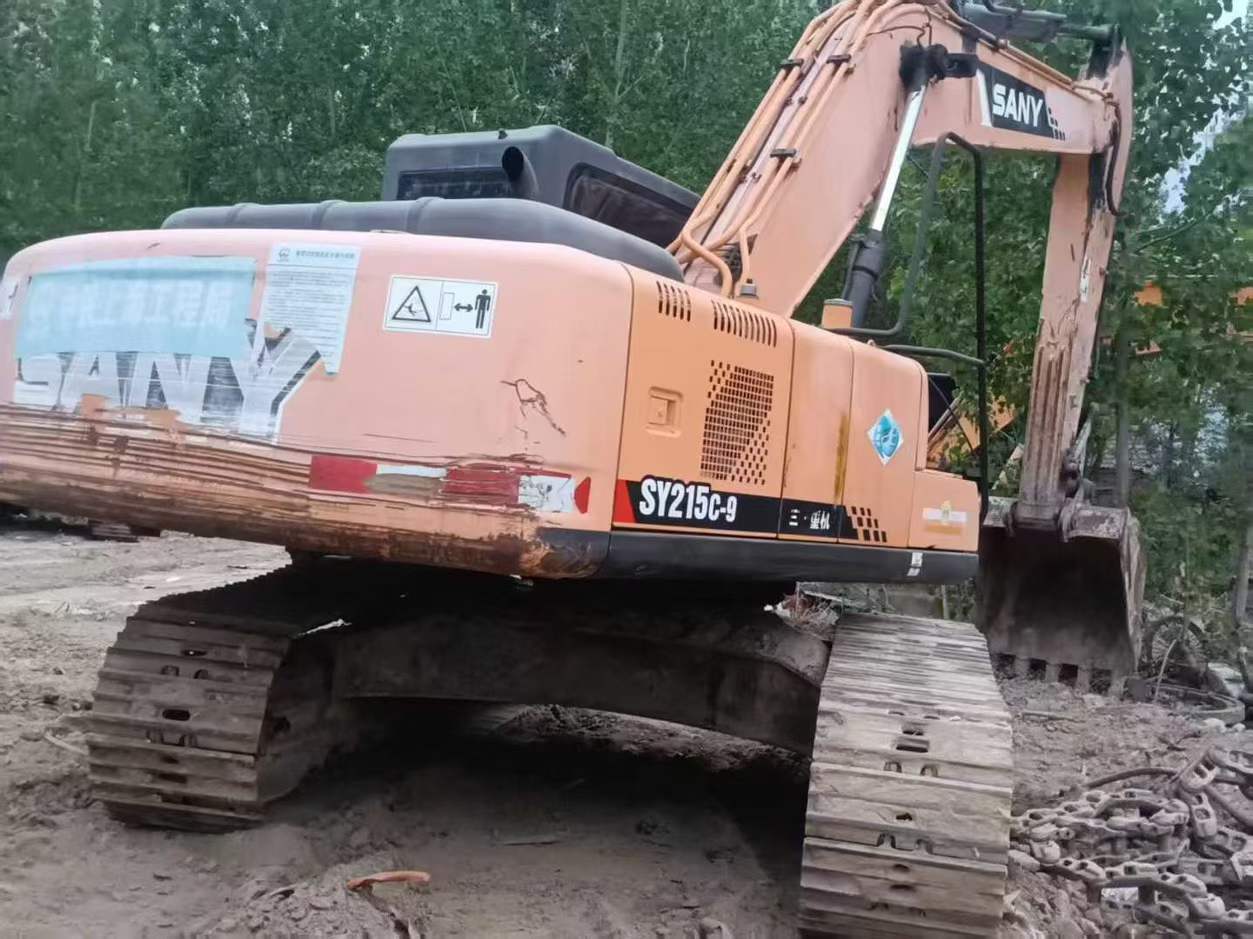

【 Premium Recommendation 】 2013 Limited Edition Sany 215-9 Excavator This Sany 215-9 excavator produced in 2013 is a rare collector's edition on the market. Since leaving the factory, it has only been in operation for 4,800 hours, which is equivalent to an average of less than two hours per day. This is far lower than the usage intensity of similar equipment, so the overall mechanical condition has been maintained very well. This not only means that its degree of wear and tear is relatively low, but also indicates that there is still a long service life waiting for new owners to discover in the future. In terms of power, this machine is equipped with an original imported Cummins QSB6.7 engine, which is renowned worldwide for its powerful output, low fuel consumption and high reliability. In practical operation, whether facing hard rocks or soft soil, it can handle them with ease, demonstrating outstanding work efficiency. In addition, this engine also has good fuel economy and can effectively reduce operating costs. The hydraulic system adopts the KPM series pumps from Kawasaki, Japan, combined with advanced load-sensitive control technology, ensuring smooth and stable operation while also enhancing work efficiency. Whether it is ex
