| Specifications | Value |
|---|---|
| No. | 965602 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21800 |
| Bucket capacity (m³) | 0.93 (0.8~1.2) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 46.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3595 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9950 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9570 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5800 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9885 |
Description

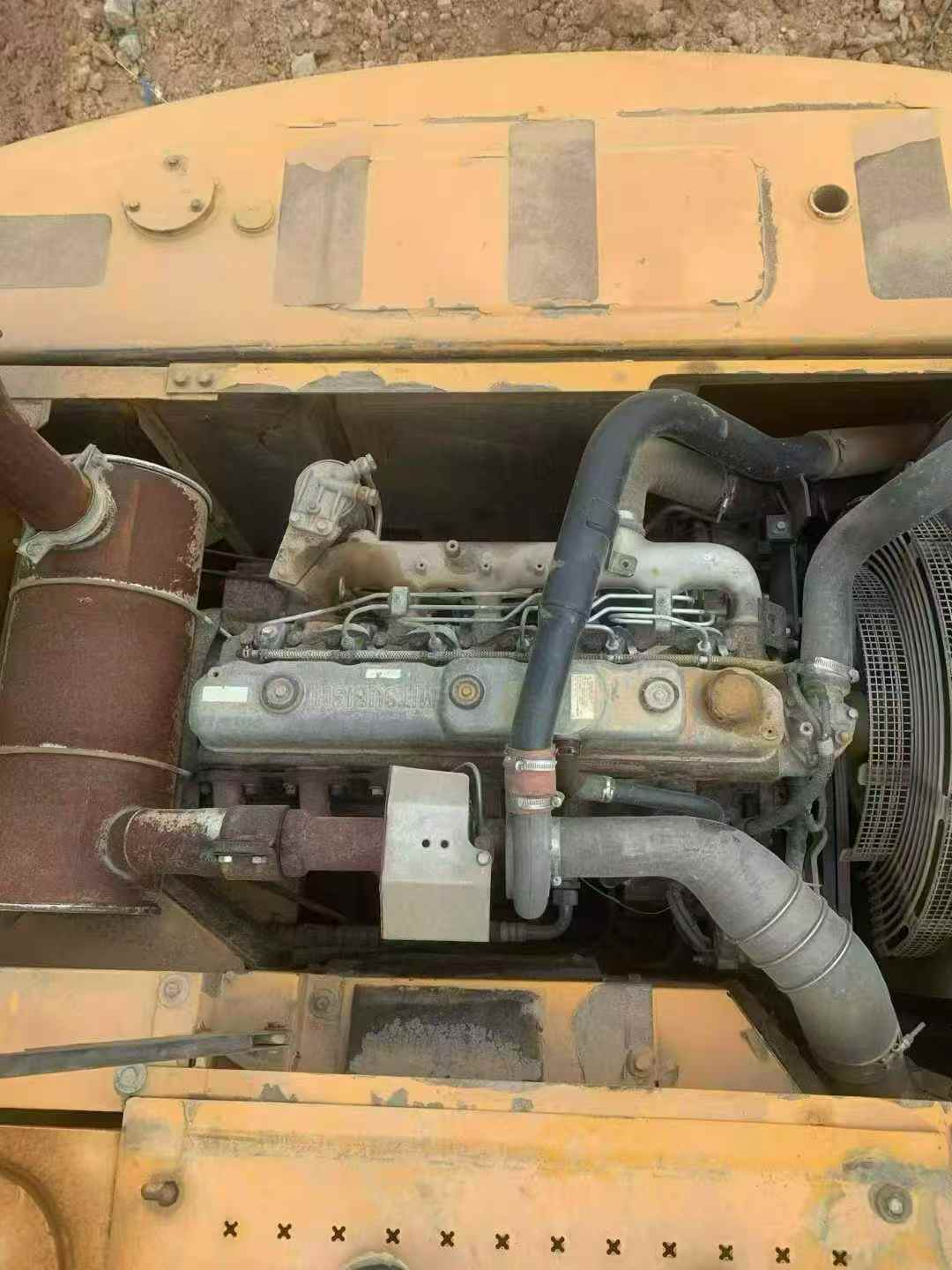

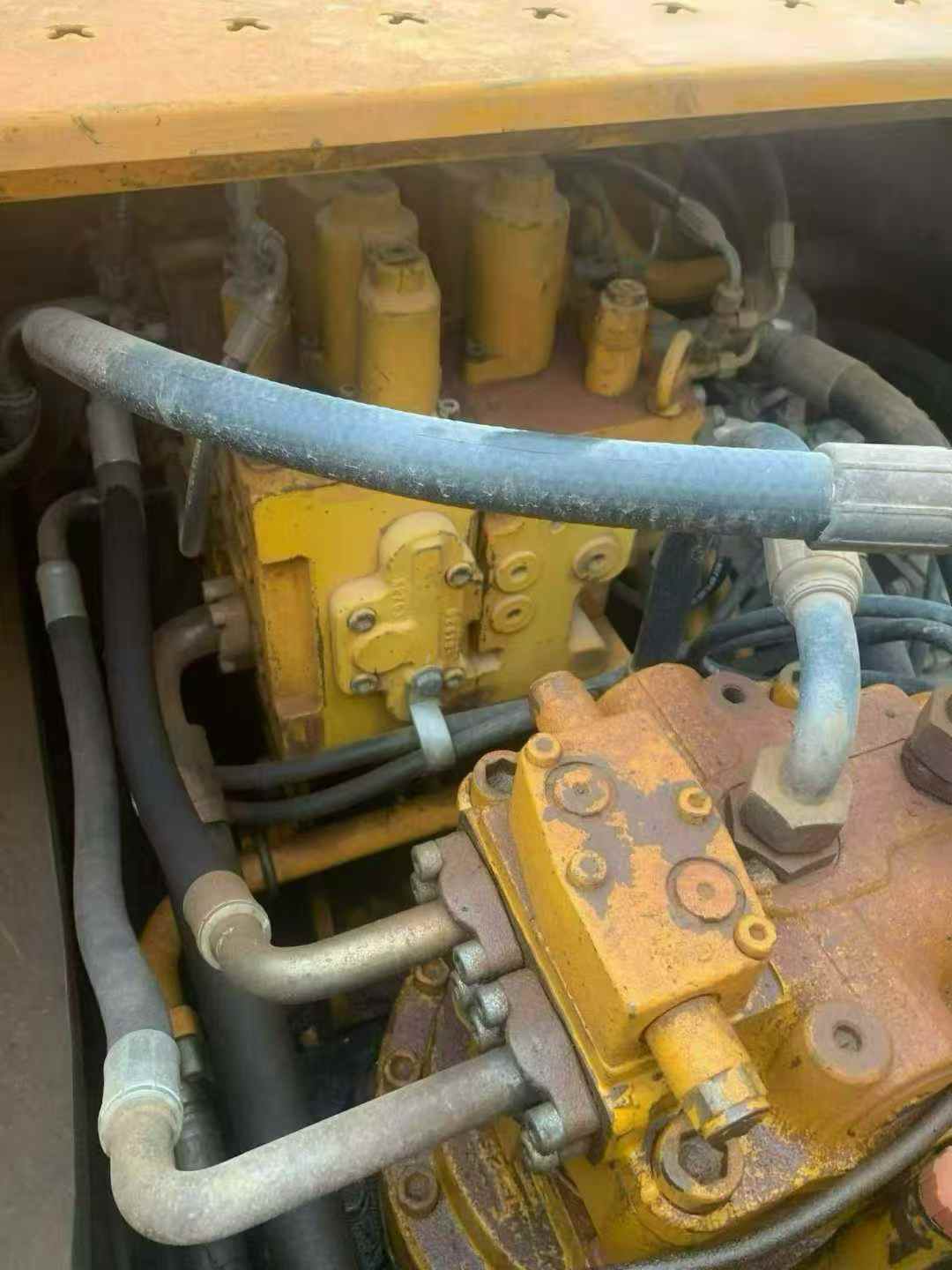

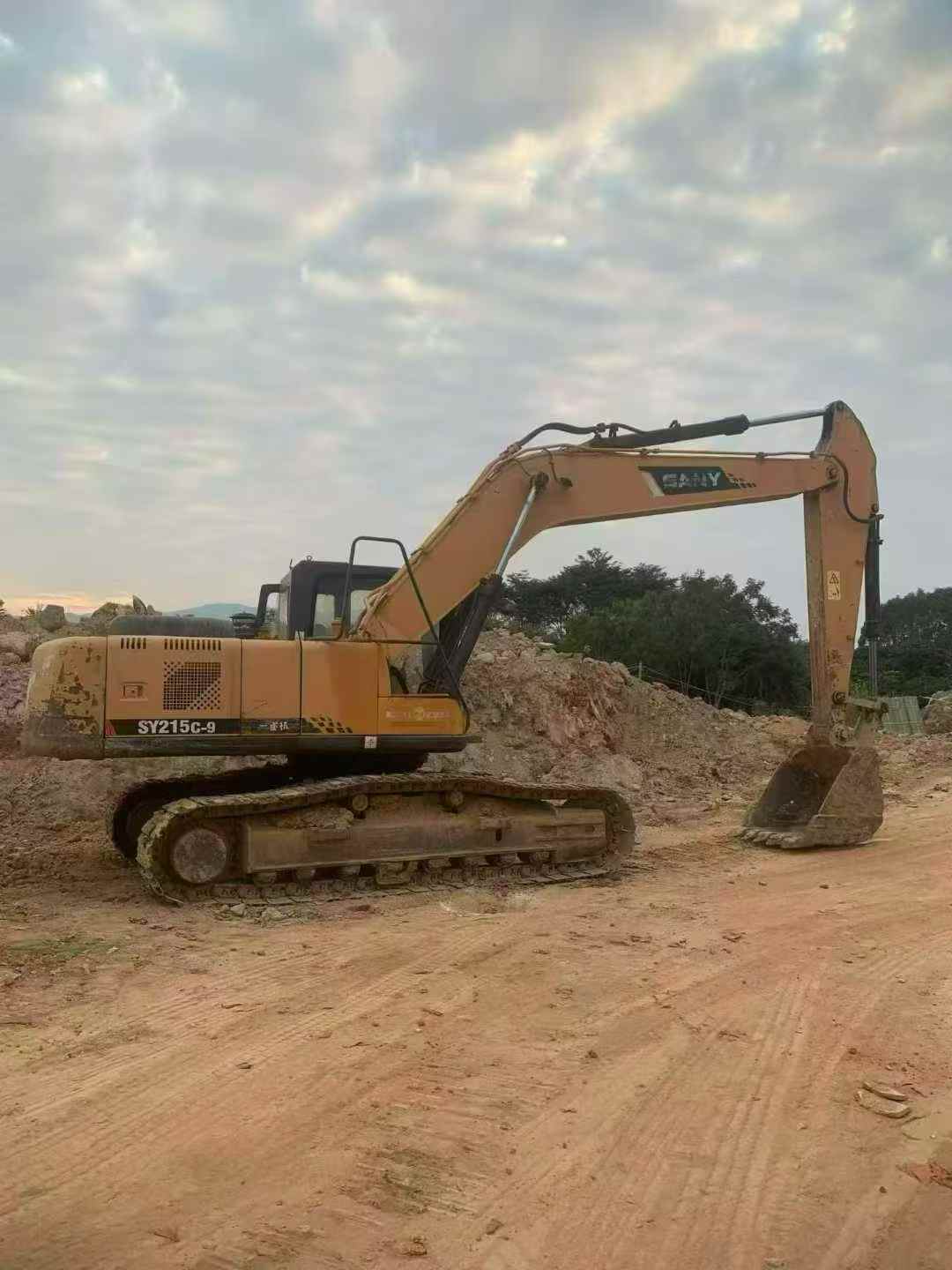

【 Premium Recommendation 】 2013 Sany SY215-9 excavator, Construction site work vehicle, User Benefit! This Sany SY215-9 excavator is a model from 2013 and has maintained a good working condition since it left the factory. It has already proven its strength and reliability on multiple construction sites, with a cumulative working time of approximately 6,000 hours. For a medium-sized excavator, this usage period is in a very healthy state and it still has a long service life. In terms of the power system, this excavator is equipped with a high-performance engine, ensuring strong power output and smooth operation. Whether it is excavation, loading or crushing operations, they can all be handled with ease. In addition, its advanced fuel management system can effectively reduce fuel consumption, improve work efficiency and also save you operating costs. The hydraulic system is a major highlight of this equipment. It adopts high-quality hydraulic components and has been carefully calibrated, making the operation more sensitive and accurate. Whether in meticulous operations or under heavy load conditions, it can provide stable and reliable support. Meanwhile, the efficient heat dissipation design ensures stability during long-term operatio
