| Specifications | Value |
|---|---|
| No. | 965680 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21800 |
| Bucket capacity (m³) | 0.93 (0.8~1.2) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 46.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3595 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9950 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9570 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5800 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9885 |
Description

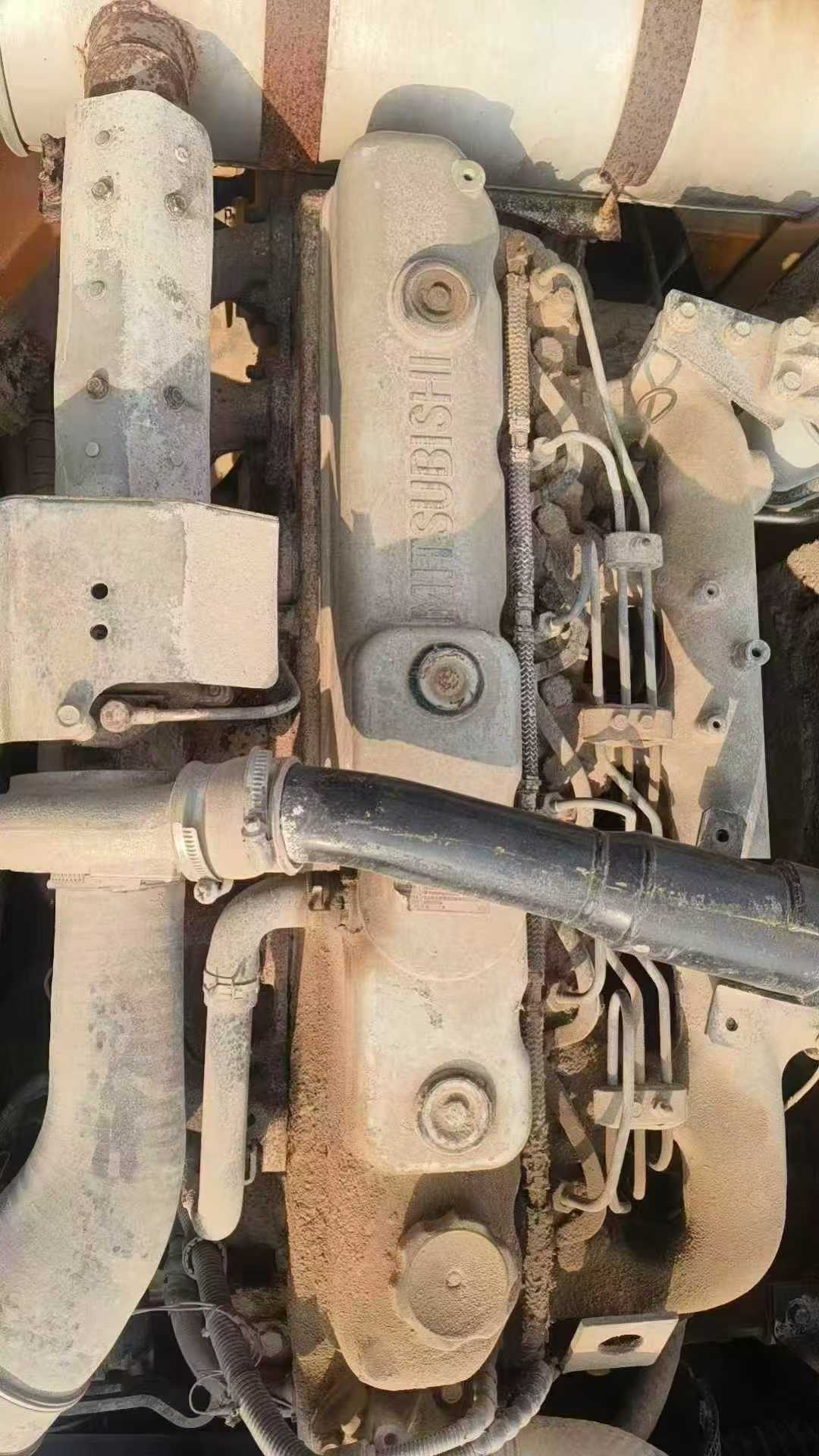

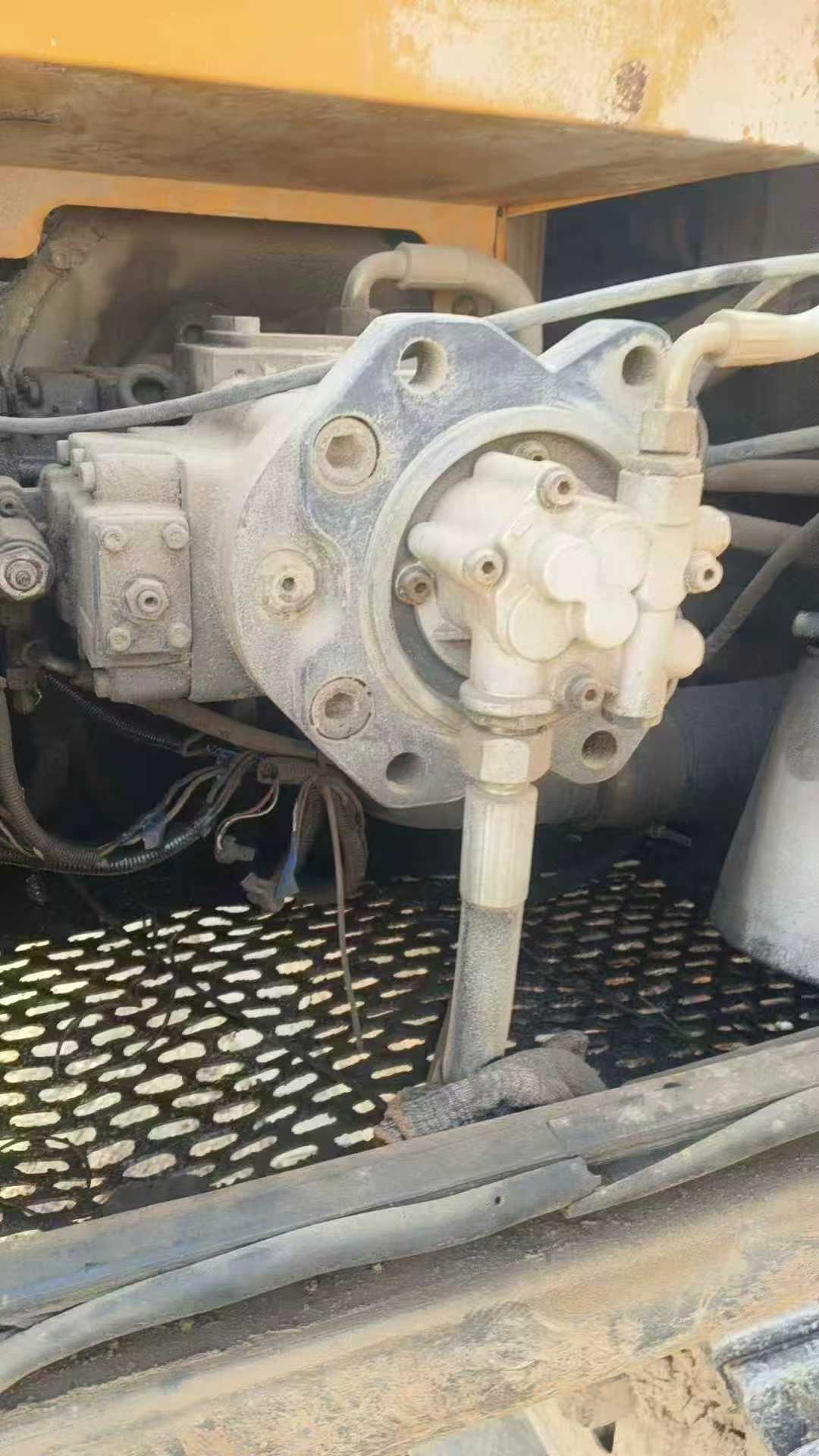

Detailed Introduction of Sany 215-9 Second-hand Excavator Dear customer, hello! It is a great honor to recommend to you this second-hand Sany SY215-9 excavator with outstanding performance and extremely high cost performance. Since its commissioning, this device has accumulated a working time of 3,200 hours, which is in a moderately low usage state. This means that it still has a long service life waiting for its new owner to explore its potential. The Sany SY215-9 is equipped with an original imported Isuzu engine, which is renowned worldwide for its powerful output and excellent fuel economy. It can maintain stable operation even under harsh working conditions, ensuring a balance between operational efficiency and economic benefits. In addition, the advanced electronic control system can achieve precise control, making the operation more convenient and smooth. In terms of the hydraulic system, this machine adopts the world-leading Kawasaki negative flow control system, which features fast response speed, high action sensitivity and good coordination of compound actions. Whether it is digging, loading or leveling the ground, they can handle it with ease, demonstrating outstanding working ability. Meanwhile, the design concept of hi
