| Specifications | Value |
|---|---|
| No. | 965700 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21800 |
| Bucket capacity (m³) | 0.93 (0.8~1.2) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 46.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3595 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9950 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9570 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5800 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9885 |
Description

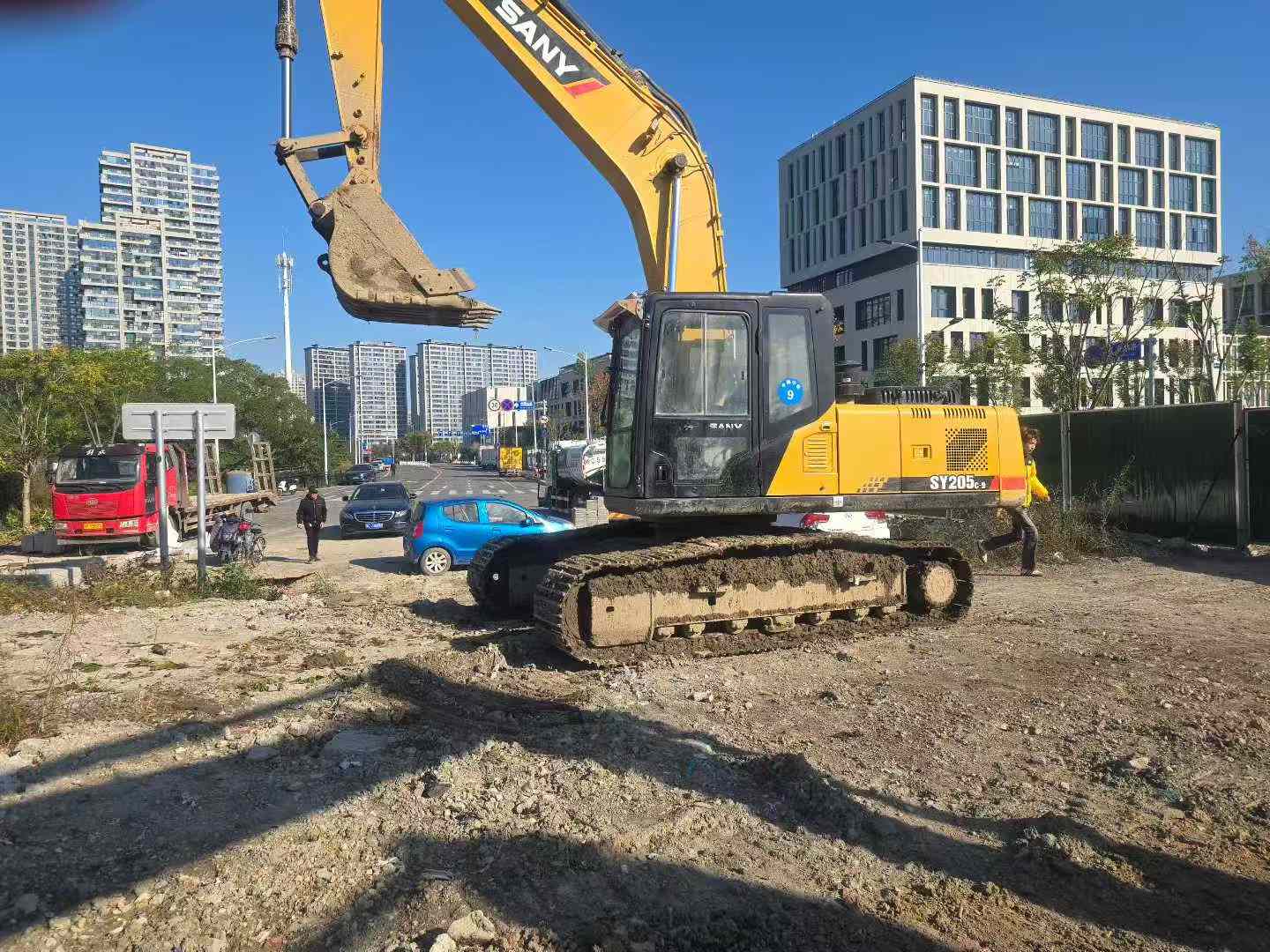

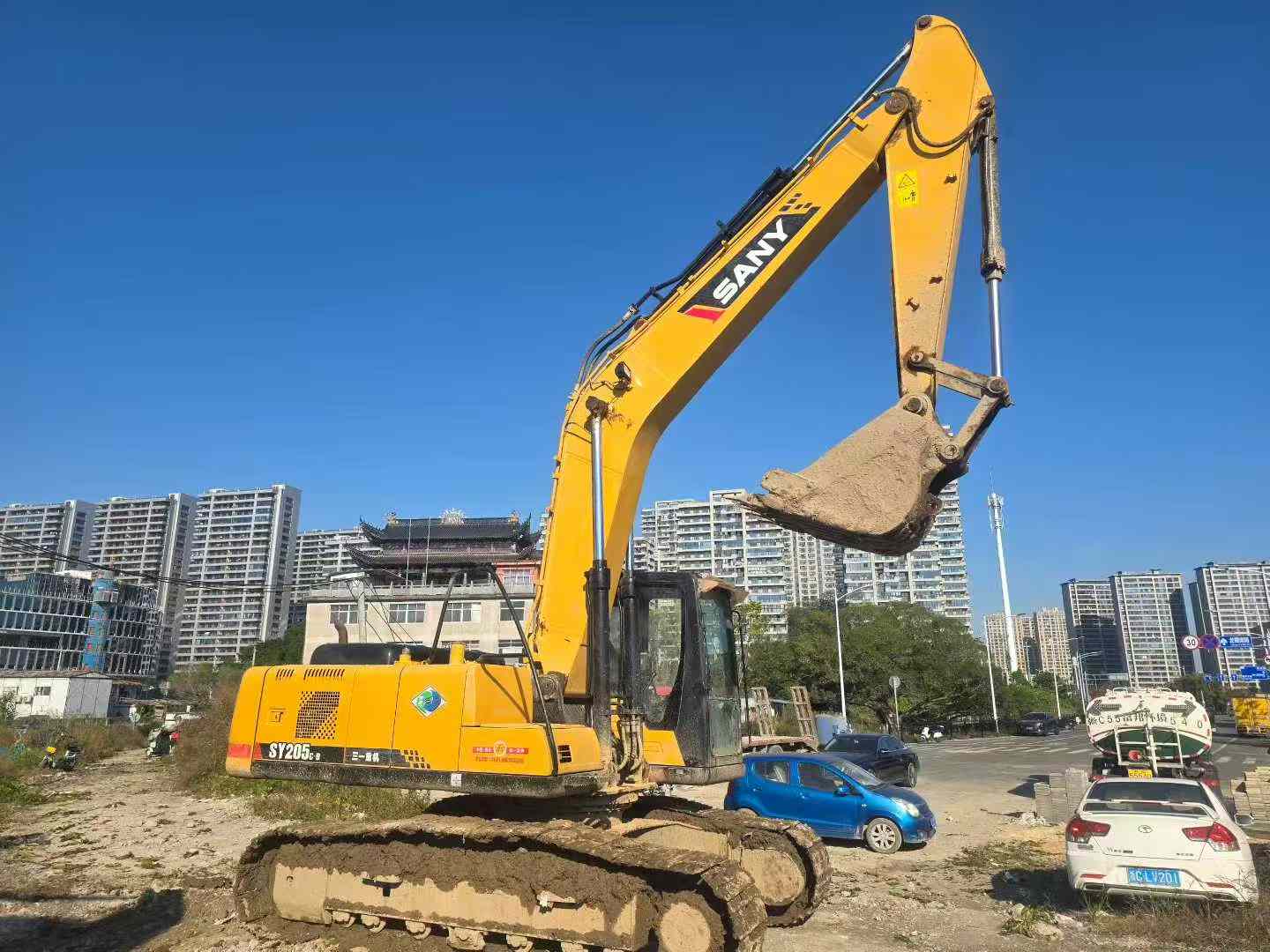

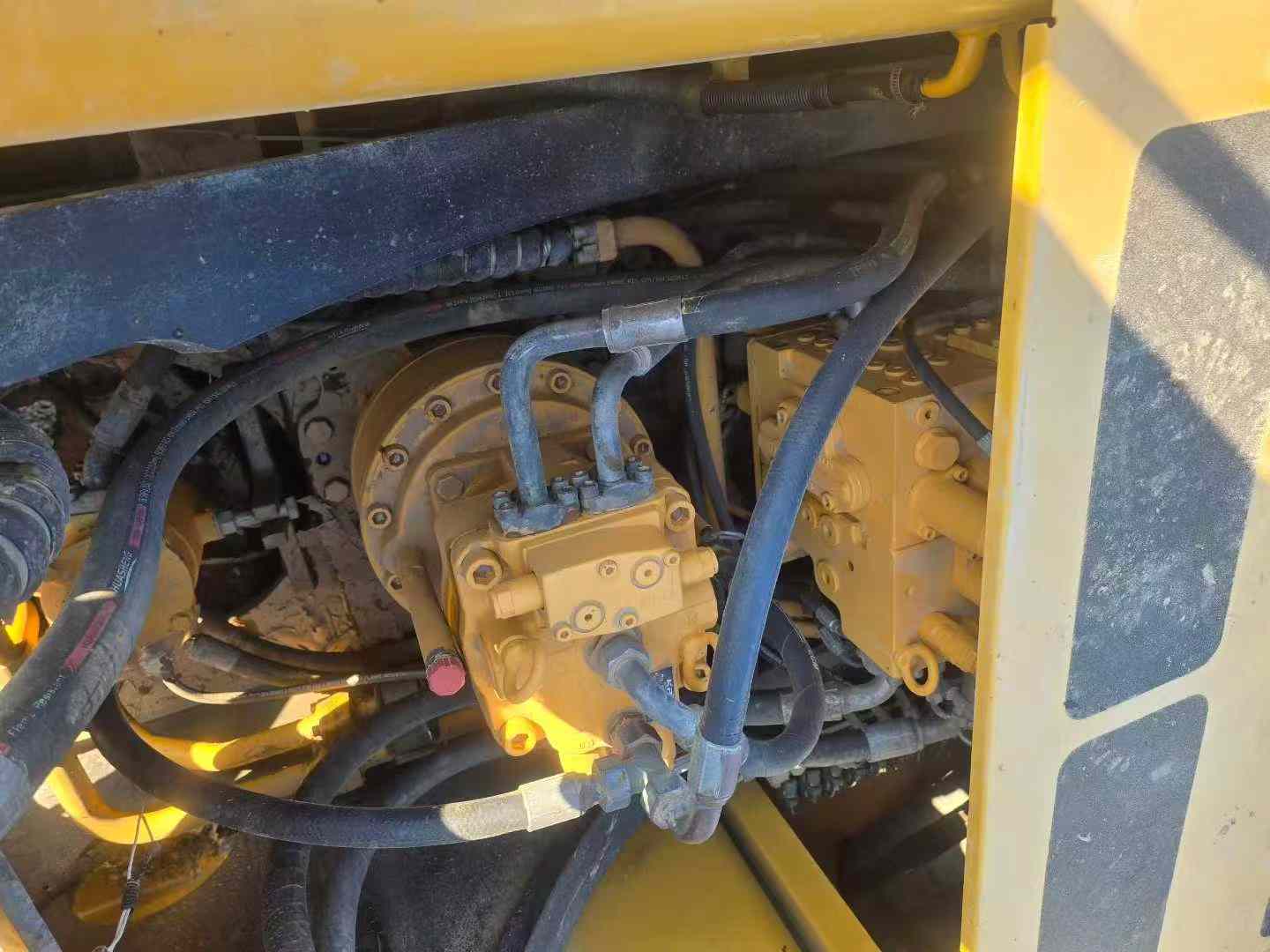

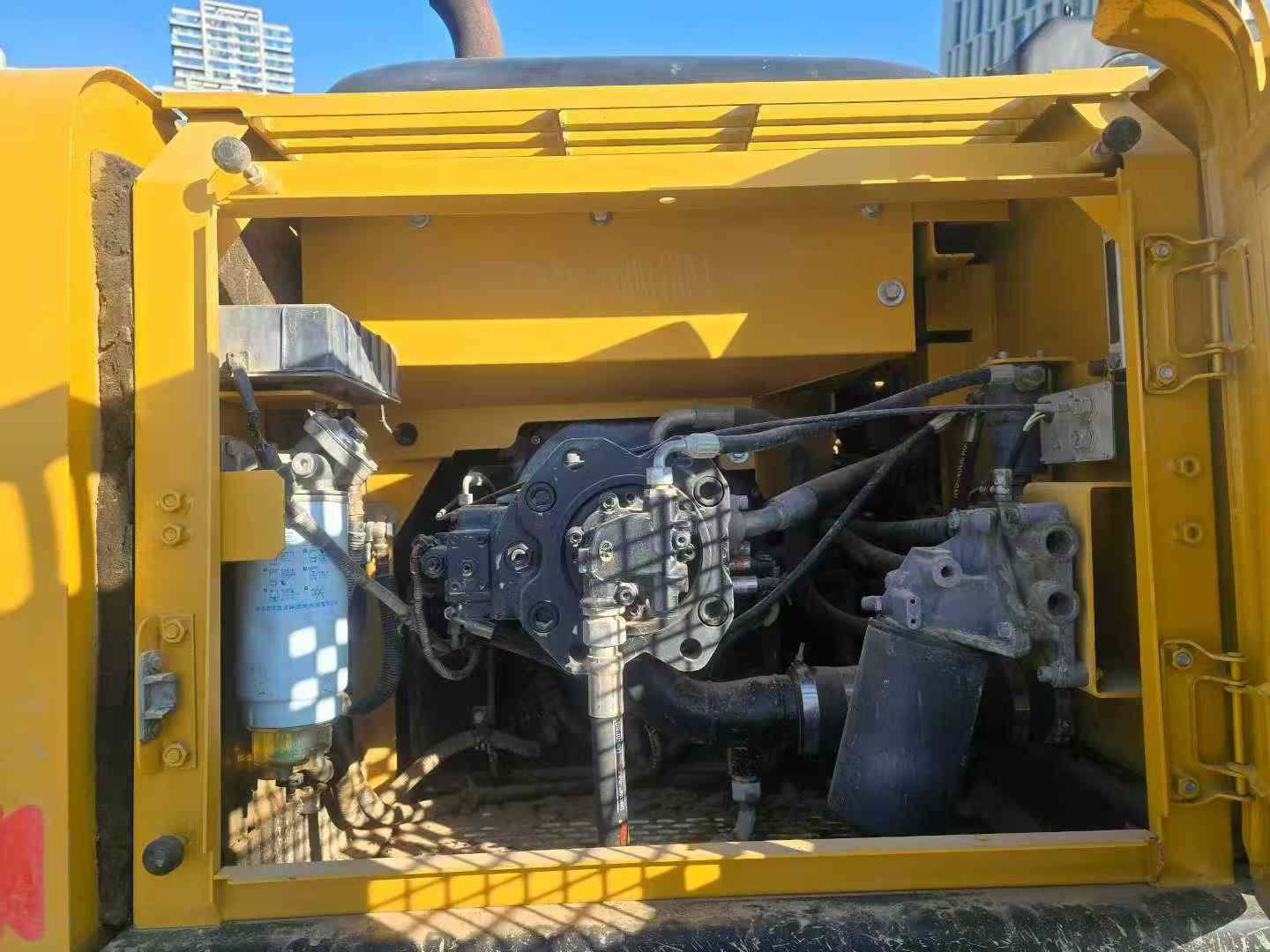

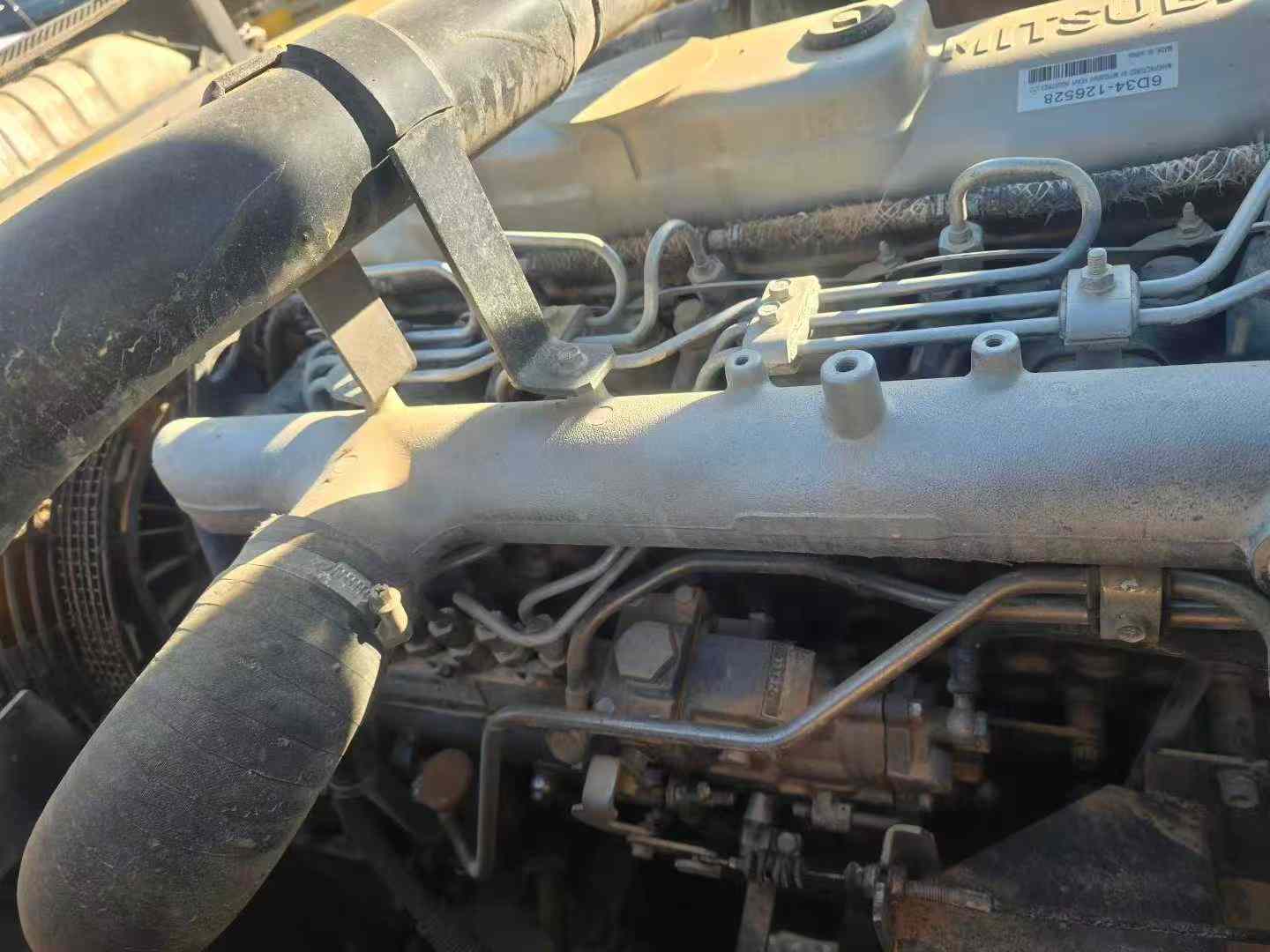

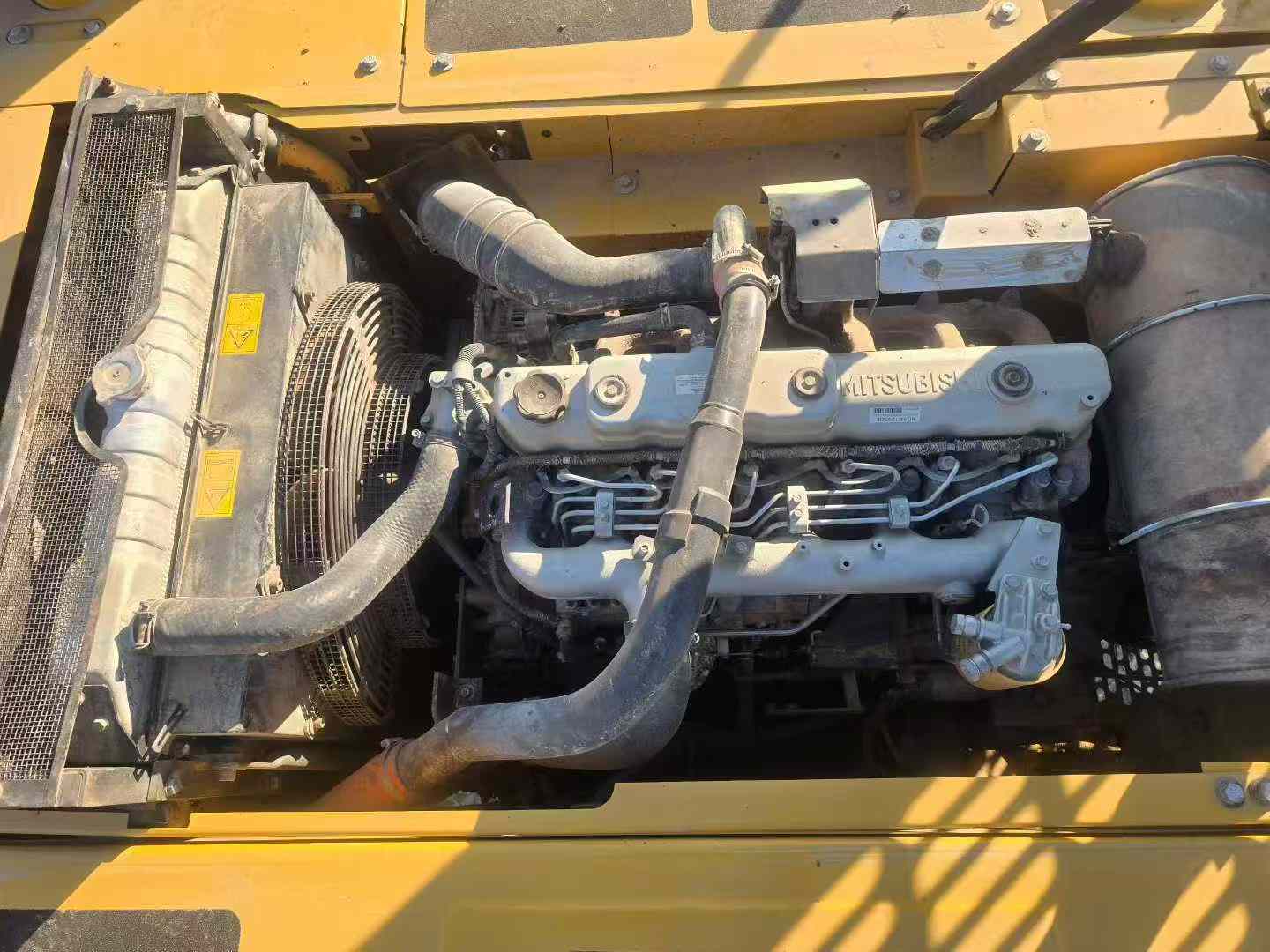

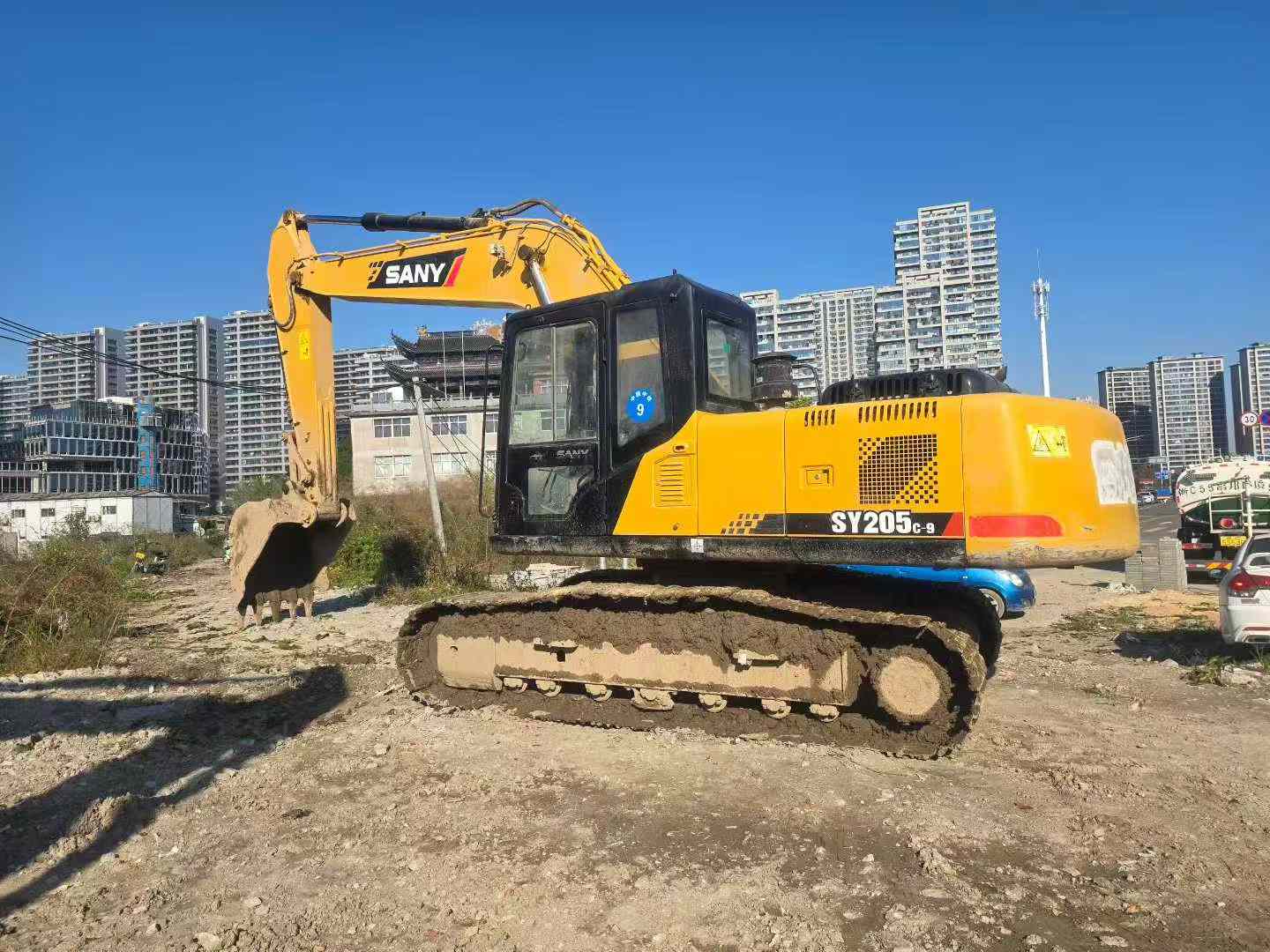

【 Premium Recommendation 】 Sany SY215-9 excavator from 2015 This 2015 Sany SY215-9 excavator is one of the highly praised medium-sized excavators in the market. It boasts outstanding working performance and excellent durability, with a total working time of only 6,000 hours, which is far lower than the average service life of similar equipment, indicating that it still has a long service life to be explored. This excavator not only excels in construction efficiency but is also very convenient to maintain and service, making it a reliable assistant on your construction site. In terms of the power system, this excavator is equipped with a Cummins QSB6.7 engine, with a maximum power output of 118kW (approximately 160 horsepower), meeting the National III emission standards. This engine is renowned for its powerful output and smooth operation, capable of easily handling the operational demands under various complex working conditions. Meanwhile, its advanced fuel injection technology ensures a perfect balance between low fuel consumption and high efficiency, reducing operating costs. The hydraulic system adopts Kawasaki KPM series main pumps and valve blocks, featuring fast response speed and high control accuracy. Whether it is precise
