| Specifications | Value |
|---|---|
| No. | 966764 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21800 |
| Bucket capacity (m³) | 0.93 (0.8~1.2) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 46.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3595 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9950 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9570 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5800 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9885 |
Description

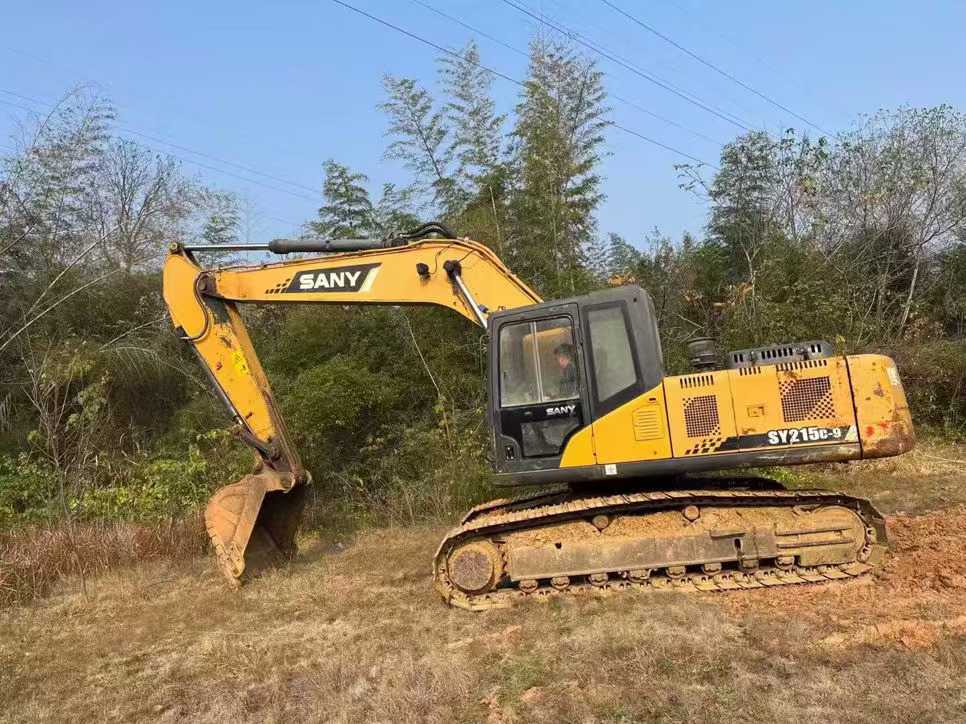

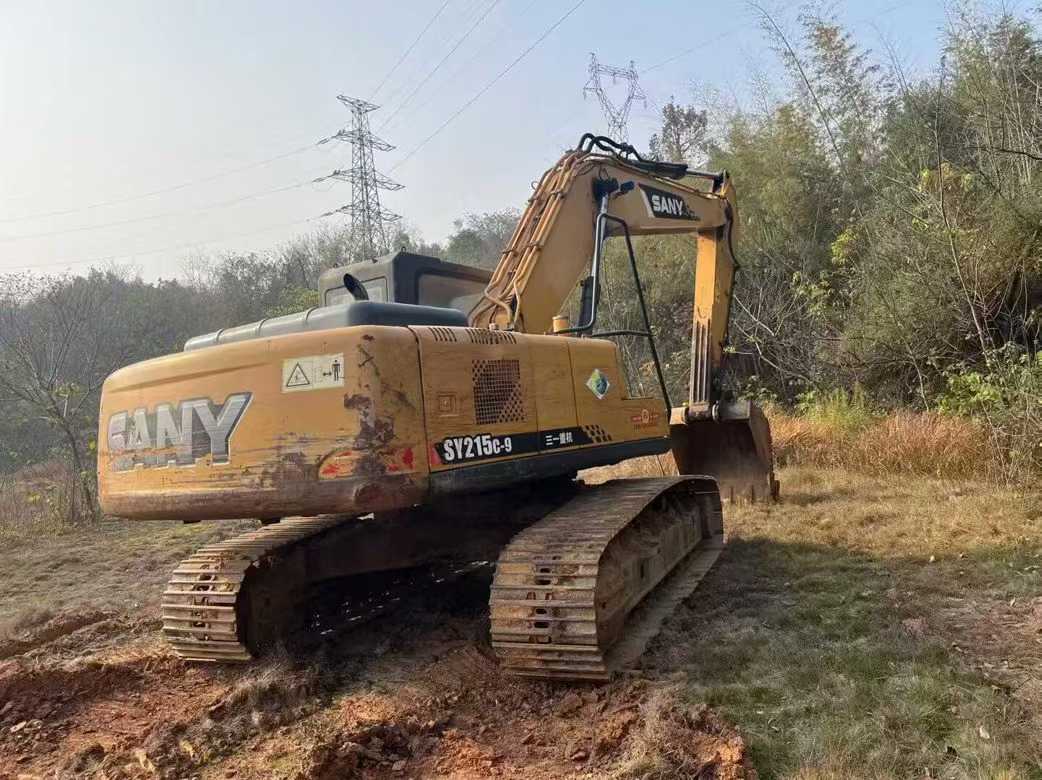

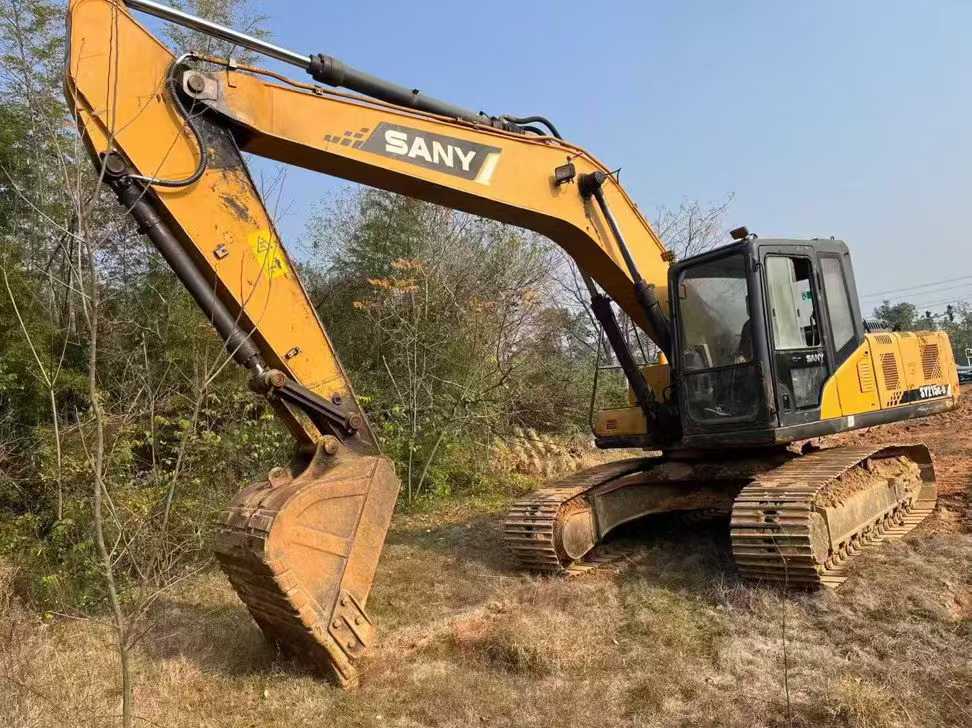

【 Premium Recommendation 】 The last batch of Sany SY215-9 excavators in 2016, with outstanding performance and quality guaranteed! This second-hand Sany SY215-9 excavator is the last batch of products in 2016, with a working time of only 3,000 hours. It is well maintained and in excellent condition. It adopts the highly efficient power system independently developed by Sany, equipped with a high-performance engine, featuring strong power and low fuel consumption, and can easily handle various complex working conditions. Whether it is excavation, loading or crushing operations, it can demonstrate outstanding working efficiency. In terms of the hydraulic system, this machine adopts an advanced negative flow control system, featuring fast response speed and flexible operation, ensuring the stability and reliability of the machine under high-intensity operation. Meanwhile, the hydraulic oil cooling system is reasonably designed, effectively extending the service life of hydraulic components. In addition, this excavator is extremely fast and its working efficiency is comparable to that of an "airplane". It can complete a large amount of work in a short time, greatly improving the construction efficiency. Its sturdy and durable structural
