Product Description

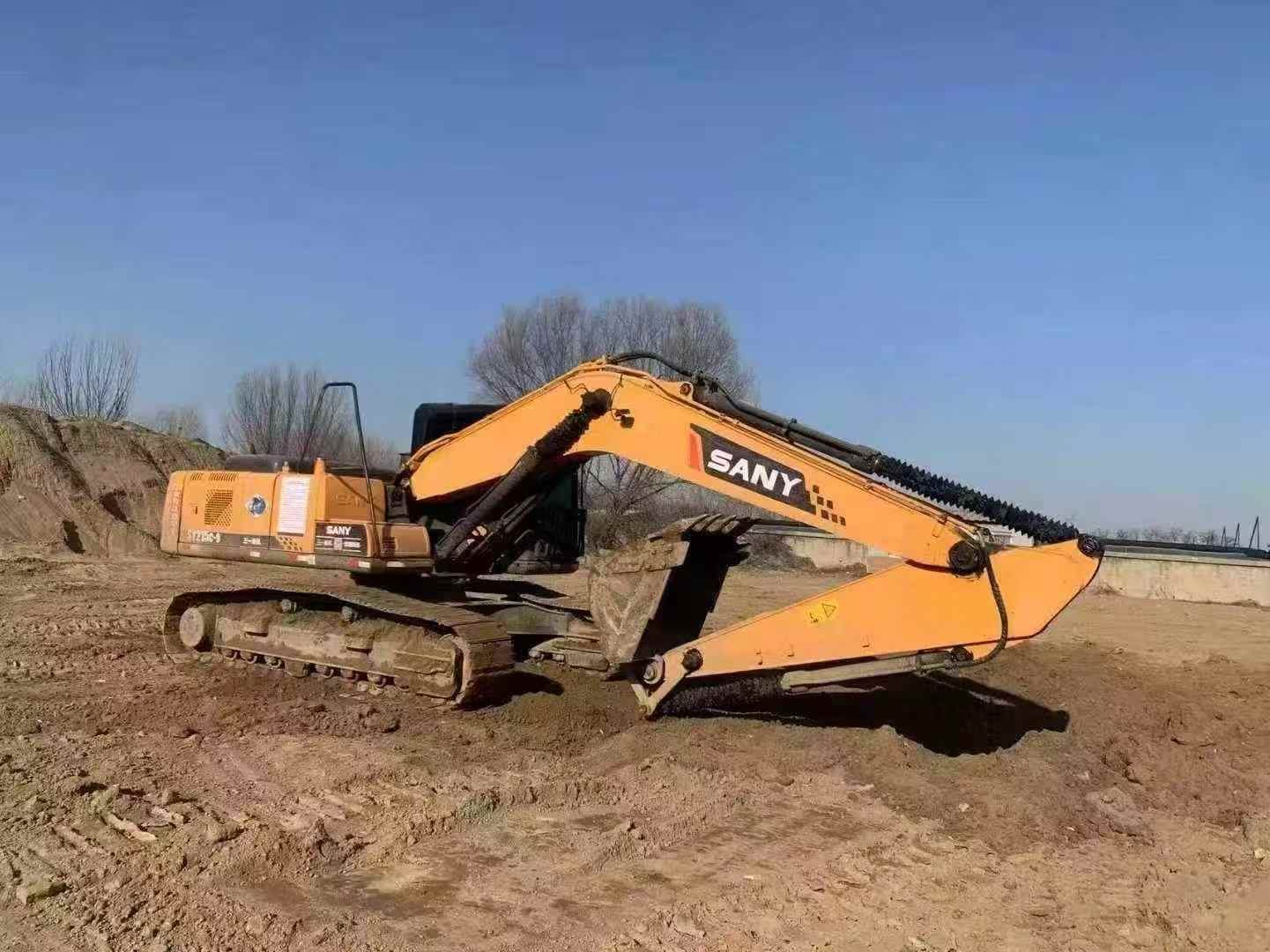

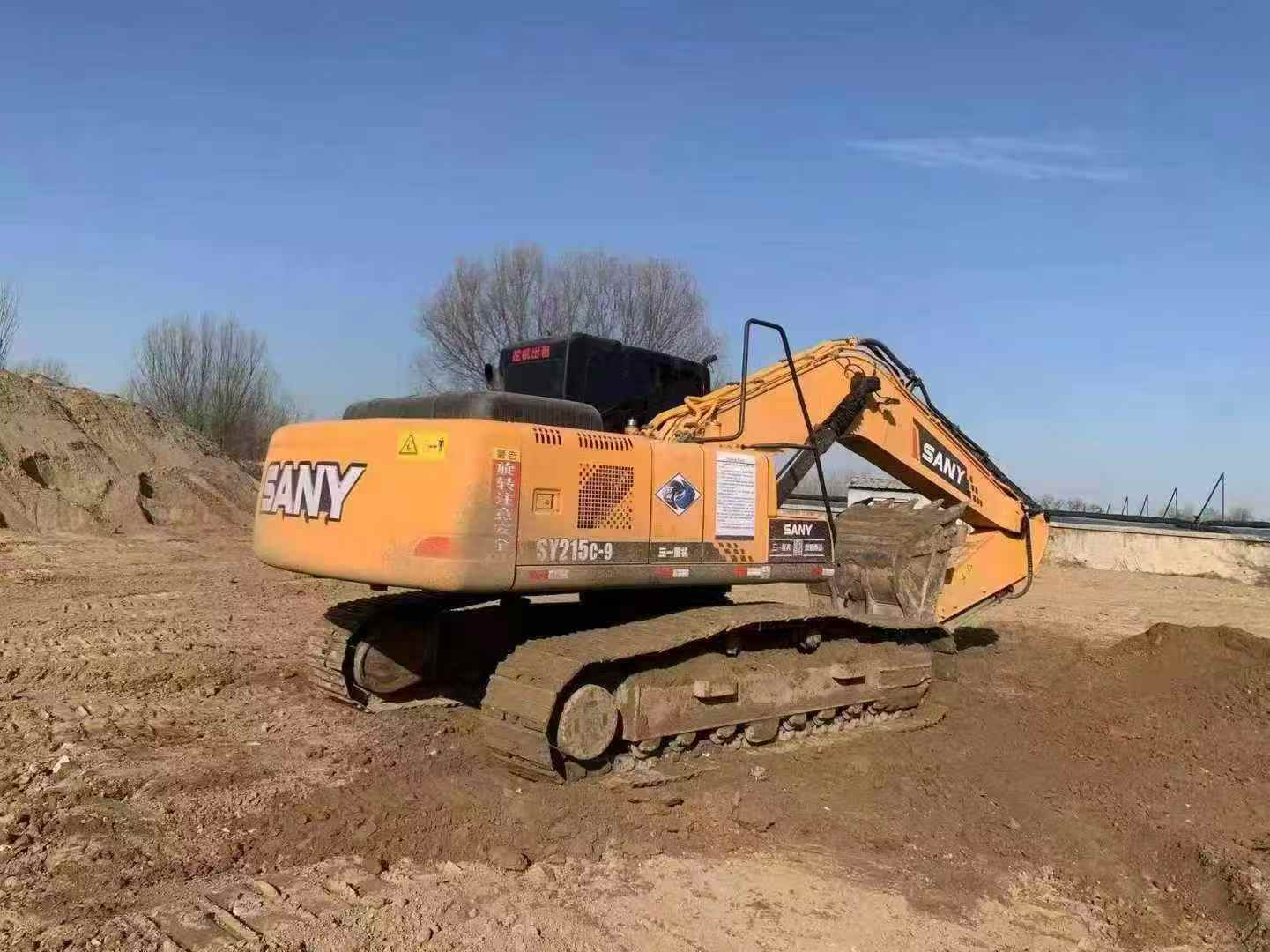

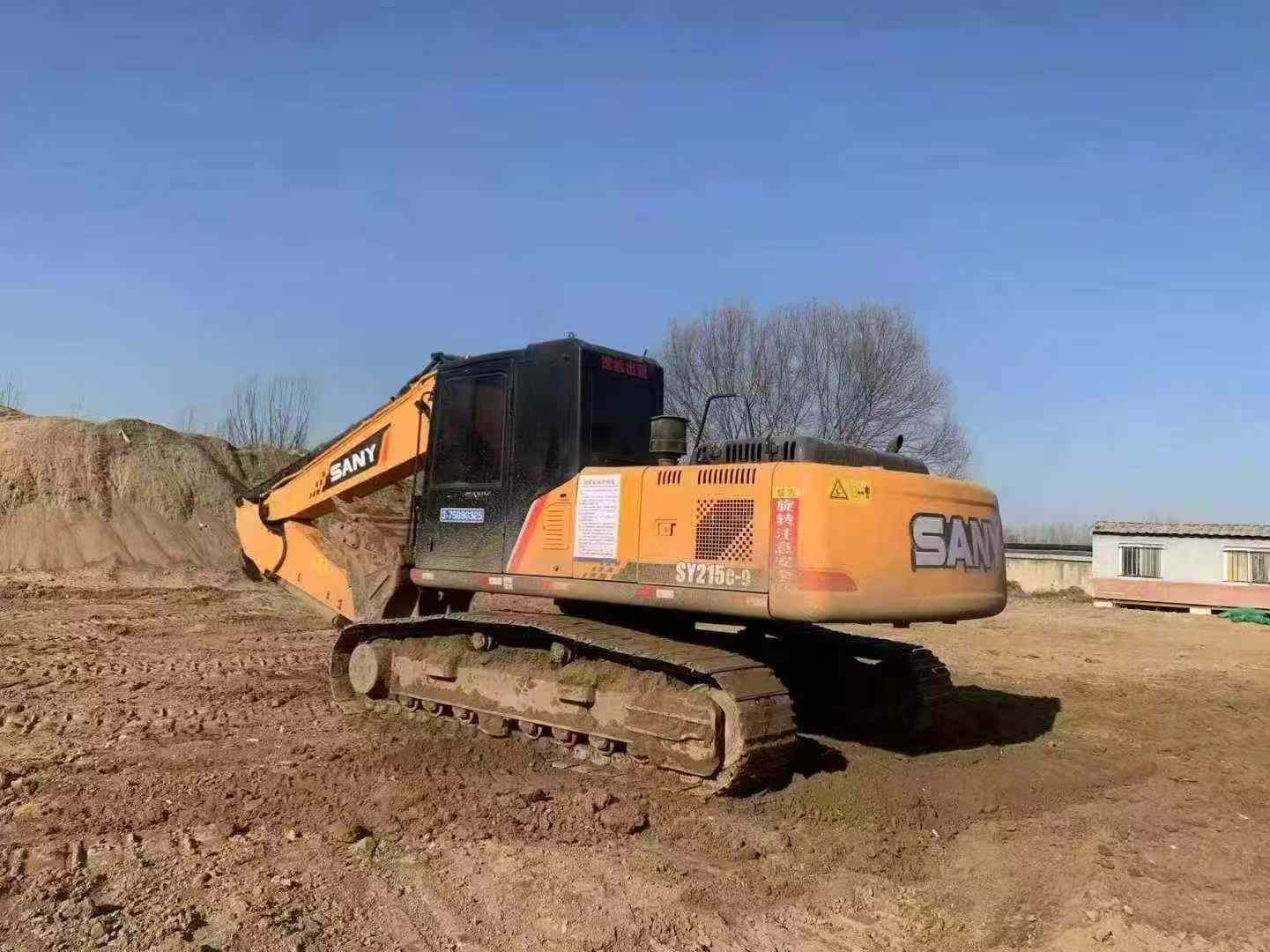

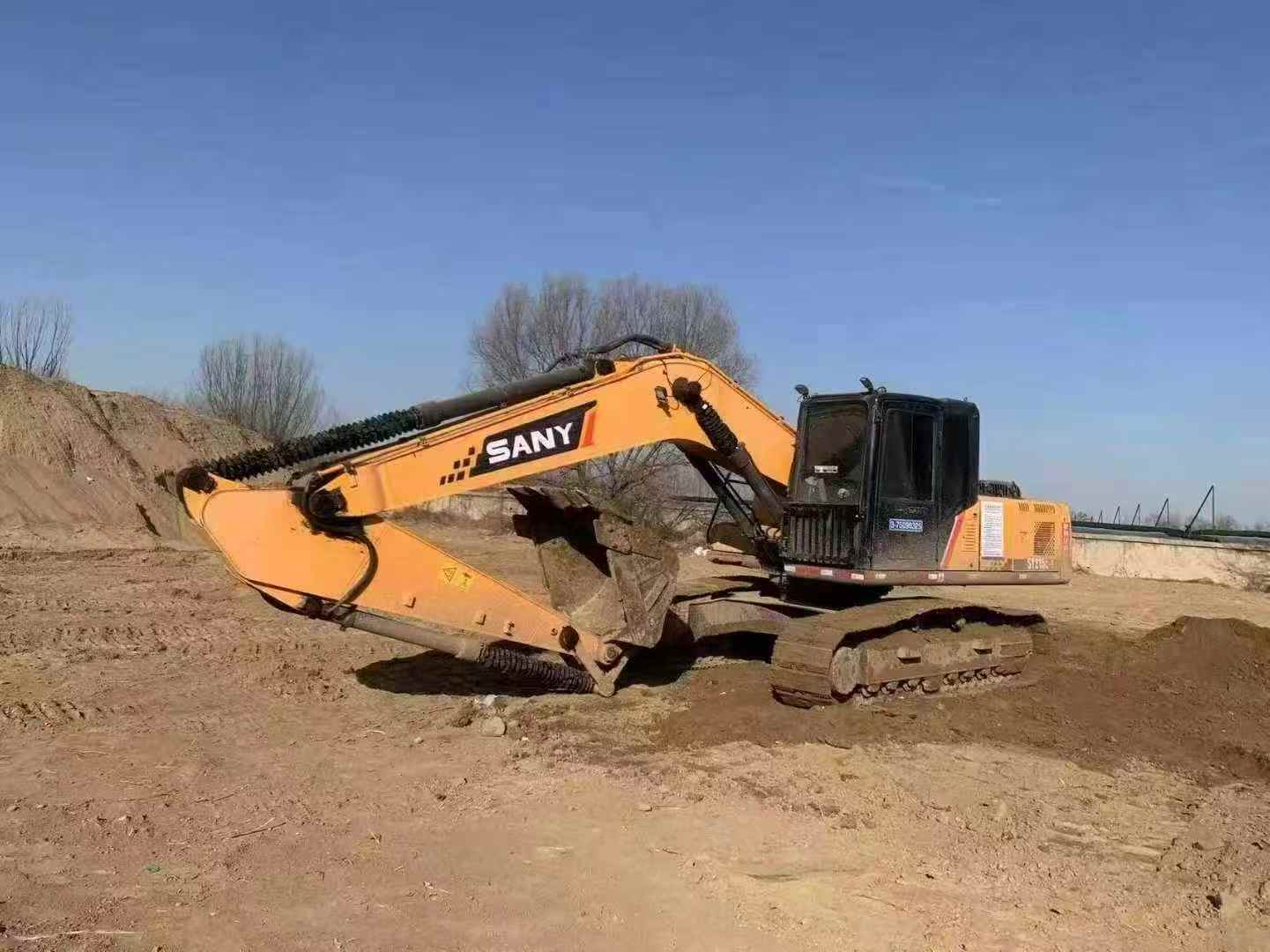

"Premium Second-hand Sany 215-9 excavator This Sany 215-9 excavator is a high-quality second-hand device carefully selected by us and has successfully passed the practical test on the construction site. It has excellent digging capabilities and high working efficiency. Whether it is excavation, loading or leveling operations, it can handle them all with ease. As a earthmoving vehicle, its performance is particularly outstanding and it is highly suitable for efficient construction in various complex terrains. This excavator has been in personal use since its purchase and is well maintained. It has only been working for about 3,000 hours and is in the best working condition. The power system adopts a high-performance engine, which starts quickly and runs smoothly. Even under heavy loads, it can maintain strong power output. The hydraulic system has been professionally maintained to ensure smooth and unobstructed operation, sensitive response and very convenient operation. In addition, no oil leakage occurred in the three major components (engine, main pump and walking motor), further demonstrating its excellent sealing performance and durability. In terms of appearance, the body structure is compact and sturdy, with no obvious damage
| Specifications | Value |
|---|---|
| No. | 972804 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21800 |
| Bucket capacity (m³) | 0.93 (0.8~1.2) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 46.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3595 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9950 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9570 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5800 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9885 |
