Product Description

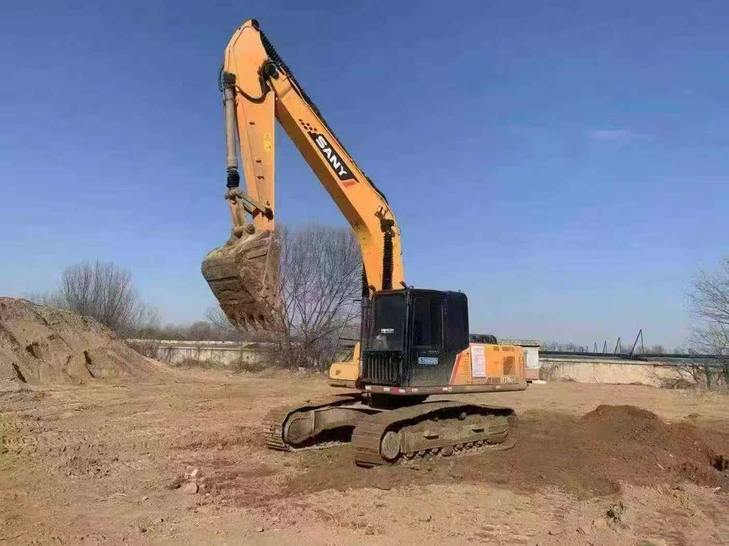

【 Premium Recommendation 】 Sany SY215-9 second-hand excavator, with outstanding performance and quality guaranteed This Sany SY215-9 excavator is a single-handed work vehicle. It has left the construction site and is expected to work for about 3,000 hours. This equipment is equipped with a high-performance Cummins QSB6.7 engine, with a maximum power output of 118 kilowatts. It is powerful, has good fuel economy, and can easily handle various complex working conditions. Whether it is excavation, loading or crushing operations, it can perform well. In terms of the hydraulic system, it is equipped with a high-flow main pump and an efficient hydraulic motor, ensuring the smoothness and flexibility of the entire machine's operation. In addition, its advanced negative flow control system not only enhances work efficiency but also effectively reduces energy consumption, ensuring stable performance even during long-term operation. It is worth mentioning that after a comprehensive inspection and confirmation, there is no oil leakage in the three major components. The overall condition of the vehicle is good and it can be put into use immediately. As a powerful tool for earthwork construction, the SY215-9 excavator stands out among similar pr
| Specifications | Value |
|---|---|
| No. | 976782 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21800 |
| Bucket capacity (m³) | 0.93 (0.8~1.2) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 46.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3595 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9950 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9570 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5800 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9885 |
