2016 Sany SY215C-9

1/6
Used Sany SY215C-9 Excavator 2016 Model / 1

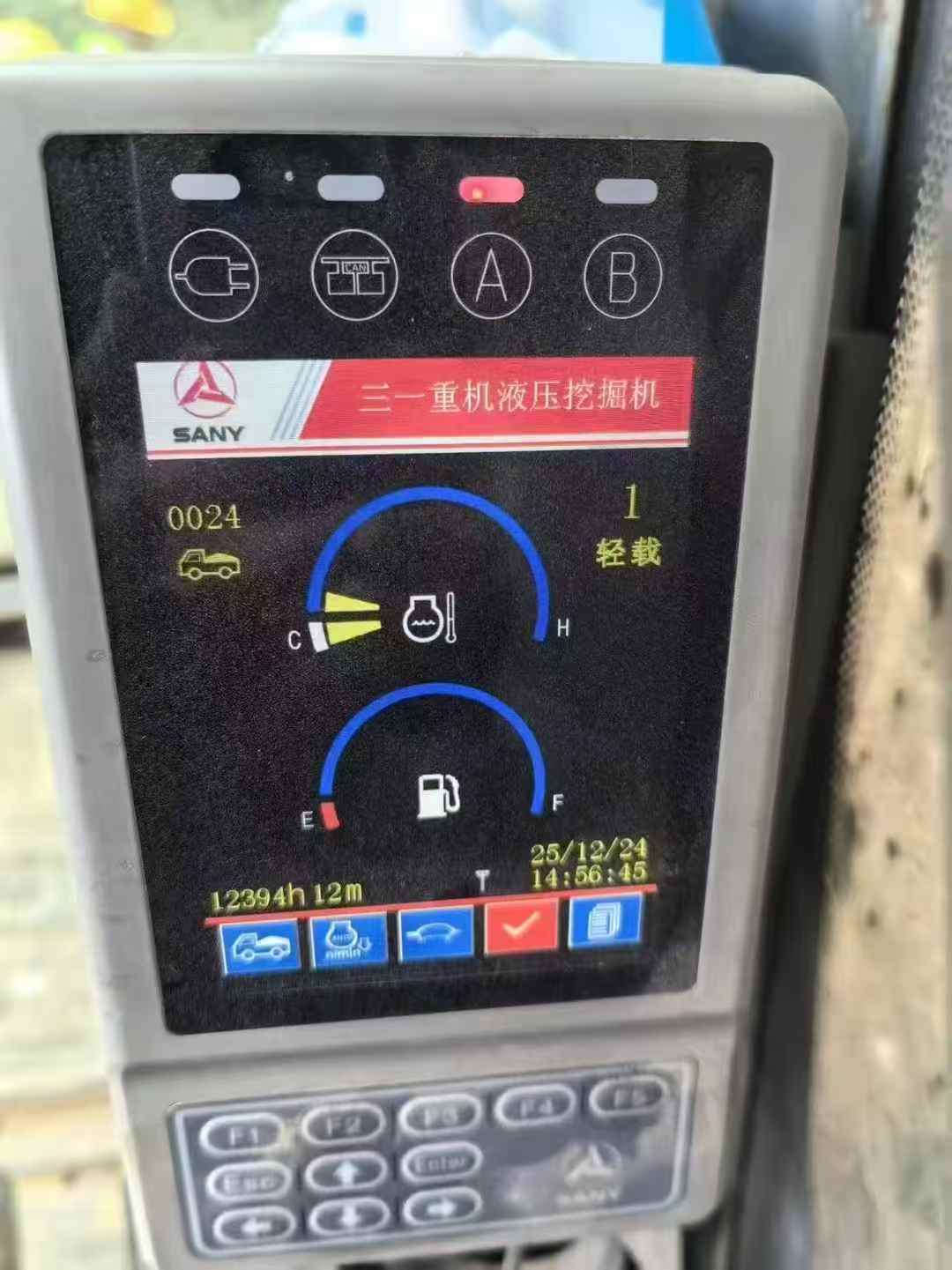

Used Sany SY215C-9 Excavator 2016 Model / 2

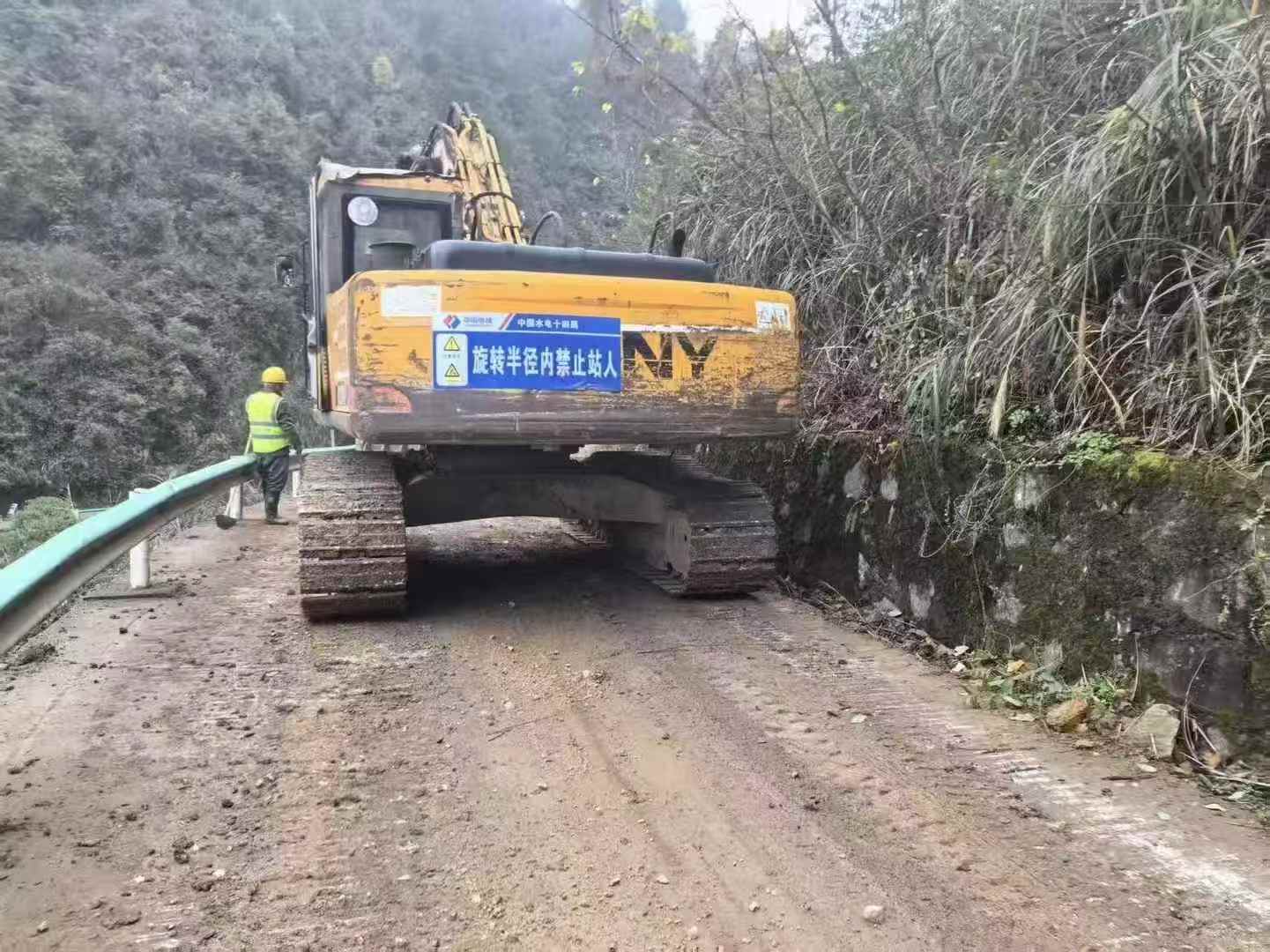

Used Sany SY215C-9 Excavator 2016 Model / 3

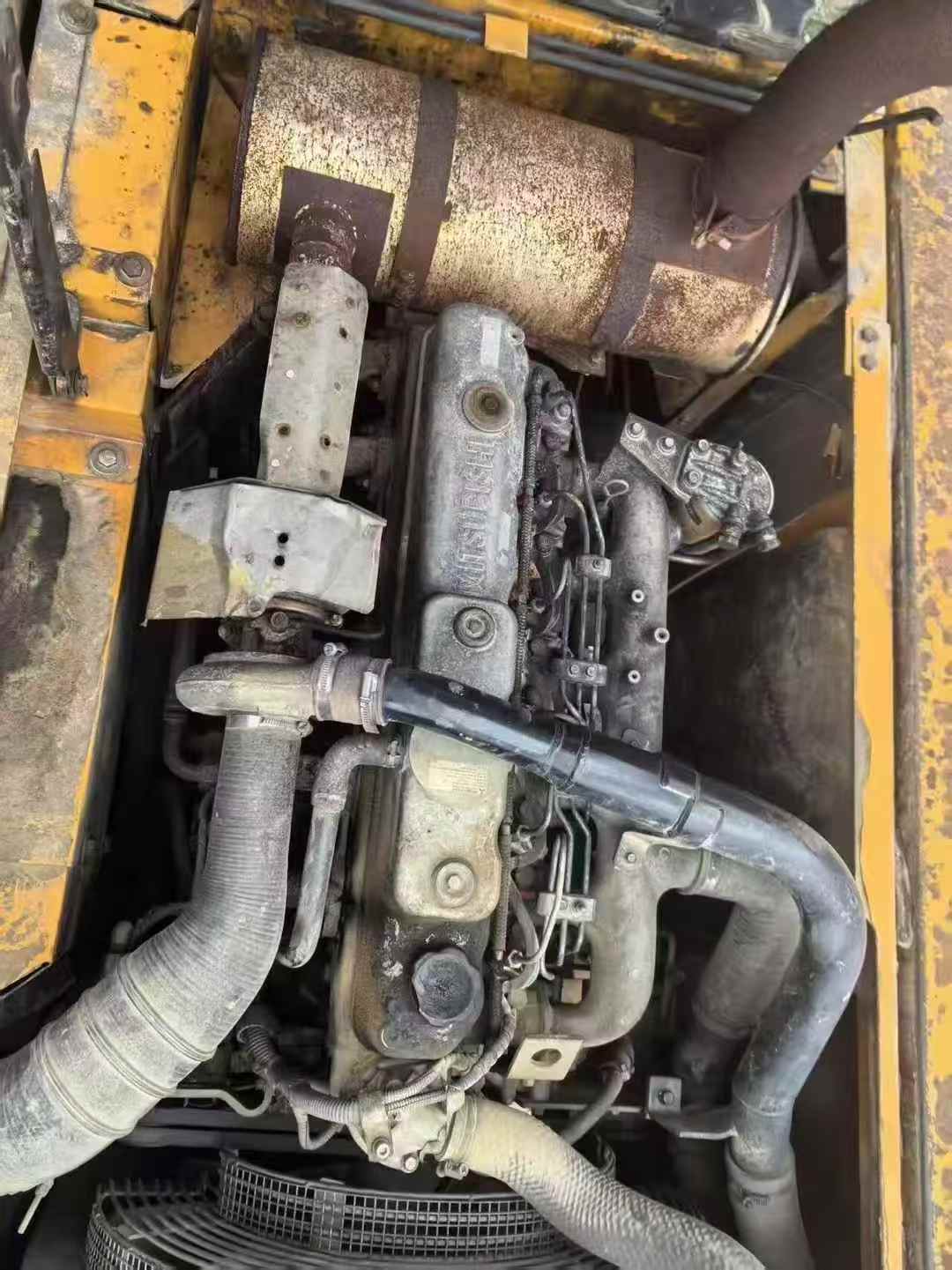

Used Sany SY215C-9 Excavator 2016 Model / 4

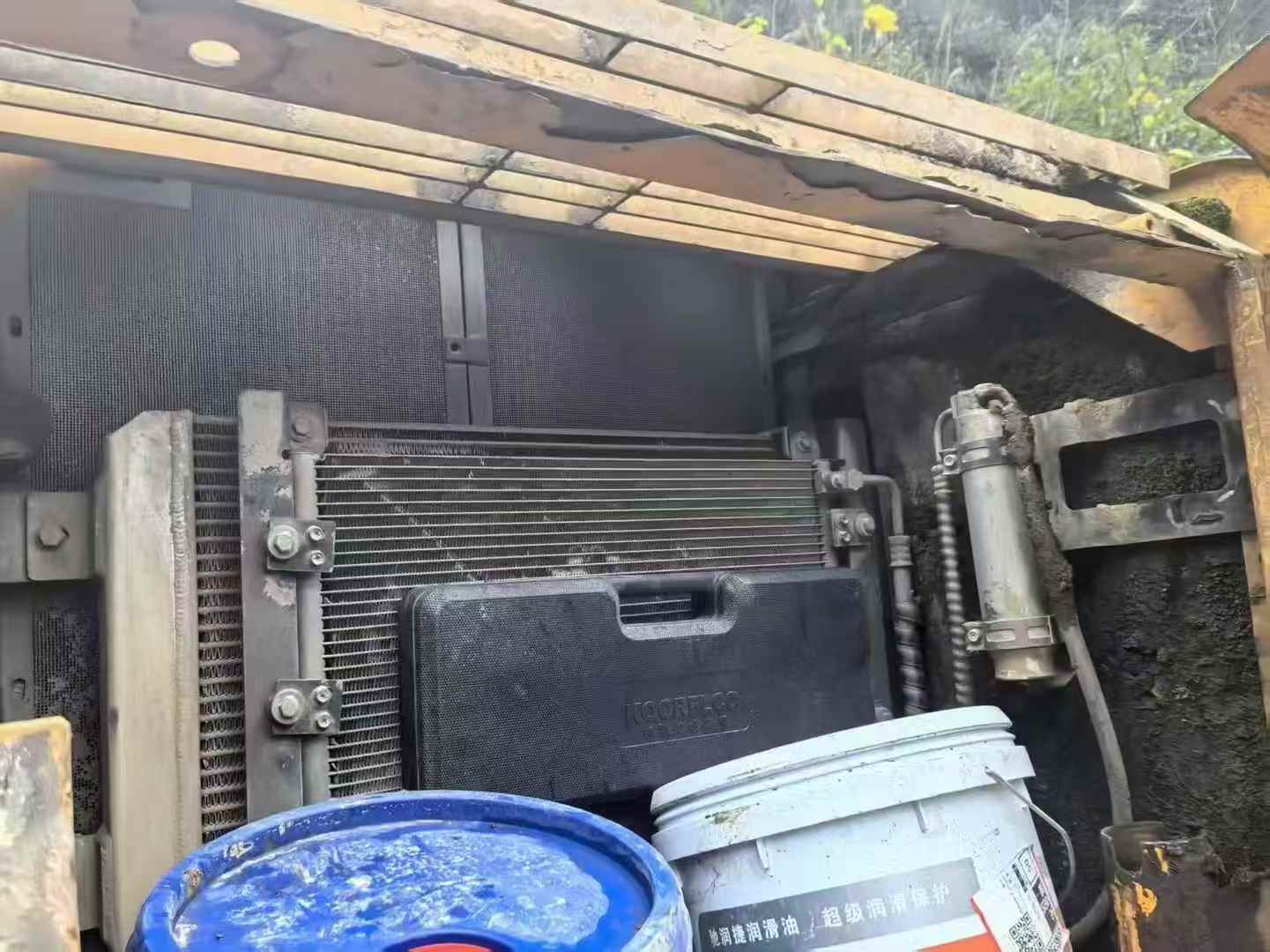

Used Sany SY215C-9 Excavator 2016 Model / 5

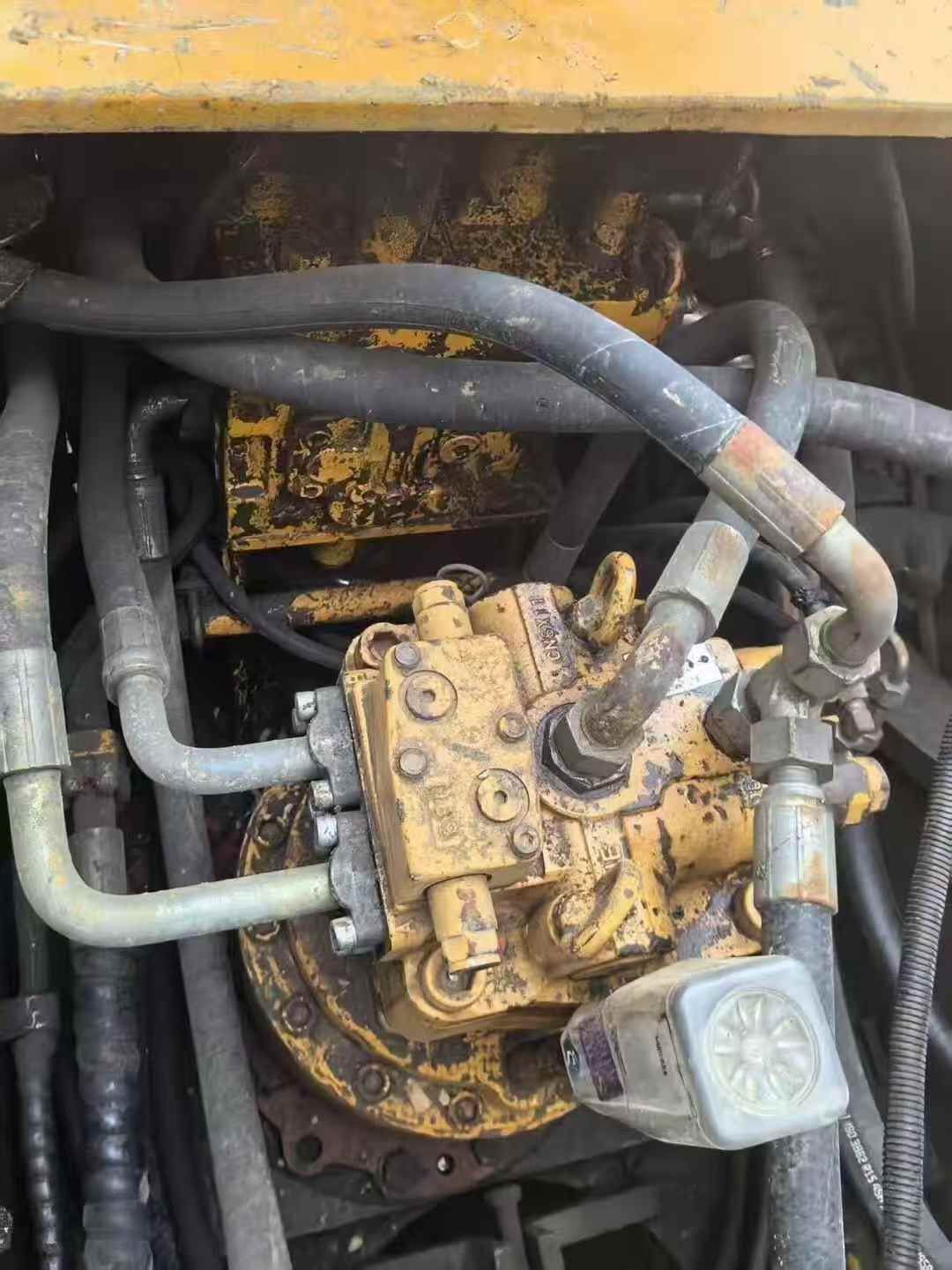

Used Sany SY215C-9 Excavator 2016 Model / 6

Product Description

This second-hand Sany 215-9 excavator, with a usage record of 63,000 hours, is one of the most favored medium-sized excavators in the market. It is equipped with an efficient and reliable engine (expected to be an original Sany or a high-performance diesel engine from a well-known brand), with strong and stable output power, ensuring sufficient power support under various working conditions. In terms of the hydraulic system, this equipment is equipped with an advanced variable piston pump and a high-efficiency hydraulic motor combination, which can achieve precise and rapid operation response. Whether it is excavation or loading operations, it can handle them with ease. As a classic model that has been verified by the market, the Sany 215-9 has won the trust of many users with its outstanding working performance, excellent durability and good maintenance convenience. Its sturdy structural design and high-quality material selection ensure that the entire machine can maintain a long-term stable operating state even in harsh environments. In addition, the spacious and comfortable cab layout, combined with the humanized control interface design, has greatly enhanced the operator's comfort and work efficiency. In conclusion, for those buy

SpecificationsValue
No.976978
Tonnage (tons)21
Working weight (kg)21800
Bucket capacity (m³)0.93 (0.8~1.2)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)46.5
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)2990
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3595
Back end turning radius (mm)2890
Onboard width (mm)2710
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600 (800/700 optional)
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9950
Maximum digging depth (mm)6600
Maximum excavation height (mm)9570
Maximum unloading height (mm)6700
Maximum vertical digging depth (mm)5800
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9885
see more

Overview

No.976978

Brand Name:

Sany

Model Number:

SY215C-9

Year:

2016

Location:

Guizhou China
