| Specifications | Value |
|---|---|
| No. | 963234 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23000 |
| Bucket capacity (m³) | 1.35 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Deutz TCD5.7/ Isuzu 4HK1 |
| Rated power (kw/rpm) | 129/2100; 128/2000 |
| Emission standard | Country IV |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Travel speed (km/h) | 5.6/3.5 |
| Total transport length (mm) | 9635 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 442 |
| Minimum turning radius of front working device (mm) | 3662 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2813 |
| Total track length (mm) | 4446 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7600 |
| Maximum digging radius (mm) | 9735 |
| Maximum digging depth (mm) | 6450 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6735 |
Description

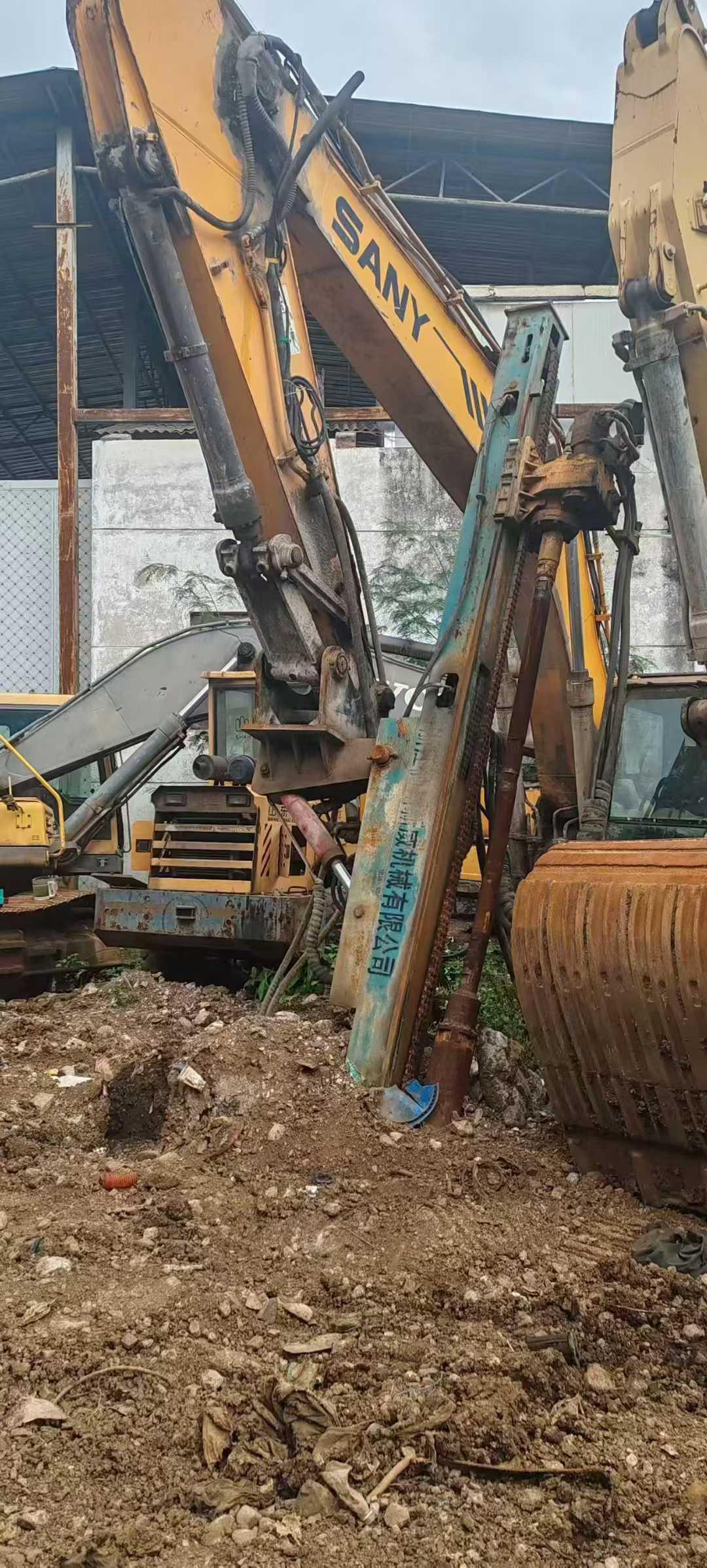

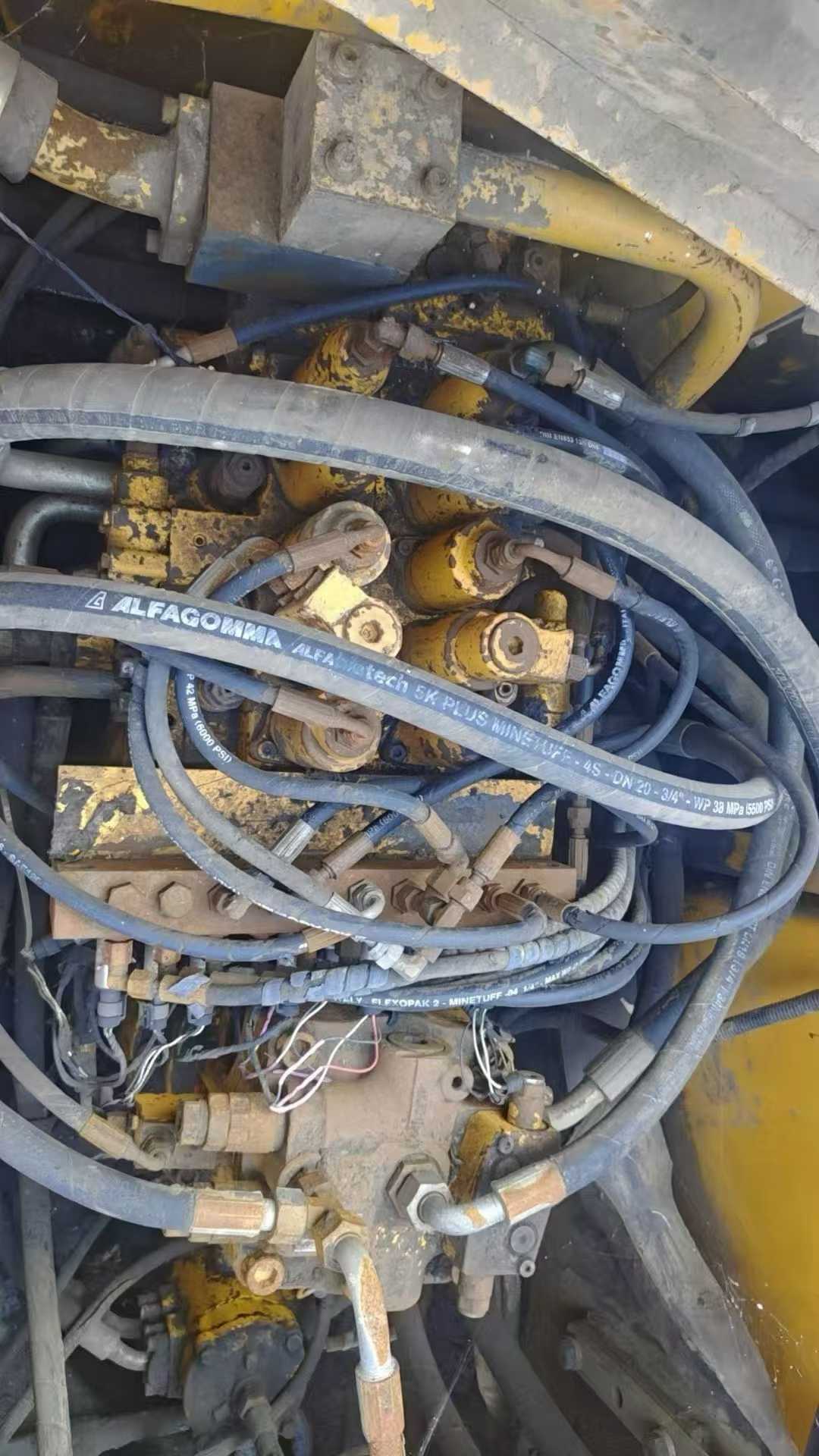

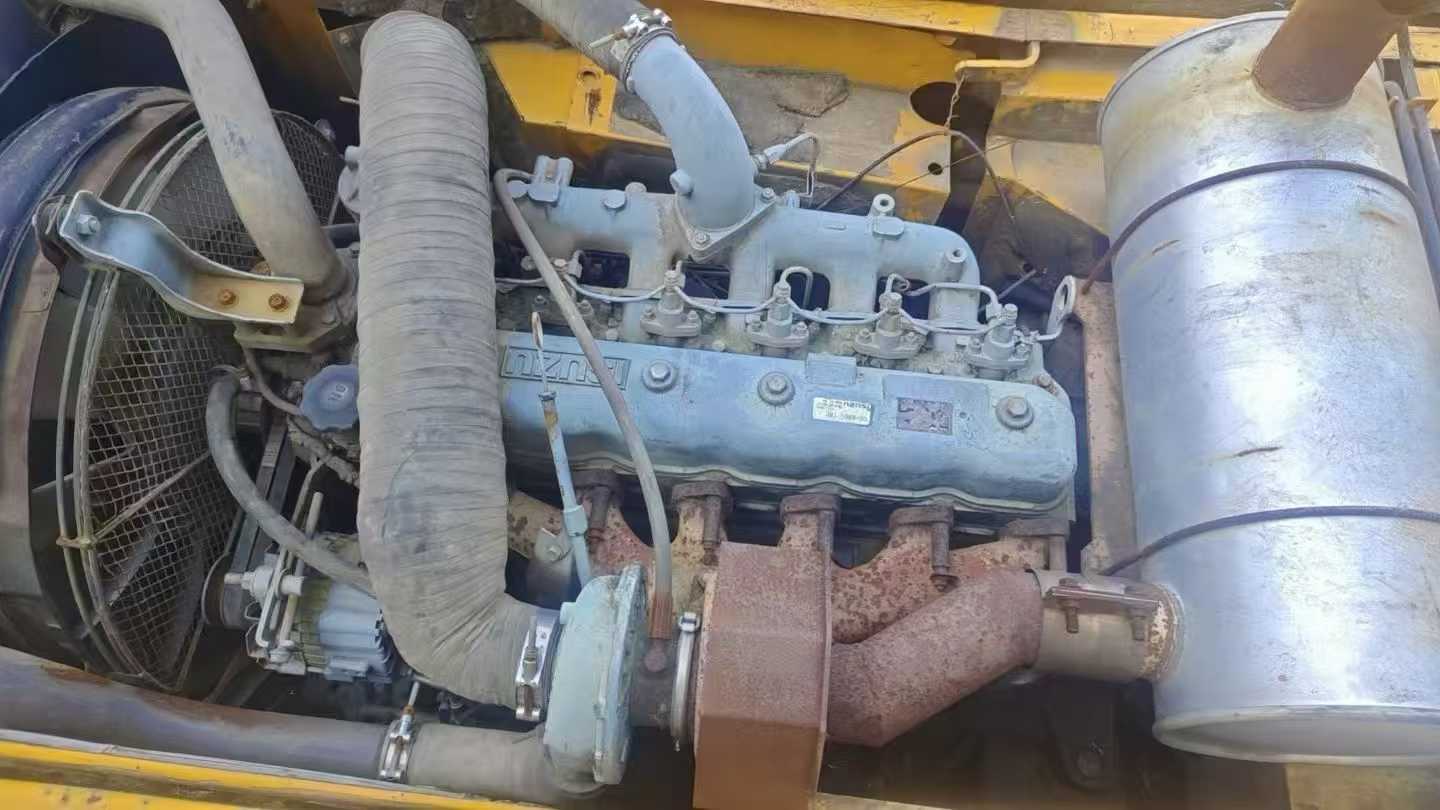

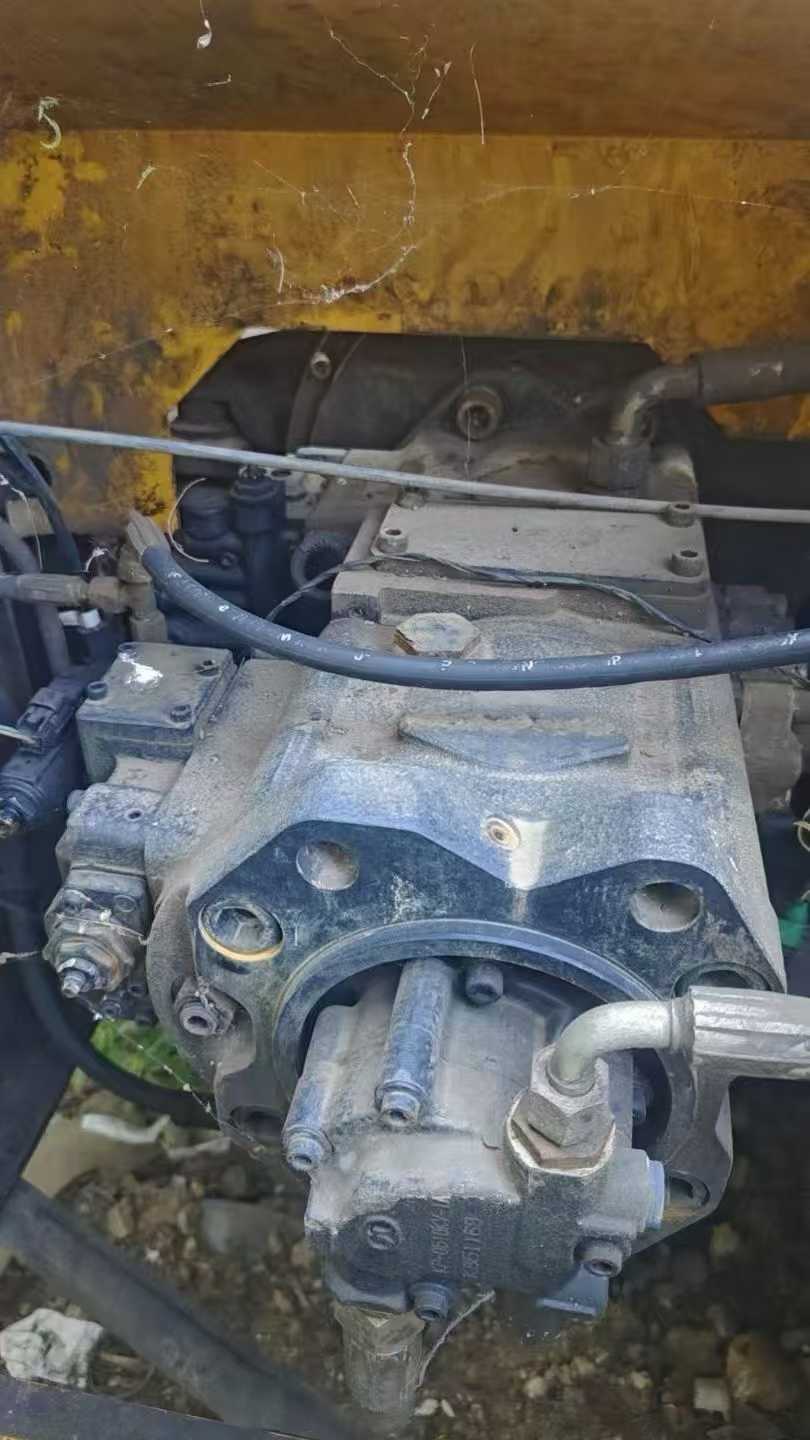

"Sany SY235 second-hand excavator, a cost-effective choice This second-hand Sany SY235 excavator is a very popular medium-sized excavator in the market. It is equipped with a powerful power system and an efficient hydraulic system, capable of easily handling various complex construction environments. Since its manufacture, the cumulative working time of this equipment has only been 4,000 hours, which is far lower than the average service life of similar models. However, its overall performance still remains at a relatively high level. In terms of power, this excavator is equipped with a Cummins engine that has been well-tested in the market. It is powerful and has good fuel economy, providing stable and reliable power output even under harsh working conditions. Its advanced hydraulic system, independently developed by Sany Heavy Industry, features fast response speed and high control accuracy, enabling it to handle both excavation and loading operations with ease. It is particularly worth mentioning that this excavator is also equipped with a professional drilling device (without a bucket), which is very suitable for special operation requirements such as rock crushing or foundation drilling. In addition, we have prepared detailed p
