| Specifications | Value |
|---|---|
| No. | 963797 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23000 |
| Bucket capacity (m³) | 1.35 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Deutz TCD5.7/ Isuzu 4HK1 |
| Rated power (kw/rpm) | 129/2100; 128/2000 |
| Emission standard | Country IV |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Travel speed (km/h) | 5.6/3.5 |
| Total transport length (mm) | 9635 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 442 |
| Minimum turning radius of front working device (mm) | 3662 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2813 |
| Total track length (mm) | 4446 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7600 |
| Maximum digging radius (mm) | 9735 |
| Maximum digging depth (mm) | 6450 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6735 |
Description

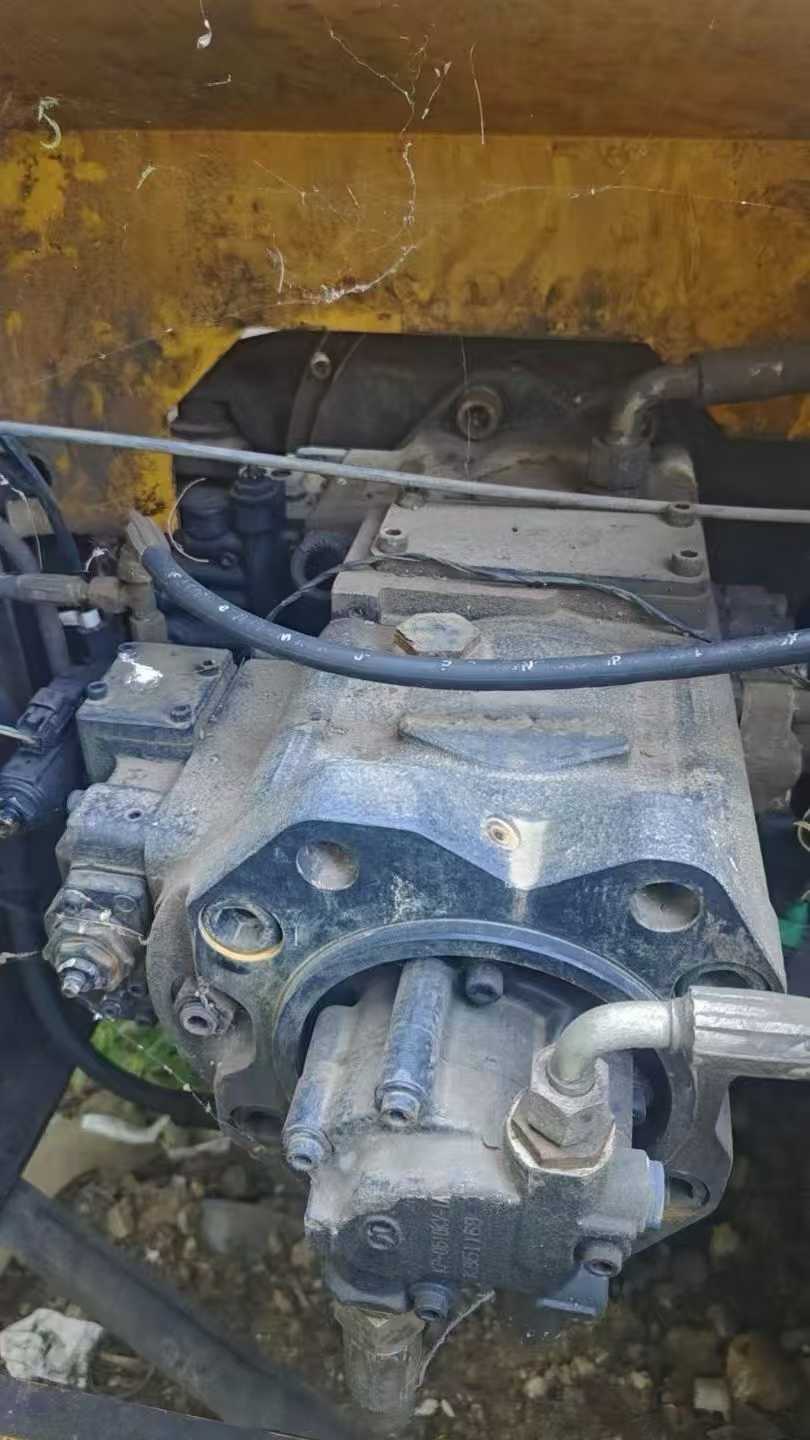

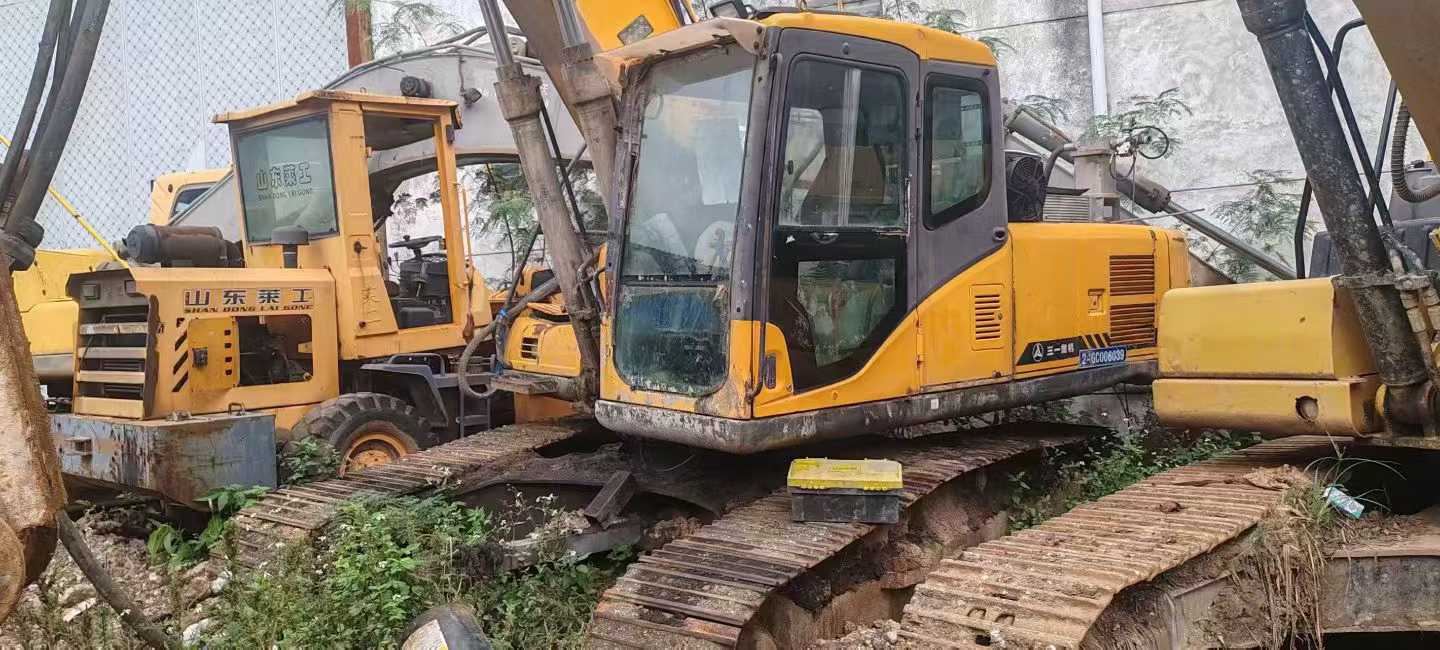

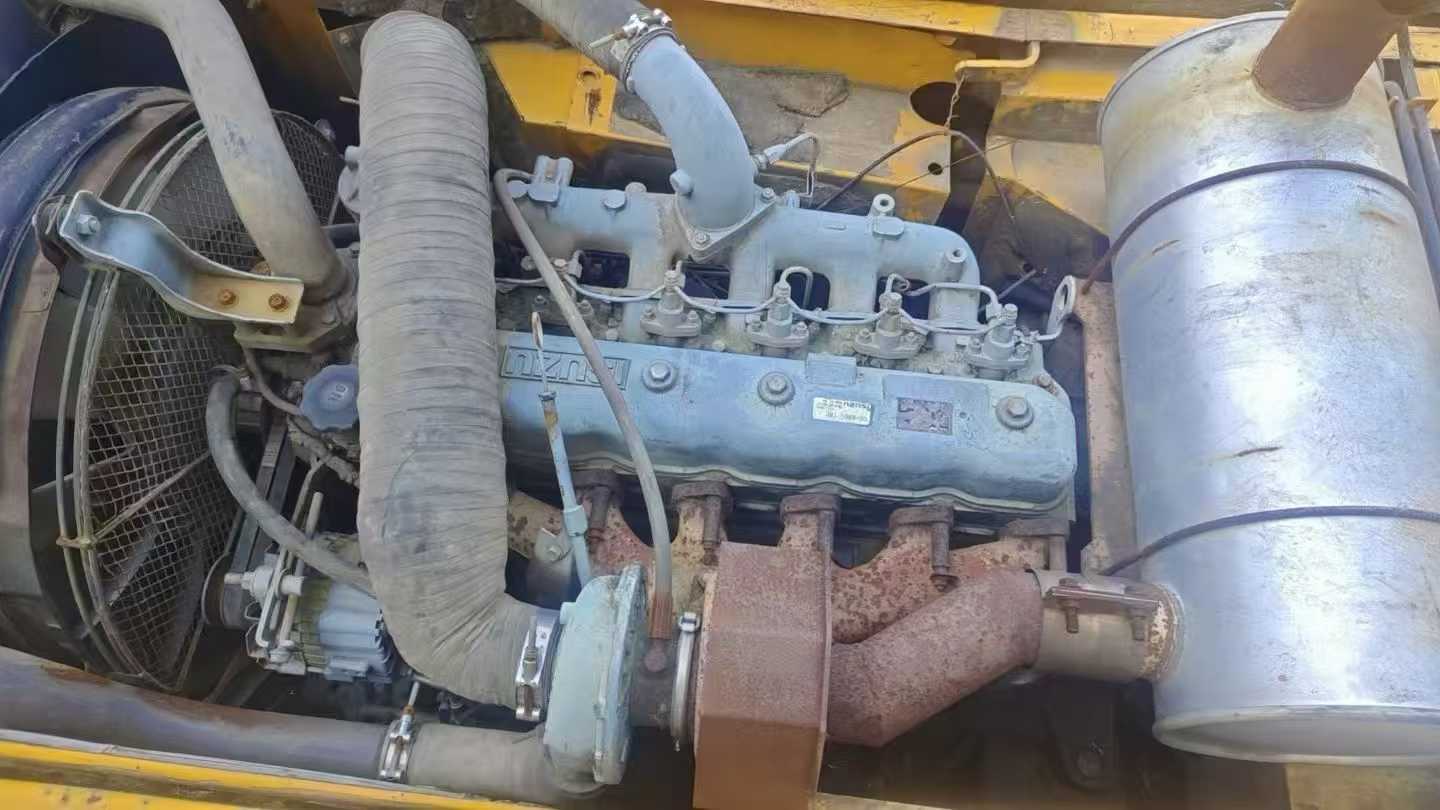

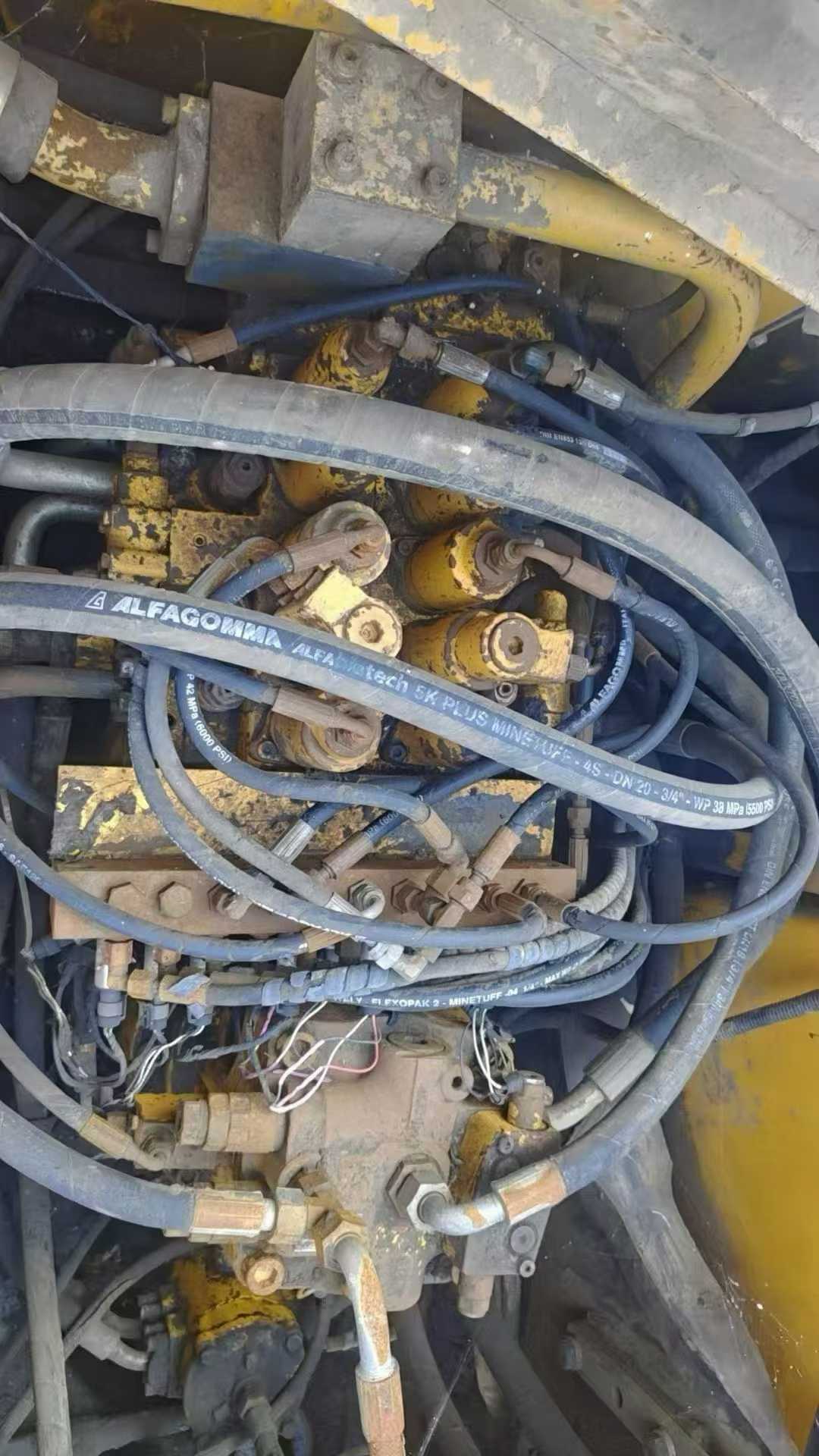

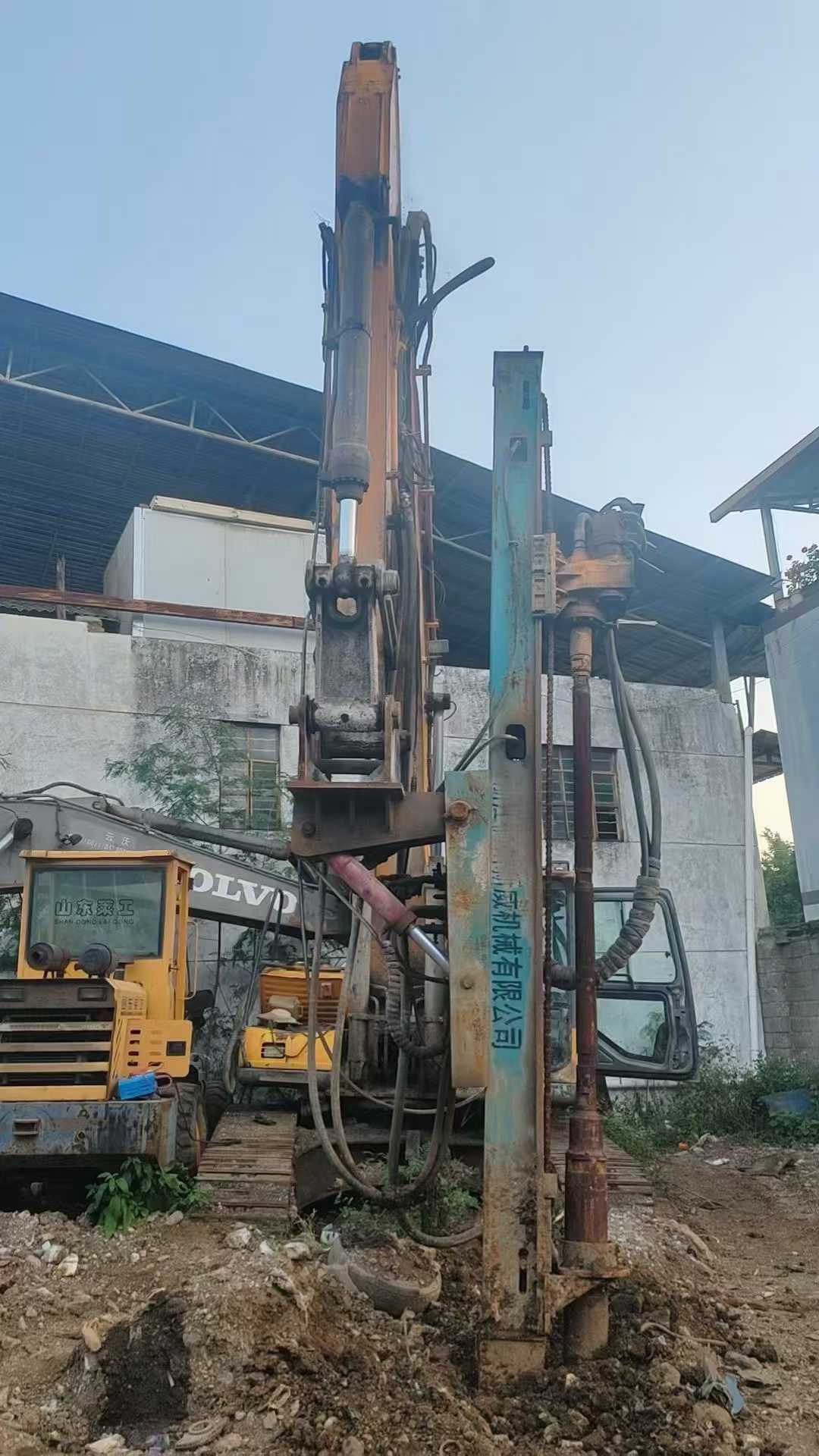

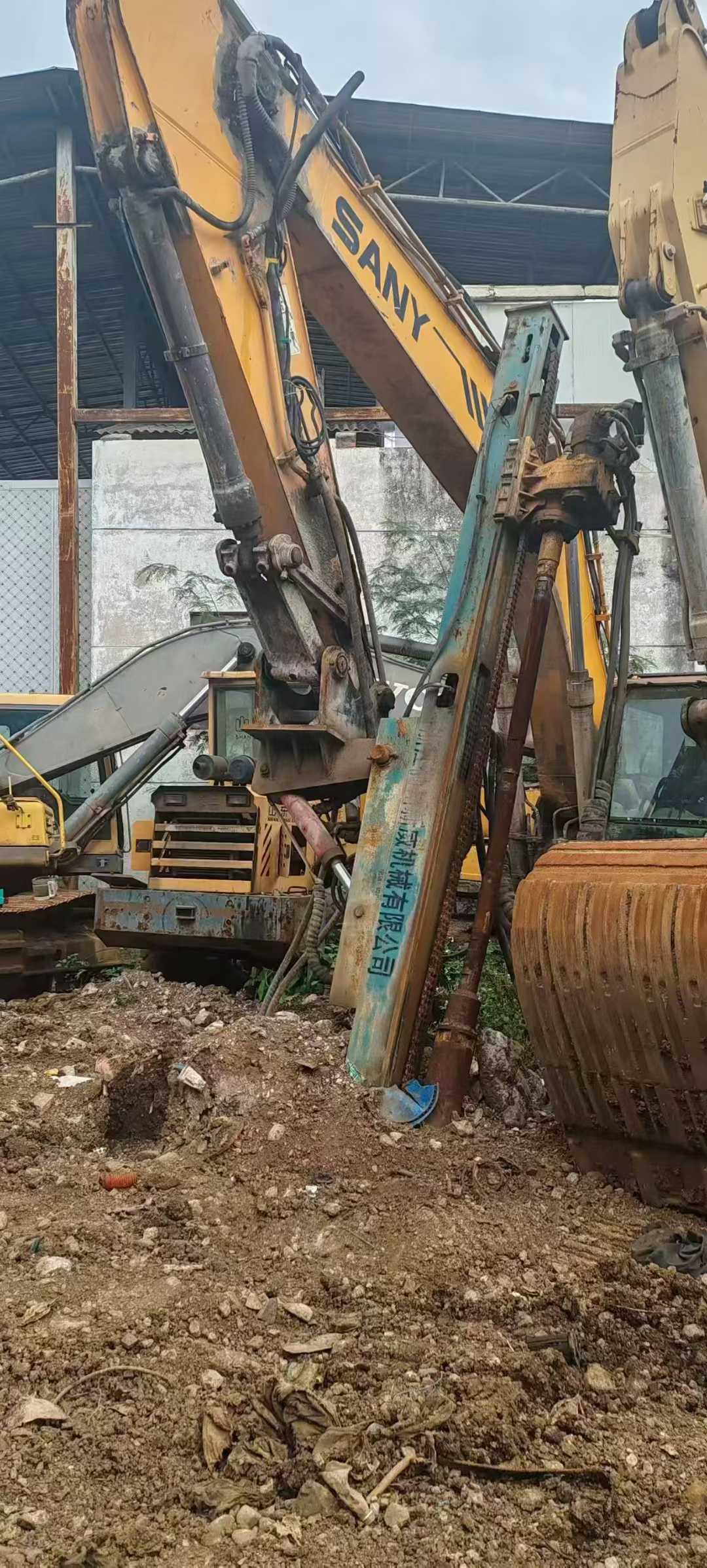

"Sany SY235 second-hand excavator This second-hand Sany SY235 excavator is a very popular medium-sized excavator in the market. It not only boasts outstanding performance and durability, but also comes with a special highlight at this sale - a drilling rig configuration (without a bucket). This means it is highly suitable for users who need to carry out rock crushing or hard stratum excavation operations. 【 Basic Information - Brand: Sany Model: SY235 - Working hours: Approximately 4,000 hours - Manufacturing year: 2017 "Power System This device is equipped with a highly efficient and energy-saving engine, ensuring strong power output while also taking fuel economy into account. After being tested by a professional team, the engine operates smoothly with no obvious oil leakage. It starts quickly, has a stable idle speed, and responds sensitively to acceleration, meeting the usage requirements under various working conditions. "Hydraulic System The advanced hydraulic control system makes the operation more precise and smooth, and it can handle both fine movements and heavy-load operations with ease. The pump and valve assembly is in good condition, with no abnormal noise and the pressure gauge showing normal, which proves that its i
