2015 Sany SY235H

1/6

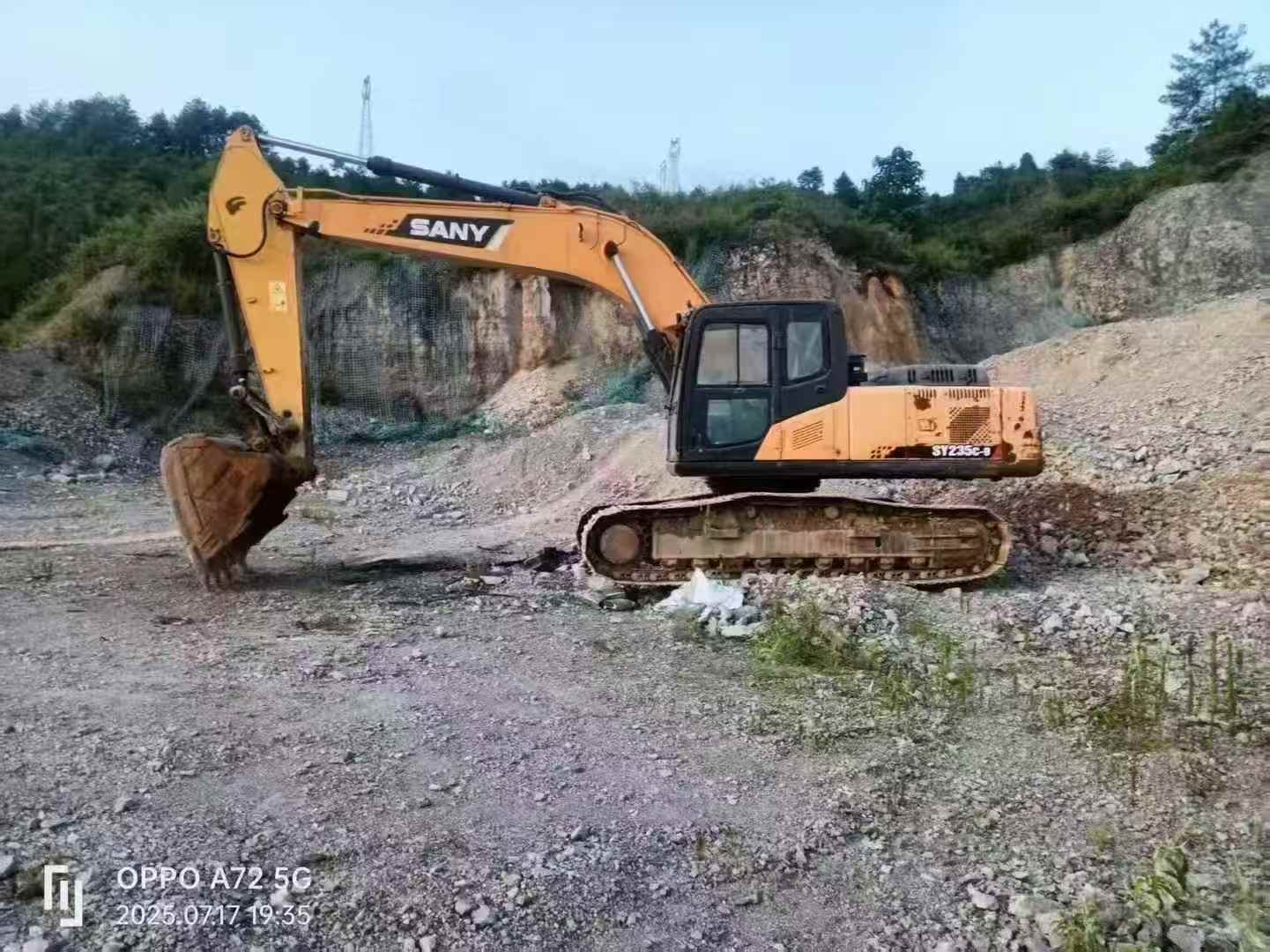

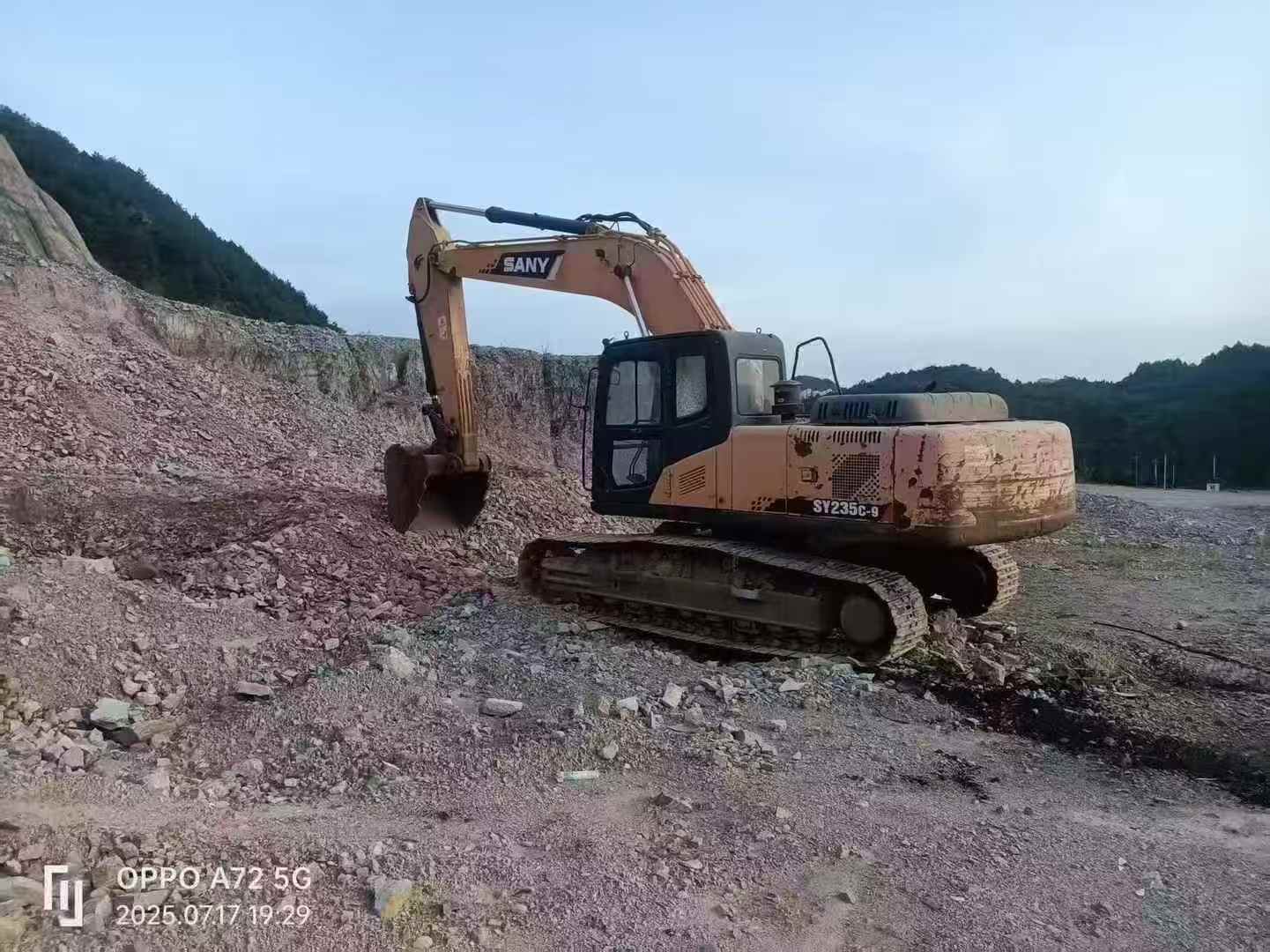

Used Sany SY235H Excavator 2015 Model / 1
Used Sany SY235H Excavator 2015 Model / 2
Used Sany SY235H Excavator 2015 Model / 3
Used Sany SY235H Excavator 2015 Model / 4
Used Sany SY235H Excavator 2015 Model / 5
Used Sany SY235H Excavator 2015 Model / 6

Product Description

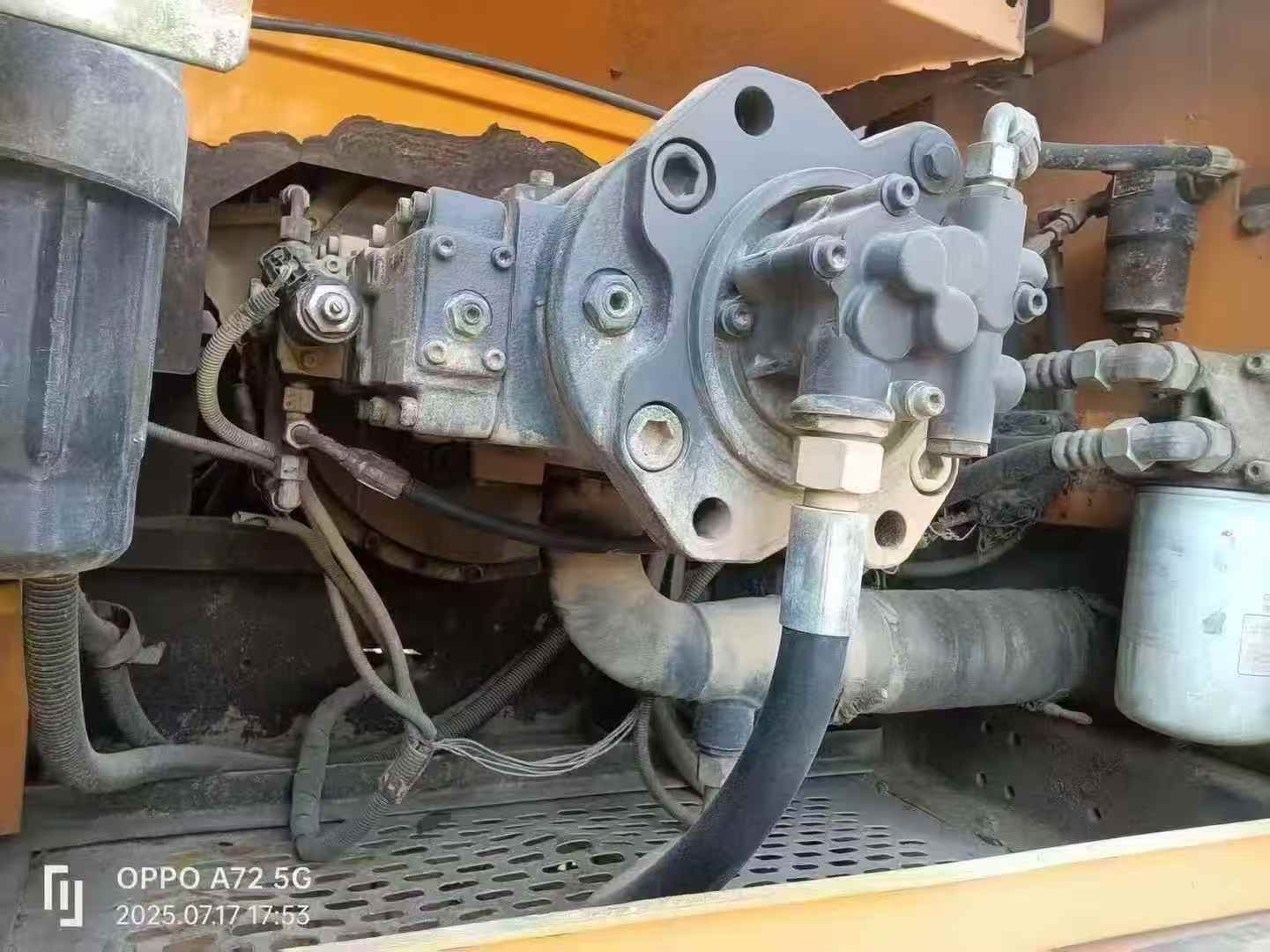

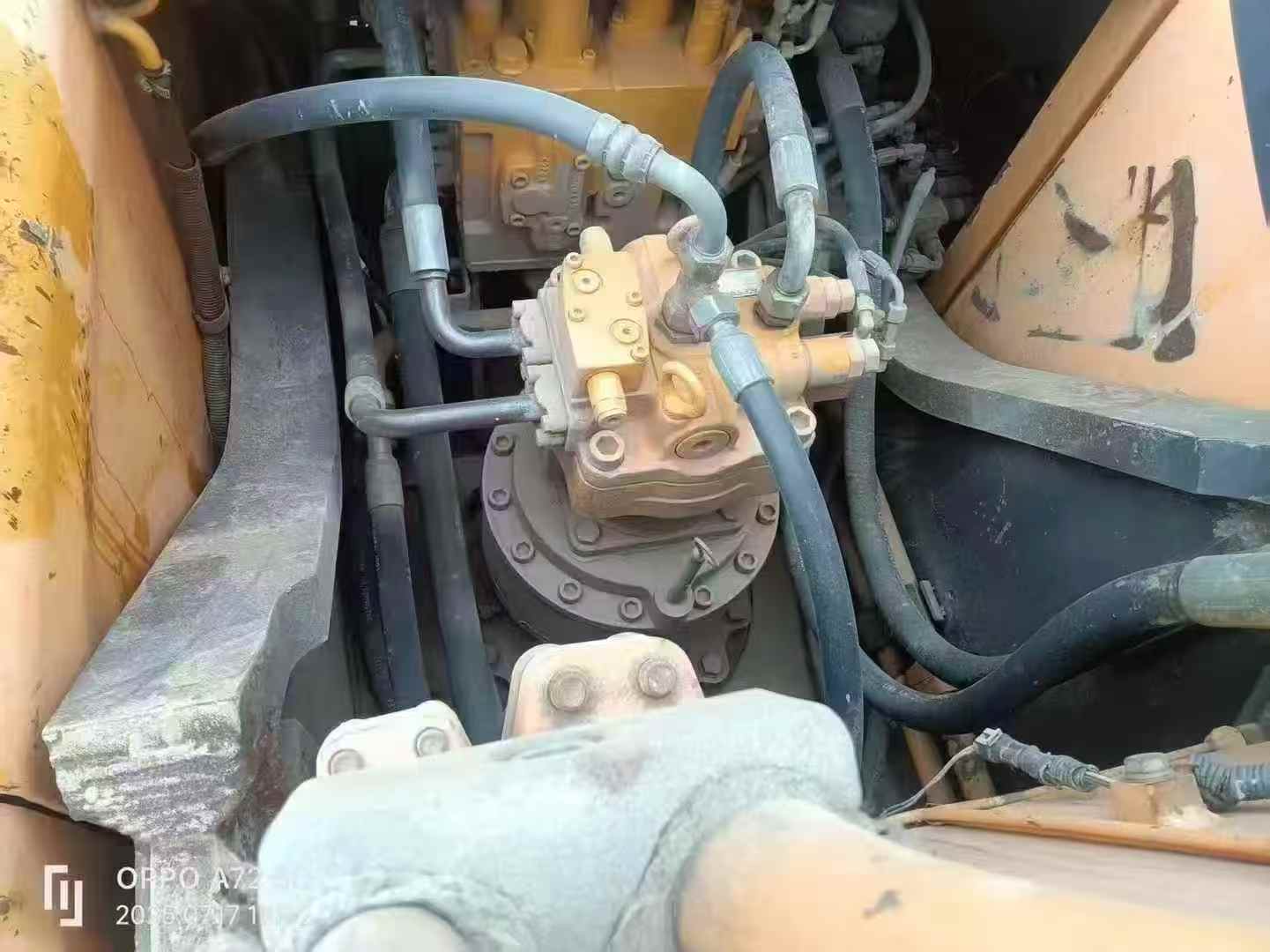

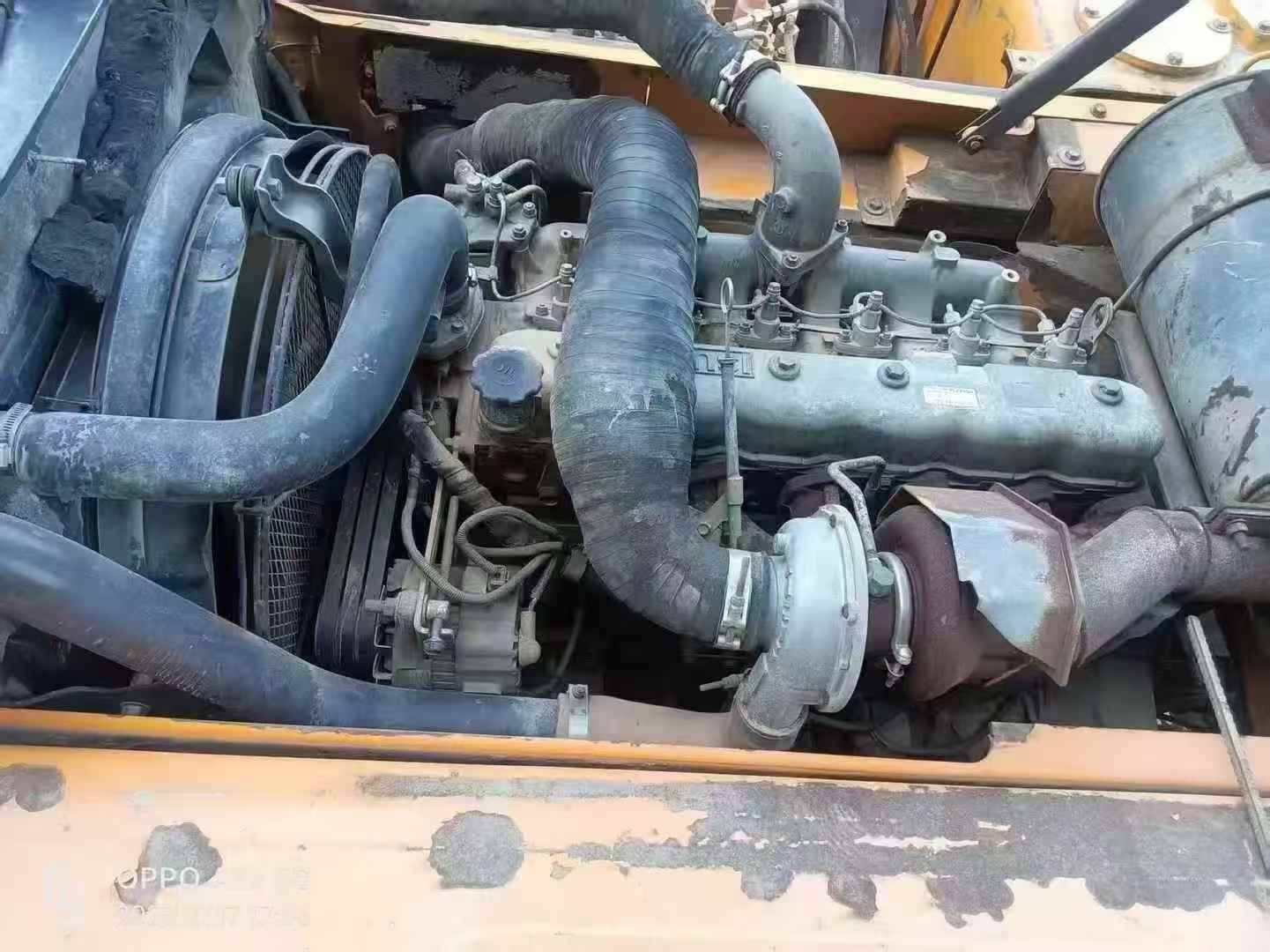

There is currently a second-hand Sany SY235 excavator of model 2015, with a working time of approximately 8,900 hours and stable and reliable performance. This machine is equipped with the well-tested Isuzu 6BG1TRP engine, which can deliver a maximum power of 129 kilowatts (approximately 174 horsepower). It is powerful and has excellent fuel economy, ensuring efficient operation under all working conditions. In terms of the hydraulic system, this Sany 235 is equipped with advanced negative flow control technology and a dual-pump and dual-loop open system. The main pump is a variable plunger pump, which can automatically adjust the flow rate according to the actual load, thereby achieving more precise operation response and higher work efficiency. In addition, the high-quality hydraulic motors and cylinders it is equipped with ensure smooth and stable operation of the entire machine. Even after long-term and high-intensity use, it can maintain a good working condition. As a medium-sized crawler excavator, the Sany SY235 not only features a spacious and comfortable cab design, but also boasts an excellent field of vision and ergonomic layout, enabling operators to complete tasks in a relaxed and pleasant environment. More importantly,

SpecificationsValue
No.976968
Tonnage (tons)23
Working weight (kg)23000
Bucket capacity (m³)1.35
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeDeutz TCD5.7/ Isuzu 4HK1
Rated power (kw/rpm)129/2100; 128/2000
Emission standardCountry IV
Ground specific pressure (Kpa)51
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)140
Rod digging force (kN)107
Travel speed (km/h)5.6/3.5
Total transport length (mm)9635
Total transport width (mm)2980
Total transport height (mm)3100
Full cab height (mm)3255
Minimum ground clearance (mm)442
Minimum turning radius of front working device (mm)3662
Back end turning radius (mm)2900
Onboard width (mm)2813
Total track length (mm)4446
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)7600
Maximum digging radius (mm)9735
Maximum digging depth (mm)6450
Maximum excavation height (mm)9470
Maximum unloading height (mm)6735
see more

Overview

No.976968

Brand Name:

Sany

Model Number:

SY235H

Year:

2015

Location:

Guizhou China
